Top » Piese de schimb » PIESE DEWALT » DW743 Type 5

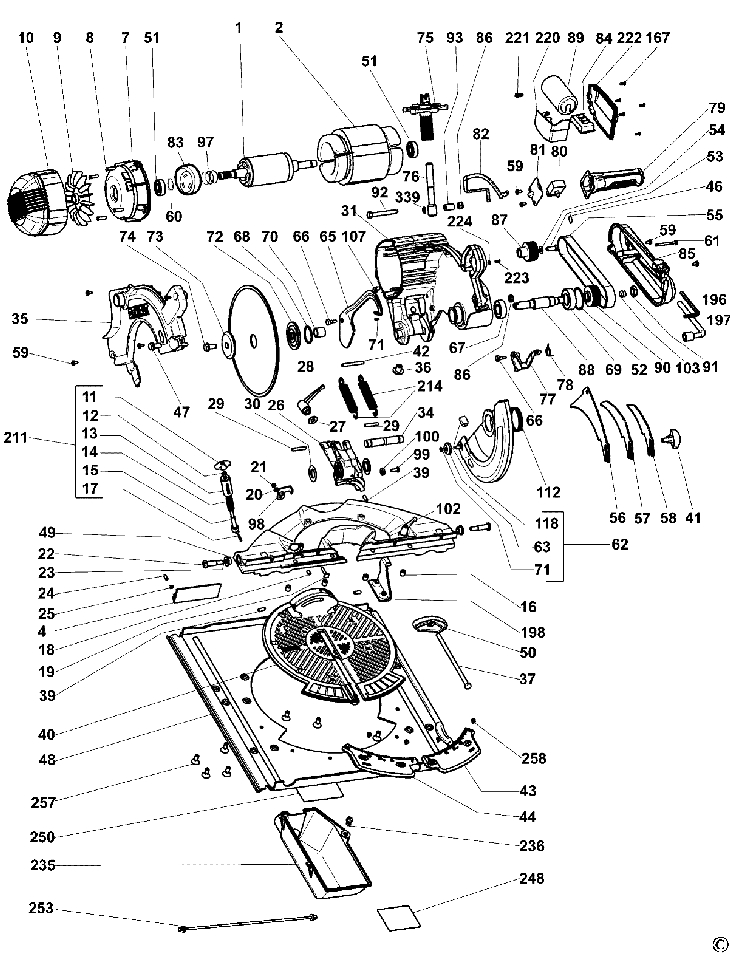

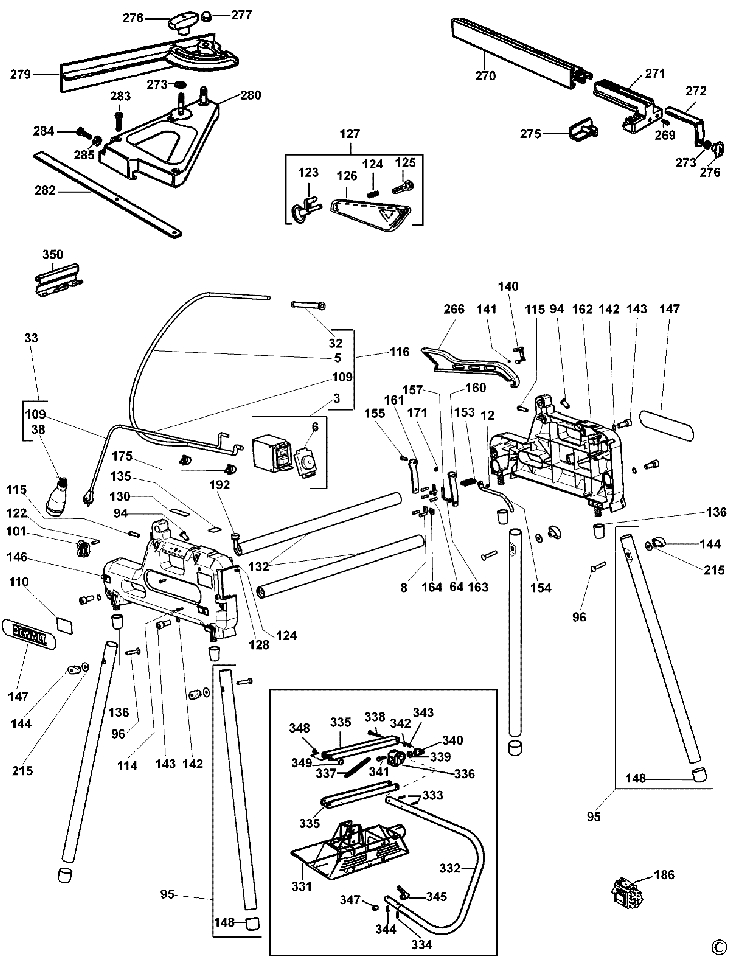

DW743 COMBINATION SAW Type 5
[DW743 Type 5]
DW743 COMBINATION SAW Type 5
Click pentru a mari
Imagini suplimentare
DW743 COMBINATION SAW Type 5
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 S/A ARMATURE BRAKE 230V. DW743N T.2 (868397-03) 59725 RON
1 1 1 S/A ARMATURE BRAKE 115V. DW743N T.2 (868397-04) 70239 RON
2 1 1 WOUND STATOR (868395-04) 102451 RON
2 1 1 STATOR V. 115 (868395-06) 129966 RON
3 1 1 TRIPUS PLUG 230/50 DW743N (SERVICE) (868180-03) 4825 RON
3 1 1 TRIPUS PLUG 115/50 173A6 (868180-02) 62298 RON
4 1 1 SLIDING RIPPING FENCE DW743N (869209-00) 4472 RON
5 1 1 MOTOR CABLE DW743N-QS (868179-02) 20467 RON
5 1 1 MOTOR CABLE 5X1 5 (868179-01) 34336 RON
6 1 1 SWITCH COVER (N377168) 5591 RON
7 1 1 REAR CALOTTE DW743N (869066-00) 10512 RON
8 1 2 Screw Metal (330045-15) 781 RON
9 1 1 FAN (942413-02) 3466 RON
10 1 1 MOTOR GUARD TGS273 (861036-02) 4472 RON
10 1 1 MOTOR GUARD TGS273 (861036-02) 4472 RON
11 1 1 WING NUT M6 (942453-00) 190 RON
12 1 1 HEX NUT M6-UNI5590 (949726-05) 558 RON
13 1 1 LOCATION BLOCK (861069-00) 5031 RON
14 1 1 COMPRESSION SPRING (761054-00) 558 RON
15 1 1 LOCK PIN (941798-00) 190 RON
16 1 6 STUD (942329-00) 558 RON
17 1 1 SPRING PIN 3X10 DIN1481 (761065-00) 558 RON
18 1 1 SOCKET SCREW TYPE-A (949853-03) 558 RON
19 1 1 THREADED STUD (869212-00) 190 RON
20 1 1 WASHER (939625-00) 558 RON
21 1 1 NUT ELAST.STOP M.5 UNI 7474 (860092-04) 558 RON
22 1 2 VITE COLLETTO D10X25 M8X16 T40 (616592-00) 1117 RON
23 1 2 BUSH (607182-00) 781 RON
24 1 1 SCREW (150075-00) 781 RON
25 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
26 1 1 JOINT FOR DW743N (869085-00) 1891 RON
27 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
28 1 1 LEVER DW250-DW252 (949884-01) 4137 RON
29 1 2 PIN GROOVE 6X36 (869205-01) 1117 RON
30 1 2 PLASTIC WASHER (148296-00) 781 RON
31 1 1 S/A ARM + SHAFT DW743 A4 FN (869217-00) 102451 RON
32 1 2 SLEEVE D.12 (942277-00) 2347 RON
33 1 1 SA LINE CABLE 115V (868181-08) 32770 RON
34 1 1 JOINT AXLE (869087-00) 2795 RON
35 1 1 CARTER DW743N (869089-00) 9282 RON
36 1 1 DAMPER DW743N (869123-00) 781 RON
37 1 1 SCREW (860085-32) 2795 RON
38 1 1 PLUG V.115-16A (865975-00) 9282 RON
39 1 2 SCREW (949743-01) 105 RON
40 1 1 ROTATING TABLE DW743N SERVICE (869230-00) 49771 RON
41 1 1 KNOB (861452-02) 781 RON
42 1 1 PIN GROOVE 6X50 (869205-00) 1452 RON
43 1 1 PLASTIC ELEMENT X TABLE DW743N (RIGHT ) (869179-00) 3018 RON
44 1 1 PLASTIC ELEMENT X TABLE DW743N (LEFT) (869179-01) 3018 RON
46 1 1 TARGHETTA ATTENZIONE D27105 (623289-00) 105 RON
47 1 1 SCREW TCE M8X20 (869245-01) 893 RON
47 1 1 SCREW HEX E M8X20 DIN6921 (869198-00) 558 RON
48 1 1 IRON SHEET TABLE (N060145) 86681 RON
49 1 1 FENCE DW743N+SCREWS (869127-00) 45297 RON
50 1 1 869224-00 - Indisponibil
51 1 2 BEARING BALL ISO 6202 ISB (861721-15) 3466 RON
52 1 1 GUIDE (869090-00) 781 RON
53 1 1 SCREW M6X16 UNI5739 (860085-28) 558 RON
54 1 1 WASHER DEB 6X18X1 7 (861983-01) 781 RON
55 1 1 BELT PV-PJ6 (869094-02) 4472 RON
56 1 1 RIVING KNIFE DW743N (869096-00) 11519 RON
56 1 1 RIVING KNIFE DW743N (869096-00) 11519 RON
59 1 8 SCREW (330045-49) 558 RON
60 1 1 RETAINING RING D.20 (949727-06) 558 RON
61 1 1 VITE TCBPH M5X50 UNI8112 (869196-00) 781 RON
62 1 1 SA SWINGING PROTECTION DW743N (868216-02) 17335 RON
63 1 1 ROLLER (146774-00) 1117 RON
64 1 7 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
65 1 1 PROTECTION LEVER DW743N (869119-00) 5591 RON
66 1 2 N399933 - Indisponibil
67 1 1 BALL BEARING (330003-16) 3466 RON
67 1 1 BEARING 6203 2RSH/LHT23 (868768-09) 4137 RON
68 1 1 RING SPRING SHAFT D38 UNI7435 (860079-05) 781 RON
69 1 1 BEARING BALL ISO 6204-2Z (860155-08) 6821 RON
70 1 1 SPACER BUSH (869116-00) 2124 RON
71 1 1 RING SPRING S.LOCK D.4 (860077-01) 558 RON
72 1 1 FLANGIA INTERNA D27201 (616319-00) 5031 RON
73 1 1 CLAMP OUTER (604765-00) 3466 RON
74 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
74 1 1 SCREW (869245-00) 4137 RON
75 1 1 WHEEL (869099-00) 6821 RON
76 1 1 THREADED STUD M14+PIN (869115-00) 3018 RON
77 1 1 UNLOCK GUARD LEVER DW743N (869118-00) 2347 RON
78 1 1 SPRING (869188-00) 781 RON
79 1 1 HANDLE DW743N (869117-00) 3466 RON
80 1 1 SWITCH 1281.0116-00 (868182-01) 7940 RON
81 1 1 COVER (869185-00) 893 RON
82 1 1 CONNECTION CABLE 230V DW743N (942467-04) 3466 RON
82 1 1 CONNECTION CABLE 115V DW743N (942467-05) 4472 RON
83 1 1 CAP D.60 5+BUSH (861336-05) 5031 RON
84 1 1 WAY CONN. BAR 4 (869186-00) 3018 RON
84 1 1 WAY CONN. BAR 6 (942508-00) 7940 RON
85 1 1 CASING DW743N (869122-00) 5031 RON
86 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
87 1 1 PULLEY DW743N (869093-02) 5591 RON
88 1 1 BLADE SHAFT DW743N (869092-00) 7940 RON
89 1 1 CAPACITOR (949772-51) 6821 RON
89 1 1 CAPACITOR (949772-49) 12861 RON
90 1 1 PULLEY DW743N (869093-03) 5591 RON
91 1 1 NUT ARBOR M.14X1.5 (869221-00) 781 RON
92 1 1 SCREW M8X65 UNI5737 (860086-13) 781 RON
93 1 1 SPACER (869222-00) 781 RON
94 1 1 FLAT FILLISTER HEAD SCREW (949701-05) 558 RON
95 1 4 LEG+FOOT S/A (869199-00) 7940 RON
96 1 1 SQUARE HEAD BUTTON SCREW M8X50 (949891-03) 781 RON
97 1 1 SPRING (861338-05) 781 RON
98 1 1 CONNECTION TABLE PLATE DW743N (863257-01) 1452 RON
99 1 1 BEARING PIN (861989-00) 1229 RON
100 1 1 BEARING 625-2Z (949719-04) 190 RON
101 1 1 CLAMP CORD (869064-00) 893 RON
101 1 1 RELIEF STRAIN HEYCO SR7P-2 (605601-00) 893 RON
102 1 1 LEVER (869058-01) 5031 RON
103 1 1 SPRING DW743N (869246-00) 781 RON
107 1 1 SLIDE FOR SWING. PROTECT.TGS (861991-00) 781 RON
109 1 1 SA LINE CABLE DW743N-UK (868181-10) 14315 RON
109 1 1 LINE CABLE TGS173A6 UK115 (868181-07) 22144 RON
110 1 1 RATING PLATE DW743N T.2 230V (869124-03) 1788 RON
110 1 1 RATING PLATE DW743N T.2 230V (869124-03) 1788 RON
110 1 1 RATING PLATE DW743N T.2 115V (869124-04) 2795 RON
112 1 1 SPRING D.52 (861988-00) 1229 RON
114 1 2 SCREW PAN PHAB 4.2X22 UNI6954 (860084-09) 558 RON
115 1 2 SCREW FIL.HD M8x35 DIN84 ZN (860089-41) 558 RON
116 1 1 TRIPUS PLUG 240/50 (869121-01) 117887 RON
116 1 1 TRIPUS PLUG 115/50 DW743N (869121-02) 112630 RON
118 1 2 BUMPER (861095-01) 781 RON
122 1 1 SCREW RD HD M5X40 (861090-00) 558 RON
123 1 1 PROTECTION KNOB (N162670) 781 RON
124 1 1 SPRING (941622-00) 558 RON
125 1 1 SCREW PAN.PHAB 3.9X13 UNI6954 (860084-11) 558 RON
126 1 1 BLADE GUARD DW711/DW743N (N162669) 5591 RON
127 1 1 S.A.GUARD DW743N T.4 (N164678) 1891 RON
128 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
130 1 1 WARNING LABEL (610710-00) 1117 RON
132 1 1 TUBE D32X583 DW743 (861074-01) 6821 RON
135 1 1 LABEL WARNING D27105 (626191-00) 1229 RON
136 1 4 RUBBER CAP (942375-00) 781 RON
140 1 1 MOLLA SPINGIPEZZO (615994-00) 781 RON
141 1 1 SCREW (98093-76) 558 RON
142 1 4 WASHER LOCK A 12.5 UNI1751 (98197-08) 558 RON
143 1 4 SCREW DIN 912 (942447-00) 781 RON
144 1 4 WING NUT M8 (941756-00) 1229 RON
146 1 1 SIDE LH (N156120) 39145 RON
147 1 1 SIDE NAMEPLATE DW743N (869125-00) 2347 RON
148 1 4 BASE FOOT D.32 TGS273 (861073-00) 5591 RON
153 1 2 SPRING (942522-00) 558 RON
154 1 1 SAFTEY CATCH (942098-00) 5031 RON
155 1 1 MACHINE SCREW (942185-00) 781 RON
157 1 2 HOLDING BRIDGE (942104-00) 781 RON
160 1 1 LOWER ELEMENT (861071-00) 1788 RON
161 1 1 UPPER ELEMENT (861070-00) 1452 RON
162 1 1 SIDE RH (N156121) 40599 RON
163 1 1 LOCATING PIN (942365-00) 781 RON
164 1 2 WASHER (949876-08) 558 RON
167 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
171 1 2 WASHER FLAT 6.4X11 UNI6592 ZN (860073-07) 558 RON
175 1 3 SPRING (861091-00) 781 RON
186 1 1 TRIPUS CONTACTOR V.230 (868538-00) 26730 RON
186 1 1 TRIPUS CONTACTOR V. 115 (868538-02) 23598 RON
192 1 1 RUBBER M.8 (941614-00) 1452 RON
196 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
197 1 1 WRENCH HEX 6 UNI 6753 (869181-01) 2347 RON
197 1 1 DW 743 KEY (869181-00) 2795 RON
198 1 1 LOCK BRACKET TGS273 (861063-00) 4137 RON
211 1 1 LOCATION S.A. TGS273 (861084-00) 12861 RON
214 1 2 SPRING (869086-00) 3018 RON
215 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
220 1 1 TGS HOLDER (868428-01) 190 RON
221 1 1 BUSHING CABLE D8D18D14 (868431-00) 781 RON
222 1 1 HANDLE COVER TGS (868429-00) 190 RON
223 1 1 SCREW (98093-76) 558 RON
224 1 1 WASHER D4 (933652-00) 558 RON
235 1 1 BLADE PROTECTION TGS (945434-01) 9282 RON
235 1 1 UNDERGUARD (N060146) 7940 RON
236 1 2 FASTENER (868303-00) 105 RON
250 1 1 NAMEPLATE (861099-00) 781 RON
253 1 1 STRING (N060144) 190 RON
257 1 12 SCREW (868256-00) 558 RON
258 1 4 SCREW (949795-01) 105 RON
266 1 1 PUSH STICK (860610-01) 3466 RON
269 1 1 SCREW M14X30 (949743-03) 3466 RON
270 1 1 TGS PARALLEL GUIDE L.470 (942320-03) 22144 RON
271 1 1 SA GUIDE SUPPORT (861346-00) 22144 RON
272 1 1 SQUARE (942316-01) 3018 RON
273 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
275 1 1 .SQUARE (941819-01) 4137 RON
276 1 2 WING NUT M8 (941756-00) 1229 RON
277 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
279 1 1 GRADUATED SQUARE 173A6 (941578-01) 22144 RON
280 1 1 SCALE HOLDER (942172-00) 5591 RON
282 1 1 RAIL (942151-00) 5591 RON
283 1 2 SCREW FIL.HD M.6X25 UNI 6107 (860089-00) 558 RON
284 1 1 SCREW FLAT FILL.HD.M6X20 UNI61 (941518-00) 558 RON
285 1 1 NUT M6 (860083-12) 558 RON
