Top » Piese de schimb » PIESE DEWALT » DW733 Type 1A

DW733 PLANER THICKNESSER Type 1A
[DW733 Type 1A]
DW733 PLANER THICKNESSER Type 1A
Click pentru a mari
Imagini suplimentare
DW733 PLANER THICKNESSER Type 1A
Click pentru a mari
DW733 PLANER THICKNESSER Type 1A
Click pentru a mari

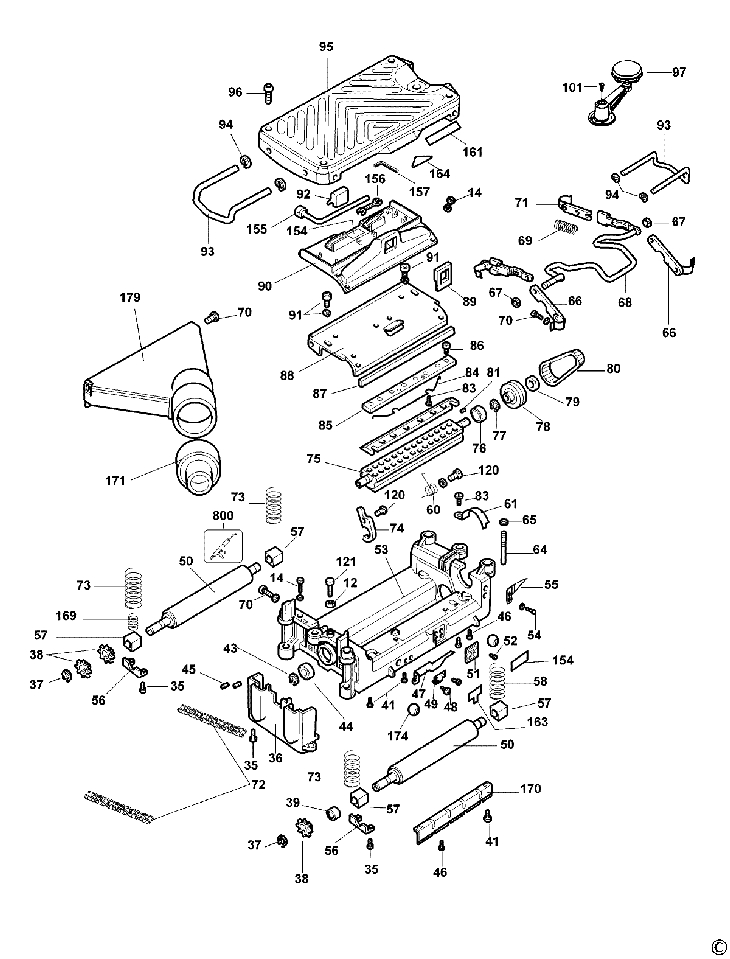

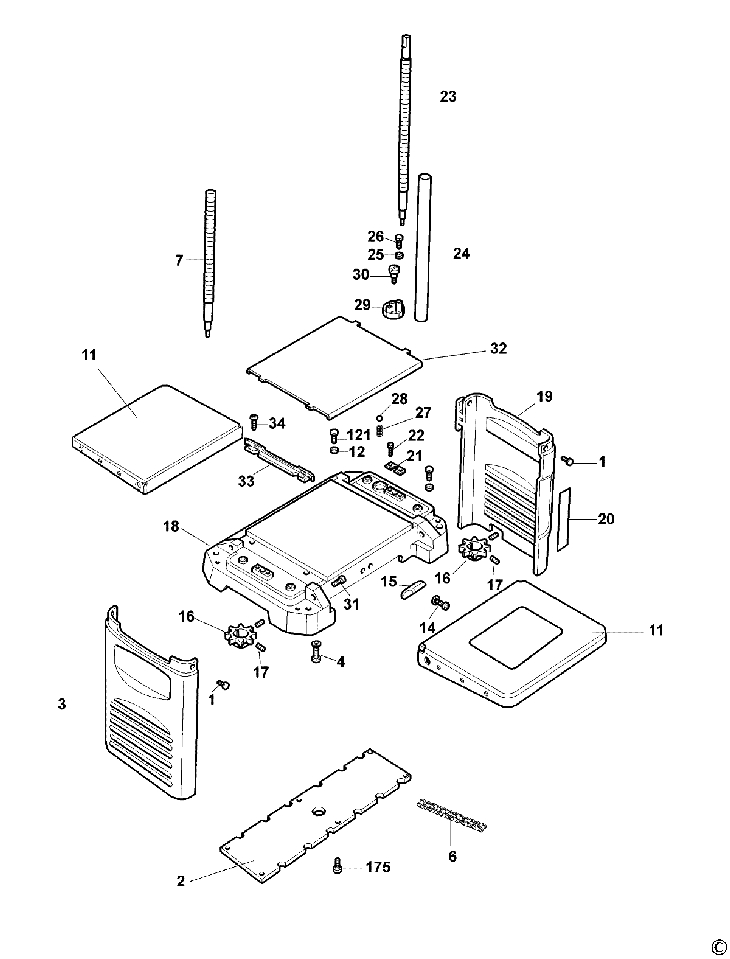

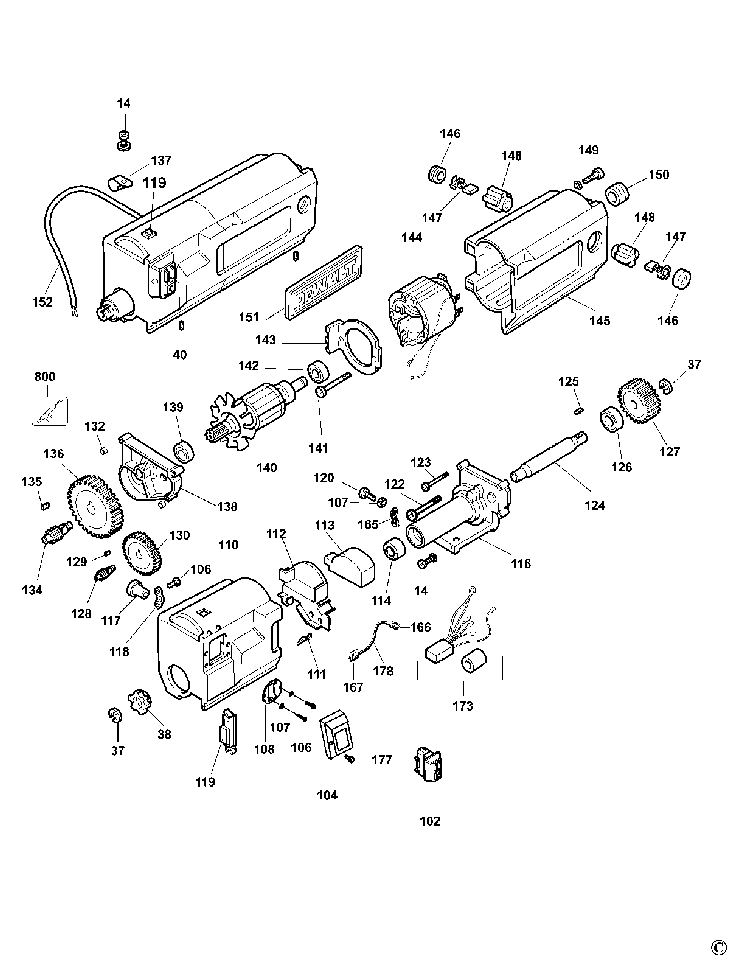

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (286052-00) 558 RON
2 1 1 PLATE (285895-00) 4472 RON
3 1 1 SIDE LH (285896-00) 6821 RON
4 1 4 SCREW SPECIAL dw733 (429699-00) 781 RON
6 1 1 CHAIN (429962-05) 5031 RON
7 1 1 SCREW (285899-00) 5031 RON
11 1 2 TABLE (285903-00) 28296 RON
12 1 6 NUT M6 (286256-00) 558 RON
14 1 15 SCREW (429669-00) 558 RON
15 1 2 PLATE (285907-00) 1117 RON
16 1 2 SPROCKET (285908-00) 3018 RON
17 1 4 SCREW (285909-00) 558 RON
18 1 1 BASE (429962-01) 9736 RON
19 1 1 SIDE RH (285911-00) 5591 RON
20 1 1 SCALE (285912-00) 2347 RON
21 1 2 PLATE (285913-00) 1117 RON
22 1 4 SCREW (285914-00) 781 RON
23 1 1 SCREW (285915-00) 5591 RON
24 1 4 STRUT (285916-00) 9282 RON
25 1 1 NUT M5 (285917-00) 558 RON
26 1 1 SCREW (98022-25) 558 RON
27 1 1 SPRING (285918-00) 781 RON
28 1 1 BALL STEEL (285919-00) 558 RON
29 1 1 TURRET (429613-00) 4472 RON
30 1 1 SCREW (285921-00) 105 RON
31 1 4 SCREW (285922-00) 893 RON
32 1 1 COVERPLATE (285923-00) 17335 RON
33 1 2 GUIDE (285924-00) 2124 RON
34 1 4 SCREW (285925-00) 558 RON
35 1 10 screw dw733 (429735-00) 558 RON
36 1 1 COVER (285926-00) 2124 RON
37 1 4 RETAINER (285927-00) 781 RON
38 1 4 SPROCKET (285928-00) 190 RON
39 1 1 COLLAR (285929-00) 781 RON
40 1 2 PIN (285930-00) 558 RON
41 1 2 SCREW.SPECIAL (429670-00) 558 RON
43 1 1 CIRCLIP (285933-00) 781 RON
44 1 1 BEARING (285934-00) 5591 RON
45 1 2 SCREW (285935-00) 781 RON
46 1 2 SCREW (285936-00) 781 RON
47 1 1 INDICATOR (285937-00) 190 RON
48 1 1 SCREW (285938-00) 893 RON
49 1 1 CONTACT PLATE (285939-00) 2347 RON
50 1 2 ROLLER (285940-00) 25164 RON
51 1 1 COVER (429612-00) 3018 RON
52 1 3 SCREW (330024-00) 558 RON
53 1 1 HEAD DW733 (285942-00) 86681 RON
54 1 1 SCREW (429962-02) 558 RON
55 1 1 POINTER (429962-06) 105 RON
56 1 4 BRACKET (285944-00) 105 RON
57 1 4 BUSH (285945-00) 190 RON
58 1 1 SPRING (285946-00) 105 RON
60 1 1 SPRING (285948-00) 781 RON
61 1 1 COVER (285949-00) 190 RON
64 1 1 STUD (285952-00) 1117 RON
65 1 1 NUT (285953-00) 558 RON
66 1 2 BRACKET (285954-00) 3466 RON
67 1 2 CIRCLIP (285955-00) 781 RON
68 1 1 CON ROD SA (285956-00) 20467 RON
69 1 2 SPRING (285957-00) 893 RON
70 1 7 SCREW.SPECIAL (429673-00) 558 RON
71 1 2 BRACKET (285959-00) 3466 RON
72 1 2 CHAIN (285960-00) 2795 RON
73 1 3 SPRING (285961-00) 1117 RON
74 1 1 PLATE (285962-00) 1229 RON
75 1 1 CUTTER BLOCK (285963-00) 80865 RON
76 1 1 BEARING (285964-00) 7940 RON
77 1 1 CIRCLIP (285965-00) 105 RON
78 1 1 PULLEY (5140010-22) 5031 RON
79 1 1 NUT (285967-00) 105 RON
80 1 1 BELT (429962-08) 20467 RON
81 1 1 KEY (285969-00) 781 RON
83 1 5 SCREW (285971-00) 781 RON
84 1 2 SPRING (285972-00) 781 RON
85 1 2 BLADE CLAMP (285973-00) 5031 RON
86 1 16 SCREW (285974-00) 781 RON
87 1 1 SEAL (285975-00) 781 RON
88 1 1 DEFLECTOR (285976-00) 12861 RON
89 1 1 SEAL (285977-00) 781 RON
90 1 1 TOOL TRAY (285978-00) 5591 RON
91 1 1 SCREW (429674-00) 558 RON
92 1 2 GAUGE (285980-00) 3466 RON
93 1 2 HANDLE (285981-00) 6821 RON
94 1 4 CLIP (285982-00) 558 RON
95 1 1 COVER HOUSING (285983-00) 32770 RON
96 1 4 SCREW (285984-00) 781 RON
97 1 1 HANDLE SA (429962-04) 10512 RON
101 1 1 SCREW (429962-03) 893 RON
102 1 1 SWITCH SA (429692-00) 22144 RON
102 1 1 SWITCH (5140005-02) 1891 RON
104 1 1 SWITCH COVER (429605-00) 105 RON
106 1 2 SCREW (285994-00) 558 RON
107 1 1 WASHER (285995-00) 558 RON
108 1 1 COVERPLATE (285996-00) 1452 RON
110 1 1 HOUSING SWITCH (285998-00) 9282 RON
111 1 3 PIN (285999-00) 558 RON
112 1 1 PLATE (286000-00) 105 RON
113 1 1 SEAL (286001-00) 781 RON
114 1 1 BEARING (286002-00) 5591 RON
116 1 1 GEARCASE SA (286003-00) 22144 RON
117 1 1 CORD PROTECTOR (286004-00) 781 RON
118 1 1 CORD CLAMP (286005-00) 781 RON
119 1 1 CIRCUIT BREAKER (429607-00) 4137 RON
119 1 1 CIRCUIT BREAKER (286006-00) 4472 RON
120 1 3 SCREW SPECIAL (429672-00) 558 RON
121 1 6 SCREW (286260-00) 558 RON
122 1 1 SCREW (286009-00) 781 RON
123 1 3 SCREW (286010-00) 781 RON
124 1 1 SPINDLE (286011-00) 5591 RON
125 1 1 WOODRUFF KEY (286012-00) 893 RON
126 1 1 BEARING (286013-00) 5591 RON
127 1 1 GEAR (286014-00) 7940 RON
128 1 1 SPINDLE (286015-00) 6821 RON
129 1 1 WOODRUFF KEY (286020-00) 893 RON
130 1 1 GEAR (286017-00) 9282 RON
132 1 2 BUSHING (286018-00) 781 RON
134 1 1 SPINDLE (286019-00) 5591 RON
135 1 1 WOODRUFF KEY (286016-00) 893 RON
136 1 1 GEAR (286021-00) 12861 RON
137 1 1 CLAMP (286022-00) 558 RON
138 1 1 GEARCASE COVER (286023-00) 7940 RON
139 1 1 BEARING (286024-00) 5031 RON
140 1 1 ARMATURE SA (429610-00) 80865 RON
140 1 1 ARMATURE (286025-00) 80865 RON
141 1 2 SCREW (286026-00) 781 RON
142 1 1 BEARING (286027-00) 5031 RON
143 1 1 BAFFLE (286028-00) 5591 RON
144 1 1 FIELD SA (429609-00) 3124 RON
144 1 1 FIELD SA (286029-00) 20467 RON
145 1 1 FIELDCASE (286030-00) 17335 RON
146 1 2 BRUSH CAP (286031-00) 558 RON
147 1 2 BRUSH (429608-00) 3466 RON
147 1 1 BRUSH (286032-00) 3466 RON
148 1 2 BRUSH HOLDER (286033-00) 4137 RON
149 1 2 SCREW (286034-00) 558 RON
150 1 1 DRIVE PULLEY (429962-00) 6821 RON
151 1 1 IDENTITY LABEL (286036-00) 2347 RON
152 1 1 CABLE & PLUG (429625-00) 17335 RON
152 1 1 CORDSET (5140002-01) 20467 RON
154 1 2 WARNING LABEL (429620-00) 781 RON
155 1 1 WRENCH (286038-00) 4472 RON
156 1 1 WRENCH (286039-00) 2124 RON
157 1 1 HEX KEY 4MM (98000-09) 781 RON
161 1 1 LABEL (429621-00) 781 RON
163 1 1 LABEL (429619-00) 781 RON
164 1 1 LABEL (429618-00) 781 RON
165 1 1 TERMINAL (94593-03) 781 RON
166 1 5 TERMINAL (450213-00) 781 RON
167 1 1 TERMINAL (450212-00) 781 RON
169 1 1 SPRING (286425-00) 558 RON
170 1 1 ANTI KICK BACK (429616-00) 23598 RON
171 1 1 VACUUM ADAPTOR (429615-00) 3466 RON
173 1 1 CAPACITOR (429617-00) 17335 RON
174 1 2 BUMPER (429676-00) 781 RON
175 1 6 SCREW (330045-13) 558 RON
177 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
178 1 1 LEAD (429708-00) 2124 RON
179 1 1 DUST EXTRACTOR (429614-00) 22144 RON
800 1 1 GREASE (286445-00) 14265 RON
