Top » Piese de schimb » PIESE DEWALT » DW729 Type 2

DW729 RADIAL ARM SAW Type 2
[DW729 Type 2]
DW729 RADIAL ARM SAW Type 2
Click pentru a mari
Imagini suplimentare
DW729 RADIAL ARM SAW Type 2
Click pentru a mari
DW729 RADIAL ARM SAW Type 2
Click pentru a mari
DW729 RADIAL ARM SAW Type 2
Click pentru a mari
DW729 RADIAL ARM SAW Type 2
Click pentru a mari
DW729 RADIAL ARM SAW Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

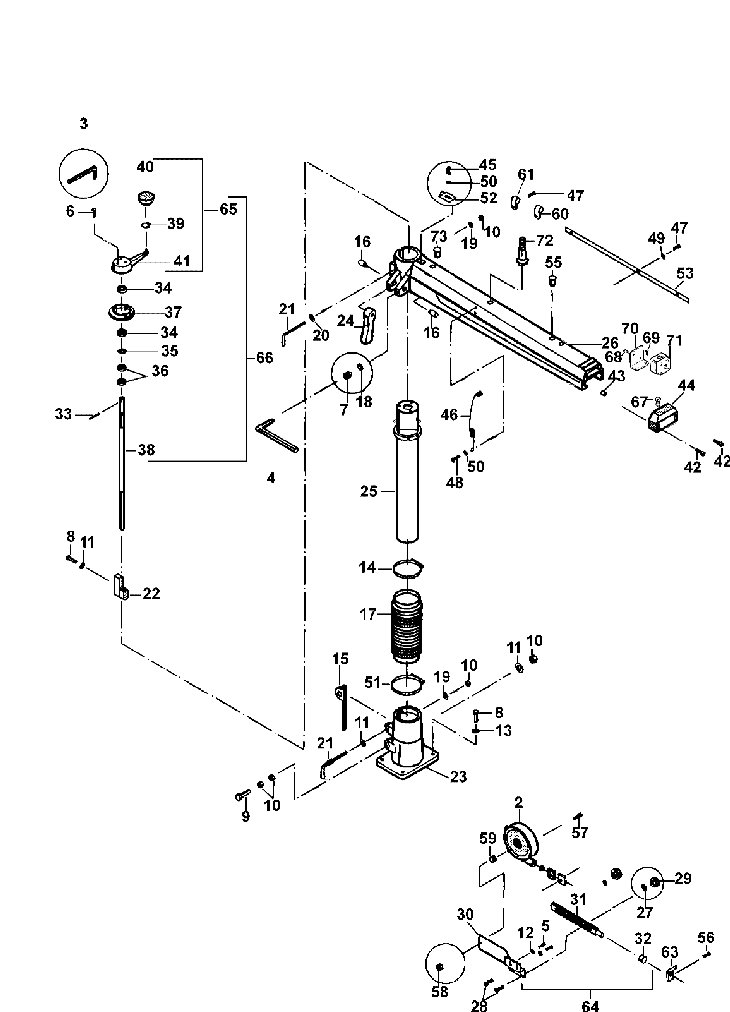

2 1 1 AUTOMATIC SAFETY RETURN - INDU (863929-00) 80865 RON
2 1 1 AUTOMATIC SAFETY RETURN - INDU (863929-00) 80865 RON
3 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
4 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
5 1 2 SCREW SOCKET M.8X12 UNI 5931 (860093-14) 558 RON
6 1 3 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
7 1 2 SCREW SET M.8X8 UNI 5923 (860088-07) 558 RON
8 1 5 HEXAGONAL HEAD SCREW M (949702-05) 893 RON
9 1 1 HEX HD.SCREW M12X80 (949702-09) 105 RON
10 1 5 NUT HEX THICK M.12 UNI 5587 (860083-06) 558 RON
11 1 3 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
12 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
13 1 4 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
14 1 1 CABLE CLAMP 80-100 (949700-06) 3018 RON
15 1 1 DUST PROTECTOR (33024) 1788 RON
16 1 2 SOCKET SCREW MB18X40 (863900-00) 7940 RON
17 1 1 COLUMN PROTECTION 1600S-1420S (863901-00) 32770 RON
18 1 2 COPPER PLUG (863909-00) 105 RON
19 1 2 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
20 1 1 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
21 1 2 ARM CLAMP HANDLE - INDUSTR. (862069-00) 6821 RON
22 1 1 ELEVATING NUT 1420S-1600S (862047-00) 37579 RON
23 1 1 COLUMN (862237-02) 129966 RON
24 1 1 MITRE LATCH DW111-1370-1420S- (862241-00) 20467 RON
25 1 1 COLUMN 1600 CE (861295-00) 364960 RON
26 1 1 RADIAL ARM DW728/729 (861289-01) 477144 RON
27 1 2 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
28 1 2 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
29 1 2 KNOB (946469-00) 781 RON
30 1 1 BRACKET FOR AUTOMATIC SAFETY R (863724-00) 11519 RON
31 1 1 SHOCK BAR LONG (863710-00) 3466 RON
32 1 1 BUMPER FOR STOP D. 16X22 (860786-00) 781 RON
33 1 1 ROLL PIN (330036-08) 558 RON
34 1 2 BEARING CGR 0384800A (949755-03) 11519 RON
35 1 1 WASHER FOR ELEVATING GROUP-IND (863928-00) 1788 RON
36 1 2 NUT FOR ELEVATING GROUP (863930-00) 3466 RON
37 1 1 COLUMN CAP 1420S-1600S (862015-00) 5591 RON
38 1 1 ELEVATING SCREW (865647-00) 22144 RON
39 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
40 1 1 HANDLE D.59 H.10 BLACK (860018-00) 14315 RON
41 1 1 ELEVATING ARM (173251) 12861 RON
42 1 2 SOCKET HEAD SCREW (860093-21) 781 RON
43 1 1 BUMPER D.16X10 BLACK (860429-00) 893 RON
44 1 1 END CAP (861219-01) 5591 RON
45 1 1 SCREW PAN PH A M5X10 DIN 7516 (860238-00) 781 RON
46 1 1 CABLE SUPPORT D.13 1370-INDUS (863912-00) 7940 RON
47 1 3 SCREW PAN PH A M4X8 DIN 7516 (860238-04) 781 RON
48 1 1 SCREW PAN PH A M5X10 DIN 7516 (860238-00) 781 RON
49 1 3 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
50 1 2 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
51 1 1 CABLE CLAMP 110-140 (949700-05) 5591 RON
52 1 1 POINTER MITRE 7790 (860237-00) 1452 RON
53 1 1 STANDARD METRIC BAR DW 720 A3 (863922-01) 3466 RON
55 1 2 PLUG FOR ARM YD 1420S-1600S-1 (865856-00) 1117 RON
56 1 1 SCREW SOCKET M.6X20 UNI 5931 (860093-05) 558 RON
57 1 1 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
58 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
59 1 1 SAFETY BACK SPACER (867190-01) 2124 RON
60 1 1 STRAP CABLE N5 5/16 NYLON (860843-01) 558 RON
61 1 1 STRAP CABLE N6 3/8 NYLON (860843-02) 558 RON
63 1 1 HEAD RETURN LOCK FOR INDUSTR. (864101-00) 6821 RON
64 1 1 SUVA ADJ. ROLLER HD STOP ASS. (864566-01) 102451 RON
65 1 1 ELEVATING ARM ASSEMBLY 1420S- (864655-01) 14315 RON
66 1 1 ELEVATING GROUP ASSY. 1420S-16 (864462-03) 80865 RON
67 1 1 SA CABLE CLAMP (861230-00) 4472 RON
68 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
69 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
70 1 1 SUPPORT EMERG.PUSH BUTTON 1600 (861220-00) 5591 RON
71 1 1 EMER.PUSH BUTTON BOX (861223-00) 51337 RON
72 1 1 SLEEVE BS 13.5 (947322-01) 3466 RON
73 1 1 PLUG FOR ARM YD 1420S-1600S-1 (865856-00) 1117 RON

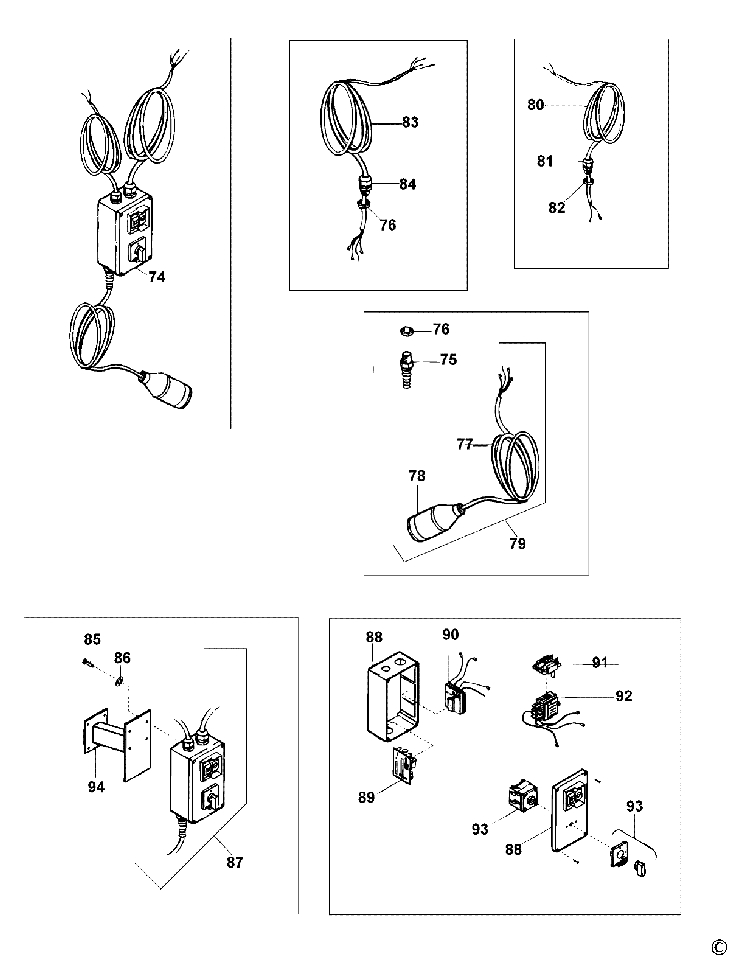

74 1 1 SWITCHBOX SA (868245-00) 318654 RON
75 1 1 SLEEVE BS 13.5 (947322-01) 3466 RON
76 1 1 NUT SLEEVE PG BS (947321-01) 781 RON
77 1 1 LINE CABLE K&B (868248-00) 17335 RON
78 1 1 PLUG CEE 17 3P+N+T (860637-00) 7940 RON
79 1 1 SA LINE CABLE 1603 K&B (868249-00) 4825 RON
80 1 1 EMERGENCY CABLE K&B (868246-00) 5591 RON
81 1 1 SKINTOP CABLE INLET PG9 (868254-00) 3018 RON
82 1 1 CABLE INLET NUT PG9 (868255-00) 1229 RON
83 1 1 MOTOR CABLE 1603 K&B (868247-00) 14315 RON
84 1 1 CABLE INLET (949747-12) 190 RON
85 1 1 SCREW (930224-00) 558 RON
86 1 1 WASHER (941633-00) 558 RON
87 1 1 SA ELEC.PLANT 1603 K&B+SUPP (868251-00) 439451 RON
88 1 1 SWITCH BOX K&B (868244-00) 51337 RON
89 1 1 BRAKE CARD K&B (868243-00) 102451 RON
90 1 1 OVERLOAD PROTECTOR 6 4A K&B (868239-00) 32770 RON
91 1 1 RELEASE MECHANISM K&B (868240-00) 11519 RON
92 1 1 CONTACTOR 1PH K&B (868242-00) 3124 RON
93 1 1 GENERAL SWITCH K&B (868241-00) 80865 RON
94 1 1 SUPPORT SWITCH (863426-04) 17335 RON

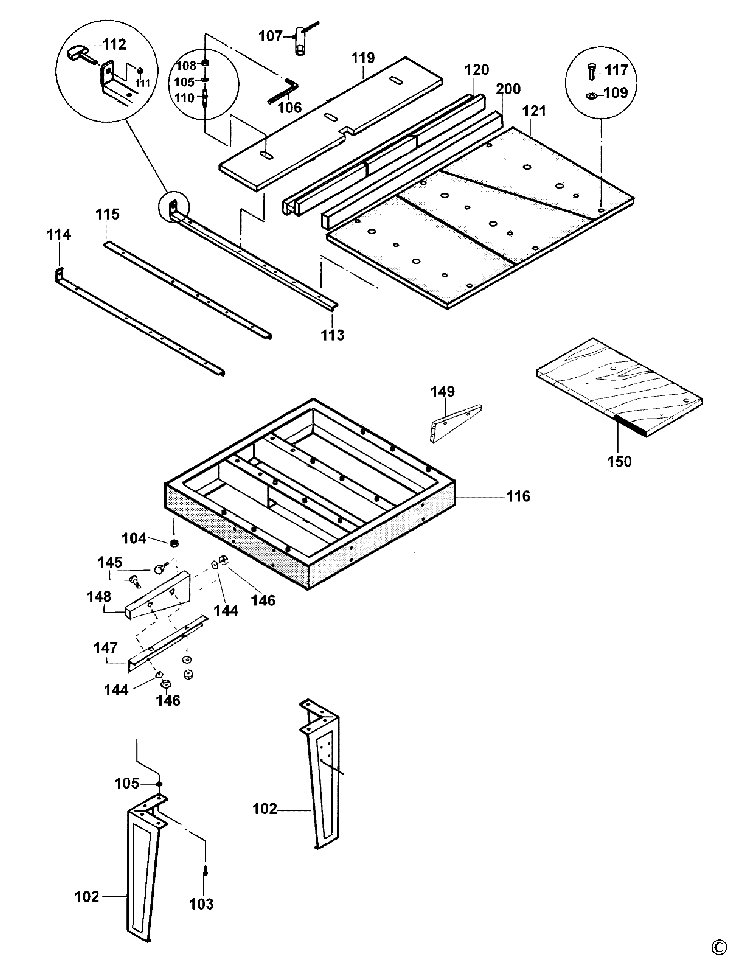

102 1 4 LEG INDUSTR.-BLACK CE (863866-05) 3124 RON
103 1 12 SOCKET HEAD SCREW M (942831-00) 781 RON
104 1 12 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
105 1 21 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
106 1 1 WRENCH (949882-01) 781 RON
107 1 1 TUBULAR SPANNER (949752-01) 3466 RON
108 1 9 NUT MB10 (949726-07) 558 RON
109 1 12 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
110 1 9 SETTING STUD FOR INDUSTR. (863880-00) 5591 RON
111 1 2 SPACER (863882-00) 1452 RON
112 1 2 KNOB FOR BRACKET-INDUSTR. (866974-02) 781 RON
113 1 1 BRACKET (863682-03) 14315 RON
114 1 1 BRACKET (863683-03) 14315 RON
115 1 1 BRACKET (863684-03) 12861 RON
116 1 1 BRACKET (863986-06) 231524 RON
117 1 12 HEX.HD.SCREW -ALUM.M8X30- (949703-01) 781 RON
119 1 1 BACK BOARD 1600S (864877-00) 20467 RON
120 1 1 GUIDE STRIP 1600S -GERM. (864871-00) 28296 RON
121 1 1 TABLE FRONT 1600 CE (864964-01) 65989 RON
144 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
145 1 1 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
146 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
147 1 1 BRACKET (863867-03) 11519 RON
148 1 1 BRACKET (861238-02) 17335 RON
149 1 1 BRACKET (861237-02) 1891 RON
150 1 2 SIDE EXTENSION BOARD 1600CE (861218-00) 23598 RON
200 1 1 GUIDE STRIP 1600S (864878-00) 5591 RON

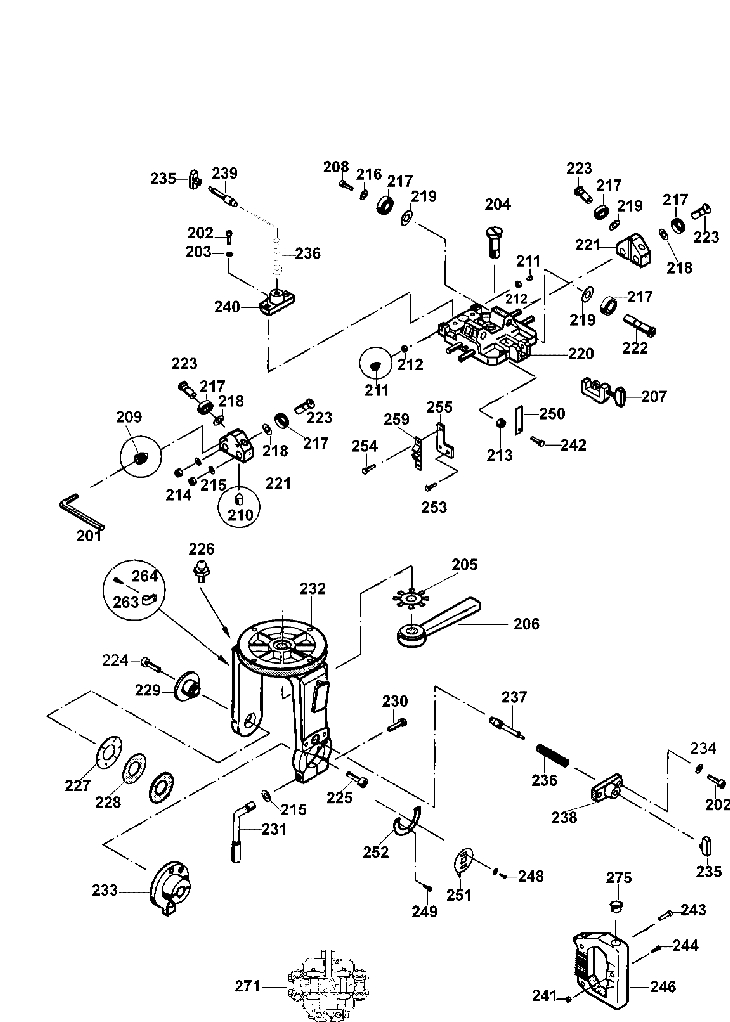

201 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
202 1 4 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
203 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
204 1 1 KING BOLT FOR INDUSTR.4HP-6HP (863951-00) 5031 RON
205 1 1 YOKE CLAMP ADJUSTER INDUSTR. (863953-00) 2795 RON
206 1 1 LOCK LEVER ROLLER HEAD/YOKE (862070-00) 1891 RON
207 1 1 RIP LOCK ASSEMBLY 1875 (864575-01) 39145 RON
208 1 2 SOCKET HEAD SCREW (760219-00) 558 RON
209 1 4 SCREW SET M.6X6 UNI 5929 (860088-27) 558 RON
210 1 4 SOCKET SCREW TYPE-A (949853-03) 558 RON
211 1 2 SCREW SET M.6X20 UNI 5923 (860088-10) 558 RON
212 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
213 1 1 NUT HEX THICK M.4 UNI 5587 (860083-01) 558 RON
214 1 4 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
215 1 5 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
216 1 1 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
217 1 8 BEARING 62202 2RS (861721-07) 4137 RON
218 1 4 BEARING SPACER - INDUSTR.4HP-6 (863971-00) 781 RON
219 1 4 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
220 1 1 ROLLER HEAD 4HP YELLOW (862148-06) 5484 RON
221 1 2 BEARING BRACKET (862259-90) 3124 RON
222 1 2 BEARING SHAFT-IND.- (862380-00) 5591 RON
223 1 4 BEARING SHAFT 1600S (863969-00) 3466 RON
224 1 1 SOCKET HEAD SCREW M (949886-06) 1788 RON
225 1 1 SOCKET HEAD SCREW M (949886-07) 190 RON
226 1 1 OIL NIPPEL (860650-01) 2124 RON
227 1 1 SPACER WASHER TH.15-INDUSTR.4H (863989-00) 1452 RON
228 1 1 SPACER WASHER TH.3-INDUSTR.4HP (863991-00) 1229 RON
229 1 1 REAR TRUNNION IND.4HP (862261-90) 12861 RON
230 1 1 HEXAGONAL HEAD SCREW M (949702-04) 1229 RON
231 1 1 MOTOR LOCKING LEVER (863978-00) 5591 RON
232 1 1 YOKE (862194-04) 9736 RON
233 1 1 FRONT TRUNNION IND.4HP (862260-90) 32770 RON
234 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
235 1 2 KNOB (946469-00) 781 RON
236 1 2 SPRING PUSHER D13XD1 2X39 (860112-11) 1788 RON
237 1 1 LOCATING PLUG (863977-00) 14315 RON
238 1 1 YOKE LOCATING PIN SUPPORT-4/6 (860835-01) 32770 RON
239 1 1 ROLLER HD.LOCATING PIN -P.SHOP (863961-00) 5591 RON
240 1 1 SUPPORT FOR INDEX PIN YOKE (860835-00) 9282 RON
241 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
242 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
243 1 2 SCREW FIL.HD M5X60 UNI 6107 (860089-39) 558 RON
244 1 1 SCREW FIL.HD M.5X20 UNI6107 Z (860089-17) 558 RON
246 1 1 HANDLE FOR INDUSTR.4HP-BLACK (866680-02) 5591 RON
248 1 2 SCREW PAN PH A M4X8 DIN 7516 (860238-04) 781 RON
249 1 2 SCREW TSPPH (860205-06) 558 RON
250 1 1 RIP POINTER FOR INDUSTR.6HP (863964-00) 1788 RON
251 1 1 POINTER CIRC. (862721-01) 190 RON
252 1 1 SCALE BEVEL DW1251 (860829-00) 190 RON
253 1 1 SCREW FLAT HD M.6X12 UNI 6109 (860538-04) 558 RON
254 1 1 SCREW PAN PH A M5X10 DIN 7516 (860238-00) 781 RON
255 1 1 PLATE (861016-00) 10512 RON
259 1 1 864839-00 - Indisponibil
263 1 1 STRAP CABLE N6 3/8 NYLON (860843-02) 558 RON
264 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
271 1 1 ROLLER HEAD ASS.LY 1420S-1600S (861672-00) 257473 RON
275 1 1 HANDLE PLUG (32647) 781 RON

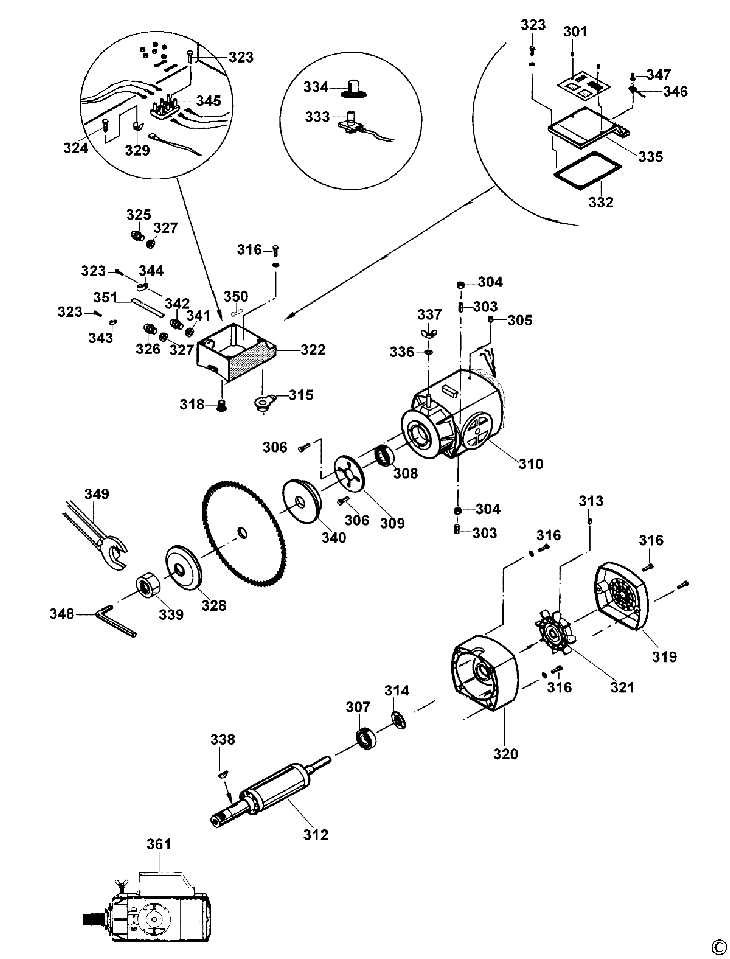

301 1 2 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
303 1 2 SCREW SET M.6X20 UNI 5923 (860088-10) 558 RON
304 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
305 1 1 SOCKET SCREW TYPE-E (941880-00) 558 RON
306 1 4 FILLISTER COUNTERS.HD.SCREW (949889-02) 558 RON
307 1 1 BEARING 6202 (868768-07) 4137 RON
308 1 1 BEARING 63006-2RS1 (868768-11) 23598 RON
309 1 1 OUTER FLANGE FOR MOTOR 4HP (862003-00) 3466 RON
310 1 1 STATOR+HOUSING 1603 V.400 8612 (868423-00) 439451 RON
312 1 1 SA ROTOR 4HP (868420-01) 153454 RON
313 1 1 SCREW SET M.6X6 UNI 5929 (860088-27) 558 RON
314 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
315 1 1 GASKET FOR CABLE OUTLET HOLE (863410-01) 105 RON
316 1 7 RD.HD.SCREW M5X18 (949870-04) 558 RON
318 1 1 GASKET EARTH SCREW (944653-00) 190 RON
319 1 1 GUARD MOTOR 1600CE (862124-01) 4472 RON
320 1 1 SLOTTED COVER (862165-00) 14315 RON
321 1 1 MOTOR FAN INDUSTR.4HP (862126-00) 6821 RON
322 1 1 CONNECTION PLATE BOX-4HP- (862217-92) 9282 RON
323 1 4 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
324 1 1 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
325 1 1 3/8 CAP (949747-18) 1117 RON
326 1 1 3/8 CAP (949747-18) 1117 RON
327 1 2 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
328 1 1 FLANGE BLADE EXTERNAL RAS1600 (864008-02) 14315 RON
329 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
332 1 1 GASKET FOR CONNECT.BOX-INDUSTR (863716-00) 2795 RON
333 1 1 GASKET FOR OVERLOAD THRM (860133-00) 1788 RON
334 1 1 OVERLOAD PROTECTOR FOR INDUSTR (860692-03) 165534 RON
335 1 1 SCAND.CONNECTION PLATE COVER-I (862219-00) 4472 RON
336 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
337 1 1 WING NUT M10 (949758-02) 781 RON
338 1 1 KEY WOODRUFF 5X6.5 UNI 6606 (860318-00) 893 RON
339 1 1 NUT HEX.M30 L.H.-IND.- (863526-00) 10512 RON
340 1 1 INT.ARBOR COLLAR INDUSTR.4HP (864007-00) 23598 RON
341 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
342 1 1 "CLAMP CABLE(NUT)G.3/8 HOLE 12""" (944654-00) 1229 RON
343 1 1 STRAP CABLE 1/4 H NYLON (123106-00) 105 RON
344 1 1 STRAP CABLE N7 7/16 NYLON (860843-03) 781 RON
345 1 1 CONNECTION PLATE FOR POWER-SHO (946085-00) 4137 RON
346 1 1 000000-00 - Indisponibil
347 1 1 949747-20 - Indisponibil
348 1 1 HEXAGONAL WRENCH (949882-02) 4137 RON
349 1 1 SPANNER (949751-04) 12861 RON
350 1 1 CABLE CLIP D.9-11 5 (863259-00) 2124 RON
351 1 1 CABLE 3X2 5 MT3 8 (949863-57) 15993 RON
361 1 1 MOTOR V.400 4HP 86435177 (868394-01) 497947 RON

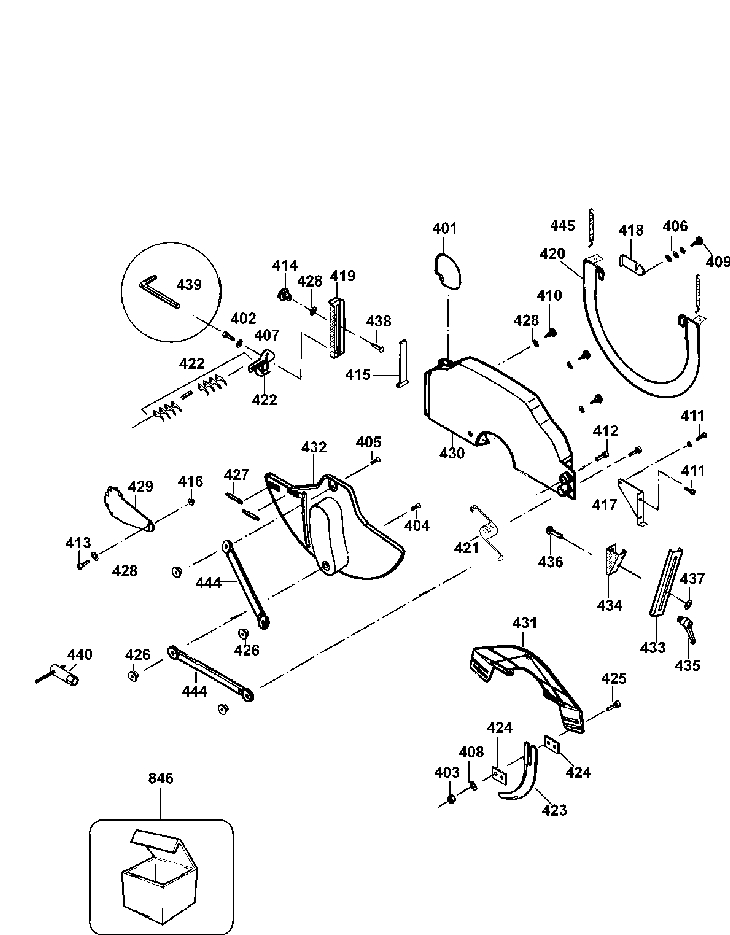

401 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
402 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
403 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
404 1 1 SCREW M5X10 (249412-20) 558 RON
405 1 1 FLAT COUNTERSUNK HD.SCREW (949888-06) 558 RON
406 1 4 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
407 1 1 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
408 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
409 1 2 SCREW (943023-00) 558 RON
410 1 1 KNOB (861842-00) 1229 RON
411 1 3 SCREW FILL.HD M.5X8 UNI6107 (760273-00) 558 RON
412 1 2 SCREW M5X10 (760998-00) 558 RON
413 1 1 SCREW TCBPH 6X16 8112 (860094-12) 558 RON
414 1 1 KNOB (946469-00) 781 RON
415 1 1 SPACER / DUST PROTECTOR EUROGU (863703-00) 1452 RON
416 1 1 FRONT PROTECT.GUIDE BUSHING (863705-00) 1117 RON
417 1 1 GUIDE SQUARE (863707-01) 3466 RON
418 1 1 ROTATING SQUARE (863708-00) 1788 RON
419 1 1 KICK-UP SUPPORT FOR EUROGUARD (863709-00) 2795 RON
420 1 1 PROTECTION REAR 350 CE (863711-02) 12861 RON
421 1 1 FRONT PROTECT.SPRING (861222-00) 2795 RON
422 1 1 SAFETY ELEMENTS ASS.LY (864538-02) 14315 RON
423 1 1 EUROG.KNIFE D.350 (863687-00) 9282 RON
424 1 2 KNIFE PLATE EUR.350 (864037-00) 105 RON
425 1 2 TURNED SCREW M8X25 (949892-02) 4472 RON
426 1 4 WASHER FOR LEVER EUROG.250-300 (864053-00) 2124 RON
427 1 2 SLIDING ROLLER EUROG.D.250-300 (864054-00) 1229 RON
428 1 4 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
429 1 1 GUIDE SQUARE (863793-01) 4472 RON
430 1 1 GUARD DW729KN MCHD (N036977) 37579 RON
431 1 1 BRACKET FOR KNIVES EUROG.D.350 (862087-90) 5591 RON
432 1 1 SA PROTECTION D.350+ROLLERS (869325-00) 25164 RON
433 1 1 REAR SQUARE-EUROG.D350 (863621-00) 6821 RON
434 1 1 REAR SQUARE SUPPORT-EUROG.350 (863620-00) 4137 RON
435 1 1 LEVER (861840-00) 3466 RON
436 1 1 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
437 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
438 1 1 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
439 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
440 1 1 WRENCH TUBULAR HEX.13 - 10 (service) (869235-00) 4137 RON
444 1 2 LEVER (862089-01) 4472 RON
445 1 2 REAR PROT.SPRING (861221-00) 1788 RON
846 1 1 GUARD SA (869322-02) 231524 RON

Conditii Generale
