DW725 RADIAL ARM SAW Type 3
[DW725 Type 3]
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
Imagini suplimentare
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
DW725 RADIAL ARM SAW Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

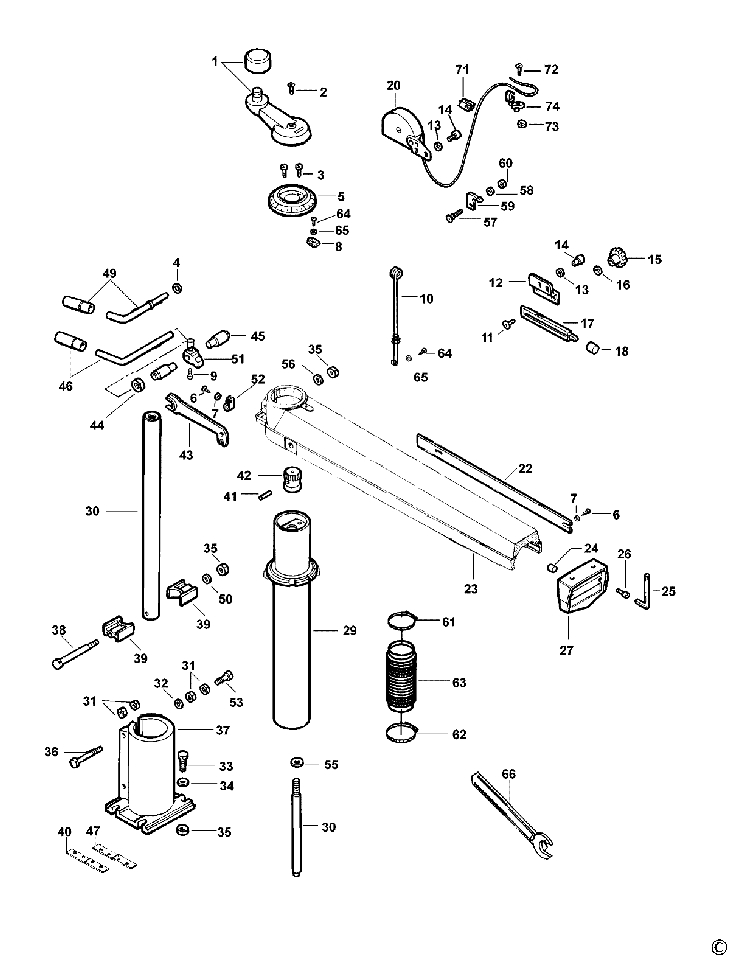

1 1 1 SA HANDLE ELEVATING DW1251 (860792-00) 3018 RON
2 1 1 SCREW (934401-00) 558 RON
3 1 2 SCREW SOCKET M.6X25 UNI 5931 (860093-06) 558 RON
4 1 1 WASHER FLAT 10 5X18 UNI 6592 (860073-06) 558 RON
5 1 1 CAP COLUMN DW1251 (860784-00) 3466 RON
6 1 4 SCREW FIL.HD B M4X10 DIN 7513 (860531-00) 781 RON
7 1 4 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
8 1 1 POINTER MITRE 7790 (860237-00) 1452 RON
9 1 1 SCREW HEX M.5X20 UNI 5739 (860085-11) 558 RON
10 1 1 CABLE SUPPORT D.13 1370-INDUS (863912-00) 7940 RON
11 1 2 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
12 1 1 SUPPORT FOR STOP ROD BLANK (860787-90) 3018 RON
13 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
14 1 2 SCREW SOCKET M.8X12 UNI 5931 (860093-14) 558 RON
15 1 2 KNOB (946469-00) 781 RON
16 1 2 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
17 1 1 SHOCK BAR LONG (863710-00) 3466 RON
18 1 1 BUMPER FOR STOP D. 16X22 (860786-00) 781 RON
20 1 1 sa automatic safety return ras service (N152003) 102451 RON
22 1 1 STANDARD METRIC BAR DW1501-3 (863101-00) 3018 RON
23 1 1 ARM 8000 YELL. (860184-07) 202891 RON
24 1 1 BUMPER D.16X10 BLACK (860429-00) 893 RON
25 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
26 1 2 SCREW SOCKET M.6X20 UNI 5931 (860093-05) 558 RON
27 1 1 000000-00 - Indisponibil
29 1 1 SA COLUMN D.69 5 L.490 DW1251 (860790-00) 25164 RON
30 1 1 SA SCREW ELEV.L.227+TUBE (860791-00) 5484 RON
31 1 8 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
32 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
33 1 4 SCREW HEX M.10X45 UNI 5739 (860085-05) 781 RON
34 1 4 WASHER FLAT 10.5X21 UNI6592 Z (860073-04) 558 RON
35 1 6 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
36 1 2 SCREW HEX M.8X70 UNI 5739 (860085-02) 781 RON
37 1 1 BASE (860016-04) 74937 RON
38 1 1 SCREW HEX M.10X110 UNI 5737 (860086-00) 1788 RON
39 1 2 SPACER ELEVATING TUBE (860065-00) 1229 RON
40 1 1 PLATE LH BASE 25X8 BLACK OXID (860273-00) 3018 RON
41 1 1 PIN SPIRAL 5X28 UNI 6875 (860096-06) 558 RON
42 1 1 SLEEVE ELEV.SCREW DW1251BLANK (860831-90) 2347 RON
43 1 1 WRENCH 22-10 SPECIAL (860423-00) 4472 RON
44 1 2 NUT HEX 22X8 M.18X1.5 SPEC. (860232-00) 2124 RON
45 1 2 SCREW HD13 SET MTR LTCM18X1.5 (860231-00) 4137 RON
46 1 1 S.A. ARM LOCATING LEVER+KNOB (864723-01) 11519 RON
47 1 1 PLATE RH BASE 25X8 BLACK OXID (860273-02) 3466 RON
49 1 1 SA LEVER CLAMP ARM DW1251 ORG (860795-00) 6821 RON
50 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
51 1 1 MITRE LATCH (864672-01) 6821 RON
52 1 1 STRAP CABLE N5 5/16 NYLON (860843-01) 558 RON
53 1 2 SCREW SET M.8X35-UNI5925 BRASS (949853-11) 10512 RON
55 1 3 WASHER-SHIM 12X26X0.3 SPECIAL (860226-01) 781 RON
56 1 1 WASHER WITH TAB D.10 5X1 BLNK (860802-90) 105 RON
57 1 1 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
58 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
59 1 1 RETAINER ROLLERHEAD DW1251 (860858-00) 105 RON
60 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
61 1 1 STRAP D.68-85 H12 (949700-03) 4472 RON
62 1 1 CABLE CLAMP 80-100 (949700-06) 3018 RON
63 1 1 COLUMN PROTECTION L293 - DW800 (863261-00) 15993 RON
64 1 2 SCREW PAN PH A M5X16 DIN 7516 (860238-03) 781 RON
65 1 2 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
66 1 1 HEX.WRENCH 17 (949751-01) 3018 RON
71 1 2 CLAMP CABLE(SCREW LOCK)A.RET. (860521-00) 781 RON
72 1 2 SCREW PAN HD M.4X12 UNI 7687 (860090-02) 558 RON
73 1 2 NUT HEX THICK M.4 UNI 5587 (860083-01) 558 RON
74 1 1 CLAMP CABLE(SELF LOCK)A.RETUR (860520-00) 893 RON

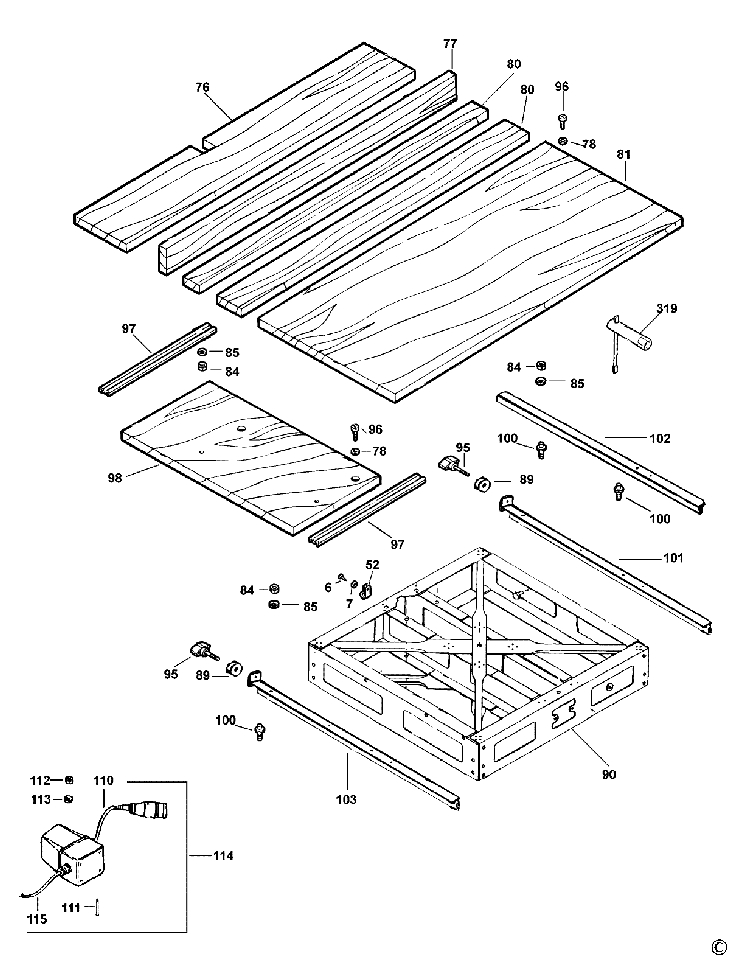

76 1 1 MOBILE ELEMENT MM.150 DW725 (868464-00) 15993 RON
77 1 1 TABLE FENCE MM.80 DW725 (868466-00) 14315 RON
78 1 17 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
80 1 2 MOB. ELEMENT MM.45 DW725 (868465-00) 7940 RON
81 1 1 FIXED TABLE DW725 (868463-00) 37579 RON
84 1 23 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
85 1 23 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
89 1 2 SPACER (864078-00) 2795 RON
90 1 1 BASE DW 721 (869320-00) 216872 RON
95 1 2 KNOB 40X16 M8X36 BLACK (860581-01) 781 RON
96 1 17 SCREW M.8X25 (949703-09) 781 RON
97 1 1 BRACKET (863130-04) 3466 RON
98 1 1 EXTENS. TABLE DW725 (868467-00) 11519 RON
100 1 3 SETTING STUD 8X47 (868459-00) 2795 RON
101 1 1 000000-00 - Indisponibil
102 1 1 SUPPORT L.615 DW725 (868457-01) 15993 RON
103 1 1 SUPPORT L.761 DW725 (868456-01) 23598 RON
110 1 3 CABLE (861277-00) 558 RON
111 1 1 RD.HD.SCREW M.5X70 (949701-03) 558 RON
112 1 1 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
113 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
115 1 1 CABLE (861896-00) 34336 RON

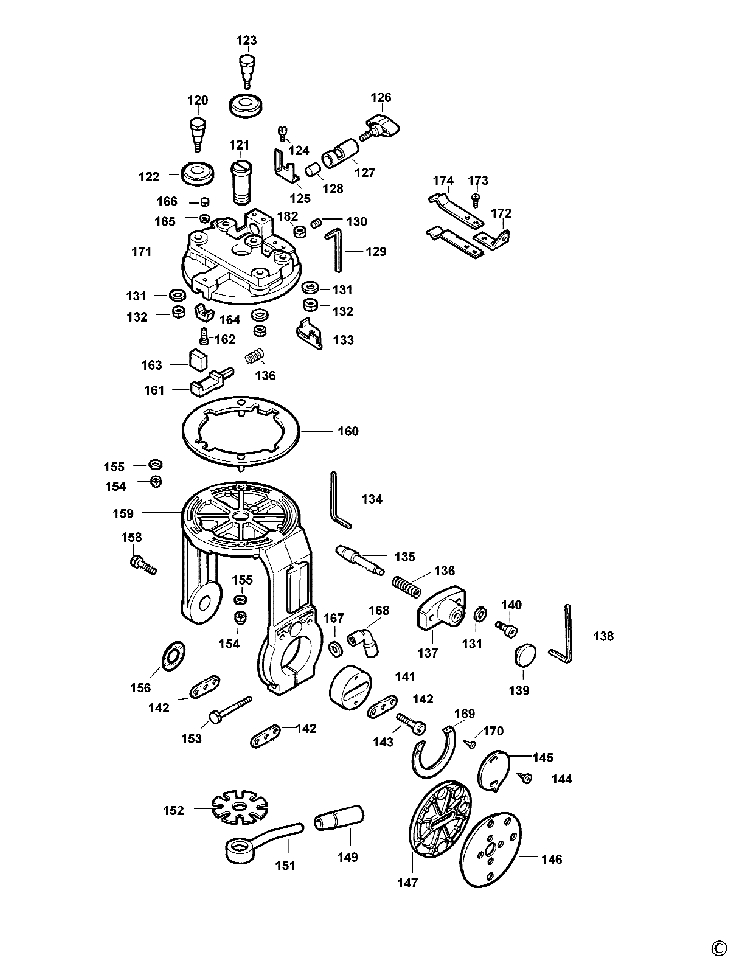

120 1 2 SCREW CONCENTRIC BEARING 1712 (760421-00) 3466 RON
121 1 1 PIVOT M.18X1.5 L.50 (860123-00) 5031 RON
122 1 4 BEARING SPECIAL SKF 614432-B (860154-00) 25164 RON
123 1 2 BEARING SHAFT-ECCENTRIC DW125- (760417-00) 4137 RON
124 1 2 FILLISTER HEAD SCREW (949894-06) 558 RON
125 1 1 000000-00 - Indisponibil
126 1 1 KNOB D.40X16-M8X23-BLACK (862427-00) 781 RON
127 1 1 RIP LOCK (SLEEVE) (860121-00) 5031 RON
128 1 1 LOCK (PISTON) (860122-00) 893 RON
129 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
130 1 2 SOCKET SCREW TYPE-E (941880-00) 558 RON
131 1 6 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
132 1 4 NUT HEX THICK M.8X1 UNI 5587 (860083-08) 558 RON
133 1 1 CAP FOR ROLLERHEAD (860817-01) 1229 RON
134 1 1 WRENCH (949882-01) 781 RON
135 1 1 LOCATING PLUG (863977-00) 14315 RON
136 1 2 SPRING PUSHER D13XD1 2X39 (860112-11) 1788 RON
137 1 1 SUPPORT FOR INDEX PIN YOKE (860835-00) 9282 RON
138 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
139 1 1 KNOB (946469-00) 781 RON
140 1 2 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
141 1 1 HUB FRONT YOKE D.54 BLANK (860119-01) 6821 RON
142 1 3 PLATE FOR HUBE (860120-00) 105 RON
143 1 3 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
144 1 2 SCREW FIL.HD B M4X10 DIN 7513 (860531-00) 781 RON
145 1 1 POINTER CIRC. (862721-01) 190 RON
146 1 1 PLATE INDEX YOKE-MOTOR DW1251 (860830-00) 2347 RON
147 1 1 GASKET FOR YOKE HUBE DW1251 (860827-00) 2124 RON
149 1 1 HANDLE D.20X67XD.10 BLACK (860796-01) 1229 RON
151 1 1 CLAMP YOKE/ROLLER HEAD (864057-01) 10512 RON
152 1 1 ADJUSTER SPRING WASHER (860113-00) 3018 RON
153 1 1 SCREW HEX M.8X75 UNI 5737 (860086-11) 893 RON
154 1 2 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
155 1 2 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
156 1 1 DISC (864160-00) 893 RON
158 1 1 SUPPORT SCREW DW125-111-1370 (864058-00) 4137 RON
159 1 1 YOKE DW721KN SERVICE (N045684) 62298 RON
160 1 1 THRUST RING + SCREWS (863157-00) 5591 RON
161 1 1 LOCATING CATCH DW125 (860818-01) 2347 RON
162 1 1 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
163 1 1 CAP FOR LOCATING CATCH 1712US (760427-00) 781 RON
164 1 1 INSERT ROLLERHEAD ADJUSTMENT (860816-00) 781 RON
165 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
166 1 1 NUT M5 (860092-03) 558 RON
167 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
168 1 1 HANDLE M.8 LOCKING ARM-YOKE (860825-00) 3466 RON
169 1 1 SCALE BEVEL DW1251 (860829-00) 190 RON
170 1 2 SCREW TSPPH (860205-06) 558 RON
171 1 1 ROLLER HEAD (860814-10) 29862 RON
172 1 1 SQUARE (863726-00) 105 RON
173 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
174 1 1 SPRING ROLLERHEAD LATCH (860820-00) 105 RON
178 1 1 RD.HD.SCREW M.5X25 (949701-12) 558 RON
179 1 2 SCREW FIL.HD M5X60 UNI 6107 (860089-39) 558 RON
180 1 1 BLACK TRIPUS HANDLE 1253 (862424-00) 4137 RON
181 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
182 1 2 NUT M6 (860083-12) 558 RON
186 1 1 SPANNER (944463-00) 5591 RON
189 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
190 1 1 NUT END HANDLE M.8X22 (860143-00) 1788 RON
192 1 1 KEY WOODRUFF 5X6.5 UNI 6606 (860318-00) 893 RON
193 1 1 BEARING 6202 (868768-07) 4137 RON
194 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
195 1 4 ROD THREADED HEX M.5X135 (860446-01) 781 RON
196 1 1 REAR CALOTTE (861863-00) 17335 RON
196 1 1 BELL REAR END MTR DW125 CAST (860701-00) 12861 RON
197 1 1 STATOR+HOUSING 230/5 725 (868401-01) 190812 RON
197 1 1 WOUND STATOR 220/60+HOUSING (868401-02) 129966 RON

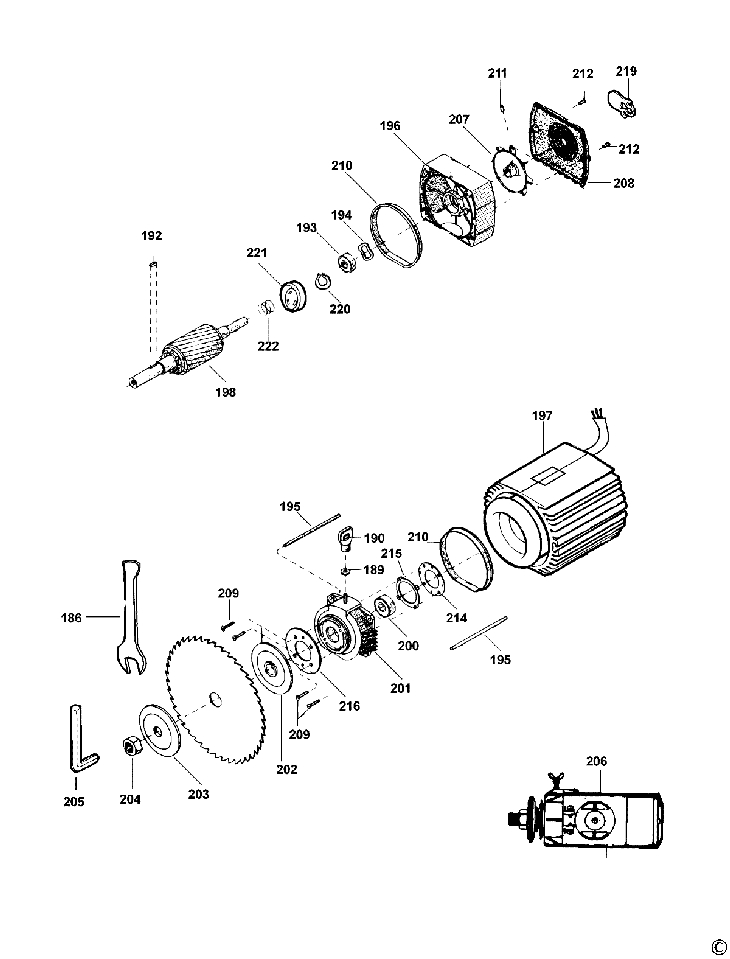

198 1 1 ROTOR RAS 8001 (868511-00) 74937 RON
198 1 1 ROTOR 8001 (868511-02) 51337 RON
200 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
201 1 1 ARBOR END BELL DW1251-3 (862162-00) 12861 RON
202 1 1 INNER FLANGE (945842-00) 12861 RON
203 1 1 OUTER FLANGE (945843-00) 2347 RON
204 1 1 ARBOR NUT 1370-DW12-MC20 (944460-00) 10512 RON
205 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
206 1 1 MOTOR 220/60 DW725K-QU (868390-03) 271790 RON
206 1 1 MOTOR 230V 8001 MECH.BRAKE (868390-00) 338563 RON
207 1 1 FAN (945841-00) 2347 RON
208 1 1 MOTOR GUARD 8001/3 (860687-03) 4137 RON
208 1 1 MOTOR GUARD 315 CE (860687-04) 3466 RON
209 1 4 SCREW FLAT HD M.4X25 UNI 6109 (860538-00) 558 RON
210 1 2 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
211 1 1 SCREW SET M.5X10 UNI 5929 (860088-25) 558 RON
212 1 1 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
212 1 1 SCREW PAN PH/TT M.4X12UNI8112 (860094-05) 558 RON
214 1 1 INNER MOTOR FLANGE (123302-01) 2795 RON
215 1 1 GASKET FOR INTERNAL MOTOR FLAN (863878-00) 893 RON
216 1 1 OUTER MOTOR FLANGE (864085-01) 3018 RON
219 1 1 CAP FOR FAN COVER GUARD DW320 (863112-00) 558 RON
220 1 1 RETAINING RING D.20 (949727-06) 558 RON
221 1 1 CAP D.60 5+BUSH (861336-05) 5031 RON
222 1 1 SPRING (861338-05) 781 RON
231 1 4 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
233 1 1 GASKET FOR OVERLOAD THRM (860133-00) 1788 RON
234 1 1 MOTOR BOX COVER (944454-00) 4137 RON
236 1 2 JAM NUT FOR CABLE INLET 3/8 (949747-07) 781 RON
237 1 2 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
238 1 1 CABLE 3X1 5 MT0 85 (949863-44) 5591 RON
238 1 1 CABLE 3X1 5 MT0 85 (949863-44) 5591 RON
241 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
242 1 1 GASKET EARTH SCREW (944653-00) 190 RON

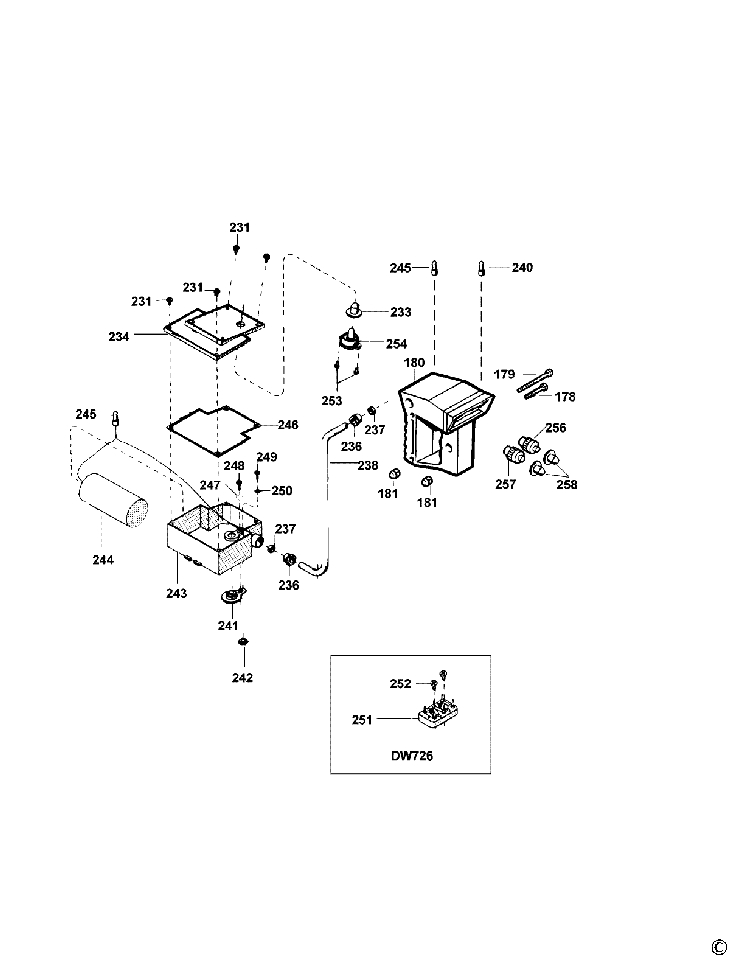

243 1 1 BOX MOTOR DW1150 1PH MACHINED (860702-00) 7940 RON
244 1 1 CAPACITOR 30 MF-V.450 (944455-00) 9282 RON
245 1 7 CLAMP E25 (861257-00) 781 RON
246 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
247 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
248 1 1 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
249 1 1 SCREW PAN PH/TT M.4X12UNI8112 (860094-05) 558 RON
250 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
253 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
254 1 1 OVERLOAD THRM CET 50-DA 3025 (860692-00) 59725 RON
256 1 1 STOP PUSH BUTTON DW252 -GER. (863124-16) 6821 RON
257 1 1 START PUSH BUTTON DW252-GER (863124-17) 6821 RON
257 1 1 START PUSH BUTTON DW252-GER (863124-17) 6821 RON
258 1 2 RUBBER HOOD (942415-00) 3018 RON

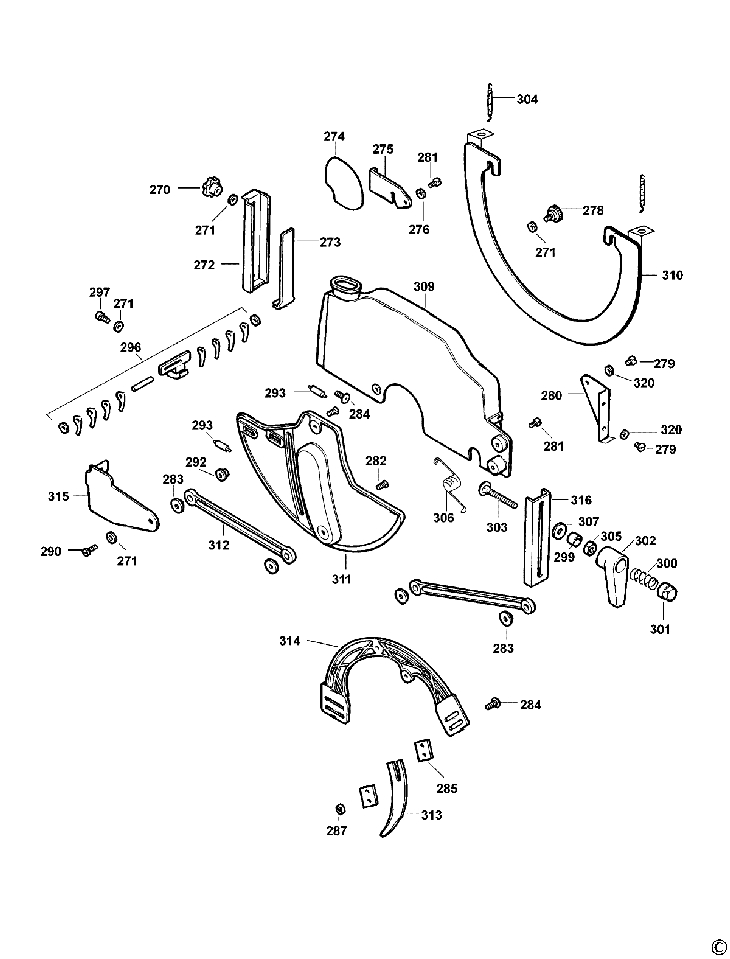

270 1 1 KNOB (946469-00) 781 RON
271 1 4 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
272 1 1 KICK-UP SUPPORT FOR EUROGUARD (863709-00) 2795 RON
273 1 1 SPACER / DUST PROTECTOR EUROGU (863703-00) 1452 RON
274 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
275 1 1 ROTATING SQUARE (863708-00) 1788 RON
276 1 4 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
278 1 2 KNOB (861842-00) 1229 RON
279 1 3 SCREW FILL.HD M.5X8 UNI6107 (760273-00) 558 RON
280 1 1 GUIDE SQUARE (863707-01) 3466 RON
281 1 3 SCREW M5X10 (760998-00) 558 RON
282 1 2 SCREW M5X10 (249412-20) 558 RON
283 1 4 WASHER FOR LEVER EUROG.250-300 (864053-00) 2124 RON
284 1 3 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
285 1 2 30/10 RIVING KNIFE PLATE (864086-00) 105 RON
287 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
290 1 1 SCREW TCBPH 6X16 8112 (860094-12) 558 RON
292 1 1 FRONT PROTECT.GUIDE BUSHING (863705-00) 1117 RON
293 1 2 SLIDING ROLLER EUROG.D.250-300 (864054-00) 1229 RON
296 1 1 SAFETY ELEMENTS ASS.LY (864538-02) 14315 RON
297 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
299 1 1 DISTANCIAL (863599-02) 105 RON
300 1 1 SPRING (760483-00) 558 RON
301 1 1 CAP FOR LOCKING LEVER (863073-00) 781 RON
302 1 1 LOCKING LEVER M8 1712USA (863320-00) 1229 RON
303 1 1 SQUARE HEAD BUTTON SCREW M8X50 (949891-03) 781 RON
304 1 2 REAR PROT.SPRING (861221-00) 1788 RON
305 1 1 NUT HEX THIN M.8 UNI5589 ZINC (860083-15) 558 RON
306 1 1 FRONT PROT.SPRING (861239-00) 2795 RON
307 1 1 WASHER-THRUST 8X14X1.2 DIN988 (860076-04) 558 RON
309 1 1 GUARD EUR.300 YELL. (862234-02) 29862 RON
310 1 1 PROTECTION REAR-GUARD 300 (863773-02) 12861 RON
311 1 1 PROTECTION (862426-00) 6821 RON
312 1 2 LEVER (862082-01) 3018 RON
313 1 1 KNIFE EUROG.D.300-TH.2 5-TEMPE (863271-00) 12861 RON
313 1 1 KNIFE EUROG.D.300-TH.2 5-TEMPE (863271-00) 12861 RON
314 1 1 KNIFE HOLDER EUR. D.300 (862081-00) 5591 RON
315 1 1 SQUARE GUIDE FRONT PROTECT.300 (863205-02) 4137 RON
316 1 1 LOWER PROTECTION GUARD D.300-U (863437-00) 4137 RON
319 1 1 WRENCH TUBULAR HEX.13 - 10 (service) (869235-00) 4137 RON
320 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON

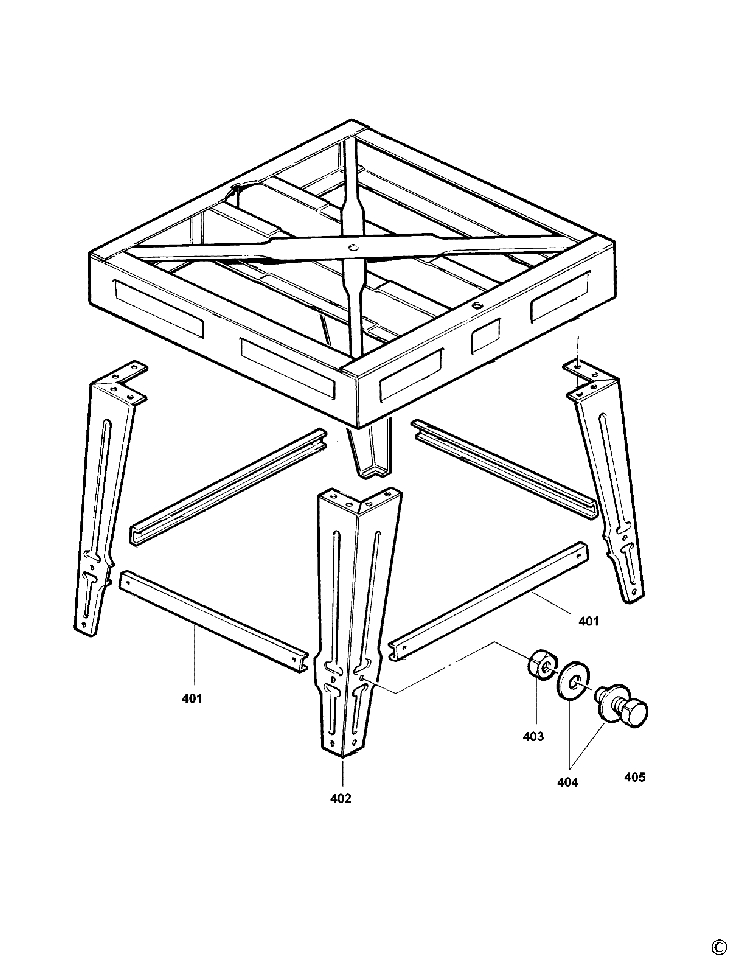

401 1 4 LEFT SUPPORT (860009-09) 15993 RON
402 1 4 LEG (STAND K ) BLACK (860008-00) 25164 RON
403 1 24 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
404 1 48 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
405 1 24 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON

Conditii Generale
