Top » Piese de schimb » PIESE DEWALT » DW721KN Type 1

DW721KN RADIAL ARM SAW Type 1
[DW721KN Type 1]
DW721KN RADIAL ARM SAW Type 1
Click pentru a mari
Imagini suplimentare
DW721KN RADIAL ARM SAW Type 1
Click pentru a mari
DW721KN RADIAL ARM SAW Type 1
Click pentru a mari
DW721KN RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA HANDLE ELEVATING DW1251 (860792-00) 3018 RON
2 1 1 SCREW (934401-00) 558 RON
3 1 2 SCREW SOCKET M.6X25 UNI 5931 (860093-06) 558 RON
4 1 1 WASHER FLAT 10 5X18 UNI 6592 (860073-06) 558 RON
5 1 1 CAP COLUMN DW1251 (860784-00) 3466 RON
6 1 4 SCREW FIL.HD B M4X10 DIN 7513 (860531-00) 781 RON
7 1 4 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
8 1 1 POINTER MITRE 7790 (860237-00) 1452 RON
9 1 1 SCREW HEX M.5X20 UNI 5739 (860085-11) 558 RON
10 1 1 CABLE SUPPORT D.13 1370-INDUS (863912-00) 7940 RON
11 1 2 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
12 1 1 BRACKET FOR AUTOMATIC SAFETY R (863724-00) 11519 RON
13 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
14 1 2 SCREW SOCKET M.8X12 UNI 5931 (860093-14) 558 RON
15 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
17 1 1 864080-00 - Indisponibil
18 1 1 RUBBER TIP FOR AUTOM.SAFETY RE (864081-00) 1452 RON
20 1 1 AUTOMATIC SAFETY RETURN - INDU (863929-00) 80865 RON
21 1 1 CABLE CLIP D.9-11 5 (863259-00) 2124 RON
22 1 1 RATING PLATE DW721KN-GB (N034446) 3018 RON
23 1 1 ARM DW721KN SERVICE (N045681) 439451 RON
24 1 1 BUMPER D.16X10 BLACK (860429-00) 893 RON
25 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
26 1 2 SCREW SOCKET M.6X20 UNI 5931 (860093-05) 558 RON
27 1 1 FRONT CAP 8000 (861111-01) 4472 RON
28 1 2 NAMEPLATE FOR ARM DW721 (861738-01) 4137 RON
29 1 1 COLUMN DW721KN SERVICE (N045682) 286554 RON
30 1 1 SA SCREW ELEV.L.227+TUBE (860791-00) 5484 RON
31 1 8 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
32 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
33 1 4 SCREW HEX M.10X45 UNI 5739 (860085-05) 781 RON
34 1 4 WASHER FLAT 10.5X21 UNI6592 Z (860073-04) 558 RON
35 1 6 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
36 1 2 SCREW HEX M.8X70 UNI 5739 (860085-02) 781 RON
37 1 1 BASE (860909-03) 102451 RON
38 1 1 SCREW HEX M.10X110 UNI 5737 (860086-00) 1788 RON
39 1 2 SPACER ELEVATING TUBE (860065-00) 1229 RON
40 1 1 PLATE LH BASE 25X8 BLACK OXID (860273-00) 3018 RON
41 1 1 PIN SPIRAL 5X28 UNI 6875 (860096-06) 558 RON
42 1 1 SLEEVE ELEV.SCREW DW1251BLANK (860831-90) 2347 RON
43 1 1 WRENCH 22-10 SPECIAL (860423-00) 4472 RON
44 1 2 NUT HEX 22X8 M.18X1.5 SPEC. (860232-00) 2124 RON
45 1 2 SCREW HD13 SET MTR LTCM18X1.5 (860231-00) 4137 RON
46 1 1 S.A. ARM LOCATING LEVER+KNOB (864723-01) 11519 RON
47 1 1 PLATE RH BASE 25X8 BLACK OXID (860273-02) 3466 RON
48 1 1 SAFETY BACK SPACER (867190-01) 2124 RON
49 1 1 SA LEVER CLAMP ARM DW1251 ORG (860795-00) 6821 RON
50 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
51 1 1 SA LOCATION NIB 8100CE (861240-00) 6821 RON
52 1 2 STRAP CABLE N6 3/8 NYLON (860843-02) 558 RON
53 1 2 SCREW SET M.8X35-UNI5925 BRASS (949853-11) 10512 RON
54 1 1 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
55 1 3 WASHER-SHIM 12X26X0.3 SPECIAL (860226-01) 781 RON
56 1 1 WASHER WITH TAB D.10 5X1 BLNK (860802-90) 105 RON
58 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
61 1 1 CABLE CLAMP 80-100 (949700-06) 3018 RON
62 1 1 STRAP 90-110 (949700-07) 5591 RON
63 1 1 DUST PROTECTION (863324-00) 17335 RON
64 1 2 SCREW PAN PH A M5X16 DIN 7516 (860238-03) 781 RON
65 1 2 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
66 1 1 SA HEAD RETURN DEVICE DW721KN (869356-09) 117887 RON
67 1 1 LABEL WARNING (N034454) 2347 RON
68 1 1 DUST EXTRACTION DW721KN (N032402) 20467 RON
69 1 3 WASHER D.8 4X24X2 (941602-00) 558 RON
70 1 3 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON
71 1 1 ROLL PIN (330036-08) 558 RON
75 1 1 ELEMENT DW721KN (N027622) 29862 RON
76 1 1 ELEMENT RH DW721KN (N030449) 37579 RON
77 1 1 GUIDE RH DW721KN (N027624) 17335 RON
78 1 17 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
79 1 1 GUIDE LH DW721KN (N029923) 15993 RON
80 1 1 EXTENSION TABLE DW721 (N027626) 25164 RON
81 1 1 TABLE DW721 (N027625) 62298 RON
82 1 6 PIN D.8 (N032917) 558 RON
83 1 19 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
84 1 23 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
85 1 23 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
89 1 2 SPACER (864078-00) 2795 RON
90 1 1 BASE DW 721 (869320-00) 216872 RON
95 1 2 SCREW HEXAGON 8X45 (N035392) 3466 RON
96 1 17 SCREW M.8X25 (949703-09) 781 RON
97 1 1 SIDE TABLE SUPPORT RH DW721KN (N030068) 1891 RON
98 1 1 EXTENSION TABLE LH DW721 (N027627) 20467 RON
99 1 1 OVERLOAD PROTECTOR DW721KN-QS (868878-06) 15993 RON
100 1 3 SETTING STUD 8X47 (868459-00) 2795 RON
101 1 1 SUPPORT DW721KN (N034713) 14315 RON
102 1 4 BRACKET (863130-04) 3466 RON
109 1 1 SIDE TABLE SUPPORT LH DW721KN (N033664) 20467 RON
110 1 1 861278-00 - Indisponibil
111 1 2 RD.HD.SCREW M.5X70 (949701-03) 558 RON
112 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
113 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
114 1 1 SA SWITCH 230V. DW721KN-GB (N033753) 117887 RON
115 1 1 CABLE (861896-00) 34336 RON
120 1 2 SCREW CONCENTRIC BEARING 1712 (760421-00) 3466 RON
121 1 1 PIN DW721KN SERVICE (N045683) 12861 RON
122 1 4 BEARING SPECIAL SKF 614432-B (860154-00) 25164 RON
123 1 2 BEARING SHAFT-ECCENTRIC DW125- (760417-00) 4137 RON
124 1 1 SCREW HEX M.6X30 UNI 5739 ZN (860085-26) 558 RON
124 1 1 SOCKET HEAD SCREW (860093-20) 558 RON
125 1 1 TOOTHED WASHER (931429-00) 558 RON
125 1 1 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
126 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
129 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
130 1 2 SOCKET SCREW TYPE-E (941880-00) 558 RON
131 1 6 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
132 1 4 NUT HEX THICK M.8X1 UNI 5587 (860083-08) 558 RON
134 1 1 WRENCH (949882-01) 781 RON
135 1 1 LOCATING PLUG (863977-00) 14315 RON
136 1 2 SPRING PUSHER D13XD1 2X39 (860112-11) 1788 RON
137 1 1 SUPPORT FOR INDEX PIN YOKE (860835-00) 9282 RON
138 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
139 1 1 WING NUT M6 (942453-00) 190 RON
140 1 2 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
141 1 1 HUB FRONT YOKE D.54 BLANK (860119-01) 6821 RON
142 1 3 PLATE FOR HUBE (860120-00) 105 RON
143 1 3 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
144 1 2 SCREW FIL.HD B M4X10 DIN 7513 (860531-00) 781 RON
145 1 1 POINTER CIRC. (862721-01) 190 RON
146 1 1 PLATE INDEX MOTOR-YOKE DW721KN (N032399) 3466 RON
147 1 1 GASKET FOR YOKE HUBE DW1251 (860827-00) 2124 RON
151 1 1 NUT M18X1 5 (N032397) 1117 RON
152 1 1 WASHER ELASTIC D.INT.18 (N035393) 893 RON
153 1 1 SCREW HEX M.8X75 UNI 5737 (860086-11) 893 RON
154 1 2 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
155 1 2 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
156 1 1 DISC (864160-00) 893 RON
158 1 1 SUPPORT SCREW DW125-111-1370 (864058-00) 4137 RON
159 1 1 YOKE DW721KN SERVICE (N045684) 62298 RON
160 1 1 THRUST RING + SCREWS (863157-00) 5591 RON
161 1 1 HEAD LOCK LEVER DW721KN (N030650) 9282 RON
162 1 1 NEEDLE ROLLER (N034670) 3018 RON
163 1 1 SPRING (N032405) 1452 RON
165 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
166 1 1 NUT M5 (860092-03) 558 RON
167 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
168 1 1 LEVER (861840-03) 2795 RON
169 1 1 SCALE BEVEL DW1251 (860829-00) 190 RON
170 1 2 SCREW TSPPH (860205-06) 558 RON
171 1 1 ROLLER HEAD DW721KN SERVICE (N045685) 4825 RON
172 1 1 SQUARE (863726-00) 105 RON
173 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
178 1 1 RD.HD.SCREW M.5X25 (949701-12) 558 RON
179 1 2 SCREW FIL.HD M5X60 UNI 6107 (860089-39) 558 RON
180 1 1 SA HANDLE DW721KN (N031178) 3466 RON
181 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
182 1 2 NUT M6 (860083-12) 558 RON
186 1 1 SPANNER 10/13 DW50-55 (949751-07) 190 RON
189 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
190 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
193 1 1 BEARING 6202 (868768-07) 4137 RON
194 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
195 1 4 ROD THREADED HEX M.5X135 (860446-01) 781 RON
196 1 1 REAR CALOTTE (861863-00) 17335 RON
197 1 1 STATOR+HOUSING 230/5 725 (868401-01) 190812 RON
198 1 1 SA ARMATURE DW721KN (SERVICE) (N037012) 62298 RON
200 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
201 1 1 ARBOR END BELL DW1251-3 (862162-00) 12861 RON
202 1 1 INNER FLANGE DW721KN (N026918) 1891 RON
202 1 1 INNER FLANGE DW721KN (N071376) 1891 RON
203 1 1 OUTER FLANGE DW721KN (N071377) 1891 RON
204 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
205 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
206 1 1 SA KIT REP. DW721KN-GB T.2+MOTOR SERVICE (N113196) 477144 RON
207 1 1 FAN (945841-00) 2347 RON
208 1 1 PROTECTION (N027614) 5591 RON
209 1 4 SCREW FLAT HD M.4X25 UNI 6109 (860538-00) 558 RON
210 1 2 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
211 1 1 SCREW SET M.5X10 UNI 5929 (860088-25) 558 RON
212 1 2 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
213 1 1 WASHER D4 (933652-00) 558 RON
214 1 1 INNER MOTOR FLANGE (123302-01) 2795 RON
215 1 1 GASKET FOR INTERNAL MOTOR FLAN (863878-00) 893 RON
216 1 1 OUTER MOTOR FLANGE (864085-01) 3018 RON
217 1 1 STRAP CABLE N5 5/16 NYLON (860843-01) 558 RON
219 1 1 SPRING DW743N (869246-00) 781 RON
220 1 1 RETAINING RING D.20 (949727-06) 558 RON
221 1 1 CAP D.60 5+BUSH (861336-05) 5031 RON
222 1 1 SPRING (861338-05) 781 RON
231 1 4 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
233 1 1 PLASTIC NUT PG 13 5 (N033752) 105 RON
234 1 1 COPERCHIO SCATOLA MOTORE D27400 (868961-00) 2347 RON
235 1 1 JAM NUT FOR CABLE INLET 3/8 (949747-07) 781 RON
236 1 1 3/8 CAP (949747-18) 1117 RON
237 1 2 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
238 1 1 CABLE (N032403) 3466 RON
240 1 1 GOMMINO VITE TERRA D.22 X 12 H4. D27400 (868963-00) 1117 RON
241 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
242 1 1 BUSHING (868965-01) 558 RON
243 1 1 MOTOR BOX DW721KN (N036361) 3466 RON
244 1 1 CAPACITOR 30MF 450 (949772-50) 9282 RON
245 1 7 CLAMP E25 (861257-00) 781 RON
246 1 1 GASKET MOTOR BOX D27400 (868962-00) 1788 RON
247 1 1 GOMMINO CONICO 4F x GHIERA SERR. D27400 (868965-00) 558 RON
248 1 1 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
249 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
250 1 1 WASHER D4 (933652-00) 558 RON
253 1 4 SCREW PAN.PHAB 3.5X13 UNI6954 (860084-04) 558 RON
254 1 1 SLEEVE BS 13.5 (947322-01) 3466 RON
256 1 1 SWITCH LABEL DW721KN 230V. (N032401) 1788 RON
257 1 1 ON-OFF PUSH BUTTON DW721KN. (N031511) 22144 RON
258 1 1 CONTACT BLOCK DW721KN. (N031510) 1891 RON
272 1 1 SIDE NAMEPLATE DW743N (869125-00) 2347 RON
274 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
275 1 1 GUARD PLATE (N032220) 3466 RON
276 1 4 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
279 1 3 SCREW (943023-00) 558 RON
280 1 1 GUIDE SQUARE (863707-01) 3466 RON
281 1 2 SCREW M5X10 (760998-00) 558 RON
282 1 2 SCREW M5X10 (249412-20) 558 RON
283 1 4 WASHER FOR LEVER EUROG.250-300 (864053-00) 2124 RON
284 1 1 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
287 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
290 1 1 SCREW HEX M.6X20 UNI5739 BLCK (860085-09) 558 RON
292 1 1 FRONT PROTECT.GUIDE BUSHING (863705-00) 1117 RON
293 1 2 SLIDING ROLLER EUROG.D.250-300 (864054-00) 1229 RON
303 1 1 SQUARE HEAD BUTTON SCREW (949891-01) 558 RON
304 1 2 REAR PROT.SPRING (861221-00) 1788 RON
306 1 1 FRONT PROT.SPRING (861239-00) 2795 RON
307 1 1 WASHER-THRUST 8X14X1.2 DIN988 (860076-04) 558 RON

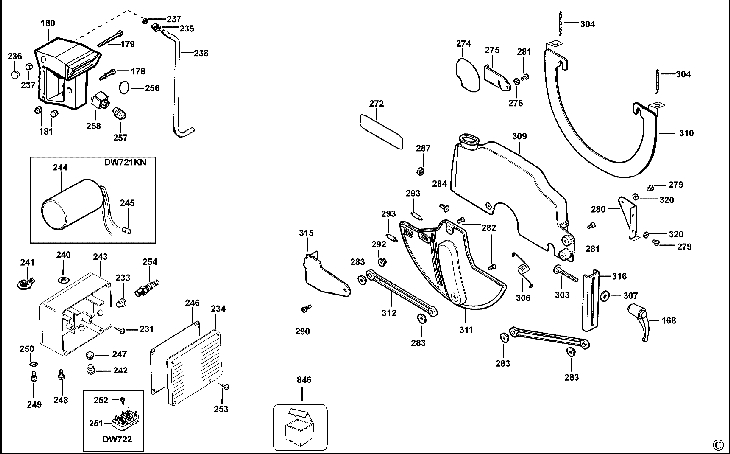

309 1 1 GUARD DW721KN MCHD (N032412) 37579 RON
310 1 1 PROTECTION REAR-GUARD 300 (863773-02) 12861 RON
311 1 1 PROTECTION (862426-00) 6821 RON
312 1 2 LEVER (862082-01) 3018 RON
315 1 1 SQUARE GUIDE FRONT PROTECT.300 (863205-02) 4137 RON
316 1 1 LOWER PROTECTION GUARD D.300-U (863437-00) 4137 RON
319 1 1 WRENCH TUBULAR HEX.13 - 10 (service) (869235-00) 4137 RON
320 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON

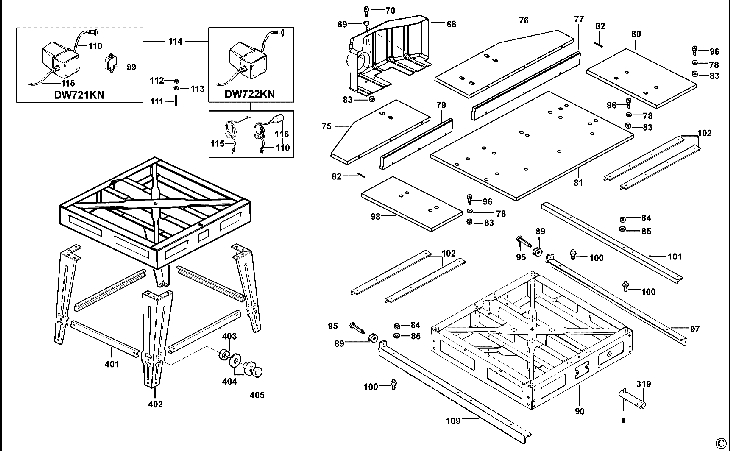

401 1 4 LEFT SUPPORT (860009-09) 15993 RON
402 1 4 LEG (STAND K ) BLACK (860008-00) 25164 RON
403 1 24 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
404 1 48 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
405 1 24 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON

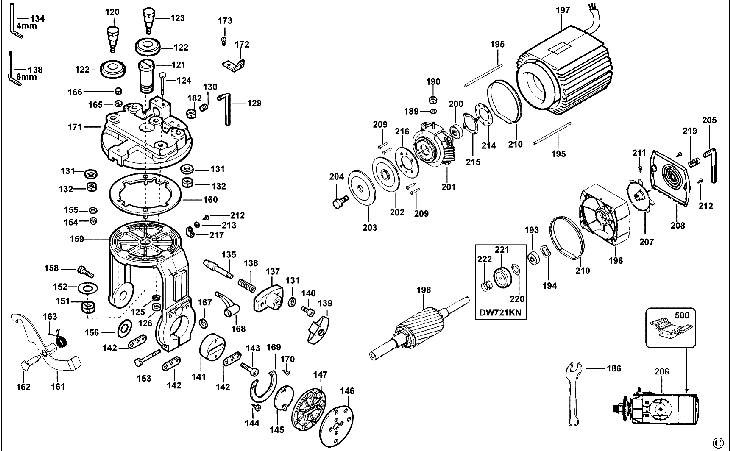

500 1 1 SA KIT REPAIR DW721KN-GB T.2 SERVICE (N107595) 257473 RON
846 1 1 GUARD DW721KN (N045264) 202891 RON

Conditii Generale
