Top » Piese de schimb » PIESE DEWALT » DW718XPS Type 2

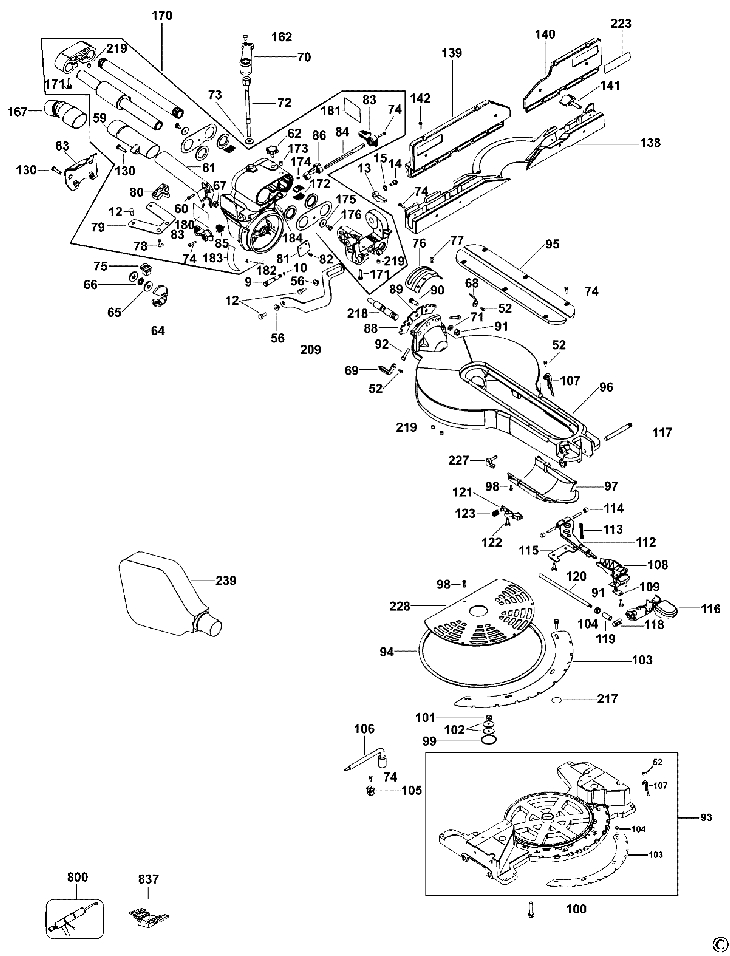

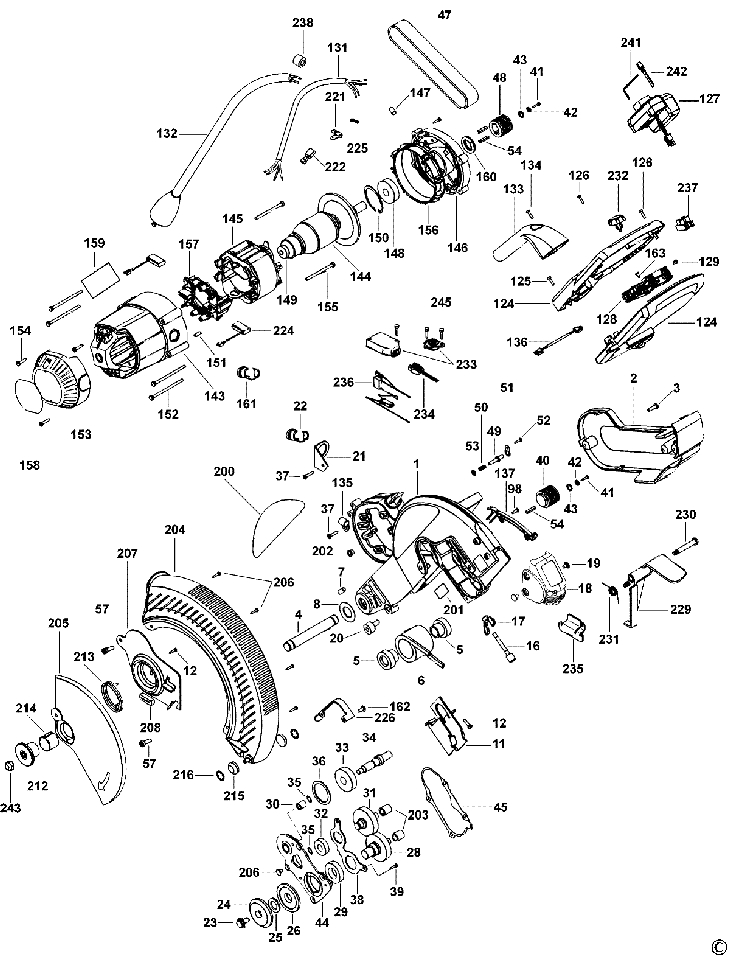

DW718XPS MITRE SAW Type 2
[DW718XPS Type 2]
DW718XPS MITRE SAW Type 2
Click pentru a mari
Imagini suplimentare
DW718XPS MITRE SAW Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARM (618175-01SV) 65989 RON
1 1 1 ARM (618175-01SV) 65989 RON
1 1 1 ARM (618175-01SV) 65989 RON
1 1 1 ARM (618175-01SV) 65989 RON
2 1 1 BELT COVER (618193-00) 6821 RON
3 1 5 SCREW (330045-14) 558 RON
4 1 1 SHAFT (146751-00) 2124 RON
5 1 2 SPACER (146732-00) 781 RON
6 1 1 SPRING (N039404) 9282 RON
7 1 2 SCREW (150075-00) 781 RON
8 1 2 PLASTIC WASHER (148296-00) 781 RON
9 1 1 PIN LOCKING (387130-00) 2347 RON
10 1 1 GASKET (34158-00) 558 RON
11 1 1 GUARD REAR (618190-00) 3018 RON
11 1 1 GUARD REAR (618190-00) 3018 RON
12 1 7 SCREW (330045-23) 781 RON
13 1 1 STOP PAWL (153603-01) 1117 RON
14 1 1 SHOULDER SCREW (153639-00) 781 RON
15 1 1 WAVY WASHER (153655-00) 558 RON
16 1 1 SCREW (618197-00) 893 RON
17 1 1 NUT WING (150718-00) 558 RON
18 1 1 LED & POWER SUPPLY KIT (5140117-90) 3124 RON
18 1 1 LED & POWER SUPPLY KIT (5140117-90) 3124 RON
19 1 4 SCREW (385915-02) 558 RON
20 1 1 SCREW (618198-00) 781 RON
21 1 1 BRACKET (624195-01) 1117 RON
22 1 1 INSULATED BUSHING [POLYONE LM-318-G001] (615851-00) 2795 RON
23 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
24 1 1 CLAMP OUTER (604765-00) 3466 RON
24 1 1 CLAMP OUTER (604765-00) 3466 RON
25 1 1 ADAPTOR (604770-00) 2347 RON
25 1 1 ADAPTOR (604770-00) 2347 RON
26 1 1 WASHER INNER CLAMP (645000-00) 2795 RON
26 1 1 WASHER INNER CLAMP (645000-00) 2795 RON
28 1 1 SPINDLE GEAR (393702-00SV) 37579 RON
29 1 1 BEARING BALL (330003-66) 5591 RON
30 1 1 BEARING NEEDLE (391616-00) 190 RON
31 1 1 SA INTERMEDIATE SHFT/GR (393703-00) 22144 RON
32 1 1 BEARING (605040-59) 2124 RON
33 1 1 BEARING (605040-33) 3018 RON
34 1 1 SA PINION+PULLEY DW718 SERVICE (N105443) 28296 RON
35 1 2 153752-00 - Indisponibil
36 1 1 RETAINING PLATE (618244-00) 781 RON
37 1 4 SCREW (330045-49) 558 RON
38 1 1 BEARING PLATE (391310-00) 1452 RON
39 1 3 SCREW (98094-13) 558 RON
40 1 1 PULLEY (153796-00) 4137 RON
40 1 1 PULLEY (153796-00) 4137 RON
41 1 2 SCREW (153778-00) 558 RON
42 1 2 WASHER (98198-05) 558 RON
43 1 2 WASHER (153782-00) 558 RON
44 1 1 653809-01 - Indisponibil
44 1 1 653809-01 - Indisponibil
45 1 1 GASKET (391315-00) 1788 RON
47 1 1 BELT (153555-00) 12861 RON
48 1 1 DRIVE PULLEY (153554-00) 4137 RON
49 1 1 LOCKING PIN (153561-00) 105 RON
50 1 1 SPRING (448176-00) 558 RON
51 1 1 PLATE (393071-00) 558 RON
52 1 4 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
53 1 1 WASHER (153559-00) 558 RON
54 1 3 KEY (153638-00) 781 RON
56 1 2 SLEEVE (146740-00) 781 RON
57 1 2 SCREW (394589-01) 781 RON
59 1 1 DUCT (618157-00) 1452 RON
60 1 8 Screw Metal (330045-15) 781 RON
61 1 1 DUCT (624719-00) 5591 RON
62 1 1 LOCK KNOB (618156-00) 190 RON
63 1 1 SUPPORT PLATE (618238-00) 1788 RON
64 1 2 BUSHING (618145-00) 2124 RON
65 1 2 WASHER THRUST (153769-01) 893 RON
66 1 1 BEARING THRUST (153451-00) 781 RON
67 1 1 LOCK NUT (625393-00) 558 RON
68 1 1 POINTER (618211-00) 781 RON
69 1 1 POINTER (618235-00) 781 RON
70 1 1 HANDLE (618236-00) 2347 RON
71 1 3 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
72 1 1 ROD (618148-00) 2347 RON
73 1 1 WASHER THRUST (603636-00) 781 RON
74 1 9 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
75 1 1 BLOCK (618160-00) 1452 RON
76 1 1 SECTOR BEVEL (626440-00) 2347 RON
77 1 4 SCREW (98103-18) 558 RON
78 1 4 SCREW (98104-17) 558 RON
79 1 1 SPRING (641466-00) 3018 RON
80 1 1 PAWL (641467-00) 2347 RON
81 1 1 COVER (618162-00) 558 RON
82 1 2 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
83 1 1 LEVER (N019349) 105 RON
84 1 1 ROD (618153-00) 190 RON
85 1 1 SPRING TORSION (618259-00) 558 RON
86 1 1 CAM (618232-00) 781 RON
88 1 2 PLATE (641471-00) 893 RON
89 1 1 PLATE (641468-00) 1229 RON
90 1 3 CARRIAGE BOLT (98130-25) 781 RON
91 1 4 NUT HEX (330015-03) 558 RON
92 1 2 SCREW (391346-00) 781 RON
93 1 1 BASE SA (645751-00SV) 165534 RON
93 1 1 BASE SA (645751-00SV) 165534 RON
93 1 1 BASE SA (645751-00SV) 165534 RON
93 1 1 BASE SA (645751-00SV) 165534 RON
94 1 1 PLATE (618192-00) 9282 RON
95 1 2 PLATE (618199-00) 3018 RON
96 1 1 TABLE SA (630711-03) 102451 RON
96 1 1 TABLE SA (630711-03) 102451 RON
97 1 1 COVER (618172-00) 2795 RON
98 1 12 SCREW.TEMP (330045-05) 558 RON
99 1 1 RING (49787-00) 558 RON
100 1 1 SCREW TE M8X35 (98025-35) 781 RON
101 1 1 NUT (330021-09) 558 RON
102 1 2 LAP WASHER (153792-00) 558 RON
103 1 1 PLATE (618168-00) 12861 RON
104 1 4 SCREW (604410-00) 558 RON
105 1 1 HOLDER (391358-01) 1117 RON
106 1 1 WRENCH (608563-01) 3018 RON
107 1 1 POINTER (618209-00) 781 RON
108 1 1 ACTUATOR (618169-00) 2347 RON
109 1 1 PLATE (618243-00) 558 RON
112 1 1 DETENT (624477-00) 11519 RON
113 1 1 SPRING COMPRESSION (618176-00) 558 RON
114 1 2 NEEDLE BEARING (93128-00) 1229 RON
115 1 1 RETAINER (618254-00) 1117 RON
116 1 1 LEVER MITER LOCK (N082785) 3466 RON
117 1 1 PIN (618187-00) 1229 RON
118 1 1 PIN (624460-00) 893 RON
119 1 1 SLEEVE (624461-00) 781 RON
120 1 1 ROD (618186-00) 1452 RON
121 1 1 BLOCK (618185-00) 3466 RON
122 1 1 SCREW (385915-03) 105 RON
123 1 1 SPRING COMPRESSION (618253-00) 558 RON
124 1 1 HANDLE SA (624730-01) 9282 RON
124 1 1 HANDLE SA (624730-01) 9282 RON
125 1 4 SCREW (330045-18) 558 RON
126 1 5 SCREW PLASTITE (330019-32) 558 RON
127 1 1 SA SUPPLY POWER WRKLITE/LASR (N017897) 15993 RON
127 1 1 SA SUPPLY POWER WRKLITE/LASR (N017897) 15993 RON
128 1 1 SWITCH 1269.1402-02 1269R164 R.22A cod vechi 606056-00 (N548978V) 7940 RON
129 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
130 1 3 SCREW.TEMP (330045-25) 558 RON
131 1 1 MOTOR CABLE (618276-00) 5591 RON
132 1 1 CORDSET GB (604807-03) 1891 RON
132 1 1 CORDSET (N045585) 26730 RON
132 1 1 CORDSET (N045585) 26730 RON
133 1 1 HANDLE (N083060) 3466 RON
134 1 1 SCREW (CARRY HANDLE) (330019-22) 558 RON
135 1 1 CABLE CLAMP (398443-00) 781 RON
136 1 1 CABLE SA (618213-00) 2795 RON
137 1 1 COVER (618269-00) 781 RON
138 1 1 FENCE (618202-01) 28296 RON
138 1 1 FENCE (618202-01) 28296 RON
139 1 1 FENCE LH (618203-01) 22144 RON
139 1 1 FENCE LH (618203-01) 22144 RON
140 1 1 FENCE RH (N024409) 29862 RON
140 1 1 FENCE RH (N024409) 29862 RON
141 1 3 KNOB LOWER (147107-02) 1117 RON
142 1 5 SCREW (98105-03) 558 RON
143 1 1 FIELDCASE (391317-00) 7940 RON
143 1 1 FIELDCASE (391317-00) 7940 RON
144 1 1 ARMATURE SA (N030189SV) 74937 RON
144 1 1 ARMATURE & FAN (391316-02SV) 42277 RON
145 1 1 FIELD (391318-01SV) 32770 RON
145 1 1 FIELD 115V (391318-00SV) 29862 RON
146 1 1 MOUNTING BRACKET (391282-00) 9282 RON
147 1 1 SCREW (394034-00) 893 RON
148 1 1 BEARING cod vechi 605040-32 (N127530) 3466 RON
149 1 1 BEARING BALL (330003-60) 190 RON
150 1 1 SEAL RING (144803-00) 781 RON
151 1 1 RUBBER PLUG (145312-00) 558 RON
152 1 4 SCREW (98094-55) 558 RON
153 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
154 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
155 1 2 SCREW PLASTITE (330019-19) 781 RON
156 1 1 BAFFLE (391375-00) 1788 RON
157 1 1 BRUSH HOLDER NYLON 6-ULTRAMID A3X2G5 (389512-01) 10512 RON
158 1 1 IDENTITY LABEL (391325-00) 558 RON
159 1 1 N020636 - Indisponibil
159 1 1 N020633 - Indisponibil
160 1 1 153783-00 - Indisponibil
161 1 1 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
162 1 3 SCREW (330045-13) 558 RON
163 1 1 screw dw744 (330019-12) 558 RON
167 1 1 ADAPTOR (618240-00) 105 RON
170 1 1 SA SUPP.HOUSING+RAILS DW718 (650852-00) 190812 RON
171 1 8 SCREW (603390-00) 558 RON
172 1 3 WEAR GUIDE (397118-00) 1452 RON
173 1 1 SCREW M8X10 (153576-04) 190 RON
174 1 1 FRICTION DISC (613497-00) 558 RON
175 1 2 RUBBER WASHER (153586-00) 781 RON
176 1 1 VITE TRIL.TCB M5X12 D6 1 (616001-00) 558 RON
180 1 1 LABEL PIVOT (618278-00) 893 RON
181 1 1 LABEL PIVOT (618277-00) 893 RON
182 1 4 RIVET (147439-07) 558 RON
183 1 1 SCALE LH (618262-00) 105 RON
184 1 1 SCALE RH (618261-00) 105 RON
200 1 1 LABEL (393706-00) 781 RON
201 1 1 WARNING LABEL (662575-00) 3466 RON
202 1 2 INSERT (148608-00) 558 RON
203 1 2 BEARING DW704 TYPE 3 (386780-00) 190 RON
204 1 1 GUARD LOWER (618231-00) 15993 RON
204 1 1 GUARD LOWER (618231-00) 15993 RON
205 1 1 PLATE (N020822) 4472 RON
206 1 8 SCREW (385915-01) 558 RON
207 1 1 PLATE (621037-00) 3466 RON
208 1 1 BUMPER (146768-00) 781 RON
209 1 1 LINK (N142523) 14315 RON
212 1 1 KIT GUARD HUB+SCREW SERVICE (N390418) 4472 RON
213 1 1 SPRING (661454-00) 1117 RON
214 1 1 SLEEVE (148295-00) 105 RON
215 1 2 ROLLER (625825-00) 781 RON
216 1 2 RING (142273-00) 558 RON
217 1 2 LABEL (394976-00) 1229 RON
218 1 1 STUD (618234-00) 2795 RON
219 1 2 SCREW (153666-00) 558 RON
221 1 4 CONTACT (145332-00) 558 RON
222 1 1 TERMINAL (450212-00) 781 RON
223 1 2 LABEL (395301-00) 781 RON
224 1 2 BRUSH-LEAD (381028-08) 4137 RON
224 1 2 BRUSH-LEAD (381028-08) 4137 RON
225 1 3 TERMINAL (395716-00) 558 RON
226 1 1 GUARD (623957-00) 2347 RON
226 1 1 GUARD (623957-00) 2347 RON
227 1 1 COVER (618177-00) 558 RON
227 1 1 COVER (618177-00) 558 RON
228 1 1 COVER (391355-00) 6821 RON
228 1 1 COVER (391355-00) 6821 RON
229 1 1 LEVER LOCK (624399-00) 190 RON
229 1 1 LEVER LOCK (624399-00) 190 RON
230 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
230 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
231 1 1 SPRING (386196-00) 105 RON
231 1 1 SPRING (386196-00) 105 RON
232 1 1 CONTROL KNOB (392131-00) 105 RON
232 1 1 CONTROL KNOB (392131-00) 105 RON
233 1 1 CONTROL MODULE SA (628744-00) 42277 RON
233 1 1 CONTROL MODULE SA (628744-01) 32770 RON
234 1 1 LEAD SA (622950-00) 22144 RON
234 1 1 LEAD SA (622950-00) 22144 RON
235 1 1 PLATE (393791-00) 1117 RON
235 1 1 PLATE (393791-00) 1117 RON
236 1 1 LEAD SA (618159-00) 7940 RON
236 1 1 LEAD SA (618159-00) 7940 RON
237 1 1 BLOCK TERMINAL (393520-00) 2795 RON
238 1 1 FERRITE BEAD (388414-01) 1452 RON
239 1 1 DUST BAG DW708 (147734-06) 3466 RON
241 1 1 HEX KEY 2.5 MM (604407-01) 893 RON
242 1 1 SWITCH LOCK OFF (627271-00) 781 RON
243 1 1 KIT GUARD HUB+SCREW SERVICE (N390418) 4472 RON
245 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
800 1 1 GREASE (429698-00) 62298 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
837 1 1 559626-99 - Indisponibil
