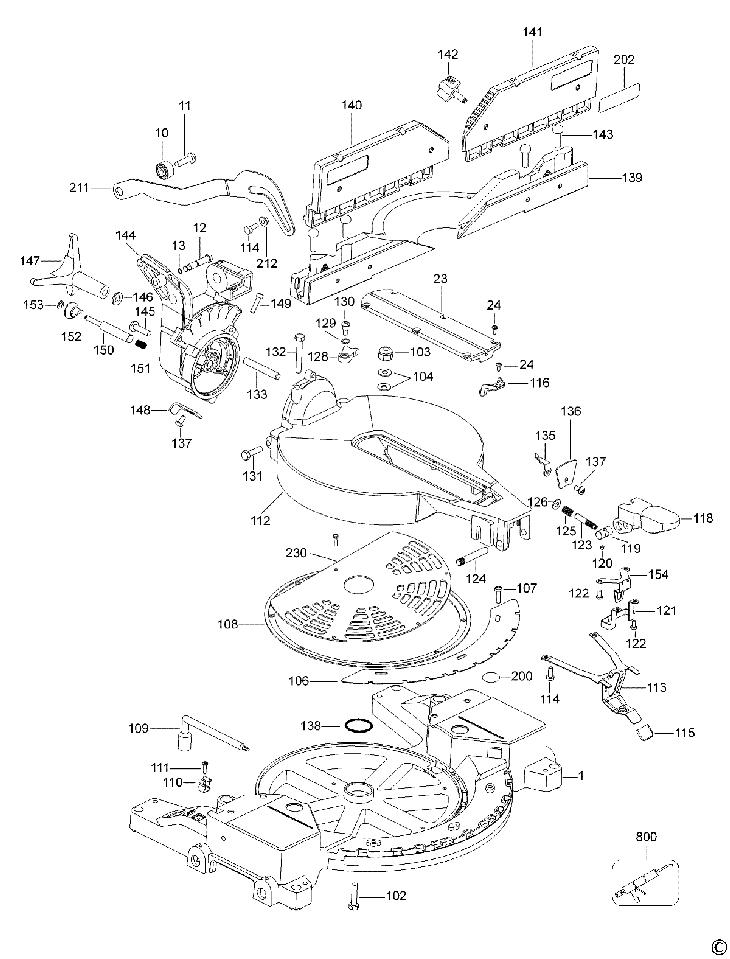

DW716 MITRE SAW Type 1
[DW716 Type 1]
DW716 MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW716 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE SA (626389-01) 80865 RON
2 1 1 GUARD LOWER (618231-00) 15993 RON
3 1 2 SCREW (394589-01) 781 RON
4 1 1 ARM (626402-01) 4825 RON
5 1 1 SHAFT (146751-00) 2124 RON
6 1 2 SPACER (146732-00) 781 RON
7 1 1 SPRING TORSION (N039405) 9282 RON
8 1 2 PLASTIC WASHER (148296-00) 781 RON
9 1 2 SCREW (150075-00) 781 RON
10 1 1 BUSH (385756-01) 1229 RON
11 1 1 SCREW (330045-32) 781 RON
12 1 1 PIN LOCKING (387130-00) 2347 RON
13 1 1 GASKET (34158-00) 558 RON
14 1 1 DUST DEFLECTOR (391336-00) 2347 RON
15 1 1 screw dw744 (153460-00) 558 RON
17 1 1 BRACKET (394643-00) 190 RON
18 1 1 BUSHING HEYCO 1247-SR-7W-2 (33821-00) 781 RON
19 1 1 CABLE CLAMP (398443-00) 781 RON
20 1 3 SCREW (330045-49) 558 RON
21 1 1 BELT COVER (623355-00) 7940 RON
22 1 3 SCREW (330045-14) 558 RON
23 1 1 PLATE (146726-02) 3018 RON
24 1 14 SCREW.TEMP (330045-05) 558 RON
25 1 1 BELT (153555-00) 12861 RON
26 1 1 COVER (N026930) 190 RON
27 1 4 SCREW (385915-02) 558 RON
28 1 1 COVER (618269-00) 781 RON
30 1 1 CABLE SA (618213-00) 2795 RON
31 1 1 COVER (618270-00) 190 RON
32 1 5 SCREW PLASTITE (330019-32) 558 RON
33 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
34 1 1 CLAMP OUTER (604765-00) 3466 RON
35 1 1 ADAPTOR (604770-00) 2347 RON
36 1 1 WASHER INNER CLAMP (645000-00) 2795 RON
38 1 1 HANDLE SA (624730-00) 7940 RON
39 1 7 Screw Metal (330045-15) 781 RON
40 1 4 SCREW (330045-18) 558 RON
42 1 1 SWITCH 1269.1402-02 1269R164 R.22A cod vechi 606056-00 (N548978V) 7940 RON
43 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
44 1 1 screw dw744 (330019-12) 558 RON
45 1 1 BLOCK TERMINAL (393520-00) 2795 RON
46 1 1 FERRITE BEAD (388414-01) 1452 RON
47 1 1 CORDSET GB (330060-91) 28296 RON
47 1 1 CORDSET LX (330061-28) 4825 RON
48 1 1 HANDLE (N083060) 3466 RON
49 1 1 SCREW (CARRY HANDLE) (330019-22) 558 RON
58 1 1 FIELDCASE (391317-00) 7940 RON
80 1 1 DUST BAG DW708 (147734-06) 3466 RON
102 1 1 SCREW TE M8X35 (98025-35) 781 RON
103 1 1 NUT (330021-09) 558 RON
104 1 2 LAP WASHER (153792-00) 558 RON
106 1 1 DETENT (391292-01) 9282 RON
107 1 3 SCREW (604410-00) 558 RON
108 1 1 PLATE (391353-00) 3018 RON
109 1 1 WRENCH (608563-01) 3018 RON
110 1 1 HOLDER (391358-01) 1117 RON
111 1 1 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
112 1 1 TABLE (626393-00) 51337 RON
113 1 1 SPRING (626608-00) 3466 RON
114 1 8 SCREW (330045-23) 781 RON
115 1 1 COVER (148611-00) 558 RON
116 1 1 POINTER (398693-00) 105 RON
118 1 1 LEVER (626629-00) 3466 RON
119 1 1 PIN (628272-00) 1229 RON
120 1 1 SCREW (628804-00) 558 RON
121 1 1 PLATE (630693-00) 2347 RON
122 1 6 SCREW (330045-13) 558 RON
123 1 1 ROD (626610-00) 1117 RON
124 1 1 PIN (626611-00) 1117 RON
125 1 1 SPRING (58698-00) 558 RON
126 1 1 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
128 1 2 PAWL (391347-00) 105 RON
129 1 2 WAVY WASHER (153655-00) 558 RON
130 1 2 SHOULDER SCREW (153639-00) 781 RON
131 1 2 SCREW (153797-01) 781 RON
132 1 1 SCREW (153797-02) 781 RON
133 1 1 STUD (146760-02) 1117 RON
135 1 1 POINTER (391345-00) 1229 RON
136 1 1 DUST DEFLECTOR (393570-00) 781 RON
137 1 3 SCREW (330045-55) 558 RON
138 1 1 RING (49787-00) 558 RON
139 1 1 FENCE (626395-01) 37579 RON
140 1 1 FENCE LH (626396-04SV) 42277 RON
141 1 1 FENCE RH (626397-03) 20467 RON
142 1 2 KNOB LOWER (147107-02) 1117 RON
143 1 4 SCREW (98105-03) 558 RON
144 1 1 TRUNION (5140103-70) 22144 RON
145 1 1 SCREW TRIL (330045-33) 781 RON
146 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
147 1 1 HANDLE (391344-00) 4137 RON
148 1 2 STOP PLATE (391350-00) 1229 RON
149 1 2 SCREW (391346-00) 781 RON
150 1 1 PIN (391348-00) 3018 RON
151 1 1 SPRING (167785-00) 558 RON
152 1 1 KNOB (391349-00) 1117 RON
153 1 1 RING (60325-01) 558 RON
154 1 1 PLATE (629175-00) 1788 RON
155 1 1 GUARD REAR (618190-00) 3018 RON
157 1 1 LOCKING PIN (153561-00) 105 RON
158 1 1 SPRING (448176-00) 558 RON
159 1 1 WASHER (153559-00) 558 RON
160 1 1 PLATE (393071-00) 558 RON
161 1 1 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
162 1 1 BEARING (605040-33) 3018 RON
163 1 1 SA PINION+PULLEY DW718 SERVICE (N105443) 28296 RON
164 1 2 153752-00 - Indisponibil
165 1 1 RETAINING PLATE (618244-00) 781 RON
167 1 1 PULLEY (153796-00) 4137 RON
169 1 2 WASHER (153782-00) 558 RON
170 1 2 WASHER (98198-05) 558 RON
172 1 1 653809-01 - Indisponibil
173 1 1 GASKET (391315-00) 1788 RON
174 1 1 BEARING NEEDLE (391616-00) 190 RON
175 1 1 BEARING BALL (330003-09) 2795 RON
176 1 1 SA INTERMEDIATE SHFT/GR (393703-00) 22144 RON
177 1 1 BEARING BALL (330003-66) 5591 RON
178 1 1 SPINDLE GEAR (393702-00SV) 37579 RON
179 1 1 BEARING PLATE (391310-00) 1452 RON
180 1 3 SCREW (98094-13) 558 RON
182 1 1 RUBBER PLUG (145312-00) 558 RON
183 1 1 FIELD (391318-01SV) 32770 RON
183 1 1 FIELD 115V (391318-00SV) 29862 RON
184 1 2 SCREW PLASTITE (330019-19) 781 RON
185 1 1 ARMATURE SA (N030189SV) 74937 RON
185 1 1 ARMATURE & FAN (391316-02SV) 42277 RON
186 1 1 BEARING BALL (330003-60) 190 RON
187 1 1 BAFFLE (391375-00) 1788 RON
188 1 1 BRUSH HOLDER NYLON 6-ULTRAMID A3X2G5 (389512-01) 10512 RON
189 1 2 BRUSH-LEAD (381028-08) 4137 RON
189 1 2 BRUSH-LEAD (381028-08) 4137 RON
190 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
191 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
192 1 1 IDENTITY LABEL (391325-00) 558 RON
193 1 1 SEAL RING (144803-00) 781 RON
194 1 1 BEARING cod vechi 605040-32 (N127530) 3466 RON
195 1 1 MOUNTING BRACKET (391282-00) 9282 RON
196 1 4 SCREW (98094-55) 558 RON
197 1 1 SCREW (394034-00) 893 RON
198 1 1 DRIVE PULLEY (153554-00) 4137 RON
199 1 2 SCREW (153778-00) 558 RON
200 1 2 LABEL (394976-00) 1229 RON
202 1 2 LABEL (395301-00) 781 RON
203 1 2 INSERT (148608-00) 558 RON
204 1 2 BEARING DW704 TYPE 3 (386780-00) 190 RON
205 1 1 LABEL (393706-00) 781 RON
207 1 1 GUARD PLATE (618194-01) 4472 RON
208 1 8 SCREW (385915-01) 558 RON
209 1 1 PLATE (621037-00) 3466 RON
210 1 1 BUMPER (146768-00) 781 RON
211 1 1 LINK (391314-00) 3466 RON
212 1 1 BUSH (146740-01) 558 RON
214 1 1 RETAINING PLATE (146750-03) 1788 RON
215 1 1 SPRING (661454-00) 1117 RON
216 1 1 SLEEVE (148295-00) 105 RON
217 1 2 ROLLER (625825-00) 781 RON
218 1 2 RING (142273-00) 558 RON
221 1 4 TERMINAL (395716-00) 558 RON
222 1 1 TERMINAL (450212-00) 781 RON
226 1 3 KEY (153638-00) 781 RON
227 1 1 153783-00 - Indisponibil
228 1 1 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
229 1 1 MOTOR CABLE (618276-00) 5591 RON
230 1 1 COVER (391355-00) 6821 RON
231 1 1 GUARD (623957-00) 2347 RON
232 1 1 PLATE (393791-00) 1117 RON
233 1 1 LEVER LOCK (391925-00) 1452 RON
234 1 1 SPRING (386196-00) 105 RON
235 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
236 1 1 LEAD SA (618159-01) 6821 RON
237 1 4 CONTACT (145332-00) 558 RON
800 1 1 GREASE (429698-00) 62298 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
