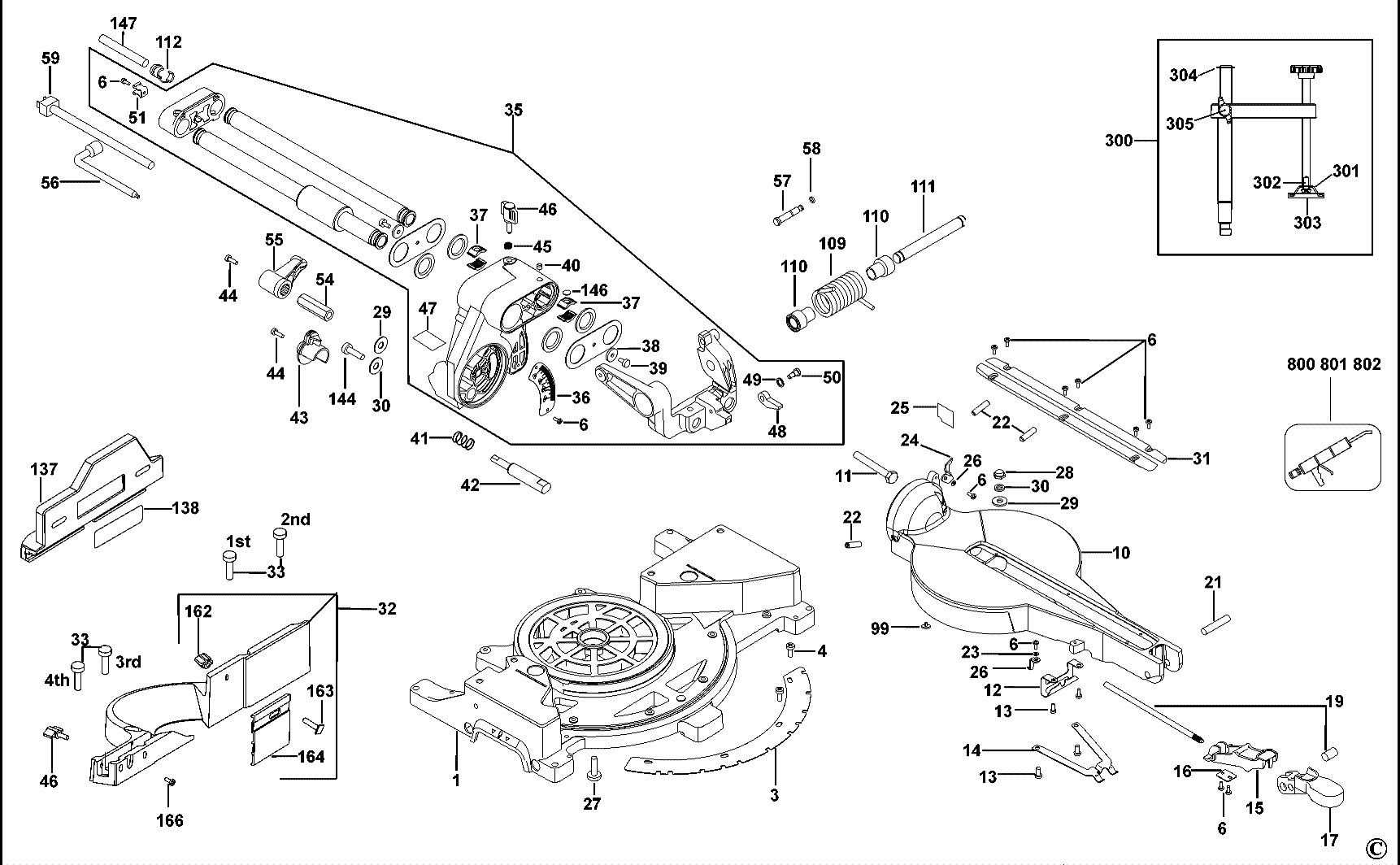

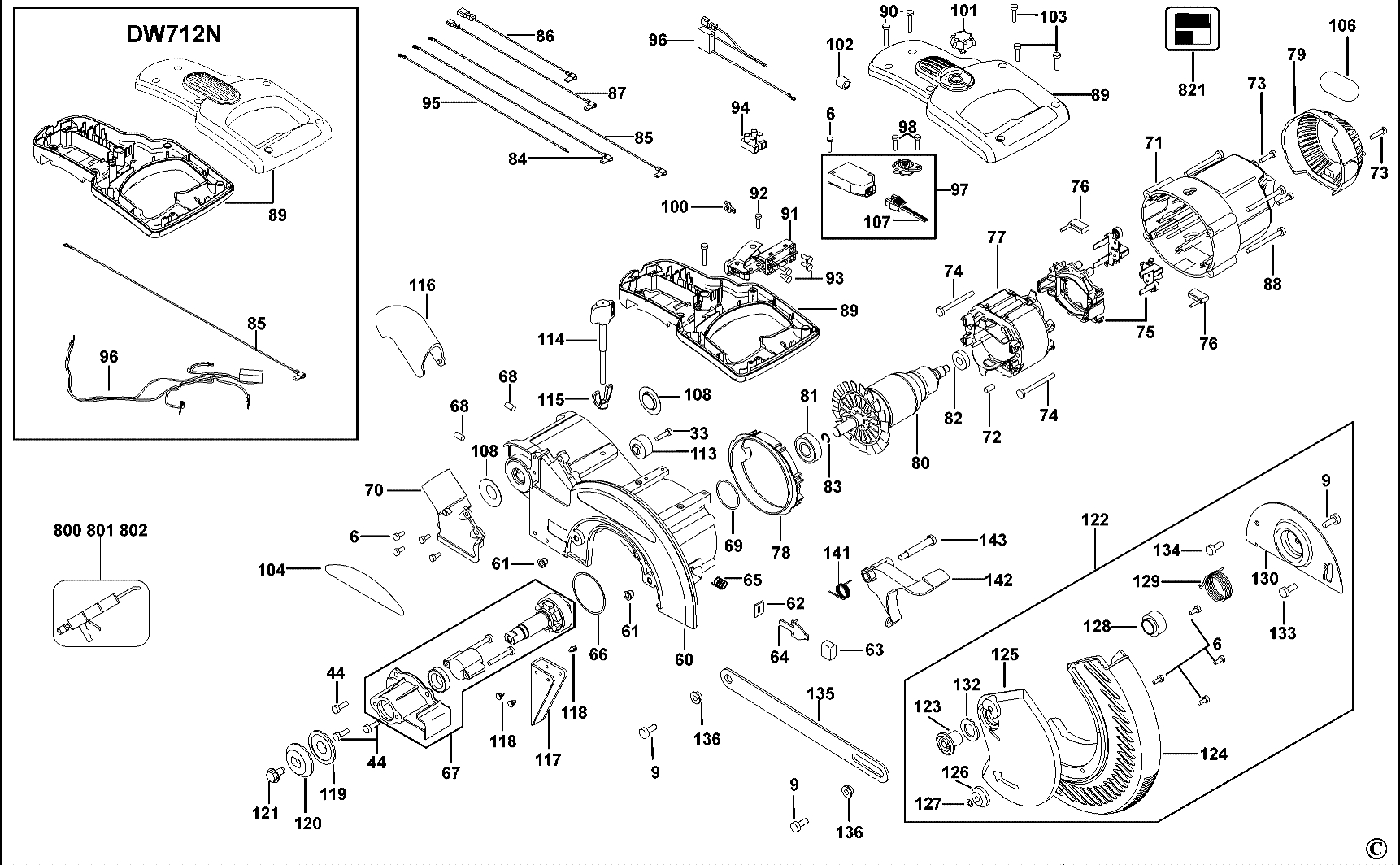

DW712 MITRE SAW Type 5
[DW712 Type 5]
DW712 MITRE SAW Type 5
Click pentru a mari
Imagini suplimentare
DW712 MITRE SAW Type 5
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE DW712N/TTMS SERVICE (869349-00) 49771 RON
3 1 1 SCALE DW712 (397041-00) 12861 RON
4 1 4 SHOULDER SCREW (604987-00) 781 RON
6 1 22 SCREW.TEMP (330045-05) 558 RON
6 1 25 SCREW (98093-76) 558 RON
9 1 1 SCREW (330045-23) 781 RON
10 1 1 SA TABLE DW712N/TTMS EURO SERVICE (869350-00) 74937 RON
11 1 1 SCREW HEX 10x80 DIN 933 LH (638875-00) 1117 RON
12 1 1 LOCK PLATE (397062-00) 1452 RON
13 1 4 SCREW (330045-55) 558 RON
13 1 4 SCREW (330045-55) 558 RON
14 1 1 BLOCK SPRING (397070-00) 2795 RON
15 1 1 LEVER (397073-00) 781 RON
16 1 1 LEVER LOCK PLATE (397075-00) 558 RON
17 1 1 LOCK LEVER (397065-00) 190 RON
19 1 1 KIT MITER LOCK DW712 (629395-00) 5591 RON
21 1 1 DRIVE PIN (397063-00) 1117 RON
22 1 3 SCREW M8X30 (153576-03) 105 RON
23 1 1 MITER POINTER (397048-00) 105 RON
24 1 1 BEVEL INDEX (397090-00) 105 RON
25 1 1 LABEL (605153-00) 893 RON
26 1 2 WASHER (249233-00) 558 RON
27 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
28 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
29 1 2 LAP WASHER (153781-00) 781 RON
30 1 2 WASHER (613270-00) 781 RON
31 1 2 INSERT (397046-00) 2347 RON
32 1 1 FIXED FENCE D27111 (641363-00) 43731 RON
33 1 4 SCREW TRIL (330045-33) 781 RON
35 1 1 SA SLIDE BEVEL MECH. (605699-00) 244723 RON
36 1 1 BEVEL SCALE (397084-00) 1788 RON
37 1 4 WEAR GUIDE (397118-00) 1452 RON
38 1 2 RUBBER WASHER (153586-00) 781 RON
39 1 2 VITE TRIL.TCB M5X12 D6 1 (616001-00) 558 RON
39 1 2 VITE TRIL.TCB M5X12 D6 1 (616001-00) 558 RON
40 1 1 SCREW M8X10 (153576-04) 190 RON
41 1 2 BEVEL STOP SPRING (397088-00) 558 RON
42 1 1 PIN (397083-00) 5031 RON
43 1 1 BEVEL STOP KNOB (397086-00) 1788 RON
44 1 5 SCREW (330045-14) 558 RON
45 1 1 COMPRESSION SPRING (606014-00) 558 RON
46 1 2 KNOB (147107-06) 2124 RON
47 1 1 N016463 - Indisponibil
48 1 1 STOP PAWL (153603-01) 1117 RON
49 1 1 WAVY WASHER (153655-00) 558 RON
50 1 1 SHOULDER SCREW (153639-00) 781 RON
51 1 1 HOLDER (391358-01) 1117 RON
54 1 1 BEVEL NUT (397089-00) 2124 RON
55 1 1 LOCK LEVER (397080-00) 1452 RON
56 1 1 WRENCH (N040940) 3466 RON
57 1 1 PIN LOCKING (387130-00) 2347 RON
58 1 1 GASKET (34158-00) 558 RON
59 1 1 S/A CORDSET (330061-22) 22144 RON
60 1 1 SA ARM DW712N SERVICE (869351-00) 59725 RON
61 1 2 INSERT (148608-03) 1452 RON
62 1 1 FELT (387732-00) 781 RON
63 1 1 BUTTON (145350-00) 558 RON
64 1 1 UNLOCK LEVER (397135-00) 1229 RON
65 1 1 SPRING (941586-00) 558 RON
66 1 1 O RING 47 35X1 78 (616979-00) 558 RON
67 1 1 S/A GEARCASE (397210-00) 43731 RON
68 1 2 SCREW (150075-00) 781 RON
69 1 1 O-RING FOR FA AND BEARING (696519-00) 558 RON
70 1 1 DUST CHUTE [LM-318-G001] (603726-00) 781 RON
71 1 1 FIELD CASE [BASF_ULTRAMID_B3EG6] (391317-04) 5591 RON
72 1 1 RUBBER PLUG (145312-00) 558 RON
73 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
74 1 2 SCREW PLASTITE (330019-19) 781 RON
75 1 1 SA BRUSH HOLDER DW777 (389512-08) 11519 RON
76 1 2 BRUSH 12 5X6 3 105S DW777 (381028-07) 2795 RON
77 1 1 STATORE 115 V G95 MM. (869045-01) 39145 RON
78 1 1 BAFFLE (391375-00) 1788 RON
79 1 1 END CAP [BASF_TERLURAN_GP-22] (391933-00) 2124 RON
80 1 1 ARMATURE 115V.G95 DW712 (869071-01) 74937 RON
81 1 1 BEARING BALL (330003-13) 4137 RON
82 1 1 BEARING BALL (330003-60) 190 RON
83 1 1 SEAL RING (144803-00) 781 RON
84 1 1 YELLOW WIRE [16-18 AWG-RATED 105 600V] (145371-00) 190 RON
85 1 1 RED WIRE [16-18 AWG-RATED 105 600V) (398832-00) 190 RON
86 1 1 LEAD BLACK (398823-00) 190 RON
87 1 1 LEAD WHITE (398828-00) 1452 RON
88 1 4 SCREW (98094-56) 781 RON
89 1 1 SEMI IMPUGN. COP.ELETTR. (397179-01) 4137 RON
90 1 3 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
91 1 1 SWITCH 1269.1402-02 1269R164 R.22A cod vechi 606056-00 (N548978V) 7940 RON
92 1 1 SCREW M4 55X16 (330013-22) 558 RON
93 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
94 1 1 TERMINAL BLOCK [RATED 25A 600V] (326057-00) 893 RON
95 1 1 SA RED LEAD AWG16 (660071-00) 893 RON
96 1 1 CAPACITOR DW712 (612322-00) 2795 RON
97 1 1 S/A MODULE 115V. DW712 SERVICE KIT (622925-01) 4825 RON
98 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
99 1 1 SLIDE ROLLER (640146-00) 893 RON
100 1 1 ADAPTOR (394046-00) 1117 RON
101 1 1 CONTROL KNOB (392131-00) 105 RON
102 1 1 FERRITE BEAD (388414-01) 1452 RON
103 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
104 1 1 DEWALT LABEL (397134-00) 1452 RON
106 1 1 DW712 LABEL (610722-00) 781 RON
107 1 1 CONNECTION (609138-00) 4472 RON
108 1 2 PLASTIC WASHER (148296-00) 781 RON
109 1 1 TORSION SPRING (397130-00) 4472 RON
110 1 2 PLASTIC BASE (397129-00) 781 RON
111 1 1 JOINT AXLE (397128-00) 2795 RON
112 1 1 RELIEF STRAIN HEYCO SR7P-2 (605155-00) 781 RON
113 1 1 DAMPER (146753-00) 558 RON
114 1 1 STOP KNOB (147107-05) 1117 RON
115 1 1 NUT FIN (613365-00) 781 RON
116 1 1 DEFLECTOR (148520-00) 105 RON
117 1 1 DUST CONVEYOR (612788-00) 1117 RON
118 1 4 PUSH RIVET (607491-00) 558 RON
119 1 1 BLADE INNER DW712 (397138-00) 2347 RON
120 1 1 OUTER FLANGE DW 712 (397136-00) 1452 RON
121 1 1 BLADE BOLT (647776-00) 781 RON
122 1 1 S/A PROTECTION (N164918) 29862 RON
123 1 1 RETAINING PLATE SPRING (399182-00) 2347 RON
124 1 1 BLADE PROTECTION (N164683) 9282 RON
125 1 1 PROTECTION PLATE (613460-00) 7940 RON
126 1 1 ROLLER (146774-00) 1117 RON
127 1 1 SEAL RING (604728-00) 558 RON
128 1 1 GUIDE SLEEVE (603440-00) 558 RON
129 1 1 TORSION SPRING (603439-00) 893 RON
130 1 1 PLATE (N041977) 3466 RON
132 1 1 PLASTIC WASHER (612923-00) 558 RON
133 1 1 SCREW (641470-00) 781 RON
134 1 1 SCREW (641470-00) 781 RON
135 1 1 ACTION LEVER (397159-00) 2347 RON
136 1 2 SYNT. BUSHING (146740-02) 558 RON
137 1 1 SLIDING FENCE D27111 (640349-00) 14315 RON
138 1 1 WARNING LABEL (621135-00) 1117 RON
141 1 1 TORSION SPRING (398472-00) 558 RON
142 1 1 UNLOCK LEVER (397150-00) 781 RON
143 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
144 1 1 SCREW (612008-00) 781 RON
146 1 1 FRICTION DISC (613497-00) 558 RON
147 1 1 INSULATED BUSHING [POLYONE LM-318-G001] (615851-00) 2795 RON
162 1 1 KNOB M6 D27112 (653947-00) 105 RON
163 1 1 SCREW SPECIAL FENCE CLAMP D27111 (653948-00) 2347 RON
164 1 1 FENCE SLIDING RH D27111 (634736-00) 4472 RON
166 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
300 1 1 CLAMP SA (N165958) 12861 RON
301 1 1 PAD CLAMP DW777 (630068-00) 781 RON
302 1 1 SCREW (330045-55) 558 RON
303 1 1 CLAMP CAP DW777 (630085-00) 781 RON
304 1 1 RETAINER (389750-00) 558 RON
305 1 1 KNOB LOWER (147107-02) 1117 RON
800 1 1 GREASE (610817-00) 62298 RON
801 1 1 GREASE (790206-00) 34336 RON
802 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
821 1 1 NAMEPLATE DW712-LX TY5 (N162373) 3466 RON
