DW711 TABLE SAW Type 5
[DW711 Type 5]

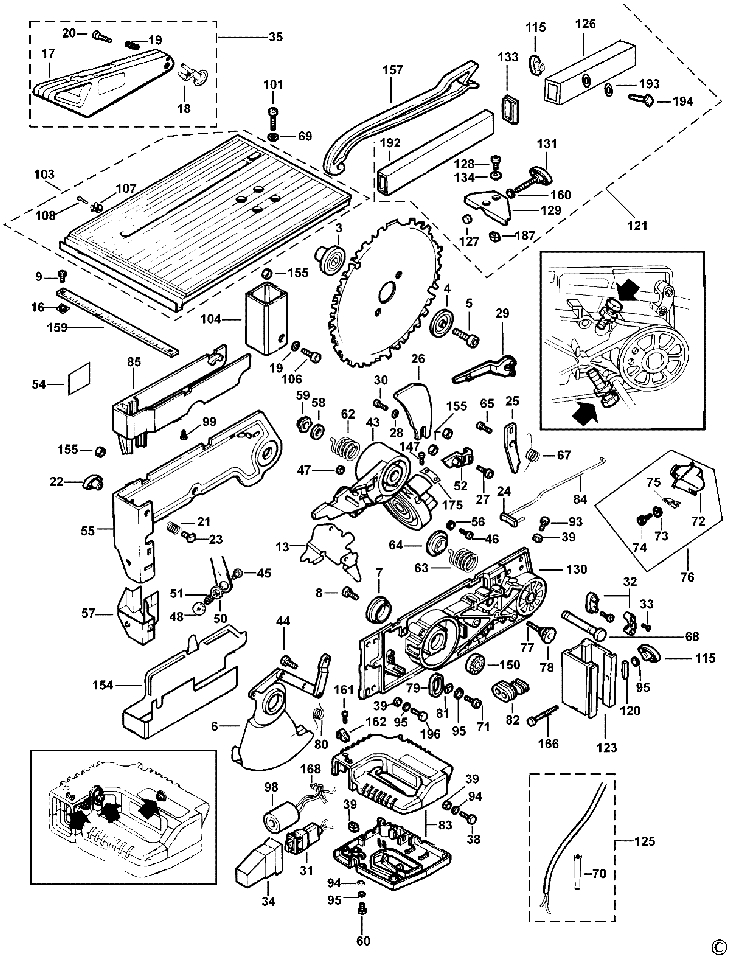

DW711 TABLE SAW Type 5
Click pentru a mari
Imagini suplimentare
DW711 TABLE SAW Type 5
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE DW777 SERVICE (869313-00) 59725 RON
2 1 1 ROTARY TABLE DW777 SERVICE (869313-01) 43731 RON
3 1 1 INNER FLANGE (861057-01) 5591 RON
4 1 1 OUTER FLANGE TGS273 (861056-00) 3466 RON
5 1 1 SOCKET HEAD SCREW SX (949886-21) 4137 RON
6 1 1 SA SWINGING PROTECTION DW711 (864693-04) 1891 RON
7 1 1 MOZZO PROT OSCILL.DW711 (863039-02) 781 RON
8 1 2 SCREW (330045-49) 558 RON
9 1 2 SCREW TSPPH 2 9X9 5 (930085-00) 558 RON
12 1 2 WASHER FOR SCREW (949761-01) 558 RON
13 1 1 FIXED PROTECTION DW711 (861918-04) 5031 RON
16 1 1 PLATE (943025-00) 558 RON
17 1 1 BLADE GUARD DW711/DW743N (N162669) 5591 RON
18 1 1 PROTECTION KNOB (N162670) 781 RON
19 1 1 SPRING (941622-00) 558 RON
20 1 1 SCREW PAN.PHAB 3.9X13 UNI6954 (860084-11) 558 RON
21 1 1 SPRING (868082-00) 558 RON
22 1 1 KNOB (861464-00) 1229 RON
23 1 1 LOCKING TABLE PIN (861963-00) 1788 RON
24 1 1 CLAMP LEVER PUSH DW711 (861953-00) 781 RON
25 1 1 HEAD BLOCKING PLATE DW250-DW25 (863610-00) 1452 RON
26 1 1 RIVING KNIFE DW711 (861919-01) 5591 RON
27 1 1 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
28 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
29 1 1 WRENCH (939072-00) 2347 RON
30 1 1 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
31 1 1 SWITCH (N060327) 11519 RON
31 1 1 SWITCH E325100 03 115 (868319-03) 17335 RON
32 1 1 CLAMP SOM 2124149 (861692-00) 1117 RON
33 1 2 FILLISTER COUNTERS.HD.SCREW (949889-02) 558 RON
33 1 2 SCREW (249412-22) 558 RON
34 1 1 SWITCH COVER (868320-00) 2347 RON
35 1 1 S.A.GUARD DW743N T.4 (N164678) 1891 RON
36 1 1 YELLOW TABLE BASE INSERT (868688-01) 190 RON
37 1 2 WASHER (949705-01) 558 RON
38 1 1 SCREW HEX M.6X20 UNI5739 BLCK (860085-09) 558 RON
39 1 2 NUT M6 (860083-12) 558 RON
40 1 1 LEVER (861840-03) 2795 RON
41 1 2 NUT LOCKING M12X1 25 (860092-07) 558 RON
42 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
43 1 1 HEAD SUPPORT DW711 (861913-02) 28296 RON
44 1 1 SCREW FOR PROTECTION BAR -DW25 (863262-00) 190 RON
45 1 1 PIN SA (863046-00) 2124 RON
46 1 1 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
47 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
48 1 1 KNOB (863047-00) 190 RON
50 1 1 BUSH (863048-00) 1788 RON
51 1 1 SPRING (949722-18) 558 RON
52 1 1 RIV.KNIFE SPACER SUPPORT 711 (862075-01) 190 RON
54 1 1 LABEL (868693-01) 893 RON
55 1 1 FRONT PROTECTION DW711 YELL (861890-02) 10512 RON
56 1 1 DISTANCIAL (863599-02) 105 RON
57 1 1 FRONT BOX DW711 BLACK (861920-00) 1788 RON
58 1 1 PLAIN WASHER D.21XD.37X3 (949761-02) 558 RON
59 1 1 LOCK NUT FOR PIVOT PIN DW250-D (949759-01) 2347 RON
60 1 1 SCREW (860085-07) 558 RON
61 1 2 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
62 1 1 LEFT TORSIONAL SPRING DW250-DW (863606-00) 5031 RON
63 1 1 RIGHT TORSIONAL SPRING DW250-D (863590-00) 5031 RON
64 1 1 HEAD SHIM DW250-DW252 (863611-00) 781 RON
65 1 1 HEAD BLOCKING PIN (863602-00) 190 RON
67 1 2 HEAD BLOCKING SPRING DW250-DW2 (863604-01) 558 RON
68 1 1 JOINT AXLE DW250 (863607-00) 6821 RON
69 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
70 1 1 CORD PROTECTOR (868520-00) 781 RON
70 1 1 CORD PROTECTOR D9 (933551-00) 781 RON
71 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
72 1 1 EXTRACTION KIT DW711 (868478-00) 5591 RON
73 1 1 WASHER (939625-00) 558 RON
74 1 1 SELF TAPPING SCREW 4 (860084-21) 558 RON
75 1 1 PLATE NUT (865410-00) 558 RON
76 1 1 EXTRACTION KIT DW711 (868478-00) 5591 RON
77 1 1 STUD LOCKING HEAD DW250 (863605-00) 1788 RON
78 1 1 KNOB (946469-00) 781 RON
79 1 1 GASKET FOR EARTH WIRE (863026-00) 558 RON
80 1 1 HEAD BLOCKING SPRING DW250-DW2 (863604-01) 558 RON
81 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
82 1 1 CABLE INLET RING DW250-DW252 (863573-00) 105 RON
83 1 1 HANDLE DW711 (862429-05) 9282 RON
84 1 1 UNLOCKING HEAD BAR DW711 (863613-01) 3018 RON
85 1 1 TABLE PROTECTION DW711 (402803-02) 4137 RON
87 1 2 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
89 1 1 SCREW (330045-26) 893 RON
91 1 1 FENCE DWS778 (N136428) 17335 RON
93 1 1 SCREW PAN PHAB 4.2X22 UNI6954 (860084-09) 558 RON
94 1 1 RUBBER FOR SCREW-DW250-252 (863025-00) 558 RON
95 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
98 1 1 CAPACITOR DW250-DW252 (949772-23) 9282 RON
98 1 1 CAPACITOR 20MF 400V (949772-48) 5591 RON
99 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
101 1 1 SCREW TCBPH5 5X25 6954ZP (860084-22) 558 RON
102 1 1 SCALE (868677-00) 6821 RON
103 1 1 S/A UPPER TABLE DW711 (869189-02) 40599 RON
103 1 1 S/A UPPER TABLE DW711 (869189-02) 40599 RON
104 1 1 BRACKET (402801-00) 5591 RON
106 1 1 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
107 1 1 HOLDER (391358-01) 1117 RON
108 1 1 SCREW (080914604) (720688-02) 558 RON
109 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
110 1 1 NUT M5 (860092-03) 558 RON
111 1 1 KNOB (869195-00) 1452 RON
112 1 4 RUBBER FEET (868777-00) 558 RON
115 1 1 KNOB (861464-00) 1229 RON
116 1 2 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
117 1 2 SCREW PAN PH/TT M.4X14 UNI8112 (860205-08) 558 RON
119 1 1 LOCKING DEVICE (868943-02) 4137 RON
120 1 1 SUPPORT (861748-00) 781 RON
121 1 1 SA SLIDING FENCE (861982-00) 40599 RON
122 1 1 SPRING (868778-00) 558 RON
123 1 1 TABLE SUPPORT (FEM.) 711 (402800-01) 9282 RON
124 1 1 Carter bloccaggio DW707 N.T. (868737-00) 1117 RON
125 1 1 CABLE+PLUG DW710-GB (868313-11) 14315 RON
125 1 1 CABLE+PLUG DW711-LX (868313-12) 25164 RON
126 1 1 PARALLEL FENCE L.150 (861422-02) 5591 RON
127 1 1 SPACER (861453-00) 781 RON
128 1 2 SOCKET HEAD SCREW (949886-11) 558 RON
129 1 1 FENCE SUPPORT-DW711 (861421-01) 5031 RON
130 1 1 SUPPORT BRACKET DW711 A3 (862180-08) 26730 RON
131 1 1 KNOB (861452-00) 1788 RON
133 1 2 END CAP (861423-00) 781 RON
134 1 2 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
136 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
137 1 1 FAN (945841-00) 2347 RON
138 1 1 END CAP (861345-00) 9282 RON
139 1 1 CAP D.50+BUSHING (861336-02) 3018 RON
140 1 1 MOTOR TIE ROD-DW320 (863015-00) 781 RON
142 1 1 COMPLETE HOUSING DW711 (868412-04) 153454 RON
142 1 1 STATOR+HOUSING DW711 V.115 (868412-02) 117887 RON
143 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
145 1 1 CIRCLIP (861349-00) 558 RON
146 1 1 SPRING (861338-00) 781 RON
147 1 2 SCREW (949894-12) 558 RON
149 1 1 BEARING 6202 (868768-07) 4137 RON
150 1 1 BEARING 6203 2RS ISB (861721-12) 2347 RON
152 1 1 RING D.100 (947614-00) 1788 RON
154 1 1 ADDITIONAL PROTECTION DW711 (861917-02) 5031 RON
155 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
156 1 3 SLIDE ROLLER (760298-01) 558 RON
157 1 1 PUSH STICK (860610-01) 3466 RON
159 1 1 RIP GRADUATED SCALE DW711 (861923-00) 2124 RON
160 1 1 SQ NUT M8 DIN557 (941535-00) 781 RON
161 1 1 SCREW PAN.PHAB 4.2X9.5UNI6954 (860084-03) 558 RON
162 1 1 STRAP CABLE 1/4 H NYLON (123106-00) 105 RON
166 1 1 SCREW HEX.HD 6X60 UNI5737 (949702-42) 558 RON
168 1 1 CLAMP E25 (861257-00) 781 RON
170 1 7 SCREW (330045-49) 558 RON
175 1 1 SCALE (946862-01) 190 RON
181 1 1 S/A SLIDING FENCE DW711 (868743-03) 9282 RON
187 1 2 NUT HEX THIN M.6 UNI5589 ZINC (860083-13) 558 RON
191 1 1 BALL 6 3 mm (868708-00) 558 RON
192 1 1 SLIDING RIPPING FENCE DW711 (861978-00) 12861 RON
193 1 2 WASHER FLAT 8.4X14 UNI6592 ZN (860073-08) 558 RON
194 1 1 SCREW (931997-00) 558 RON
196 1 2 SCREW (949743-02) 781 RON
838 1 1 559570-99 - Indisponibil
847 1 1 ROTOR DW711+SPRING+RING 8618 (868411-01) 42277 RON
