Top » Piese de schimb » PIESE DEWALT » DW710 Type 1

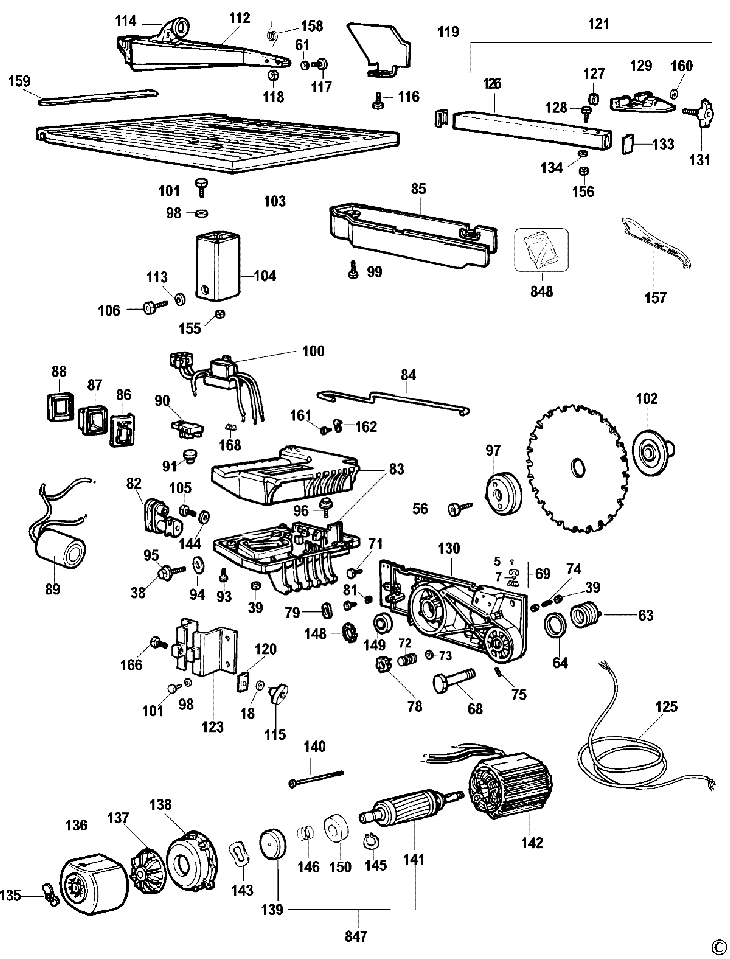

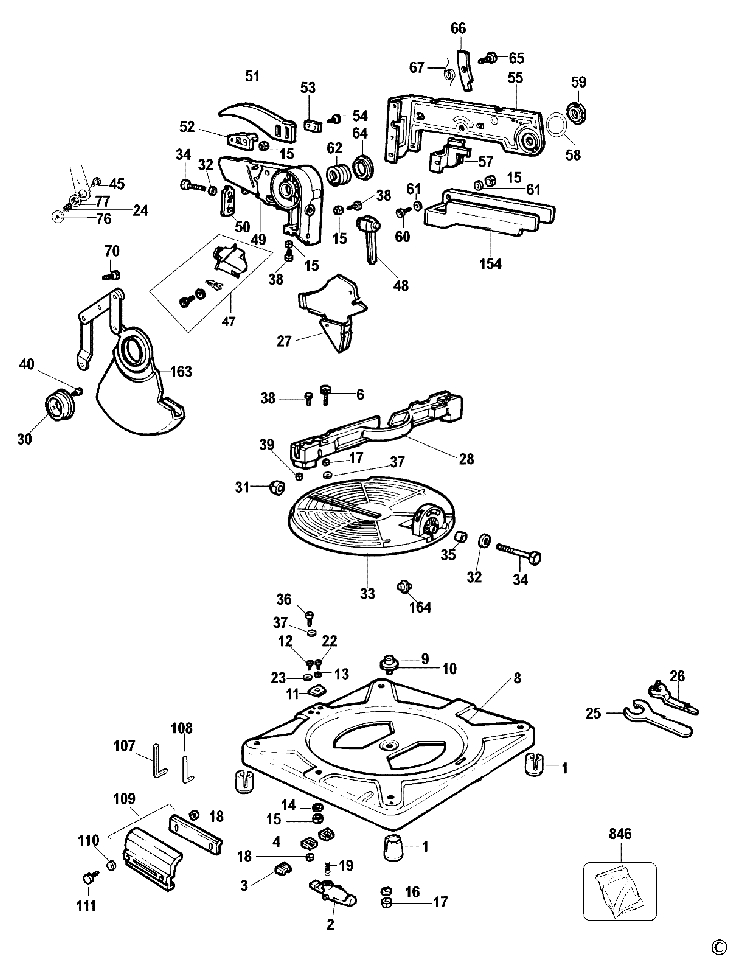

DW710 MITRE SAW Type 1
[DW710 Type 1]
DW710 MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW710 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 FOOT (402804-00) 2124 RON
2 1 1 REFERENCE LEVER DW250-DW252 (862002-00) 3018 RON
3 1 1 CAP FOR LOCATING CATCH 1712US (760427-00) 781 RON
4 1 1 LEVER BRACKET DW250-DW252 (863612-00) 1229 RON
5 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
6 1 1 BLACK KNOB M.8 (862428-00) 1452 RON
7 1 1 FILLISTER COUNTERS.HD.SCREW (949889-02) 558 RON
8 1 1 BASE (863608-05) 25164 RON
9 1 1 TABLE CENTRAL PIVOT DW250 (863072-00) 1452 RON
10 1 1 BEARING PLATE DW50 (863702-00) 781 RON
11 1 1 POINTER DW250-DW252 (863686-00) 893 RON
12 1 1 SCREW SOCKET M.5X12 UNI 5931 (860093-17) 558 RON
13 1 1 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
14 1 1 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
15 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
16 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
17 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
18 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
19 1 1 SPRING (123255-01) 781 RON
22 1 1 SCREW PAN.PHAB 4.2X9.5UNI6954 (860084-03) 558 RON
23 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
24 1 1 SPRING (949722-18) 558 RON
25 1 1 SPANNER 10/13 DW50-55 (949751-07) 190 RON
26 1 1 WRENCH (939072-00) 2347 RON
27 1 1 FIXED PROTECTION DW711 (861918-01) 5031 RON
27 1 1 000000-00 - Indisponibil
28 1 1 TABLE FENCE DW710 (862099-01) 32770 RON
29 1 1 SA SWINGING PROTECTION DW711 (864693-04) 1891 RON
30 1 1 MOZZO PROT OSCILL.DW711 (863039-02) 781 RON
31 1 1 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
32 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
33 1 1 TABLE DW710 SERVICE (869232-00) 32770 RON
34 1 1 SCREW HEX M.8X70 UNI 5737 (860086-10) 781 RON
35 1 1 BUSH DW250-DW252 (949748-01) 2347 RON
36 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
37 1 3 SPACER (862447-00) 558 RON
38 1 1 SCREW HEX M.6X20 UNI5739 BLCK (860085-09) 558 RON
39 1 1 NUT M6 (860083-12) 558 RON
40 1 2 SCREW (330045-49) 558 RON
45 1 1 PIN SA (863046-00) 2124 RON
47 1 1 EXTRACTION KIT DW711 (868478-00) 5591 RON
48 1 1 LEVER DW250-DW252 (949884-01) 4137 RON
49 1 1 000000-00 - Indisponibil
50 1 1 PLATE DW250-DW252 (945641-00) 105 RON
51 1 1 000000-00 - Indisponibil
52 1 1 000000-00 - Indisponibil
53 1 1 30/10 RIVING KNIFE PLATE (864086-00) 105 RON
54 1 1 SCREW SOCKET M.6X20 UNI 5931 (860093-05) 558 RON
55 1 1 000000-00 - Indisponibil
55 1 1 FRONT PROTECTION DW711 YELL (861890-00) 12861 RON
56 1 1 SOCKET HEAD SCREW SX (949886-21) 4137 RON
57 1 1 FRONT BOX DW711 BLACK (861920-00) 1788 RON
57 1 1 000000-00 - Indisponibil
58 1 1 PLAIN WASHER D.21XD.37X3 (949761-02) 558 RON
59 1 1 LOCK NUT FOR PIVOT PIN DW250-D (949759-01) 2347 RON
60 1 1 SCREW (860085-07) 558 RON
61 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
62 1 1 LEFT TORSIONAL SPRING DW250-DW (863606-00) 5031 RON
63 1 1 RIGHT TORSIONAL SPRING DW250-D (863590-00) 5031 RON
64 1 1 HEAD SHIM DW250-DW252 (863611-00) 781 RON
65 1 1 HEAD BLOCKING PIN (863602-00) 190 RON
66 1 1 HEAD BLOCKING PLATE DW250-DW25 (863610-00) 1452 RON
67 1 1 HEAD BLOCKING SPRING DW250-DW2 (863604-00) 1117 RON
68 1 1 JOINT AXLE DW250 (863607-00) 6821 RON
69 1 1 CLAMP SOM 2124149 (861692-00) 1117 RON
70 1 1 SCREW FOR PROTECTION BAR -DW25 (863262-00) 190 RON
71 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
72 1 1 STUD LOCKING HEAD DW250 (863605-00) 1788 RON
73 1 1 GASKET DW250-DW252 (949746-02) 558 RON
74 1 1 SCREW SET M.6X20 UNI 5923 (860088-10) 558 RON
75 1 1 SOCKET SCREW TYPE-A (949853-04) 781 RON
76 1 1 KNOB (863047-00) 190 RON
77 1 1 BUSH (863048-00) 1788 RON
78 1 1 KNOB (946469-00) 781 RON
79 1 1 GASKET FOR EARTH WIRE (863026-00) 558 RON
81 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
82 1 1 CABLE INLET RING DW250-DW252 (863573-00) 105 RON
83 1 1 HANDLE DW711 (862429-04) 5591 RON
84 1 1 UNLOCKING HEAD BAR DW711 (863613-01) 3018 RON
85 1 1 TABLE PROTECTION DW711 (402803-01) 2795 RON
86 1 1 000000-00 - Indisponibil
87 1 1 CAP FOR SWITCH-DW320 (863849-00) 781 RON
88 1 1 PLATE FOR SWITCH CAP-DW320 (863198-00) 781 RON
89 1 1 CAPACITOR DW250-DW252 (949772-23) 9282 RON
90 1 1 000000-00 - Indisponibil
91 1 1 000000-00 - Indisponibil
93 1 1 SCREW PAN PHAB 4.2X22 UNI6954 (860084-09) 558 RON
94 1 1 GASKET FOR EARTH WIRE (863026-00) 558 RON
95 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
96 1 1 SCREW (860085-07) 558 RON
97 1 1 OUTER FLANGE TGS273 (861056-00) 3466 RON
98 1 4 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
99 1 3 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
100 1 1 000000-00 - Indisponibil
101 1 4 SCREW TCBPH5 5X25 6954ZP (860084-22) 558 RON
102 1 1 INNER FLANGE (861057-01) 5591 RON
103 1 1 SA TABLE DW710 (861507-00) 3592 RON
104 1 1 BRACKET (402801-00) 5591 RON
105 1 1 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
106 1 1 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
107 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
108 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
109 1 1 HANDLE SA (863044-02) 190 RON
110 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
111 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
112 1 1 000000-00 - Indisponibil
113 1 1 WASHER (949876-06) 558 RON
114 1 1 SUCTION PIPE (943582-01) 3018 RON
115 1 1 KNOB (861464-00) 1229 RON
116 1 1 SCREW (330045-55) 558 RON
117 1 1 SCREW HEX M.6X35 UNI5739 ZINC (860085-17) 558 RON
118 1 1 NUT ELAST.STOP M.6 UNI 7473 (860092-02) 558 RON
119 1 1 000000-00 - Indisponibil
120 1 1 SUPPORT (861748-00) 781 RON
121 1 1 SA SLIDING FENCE (861982-00) 40599 RON
123 1 1 BRACKET (402800-00) 7940 RON
125 1 1 CABLE+PLUG UK (861432-05) 14315 RON
126 1 1 FENCE (861422-00) 14315 RON
127 1 1 SPACER (861453-00) 781 RON
128 1 2 SOCKET HEAD SCREW (760219-00) 558 RON
129 1 1 FENCE SUPPORT-DW711 (861421-01) 5031 RON
130 1 1 SUPPORT BRACKET DW711 A3 (862180-08) 26730 RON
131 1 1 KNOB (861452-00) 1788 RON
133 1 1 END CAP (861423-00) 781 RON
134 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
135 1 1 CAP FOR FAN COVER GUARD DW320 (863112-00) 558 RON
136 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
137 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
138 1 1 END CAP (861345-00) 9282 RON
139 1 1 CAP D.50+BUSHING (861336-02) 3018 RON
140 1 1 MOTOR TIE ROD-DW320 (863015-00) 781 RON
141 1 1 000000-00 - Indisponibil
142 1 1 000000-00 - Indisponibil
143 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
144 1 1 RUBBER FOR SCREW-DW250-252 (863025-00) 558 RON
145 1 1 CIRCLIP (861349-00) 558 RON
146 1 1 SPRING (861338-00) 781 RON
148 1 1 RING SPRING S.LOCK HOLE ZJ-40 (860806-00) 893 RON
149 1 1 BEARING 6203 2RS ISB (861721-12) 2347 RON
150 1 1 BEARING 6202 (868768-07) 4137 RON
154 1 1 ADDITIONAL PROTECTION DW711 (861917-00) 3466 RON
154 1 1 000000-00 - Indisponibil
155 1 1 SQ NUT M8 DIN557 (941535-00) 781 RON
156 1 2 NUT HEX THIN M.6 UNI5589 ZINC (860083-13) 558 RON
157 1 1 PUSH STICK (860610-01) 3466 RON
158 1 1 000000-00 - Indisponibil
159 1 1 SCALE (863576-01) 893 RON
160 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
161 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
162 1 1 STRAP CABLE 1/4 H NYLON (123106-00) 105 RON
163 1 1 SA SWINGING PROTECTION DW711 (864693-04) 1891 RON
164 1 4 PLASTIC BEARING BLOCK DW250- (864049-00) 781 RON
166 1 1 SCREW 6X65 (949702-17) 781 RON
168 1 1 CLAMP E25 (861257-00) 781 RON
846 1 1 BAG WRENCHES+HANDLE+SUCTION PI (861446-00) 15993 RON
847 1 1 000000-00 - Indisponibil
848 1 1 000000-00 - Indisponibil
