DW707E MITRE SAW Type 1
[DW707E Type 1]
DW707E MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW707E MITRE SAW Type 1
Click pentru a mari

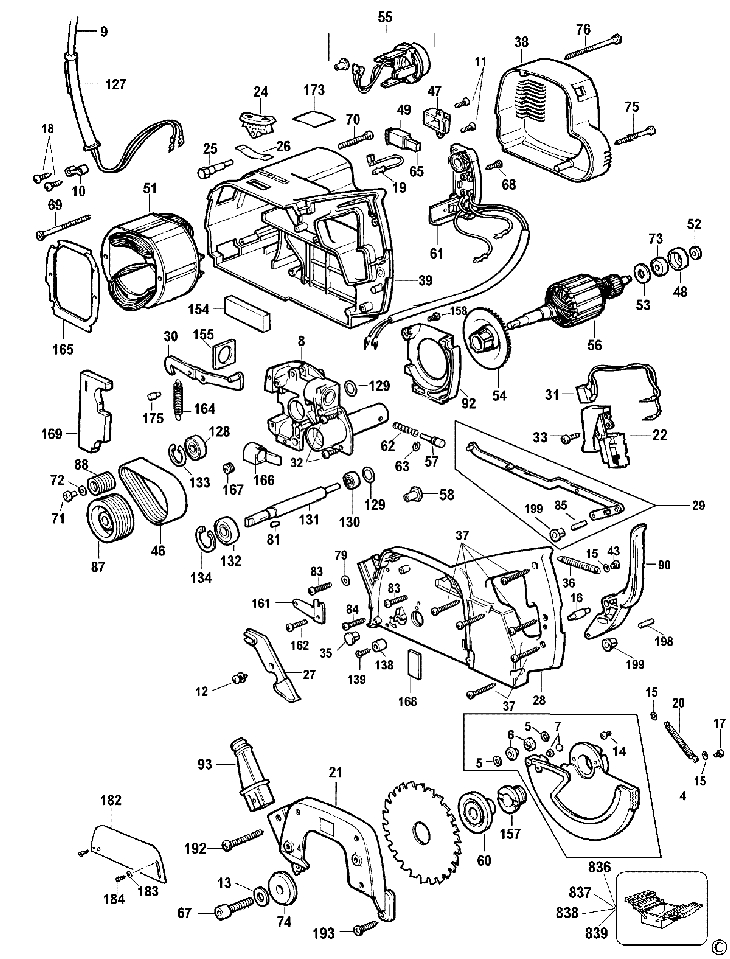

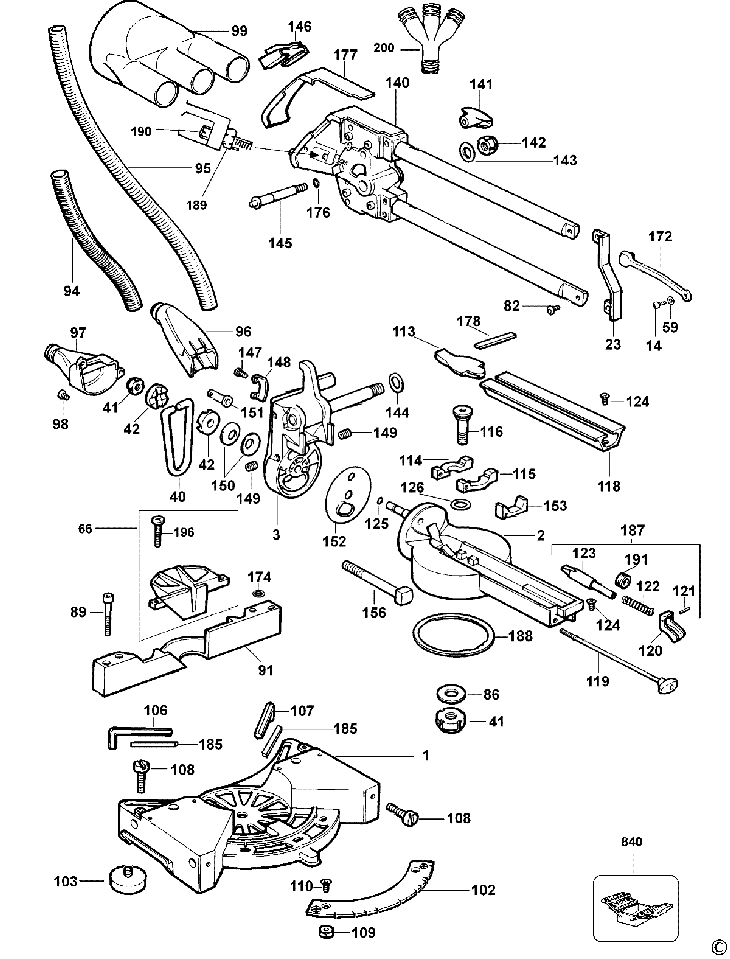

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIXED TABLE 274+SCREWS (861848-00) 91714 RON
2 1 1 SA ROTATING TABLE (401175-01) 9736 RON
3 1 1 SEGMENT (947000-00) 26730 RON
4 1 1 SA SWINGING PROTECTION (861361-01) 1891 RON
5 1 2 QUICKLOCK (861366-00) 558 RON
6 1 2 ROLLER (861367-01) 1117 RON
7 1 2 SLIDE ROLLER (760298-01) 558 RON
8 1 1 SA TROLLEY+BUSH (947645-00) 49771 RON
9 1 1 S/A CABLE (947108-09) 15993 RON
10 1 1 CABLE CLAMP (720748-00) 558 RON
11 1 3 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
12 1 1 SCREW AB3 9X9 5 6950 ZN (861363-00) 558 RON
13 1 1 WASHER (949876-19) 558 RON
14 1 4 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
15 1 3 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
16 1 1 PIVOT (760296-01) 781 RON
17 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
18 1 2 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
19 1 2 LEAD WIRE-YELLOW (942589-00) 781 RON
20 1 1 SPRING (868512-00) 781 RON
21 1 1 PROTECTION FIXED-PS DW (943004-05) 14315 RON
22 1 1 SA SWITCH (947486-00) 1891 RON
23 1 1 CROSS (947613-00) 2795 RON
24 1 1 LEVER (946871-00) 781 RON
25 1 1 ECCENTRIC PIN (947016-00) 781 RON
26 1 1 SPRING (946876-00) 558 RON
27 1 1 LEVER (946880-00) 893 RON
28 1 1 COVER MOT.HOUSING PS274 YELLOW (946999-02) 7940 RON
29 1 1 COMPLETE LEVER (861765-00) 10512 RON
30 1 1 LEVER (947010-01) 1452 RON
31 1 1 SA CAPACITOR (947025-00) 190 RON
32 1 2 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
33 1 1 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
35 1 1 PLUG (947067-00) 781 RON
36 1 1 SPRING (947019-00) 781 RON
37 1 6 SCREW (949896-10) 558 RON
38 1 1 END CAP (946877-01) 2795 RON
39 1 1 MOTOR HOUSING PS274 YELLOW (946997-02) 17335 RON
40 1 1 LEVER (947063-00) 2795 RON
41 1 2 RING NUT (943016-01) 190 RON
42 1 2 WASHER (947062-00) 2347 RON
43 1 2 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
46 1 1 BELT (174924631) (760215-00) 14315 RON
47 1 2 COVER (174120203) (942569-00) 558 RON
48 1 1 BEARING SHEATHING (934409-00) 558 RON
49 1 2 BRUSH HOLDER 220V (761202-00) 3466 RON
51 1 1 STATOR V.240 PS274E 942927 (868405-01) 45297 RON
52 1 1 PICK-UP (945893-00) 5591 RON
53 1 1 DISTANCIAL (944975-00) 558 RON
54 1 1 FAN (946857-01) 1788 RON
55 1 1 SA BRAKE V.220 (401204-00) 59725 RON
56 1 1 SA ARMATURE V230-PS274E (861379-09) 5484 RON
57 1 1 STOP PUSH (947011-01) 1117 RON
58 1 1 DRIVER (401167-00) 781 RON
59 1 1 WASHER (939625-00) 558 RON
60 1 1 BLADE FLANGE (947022-00) 7940 RON
61 1 1 ELECTRONIC SA (947064-04) 4825 RON
62 1 1 SPRING (947070-00) 558 RON
63 1 1 CIRCLIP (949728-01) 558 RON
65 1 2 BRUSH 230V CUT OFF (949736-01) 5591 RON
66 1 1 INSERT (401363-00) 9282 RON
66 1 1 SA INSERT (401457-00) 5031 RON
67 1 1 SCREW (949886-27) 1229 RON
68 1 4 SCREW PAN.PHAB 3.9X19 UNI6954 (860084-13) 558 RON
69 1 2 SCREW M.5X65 (760251-00) 558 RON
70 1 3 SCREW (949894-02) 558 RON
71 1 1 SCREW (949886-26) 781 RON
72 1 2 WASHER (760261-00) 558 RON
73 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
74 1 1 FLANGE (942959-03) 2795 RON
75 1 1 SCREW (931298-02) 558 RON
76 1 1 SCREW (930082-01) 558 RON
79 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
81 1 1 TAB (940441-00) 781 RON
82 1 2 SCREW (949609-01) 558 RON
83 1 2 SCREW (949894-04) 558 RON
84 1 1 SCREW M4X20 (860094-10) 558 RON
85 1 1 PIN (949739-01) 558 RON
86 1 1 WASHER FLAT 13X24 UNI 6592 (860073-05) 558 RON
87 1 1 PULLEY (861356-00) 5591 RON
88 1 1 PULLEY (401166-00) 3466 RON
89 1 4 SCREW (330045-26) 893 RON
90 1 1 LEVER (946869-02) 3466 RON
91 1 1 FENCE (946853-03) 28296 RON
92 1 1 DEFLECTOR (946863-00) 1788 RON
93 1 1 SUCTION MOUTH (760311-00) 105 RON
94 1 1 HOSE (947113-00) 3018 RON
95 1 1 HOSE (947113-01) 4472 RON
96 1 1 ADAPTOR (174231903) (760312-00) 1229 RON
97 1 1 BUSH (947620-00) 105 RON
98 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
102 1 1 SCALE (946861-01) 12861 RON
103 1 5 SA FOOT D40 (861809-00) 5031 RON
106 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
107 1 1 WRENCH (949882-01) 781 RON
108 1 4 SCREW (949894-10) 781 RON
109 1 2 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
110 1 2 SCREW (949889-07) 558 RON
113 1 1 DEFLECTOR (947020-00) 3018 RON
114 1 1 COLLAR (946858-01) 3466 RON
115 1 1 COLLAR (946858-00) 3018 RON
116 1 1 PIVOT (946848-00) 1229 RON
118 1 1 INSERT (946856-00) 15993 RON
119 1 1 LOCK BAR (947015-01) 5591 RON
120 1 1 LEVER (946864-00) 2347 RON
121 1 1 PIN (949734-01) 781 RON
122 1 1 SPRING (946866-00) 558 RON
123 1 1 PAWL (401176-00) 1229 RON
124 1 3 FILLISTER HEAD SCREW (949894-06) 558 RON
125 1 1 RING (935857-00) 558 RON
126 1 1 WASHER (949705-01) 558 RON
127 1 1 CORD PROTECTOR (720703-00) 781 RON
128 1 1 BEARING 6201 2RS ISB (861721-13) 3018 RON
129 1 2 WASHER (930117-00) 558 RON
130 1 1 BEARING (N110358) 2347 RON
131 1 1 SPINDLE (947012-01) 10512 RON
132 1 1 BEARING 6003 2RS ISB (861721-10) 2124 RON
133 1 1 STOP RING (949729-02) 558 RON
134 1 1 RETAINING RING D.35 (949729-03) 558 RON
138 1 1 BUMPER (761306-00) 781 RON
139 1 1 SCREW (080914604) (761307-00) 558 RON
140 1 1 FSO SUPPORT SA-PS274 (401172-01) 80865 RON
141 1 1 WING NUT M8 (941756-00) 1229 RON
142 1 1 LOCK NUT (943016-00) 190 RON
143 1 1 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
144 1 2 WASHER (947290-01) 558 RON
145 1 1 PIVOT (947616-00) 1229 RON
146 1 1 CABLE INLET (947021-00) 190 RON
147 1 2 SCREW (949894-12) 558 RON
148 1 1 SCALE (946862-01) 190 RON
149 1 2 SCREW (949743-02) 781 RON
150 1 2 SPRING (949613-01) 781 RON
151 1 1 SLIDE (947619-00) 2124 RON
152 1 1 RING D.100 (947614-00) 1788 RON
153 1 1 GASKET (947641-00) 558 RON
154 1 1 CABLE PAD (947653-00) 558 RON
155 1 1 SEAL (947638-00) 781 RON
156 1 1 CENTRAL PIVOT (946859-00) 2124 RON
157 1 1 BUSH (947017-00) 1788 RON
158 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
161 1 1 PLATE (947617-01) 781 RON
162 1 1 SCREW PAN.PHAB 3.9X16 UNI6954 (860084-12) 558 RON
164 1 1 SPRING (947642-00) 105 RON
165 1 1 BAFFLE PLATE (947573-00) 781 RON
166 1 1 SLIDING BLOCK (947018-00) 1229 RON
167 1 1 ADJUSTER (946874-00) 558 RON
168 1 1 GASKET (947610-00) 558 RON
169 1 1 SEAL (401174-00) 893 RON
172 1 1 ELASTIC CABLE (947650-00) 893 RON
173 1 1 NAME PLATE5 DW707 (947752-07) 558 RON
175 1 1 PIVOT (760279-00) 781 RON
176 1 1 GASKET DW250-DW252 (949746-02) 558 RON
177 1 1 PROTECTION (868689-00) 1117 RON
178 1 1 GASKET (947640-00) 558 RON
185 1 1 MAGNET L.80 (947068-02) 781 RON
187 1 1 SA PAWL (401177-02) 6821 RON
188 1 1 DISK (947868-01) 2347 RON
189 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
190 1 1 SCREW (760242-00) 781 RON
191 1 1 BUSH (401178-00) 781 RON
192 1 2 SCREW (949896-11) 558 RON
193 1 2 SCREW (949896-12) 558 RON
196 1 2 SELF TAPPING SCREW M60X20 UNI (860090-05) 558 RON
198 1 1 PIN (949739-01) 558 RON
199 1 1 BUSH (861736-00) 558 RON
200 1 1 CONNECTOR (946518-00) 3466 RON
836 1 1 279663-99 - Indisponibil
837 1 1 559506-99 - Indisponibil
838 1 1 559570-99 - Indisponibil
839 1 1 559572-99 - Indisponibil
840 1 1 559606-99 - Indisponibil
