Top » Piese de schimb » PIESE DEWALT » DW705 Type 4

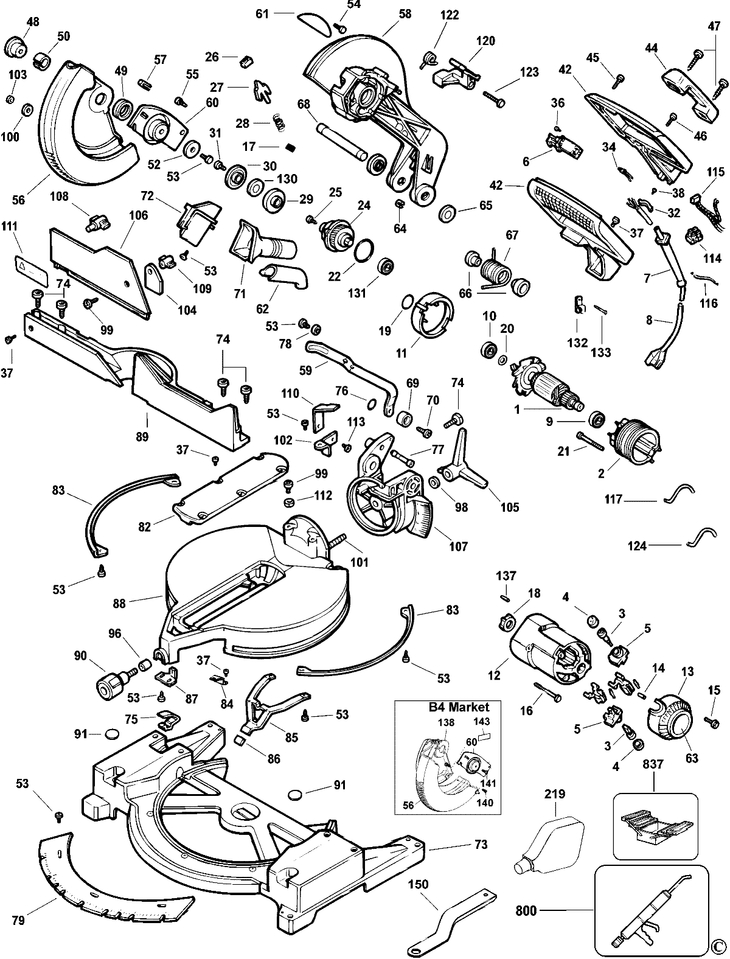

DW705 MITRE SAW Type 4
[DW705 Type 4]
DW705 MITRE SAW Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE KIT (5140021-94) 153454 RON
1 1 1 ARMATURE KIT (5140023-00) 57488 RON
2 1 1 SA FIELD G89 PACKED (SERVICE) (N113577) 26730 RON
2 1 1 SA FIELD G89 115V (SERVICE) (N078040SV) 5484 RON
3 1 2 BRUSH SA (145323-06) 2795 RON
3 1 2 BRUSH SA (145323-06) 2795 RON
4 1 2 BRUSH CAP (448084-01) 781 RON
5 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
5 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
6 1 1 000000-00 - Indisponibil
6 1 1 SWITCH (391926-01) 14315 RON
7 1 1 CORD PROTECTOR (445338-00) 1229 RON
8 1 1 CORDSET (330060-79) 28296 RON
8 1 1 CORDSET (330061-20) 40599 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
10 1 1 BEARING 6202 (868768-07) 4137 RON
11 1 1 BAFFLE (146723-01) 1788 RON
12 1 1 ARMATURE KIT (5140021-94) 153454 RON
12 1 1 ARMATURE KIT (5140023-00) 57488 RON
13 1 1 END CAP DW705 TYPE 2.3 (387678-00) 1891 RON
14 1 2 PIN (87205-00) 558 RON
15 1 2 SCREW .TEMP (330019-20) 558 RON
16 1 4 SCREW (98094-55) 558 RON
17 1 1 FELT (387732-00) 781 RON
18 1 1 SLEEVE (137382-01) 781 RON
19 1 1 SEAL (701297-00) 558 RON
20 1 1 SEAL RING (144803-00) 781 RON
21 1 2 SCREW PLASTITE (330019-19) 781 RON
22 1 1 GASKET DW705 TYPE 2.3 (383470-00) 6821 RON
24 1 1 GEAR & SPINDLE SA (386824-03) 49771 RON
25 1 2 SCREW (330045-14) 558 RON
26 1 1 BUTTON (145350-00) 558 RON
27 1 1 LOCK (146714-00) 1229 RON
28 1 1 SPRING (58698-00) 558 RON
29 1 1 000000-00 - Indisponibil
29 1 1 000000-00 - Indisponibil
30 1 1 000000-00 - Indisponibil
30 1 1 000000-00 - Indisponibil
31 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
32 1 1 CORD CLAMP (3618-00) 558 RON
32 1 1 CORD CLAMP (381065-00) 558 RON
34 1 1 NUT (32114-01) 558 RON
36 1 1 screw dw744 (330019-12) 558 RON
37 1 8 SCREW.TEMP (330045-05) 558 RON
38 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
38 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
42 1 1 000000-00 - Indisponibil
42 1 1 000000-00 - Indisponibil
44 1 1 HANDLE (396375-00) 190 RON
45 1 4 SCREW PLASTITE (330019-32) 558 RON
46 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
47 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
48 1 1 RETAINING PLATE (146750-03) 1788 RON
48 1 1 RETAINING PLATE (146750-03) 1788 RON
49 1 1 SPRING (661454-00) 1117 RON
50 1 1 SLEEVE (148295-00) 105 RON
52 1 1 WASHER (148612-00) 781 RON
53 1 16 SCREW (151891-00) 558 RON
54 1 2 INSERT (148608-00) 558 RON
55 1 1 SCREW (394589-01) 781 RON
56 1 1 000000-00 - Indisponibil
56 1 1 000000-00 - Indisponibil
57 1 1 BUMPER (146768-00) 781 RON
58 1 1 000000-00 - Indisponibil
58 1 1 000000-00 - Indisponibil
59 1 1 LINK DW705 (146752-02) 3018 RON
60 1 1 PLATE (429986-01) 3466 RON
60 1 1 PLATE (429986-01) 3466 RON
61 1 1 LABEL (149365-01) 1452 RON
62 1 1 DEFLECTOR (148520-00) 105 RON
63 1 1 DEWALT LABEL (149521-01) 558 RON
64 1 2 SCREW (150075-00) 781 RON
65 1 2 PLASTIC WASHER (148296-00) 781 RON
66 1 2 SPACER (146732-00) 781 RON
67 1 1 SPRING (N039404) 9282 RON
68 1 1 SHAFT (146751-00) 2124 RON
69 1 1 DAMPER (146753-00) 558 RON
70 1 1 SCREW (330045-32) 781 RON
71 1 1 DUCT (146717-00) 1229 RON
72 1 1 GUARD REAR (146772-03) 2124 RON
73 1 1 BASE (152036-00) 59725 RON
74 1 4 SCREW TRIL (330045-33) 781 RON
75 1 1 SPRING (146758-00) 1452 RON
76 1 1 GASKET (34158-00) 558 RON
77 1 1 PIN LOCKING (387130-00) 2347 RON
78 1 1 BUSH (146740-01) 558 RON
79 1 1 DETENT (390876-01) 1891 RON
79 1 1 DETENT (390876-01) 1891 RON
82 1 1 PLATE (146726-02) 3018 RON
83 1 2 PLATE (146773-01) 2124 RON
84 1 1 POINTER (398693-00) 105 RON
85 1 1 SPRING DETENT (146745-00) 3018 RON
86 1 1 COVER (148611-00) 558 RON
87 1 1 CLAMP (148297-00) 781 RON
88 1 1 TABLE KIT (429987-00) 112630 RON
89 1 1 FENCE KIT (5140030-20) 40599 RON
89 1 1 FENCE KIT (5140030-20) 40599 RON
90 1 1 KNOB (145439-09) 3466 RON
91 1 2 LABEL (394976-00) 1229 RON
96 1 1 BUSHING CLAMP (146733-00) 1229 RON
98 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
99 1 3 SCREW (149368-00) 558 RON
100 1 2 ROLLER (146774-00) 1117 RON
101 1 1 STUD (146760-01) 105 RON
102 1 1 BRACKET (148292-00) 105 RON
103 1 2 RING (142273-00) 558 RON
104 1 1 CLAMP (146737-00) 1452 RON
105 1 1 HANDLE (392422-00) 2347 RON
106 1 1 FENCE (146739-00) 14315 RON
106 1 1 FENCE (146739-00) 14315 RON
107 1 1 TRUNNION (146731-02) 1891 RON
107 1 1 TRUNNION (146731-02) 1891 RON
108 1 1 KNOB LOWER (147107-02) 1117 RON
109 1 1 KNOB UPPER (147107-01) 1229 RON
110 1 1 POINTER (148299-00) 1229 RON
111 1 1 LABEL (380179-00) 781 RON
111 1 1 LABEL (380179-00) 781 RON
112 1 2 NUT (99368-04) 558 RON
113 1 1 SCREW (151895-00) 781 RON
114 1 1 BLOCK TERMINAL (320078-00) 1452 RON
115 1 1 CAPACITOR (393521-04) 9282 RON
115 1 1 CAPACITOR SA (393521-05) 12861 RON
116 1 1 LEAD BLACK (398563-00) 105 RON
117 1 1 LEAD RED (398566-00) 4137 RON
120 1 1 LEVER (146770-00) 2347 RON
122 1 1 SPRING (386196-00) 105 RON
123 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
124 1 1 LEAD WHITE (398565-00) 105 RON
124 1 1 LEAD WHITE (398564-00) 1229 RON
131 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
132 1 1 BUSH (153669-00) 558 RON
133 1 1 SCREW (330045-13) 558 RON
150 1 1 WRENCH (145378-01) 1452 RON
160 1 1 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
800 1 1 GREASE (790206-00) 34336 RON
837 1 1 559626-99 - Indisponibil
