Top » Piese de schimb » PIESE DEWALT » DW704 Type 1

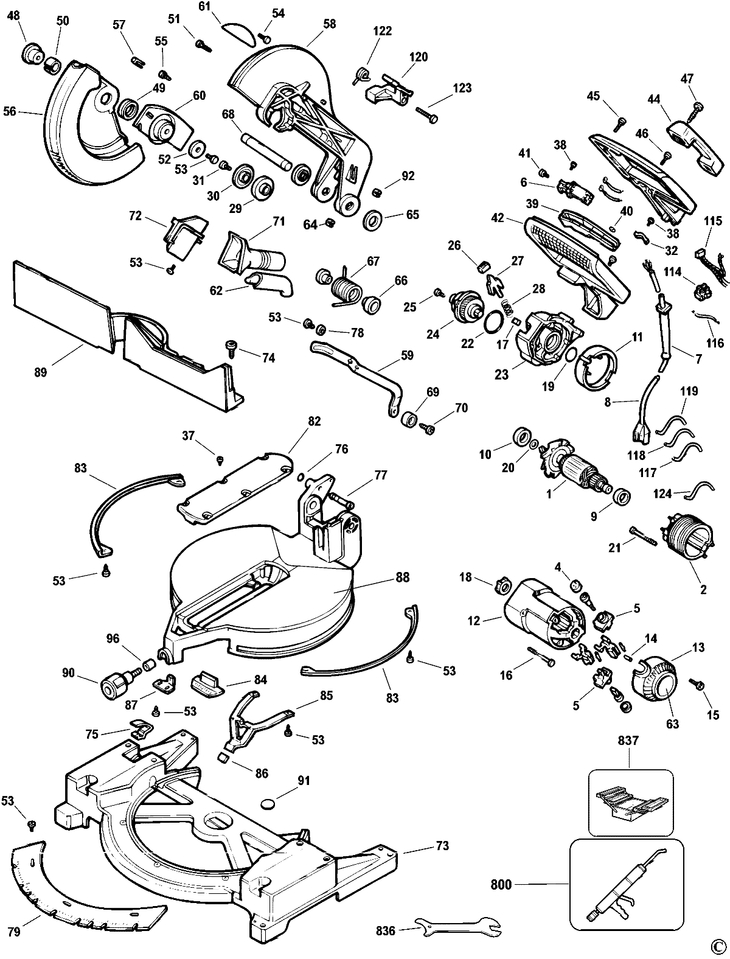

DW704 MITRE SAW Type 1
[DW704 Type 1]
DW704 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (397100-01SV) 62298 RON
1 1 1 000000-00 - Indisponibil
2 1 1 FIELD (144798-07) 22144 RON
2 1 1 SA FIELD G89 115V (SERVICE) (N078040SV) 5484 RON
4 1 2 BRUSH CAP (448084-01) 781 RON
5 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
5 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
6 1 1 SWITCH (151606-00) 11519 RON
6 1 1 000000-00 - Indisponibil
7 1 1 CORD PROTECTOR (445338-00) 1229 RON
8 1 1 CORDSET (330060-31) 15993 RON
8 1 1 CORDSET (330061-20) 40599 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
10 1 1 BEARING 6202 (868768-07) 4137 RON
11 1 1 BAFFLE (146723-01) 1788 RON
12 1 1 000000-00 - Indisponibil
12 1 1 000000-00 - Indisponibil
13 1 1 END CAP DW705 TYPE 2.3 (387678-00) 1891 RON
14 1 2 PIN (87205-00) 558 RON
15 1 2 SCREW .TEMP (330019-20) 558 RON
16 1 4 SCREW (98094-55) 558 RON
17 1 1 WIPER (146710-00) 781 RON
18 1 1 SLEEVE (137382-01) 781 RON
19 1 1 SEAL (701297-00) 558 RON
20 1 1 SEAL RING (144803-00) 781 RON
21 1 2 SCREW PLASTITE (330019-19) 781 RON
22 1 1 000000-00 - Indisponibil
23 1 1 000000-00 - Indisponibil
24 1 1 000000-00 - Indisponibil
25 1 2 SCREW (330045-14) 558 RON
26 1 1 BUTTON (145350-00) 558 RON
27 1 1 LOCK (146714-00) 1229 RON
28 1 1 SPRING (58698-00) 558 RON
29 1 1 000000-00 - Indisponibil
30 1 1 000000-00 - Indisponibil
31 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
32 1 1 CORD CLAMP (3618-00) 558 RON
37 1 8 SCREW.TEMP (330045-05) 558 RON
38 1 3 Screw M3.5X16 T15 (330019-03) 558 RON
39 1 1 000000-00 - Indisponibil
40 1 1 RING (701901-00) 558 RON
41 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
42 1 1 CLAMSHELL (380452-00) 10512 RON
44 1 1 000000-00 - Indisponibil
45 1 4 SCREW (330019-14) 558 RON
46 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
47 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
48 1 1 RETAINING PLATE (146750-03) 1788 RON
49 1 1 SPRING (661454-00) 1117 RON
50 1 1 SLEEVE (148295-00) 105 RON
51 1 4 SCREW (330045-18) 558 RON
52 1 1 WASHER (148612-00) 781 RON
53 1 16 SCREW (151891-00) 558 RON
54 1 2 INSERT (148608-00) 558 RON
55 1 2 SCREW (394589-01) 781 RON
56 1 1 000000-00 - Indisponibil
57 1 1 BUMPER (146768-00) 781 RON
58 1 1 000000-00 - Indisponibil
59 1 1 LINK DW705 (146752-02) 3018 RON
60 1 1 PLATE (429986-01) 3466 RON
61 1 1 LABEL (149365-01) 1452 RON
62 1 1 DEFLECTOR (148520-00) 105 RON
63 1 1 DEWALT LABEL (149521-01) 558 RON
64 1 2 SCREW (150075-00) 781 RON
65 1 2 PLASTIC WASHER (148296-00) 781 RON
66 1 2 SPACER (146732-00) 781 RON
67 1 1 SPRING (N039404) 9282 RON
68 1 1 SHAFT (146751-00) 2124 RON
69 1 1 DAMPER (146753-00) 558 RON
70 1 1 SCREW (330045-32) 781 RON
71 1 1 DUCT (146717-00) 1229 RON
72 1 1 GUARD REAR (146772-03) 2124 RON
73 1 1 BASE (152772-01) 53015 RON
74 1 5 SCREW TRIL (330045-33) 781 RON
75 1 1 SPRING (146758-00) 1452 RON
76 1 1 GASKET (34158-00) 558 RON
77 1 1 PIN LOCKING (387130-00) 2347 RON
78 1 1 BUSH (146740-01) 558 RON
79 1 1 000000-00 - Indisponibil
82 1 1 PLATE (146726-02) 3018 RON
83 1 2 PLATE (146773-01) 2124 RON
84 1 1 000000-00 - Indisponibil
85 1 1 SPRING DETENT (146745-00) 3018 RON
86 1 1 COVER (148611-00) 558 RON
87 1 1 CLAMP (148297-00) 781 RON
88 1 1 000000-00 - Indisponibil
89 1 1 000000-00 - Indisponibil
90 1 1 KNOB (145439-09) 3466 RON
91 1 2 LABEL (394976-00) 1229 RON
92 1 2 000000-00 - Indisponibil
96 1 1 BUSHING CLAMP (146733-00) 1229 RON
114 1 1 BLOCK TERMINAL (320078-00) 1452 RON
115 1 1 CAPACITOR (148679-02) 4472 RON
115 1 1 CAPACITOR (148679-03) 4137 RON
116 1 1 LEAD SA BLACK (148048-00) 893 RON
117 1 1 LEAD SA RED (148050-00) 893 RON
118 1 1 LEAD SA BLACK (151644-00) 1452 RON
119 1 1 YELLOW LEAD (00) (148047-00) 893 RON
120 1 1 LEVER (146770-00) 2347 RON
122 1 1 SPRING (386196-00) 105 RON
123 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
124 1 1 LEAD SA (145374-00) 893 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
836 1 1 WRENCH (145378-01) 1452 RON
837 1 1 559626-99 - Indisponibil
