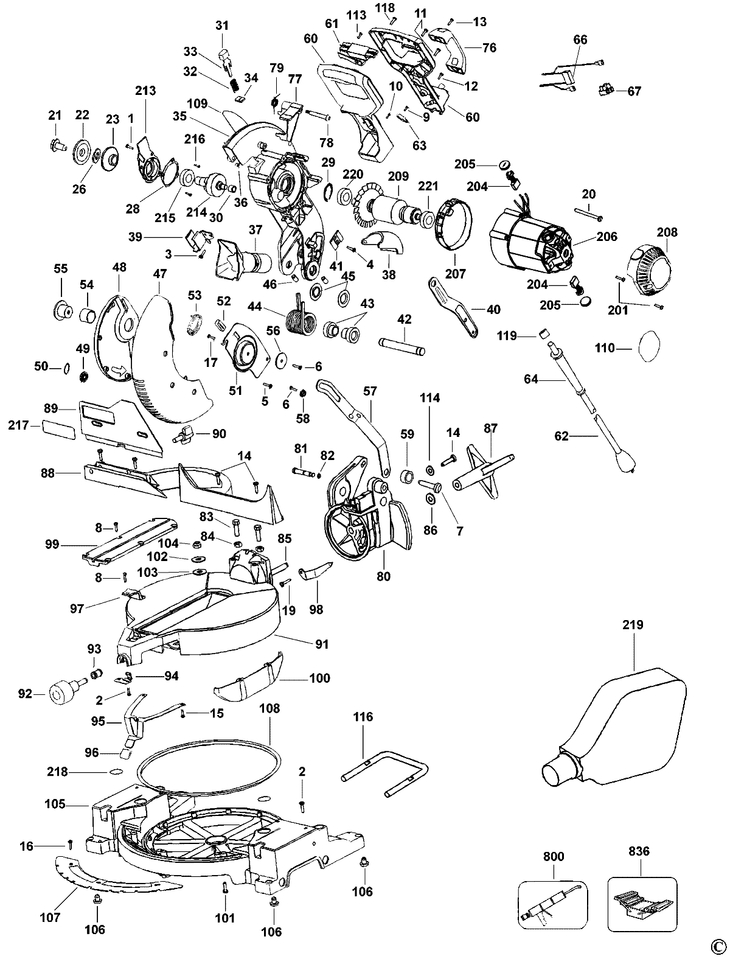

DW703 MITRE SAW Type 3
[DW703 Type 3]
DW703 MITRE SAW Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (330045-14) 558 RON
2 1 4 SCREW (330045-23) 781 RON
3 1 2 SCREW (330045-13) 558 RON
4 1 2 SCREW (098102-08) 558 RON
5 1 3 SCREW (394211-00) 558 RON
6 1 2 SCREW (151891-00) 558 RON
7 1 1 SCREW (330045-32) 781 RON
8 1 7 SCREW.TEMP (330045-05) 558 RON
9 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
10 1 1 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
11 1 3 SCREW PLASTITE (330019-32) 558 RON
12 1 4 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
13 1 2 SCREW (CARRY HANDLE) (330019-22) 558 RON
14 1 5 SCREW TRIL (330045-33) 781 RON
15 1 2 SCREW (330045-22) 781 RON
16 1 3 SCREW (604410-00) 558 RON
17 1 2 SCREW (394589-01) 781 RON
19 1 1 screw dw744 (153460-00) 558 RON
20 1 4 SCREW (614375-00) 1117 RON
21 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
22 1 1 CLAMP OUTER (151962-01) 1452 RON
23 1 1 WASHER INNER CLAMP (141987-06) 4472 RON
26 1 1 ADAPTOR (393868-00) 3018 RON
28 1 1 GASKET (391632-00) 781 RON
29 1 1 SEAL (701297-00) 558 RON
30 1 1 BEARING NEEDLE (330004-06) 1452 RON
31 1 1 BUTTON (145350-03) 893 RON
32 1 1 SPRING (398736-00) 781 RON
33 1 1 LOCK (146714-00) 1229 RON
34 1 1 WIPER (146710-00) 781 RON
35 1 1 000000-00 - Indisponibil
35 1 1 ARM LX (394848-02) 59725 RON
36 1 2 INSERT (148608-00) 558 RON
37 1 1 CHUTE (394496-00) 2795 RON
38 1 1 DEFLECTOR (148520-00) 105 RON
39 1 1 GUARD (393731-00) 190 RON
40 1 1 WRENCH (145378-01) 1452 RON
41 1 1 KEY CLAMP (147190-01) 2124 RON
42 1 1 SHAFT (146751-00) 2124 RON
43 1 2 SPACER (398251-00) 558 RON
44 1 1 SPRING (391606-00) 5591 RON
45 1 2 PLASTIC WASHER (148296-00) 781 RON
46 1 2 SCREW (150075-00) 781 RON
47 1 1 GUARD (391612-01) 15993 RON
47 1 1 GUARD (391612-01) 15993 RON
48 1 1 GUARD MOUNTING PLATE (391609-00) 7940 RON
49 1 1 ROLLER (146774-00) 1117 RON
50 1 1 CIRCLIP (603232-00) 558 RON
51 1 1 PIVOT (399139-00) 5591 RON
52 1 1 BUMPER (146768-00) 781 RON
53 1 1 SPRING (398735-00) 1229 RON
54 1 1 SLEEVE (148295-00) 105 RON
55 1 1 RETAINING PLATE (146750-01) 4137 RON
56 1 1 WASHER (148612-00) 781 RON
57 1 1 LINK (391630-00) 6821 RON
58 1 1 BUSH (146740-01) 558 RON
59 1 1 BUSHING (399042-00) 2347 RON
60 1 1 HANDLE SA (393960-00) 12861 RON
61 1 1 SWITCH (391926-01) 14315 RON
61 1 1 SWITCH (391926-01) 14315 RON
62 1 1 CORDSET (330060-79) 28296 RON
62 1 1 CORDSET (330061-20) 40599 RON
63 1 1 CORD CLAMP (3618-00) 558 RON
64 1 1 CORD PROTECTOR (445338-00) 1229 RON
66 1 1 CAPACITOR SA (393521-05) 12861 RON
67 1 1 BLOCK TERMINAL (393520-00) 2795 RON
76 1 1 HANDLE (396375-00) 190 RON
77 1 1 LEVER (392363-00) 2347 RON
77 1 1 LEVER (392363-00) 2347 RON
78 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
78 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
79 1 1 SPRING (386196-00) 105 RON
79 1 1 SPRING (386196-00) 105 RON
80 1 1 TRUNNION (391578-01) 29862 RON
80 1 1 TRUNNION (391578-01) 29862 RON
81 1 1 PIN LOCKING (387130-00) 2347 RON
82 1 1 GASKET (34158-00) 558 RON
83 1 2 SCREW (149368-00) 558 RON
84 1 2 NUT (99368-04) 558 RON
85 1 1 STUD (146760-02) 1117 RON
86 1 1 WASHER PLAIN STEEL 10 * 20 * 2.0 THICK (330016-04) 558 RON
87 1 1 HANDLE (604634-00) 7940 RON
88 1 1 FENCE (610483-00) 32770 RON
89 1 1 FENCE (394845-01) 1891 RON
89 1 1 FENCE (394845-01) 1891 RON
90 1 1 KNOB LOWER (147107-02) 1117 RON
91 1 1 ROTARY TABLE (391563-00) 59725 RON
92 1 1 KNOB (145439-10) 2124 RON
93 1 1 BUSHING (398256-00) 190 RON
94 1 1 CLAMP (391357-00) 781 RON
95 1 1 SPRING DETENT (146745-00) 3018 RON
96 1 1 COVER (148611-00) 558 RON
97 1 1 POINTER (391634-00) 1788 RON
98 1 1 POINTER (391631-00) 1117 RON
99 1 1 PLATE (146726-02) 3018 RON
100 1 1 GUARD (391994-00) 1788 RON
101 1 1 SCREW (98025-25) 558 RON
102 1 1 LAP WASHER (153792-00) 558 RON
103 1 1 LAP WASHER (153781-00) 781 RON
104 1 1 Stop Nut M8 (330021-02) 558 RON
105 1 1 BASE (394995-02) 80865 RON
106 1 4 RUBBER FEET (153612-00) 781 RON
107 1 1 DETENT (391633-01) 11519 RON
108 1 1 RING (391635-00) 2347 RON
109 1 1 LABEL (395021-00) 190 RON
110 1 1 IDENTITY LABEL (391325-00) 558 RON
113 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
114 1 1 WASHER (330016-13) 558 RON
116 1 1 STABILISER LEG (399110-00) 4472 RON
118 1 1 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
119 1 1 FERRITE BEAD (388414-01) 1452 RON
201 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
204 1 2 BRUSH 230V SA (623919-00) 3018 RON
204 1 2 BRUSH & LEAD (614367-00) 2795 RON
205 1 2 BRUSH CAP (614368-00) 781 RON
206 1 1 FIELDCASE SA (623918-00) 70239 RON
206 1 1 FIELDCASE SA (614365-01) 59725 RON
207 1 1 BAFFLE FAN (614366-00) 2347 RON
208 1 1 END CAP (614373-00) 2124 RON
209 1 1 ARMATURE SA (623917-00) 59725 RON
209 1 1 ARMATURE SA (614364-00) 53015 RON
213 1 1 GEARCASE COVER (391573-00) 4472 RON
214 1 1 SPINDLE & GEAR (392628-00) 14315 RON
215 1 1 BEARING BALL (330003-29) 3466 RON
216 1 2 SCREW (330045-13) 558 RON
217 1 1 LABEL (395301-00) 781 RON
217 1 1 LABEL (395301-00) 781 RON
218 1 2 LABEL (394976-00) 1229 RON
219 1 1 DUST BAG DW708 (147734-06) 3466 RON
220 1 1 BEARING 6202 (868768-07) 4137 RON
221 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
800 1 1 GREASE (790206-00) 34336 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
836 1 1 559606-99 - Indisponibil
