Top » Piese de schimb » PIESE DEWALT » DW700 Type 1

DW700 MITRE SAW Type 1
[DW700 Type 1]
DW700 MITRE SAW Type 1

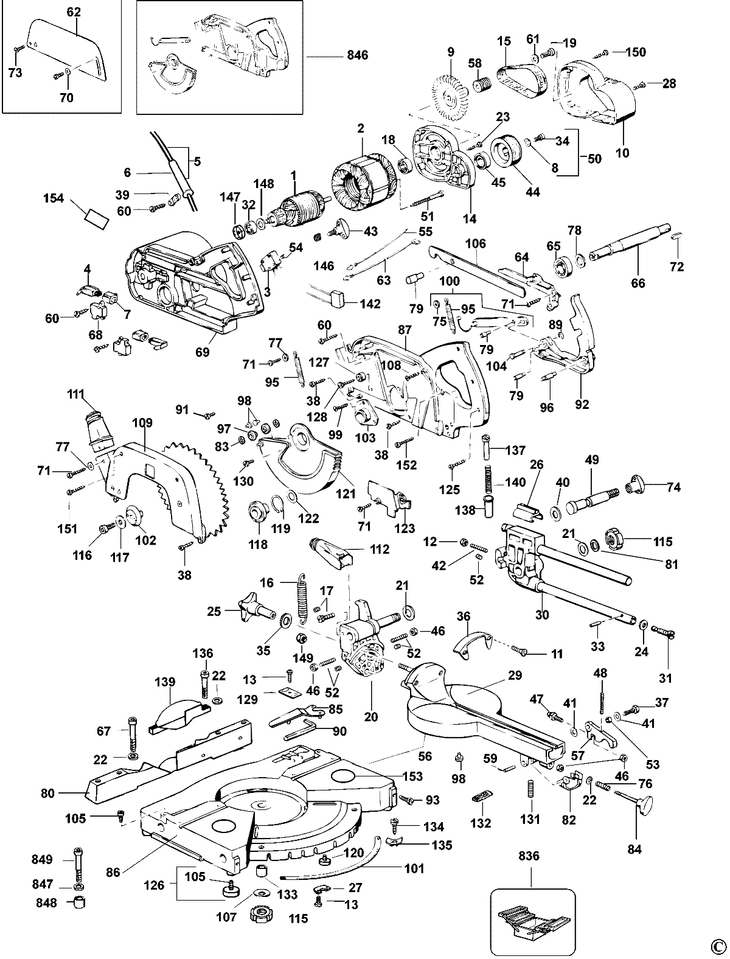

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
1 1 1 000000-00 - Indisponibil
2 1 1 STATOR V.230 PS 944977 (868405-00) 46863 RON
2 1 1 STATOR PS174 V.115 942913 (868405-02) 37579 RON
3 1 1 SA SWITCH 1281.0209-00 (864720-05) 12861 RON
3 1 1 SA SWITCH 1281.0209-00 (864720-05) 12861 RON
4 1 2 BRUSH 230V (940146-00) 3018 RON
4 1 2 BRUSH PAIR 115V SA (868203-00) 22144 RON
5 1 1 S/A CABLE (947108-10) 17335 RON
5 1 1 S/A CABLE (947108-11) 22144 RON
6 1 1 CORD PROTECTOR (720703-00) 781 RON
7 1 2 BRUSH HOLDER 220V (761202-00) 3466 RON
7 1 2 BRUSH PAIR 115V SA (868203-00) 22144 RON
7 1 2 BRUSH HOLDER 220V (761202-00) 3466 RON
8 1 1 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
9 1 1 FAN (174130500) (760210-00) 4472 RON
10 1 1 COVER (942568-01) 3018 RON
11 1 2 SCREW (949894-12) 558 RON
12 1 1 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
13 1 5 SCREW PAN PH/TT M.4X12UNI8112 (860094-05) 558 RON
14 1 1 BRACKET (174120201) (942567-00) 14315 RON
15 1 1 BELT (174924631) (760215-00) 14315 RON
16 1 1 TRACTION SPRING (760216-01) 1229 RON
17 1 1 SCREW FIL.HD M.6X16 UNI6107 (860089-23) 558 RON
17 1 1 SCREW (949743-02) 781 RON
18 1 1 BEARING (861721-02) 2347 RON
19 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
20 1 1 S/A SEGMENT 174+SCREWS M8 (868317-00) 26730 RON
20 1 1 S/A SEGMENT 174+SCREWS M8 (868317-00) 26730 RON
21 1 2 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
22 1 7 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
23 1 6 SCREW (949896-10) 558 RON
24 1 1 WASHER (760224-00) 781 RON
25 1 1 KNOB (861838-00) 3018 RON
26 1 1 GUIDE (942597-01) 1117 RON
27 1 2 LOCATING BLOCK PS174 (943010-01) 893 RON
28 1 1 000000-00 - Indisponibil
29 1 1 ROTATING TABLE PS174 (861832-00) 43731 RON
30 1 1 SA MOBILE GUIDE (943005-01) 42277 RON
31 1 1 SCREW (760231-00) 1117 RON
32 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
33 1 1 PIN SPIRAL 3X14 UNI 6875 (760233-00) 558 RON
34 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
35 1 1 WASHER (861483-00) 558 RON
36 1 1 GRADUATED SCALE (942996-02) 2347 RON
37 1 1 SCREW HEX M.6X20 UNI5739 BLCK (860085-09) 558 RON
38 1 4 SCREW PAN.PHAB 3.9X13 UNI6954 (860084-11) 558 RON
39 1 1 CABLE CLAMP (720748-00) 558 RON
40 1 1 GASKET DW250-DW252 (949746-02) 558 RON
41 1 2 WASHER(174930434) (760241-01) 558 RON
42 1 1 SCREW M6X10 DIN 553 (949854-01) 781 RON
43 1 1 WING SCREW M8X30 (760243-00) 4137 RON
44 1 1 PULLEY (861356-01) 5031 RON
45 1 1 BEARING 6202 2RS HRB (861721-01) 2347 RON
46 1 2 NUT M6 (860083-12) 558 RON
47 1 1 PIN (174112605) (760247-00) 105 RON
48 1 1 SPRING (760248-00) 105 RON
49 1 1 PIVOT (943003-00) 1229 RON
50 1 1 000000-00 - Indisponibil
51 1 2 SCREW M.5X65 (760251-00) 558 RON
52 1 3 STUD (760252-00) 558 RON
52 1 3 SCREW (949743-02) 781 RON
53 1 1 BUSHING (760253-00) 781 RON
54 1 1 SCREW M3X4 UNI5923 (861378-00) 558 RON
55 1 2 WIRE (942590-00) 781 RON
56 1 1 SA TABLES PS174+SCREWS (861834-00) 165534 RON
57 1 1 LEVER (174112100) (760257-00) 7940 RON
58 1 1 PULLEY (174121401) (760258-00) 4137 RON
59 1 1 STUD (760259-00) 893 RON
60 1 9 SCREW (949896-12) 558 RON
61 1 2 WASHER (760261-00) 558 RON
62 1 1 IRON SHEET (942577-01) 3466 RON
63 1 2 LEAD WIRE-YELLOW (942589-00) 781 RON
64 1 1 CABLE PROTECTION (942570-00) 190 RON
65 1 1 BEARING 6203 2RS ISB (861721-12) 2347 RON
66 1 1 SA SHAFT+RING (861369-01) 23598 RON
67 1 4 SCREW M6X40 UNI8112 (860094-11) 558 RON
68 1 2 COVER (174120203) (942569-00) 558 RON
69 1 1 HOUSING (YELLOW) (945017-02) 34336 RON
70 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
71 1 3 SCREW PAN PHAB 3.9X9 5UNI6954 (860084-20) 558 RON
72 1 1 KEY FEATHER A-5X5X16 UNI 6604 (860539-01) 781 RON
73 1 1 SCREW (943023-00) 558 RON
74 1 1 WING NUT M8 (941756-00) 1229 RON
75 1 1 WASHER (941633-00) 558 RON
76 1 1 SPRING (760276-00) 1452 RON
77 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
78 1 1 WASHER (760278-00) 2124 RON
79 1 3 PIVOT (760279-00) 781 RON
80 1 1 FENCE (938855-01) 29862 RON
81 1 1 RING (943014-00) 558 RON
82 1 1 LEVER (174110800) (760282-00) 190 RON
83 1 2 QUICKLOCK (861366-00) 558 RON
84 1 1 KNOB (760284-00) 1788 RON
85 1 1 WRENCH (939072-00) 2347 RON
86 1 1 FIXED TABLE 174+SCREWS (861847-00) 91714 RON
87 1 1 BODY COVER DW700 (YELLOW) (945018-06) 9282 RON
89 1 1 RING RADIAL SPRING D4 UNI7434 (860322-03) 558 RON
90 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
91 1 2 SCREW (761209-01) 558 RON
92 1 1 000000-00 - Indisponibil
93 1 2 SCREW (949894-10) 781 RON
95 1 1 SPRING DW777 (760295-01) 105 RON
96 1 1 PIVOT (760296-01) 781 RON
97 1 2 ROLLER (861367-01) 1117 RON
98 1 3 SLIDE ROLLER (760298-01) 558 RON
99 1 3 SCREW (760299-00) 558 RON
100 1 1 LEVER KIT DW700-PS174 (868398-00) 15993 RON
101 1 1 GRADUATED SCALE (942997-01) 7940 RON
102 1 1 OUTER FLANGE (942959-02) 3466 RON
103 1 1 FLANGE (760303-01) 3466 RON
104 1 1 000000-00 - Indisponibil
105 1 2 SCREW (330045-55) 558 RON
106 1 1 LEVER LOCKING HEAD (942999-02) 2347 RON
107 1 1 WASHER (760307-00) 781 RON
108 1 1 SCREW (949896-11) 558 RON
109 1 1 SA FIXED GUARD (943004-09) 15993 RON
111 1 1 SUCTION MOUTH (760311-00) 105 RON
112 1 1 ADAPTOR (174231903) (760312-00) 1229 RON
115 1 2 LOCK NUT (943016-00) 190 RON
116 1 1 SCREW (949886-27) 1229 RON
117 1 1 WASHER (949876-19) 558 RON
118 1 1 BLADE FLANGE (947022-00) 7940 RON
119 1 1 RETAINING RING D.30 (949727-04) 558 RON
120 1 1 FOOT (761299-00) 1452 RON
121 1 1 SA MOBILE GUARD DW700 (861362-03) 20467 RON
122 1 1 WASHER (760270-00) 781 RON
123 1 1 BRUSHES CASING (942572-00) 1117 RON
125 1 4 SCREW (761304-01) 558 RON
126 1 5 SA FOOT D40 (861809-00) 5031 RON
127 1 1 BUMPER (761306-00) 781 RON
128 1 1 SCREW (080914604) (761307-00) 558 RON
129 1 1 SPRING (942998-00) 781 RON
130 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
131 1 1 SCREW (943017-00) 558 RON
132 1 1 FELT PS 174 TABLE (943009-01) 781 RON
133 1 3 BUSHING (943021-00) 1117 RON
134 1 2 SCREW (943024-01) 558 RON
135 1 2 PLATE (943025-00) 558 RON
136 1 2 SCREW SOCKET M.6X30 UNI 5931 (860093-11) 558 RON
137 1 1 PLUNGER (942578-01) 558 RON
138 1 1 SOCKET (942584-01) 558 RON
139 1 1 SA INSERT (401457-00) 5031 RON
139 1 1 INSERT (401363-00) 9282 RON
140 1 1 SPRING (942621-00) 558 RON
146 1 1 SPRING (760249-00) 558 RON
147 1 1 BEARING SHEATHING (934409-00) 558 RON
148 1 1 DISTANCIAL (944975-00) 558 RON
149 1 1 RING NUT (943016-01) 190 RON
150 1 1 SCREW (760978-01) 558 RON
151 1 2 SCREW (949896-11) 558 RON
152 1 1 SCREW (720744-01) 558 RON
154 1 1 NAME PLATE (942532-00) 3466 RON
836 1 1 559606-99 - Indisponibil
846 1 1 000000-00 - Indisponibil
847 1 2 NUT HEX MEAN M.8 UNI5588 ZINC (860083-14) 558 RON
848 1 2 WASHER (949876-19) 558 RON
849 1 2 SCREW CUP SQR M8X100 UNI5732 (860301-06) 781 RON
