DW685K JOINTER GROOVER Type 3
[DW685K Type 3]
DW685K JOINTER GROOVER Type 3

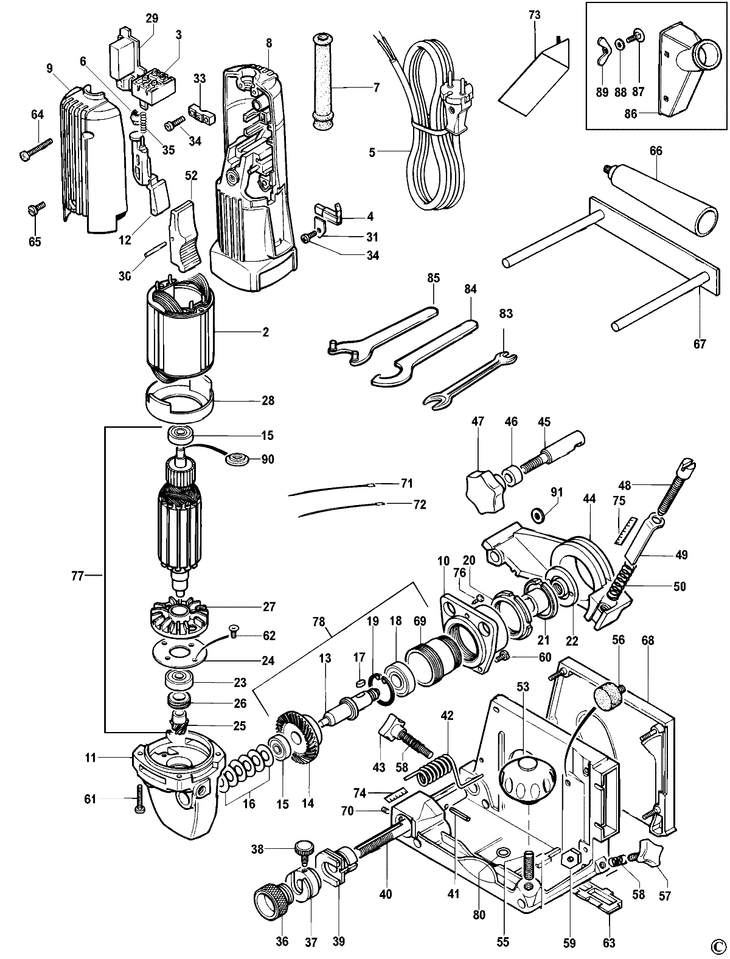

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 STATOR (140102103) 39145 RON
3 1 1 SWITCH (140160300) 23598 RON
4 1 2 BRUSH HOLDER DS140 (140105702) 7940 RON
5 1 1 CABLE (949770-06) 15993 RON
6 1 1 RUBBER CAP (140161100) 1788 RON
7 1 1 CABLE CLAMP (012160900) 2795 RON
8 1 1 FIELDCASE (249505-02) 15993 RON
9 1 1 COVER (249507-02) 4137 RON
10 1 1 COVER (140151900) 1891 RON
11 1 1 GEARCASE SA (249236-10) 23598 RON
12 1 1 LEVER (941095) 190 RON
13 1 1 SPINDLE (140151201) 5591 RON
14 1 1 INTER SHAFT (140150902) 3592 RON
15 1 2 BALL BEARING (141830000) 4472 RON
16 1 6 SPRING (140931422) 781 RON
17 1 1 PIN (021827000) 781 RON
18 1 1 BEARING (013830000) 5591 RON
19 1 1 PISTON RING (038821200) 781 RON
20 1 1 NUT (140153400) 4472 RON
21 1 1 BOSS (140155400) 6821 RON
22 1 1 PLATE (140153300) 5031 RON
23 1 1 BALL BEARING (142830000) 4472 RON
24 1 1 SLEEVE (140153302) 2347 RON
25 1 1 INTER SHAFT (140150200) 25164 RON
26 1 1 SLEEVE (140152800) 2347 RON
27 1 1 FAN (140130501) 1452 RON
28 1 1 SLEEVE (140120600) 1117 RON
29 1 1 CAPACITOR (065121902) 3018 RON
29 1 1 CAPACITOR (142121900) 15993 RON
30 1 2 ROD (018810000) 781 RON
31 1 2 SPRING (140931226) 2347 RON
33 1 1 CABLE CLAMP (379684) 558 RON
34 1 2 SCREW THREAD CUTTING o3.99.5 PAN HEAD (249416-06) 558 RON
35 1 1 SPRING (024931038) 558 RON
36 1 1 NUT (140112400) 5031 RON
37 1 1 SLEEVE (140110700) 5031 RON
38 1 1 SCREW (140117100) 1117 RON
39 1 1 SLEEVE (140114000) 9282 RON
40 1 1 SPINDLE (140112300) 3466 RON
41 1 1 SLEEVE (011810202) 1117 RON
42 1 1 SPRING (140932209) 190 RON
43 1 1 SCREW (140824100) 2347 RON
44 1 1 SWIVEL BRACKET (140113400) 20467 RON
45 1 1 AXLE (140117101) 2795 RON
46 1 1 SLEEVE (140117600) 893 RON
47 1 1 HANDLE (023824200) 2795 RON
48 1 1 SCREW (140117102) 3018 RON
49 1 1 PLATE (249088-00) 5031 RON
50 1 1 SPRING (140934020) 558 RON
52 1 1 SWITCH LEVER USA (140120506) 1229 RON
53 1 1 HANDLE (379019) 190 RON
55 1 1 SCREW (249434-00) 781 RON
56 1 1 FOOT (761299-00) 1452 RON
57 1 1 NUT (025922908) 1229 RON
58 1 2 SPRING (868082-00) 558 RON
59 1 4 NUT (591114-00) 781 RON
60 1 2 SCREW 4X8 (249424-01) 558 RON
61 1 4 SCREW (249416-04) 558 RON
62 1 2 SCREW M4X8 UNI8113 (860205-04) 558 RON
63 1 1 INSERT (249112-00) 1117 RON
64 1 1 SCREW (949896-11) 558 RON
65 1 1 SCREW (249424-02) 558 RON
66 1 1 SIDE HANDLE (573115-00) 1452 RON
67 1 1 THRUST (140106900) 17335 RON
68 1 1 TABLE SA (140106600) 59725 RON
69 1 1 SLEEVE (140152300) 6821 RON
70 1 1 SCREW (011814600) 558 RON
71 1 2 LEAD 140MM RED (140164501) 781 RON
72 1 2 LEAD 130MM YELLOW (140164502) 781 RON
73 1 1 FENCE (140106903) 12861 RON
74 1 1 SCALE (249280-00) 1117 RON
75 1 1 SCALE (249279-00) 1117 RON
76 1 1 SCREW (249424-00) 558 RON
77 1 1 000000-00 - Indisponibil
78 1 1 ENGINE FLY-WHEEL (140102200) 59725 RON
80 1 1 WASHER M8 (249223-00) 558 RON
83 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
84 1 1 KEY 34X36 (025351500) 5591 RON
85 1 1 WRENCH PIN (249109-00) 15993 RON
86 1 1 ADAPTOR (249113-00) 1452 RON
87 1 2 SCREW (249407-00) 1117 RON
88 1 2 WASHER (249233-00) 558 RON
89 1 2 NUT WING (249225-02) 105 RON
90 1 1 000000-00 - Indisponibil
91 1 1 WASHER (933515) 558 RON
