Top » Piese de schimb » PIESE DEWALT » DW650 Type 6

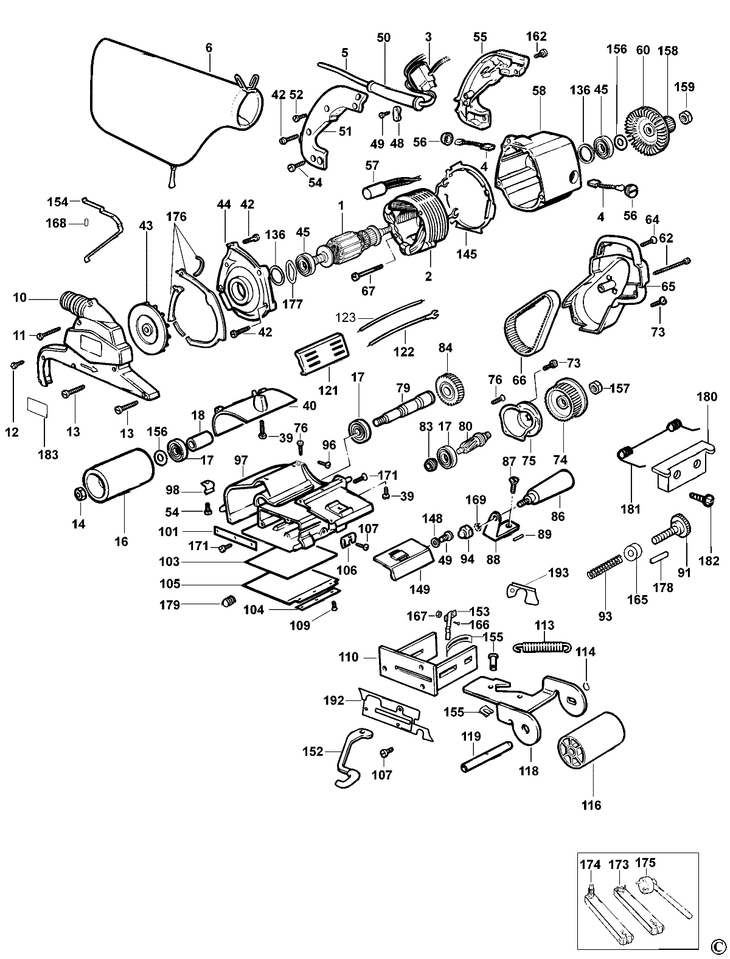

DW650 BELT SANDER Type 6
[DW650 Type 6]
DW650 BELT SANDER Type 6
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
1 1 1 ARMATURE 120V 4029 (248157-00) 91714 RON
2 1 1 STATOR (090102102) 51337 RON
2 1 1 FIELD 120V USA MHB90 (090102104) 46863 RON
3 1 1 SWITCH (155160303) 26730 RON
4 1 2 BRUSH 115V (013121502) 6821 RON
4 1 2 BRUSH 220V (013121501) 3466 RON
5 1 1 CORDSET GB (379092) 17335 RON
5 1 1 CORDSET (378990) 17335 RON
6 1 1 BAG DUST SA (329265-00) 22144 RON
10 1 1 FANCASE KIT (247664-05) 15993 RON
11 1 1 SCREW (247144-05) 781 RON
12 1 2 SCREW (249437-01) 558 RON
13 1 4 SCREW (249415-03) 781 RON
14 1 1 NUT (249232-40) 105 RON
16 1 1 ROLLER SA (324914-00) 20467 RON
17 1 3 BALL BEARING (055830000) 5591 RON
18 1 1 SLEEVE (050152300) 1788 RON
39 1 2 SCREW M4X25 CBPH WN1441 (249220-00) 781 RON
40 1 1 PLATE (324922-06) 190 RON
42 1 5 SCREW (760978-01) 558 RON
43 1 1 FAN (324908-00) 2124 RON
44 1 1 COVER (248143-06) 6821 RON
45 1 2 BALL BEARING (050830000) 5591 RON
48 1 1 CORD CLAMP (910556) 558 RON
49 1 3 SCREW THREAD CUTTING o3.99.5 PAN HEAD (249416-06) 558 RON
50 1 1 SLEEVE (320785-00) 105 RON
51 1 1 COVER (324687-06) 3466 RON
52 1 1 SCREW (249416-03) 558 RON
54 1 5 SCREW (249424-20) 558 RON
55 1 1 GRIP (324686-06) 3466 RON
56 1 2 SCREW (249007-01) 781 RON
57 1 1 CAPACITOR (320842-03) 1229 RON
58 1 1 HOUSING REPAIR KIT (248438-02) 34336 RON
60 1 1 FAN (324907-02) 2795 RON
62 1 1 SCREW (248090-05) 105 RON
64 1 2 SCREW (249437-02) 558 RON
65 1 1 COVER BELT (248187-06) 4137 RON
66 1 1 BELT TOOTHED (324909-00) 7940 RON
67 1 2 SCREW (911442) 558 RON
73 1 4 SCREW (249415-01) 781 RON
74 1 1 PULLEY (324910-00) 5591 RON
75 1 1 COVER (050151901) 6821 RON
76 1 2 SCREW (249415-02) 781 RON
79 1 1 GEAR & SPINDLE SA (378189) 32770 RON
80 1 1 GEAR (324911-00) 14315 RON
83 1 1 SLEEVE (018980105) 5591 RON
84 1 1 GEAR & SPINDLE SA (378189) 32770 RON
86 1 1 HANDLE (140111000) 5591 RON
87 1 1 SCREW (248084-05) 1117 RON
88 1 1 LEVER (249124-00) 6821 RON
89 1 1 SPRING PIN 3X10 DIN1481 (761065-00) 558 RON
91 1 1 SCREW (050117100) 4472 RON
93 1 1 COMPRESSION SPRING (761054-00) 558 RON
94 1 1 NUT (248078-05) 893 RON
96 1 1 SCREW (249440-00) 781 RON
97 1 1 HOUSING REPAIR KIT (248125-02) 14265 RON
98 1 1 SPRING (050930703) 5031 RON
101 1 1 GUARD (050116300) 4472 RON
103 1 1 PLATE (050111700) 2795 RON
104 1 1 PLATE (050110000) 3018 RON
105 1 1 PLATE (050110001) 5591 RON
106 1 1 SPRING (050930700) 3018 RON
107 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
109 1 3 SCREW (248084-10) 190 RON
110 1 1 HOLDER (248148-05) 12861 RON
113 1 1 SPRING (050931316) 2795 RON
114 1 1 RING SPRING SHAFT D12 UNI7435 (860079-03) 558 RON
116 1 1 REPAIR KIT (590984-00) 28296 RON
118 1 1 BRACKET (324924-05) 7940 RON
119 1 1 REPAIR KIT (590984-00) 28296 RON
121 1 2 COVER BRUSH (249015-01) 190 RON
122 1 2 LEAD (090164501) 2124 RON
122 1 2 LEAD (090164501) 2124 RON
123 1 2 LEAD (090164502) 893 RON
136 1 2 GASKET (248113-00) 781 RON
145 1 1 BAFFLE (324466-00) 2124 RON
148 1 1 WASHER (249233-00) 558 RON
149 1 1 COVER (324126-06) 2347 RON
152 1 1 LEVER (324920-06) 5031 RON
153 1 1 SPRING (324923-00) 2347 RON
154 1 1 SPRING (247998-00) 2795 RON
155 1 1 REPAIR KIT (249523-01) 5591 RON
156 1 2 WASHER (247869-00) 558 RON
157 1 1 NUT (003822700) 558 RON
158 1 1 PULLEY (325248-01) 5031 RON
159 1 1 NUT (248077-00) 558 RON
162 1 4 SCREW (249437-10) 781 RON
165 1 1 BUSH (329244-00) 1452 RON
166 1 2 SCREW TEMP (248312-00) 558 RON
167 1 2 NUT (248313-00) 558 RON
168 1 1 RIVET (248082-00) 1117 RON
169 1 1 WASHER (249219-00) 558 RON
171 1 4 SCREW (249424-00) 558 RON
173 1 1 559574-99 - Indisponibil
174 1 1 559575-99 - Indisponibil
175 1 1 559573-99 - Indisponibil
176 1 1 GASKET (249503-00) 190 RON
177 1 1 WASHER SPRING (249582-00) 893 RON
178 1 1 PIN CYL 3*18 (325880-04) 893 RON
179 1 1 SPRING (323395-28) 893 RON
180 1 1 PLATE (329160-00) 5591 RON
181 1 1 SPRING (329159-00) 2347 RON
182 1 2 SCREW (911126) 558 RON
183 1 1 BRAND LABEL (248632-00) 1788 RON
192 1 1 COVER RH (575472-00) 1117 RON
193 1 1 COVER LH (575473-00) 893 RON
