DW634 ORBITAL SANDER Type 1
[DW634 Type 1]

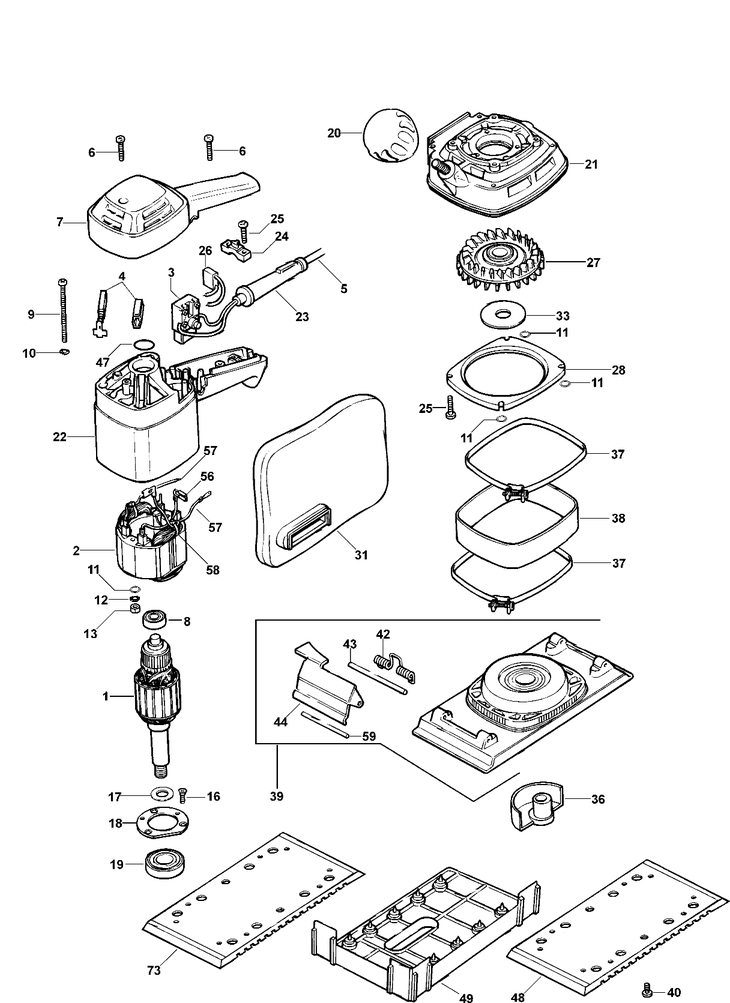

DW634 ORBITAL SANDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE (329625-00) 62298 RON
1 1 1 ARMATURE 115V (249341-00) 62298 RON
2 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
3 1 1 SWITCH (155160303) 26730 RON
4 1 2 BRUSH 230V SA (247533-11) 4137 RON
5 1 1 CORDSET (330060-31) 15993 RON
5 1 1 CORDSET (378990) 17335 RON
6 1 2 SCREW (760978-01) 558 RON
7 1 1 FIELD CASE DW634 (326360-01) 3466 RON
8 1 1 BEARING (N110358) 2347 RON
9 1 4 SCREW (093811200) 781 RON
10 1 4 WASHER DW636 (093820600) 558 RON
11 1 5 WASHER (249233-00) 558 RON
12 1 2 WASHER (725163) 558 RON
13 1 2 NUT M4 (249232-00) 558 RON
16 1 3 SCREW CTSKPHAB 3.9X13 UNI6956 (860428-04) 558 RON
17 1 1 WASHER (249571-00) 1788 RON
18 1 1 PLATE BEARING (868047-00) 2347 RON
19 1 1 BEARING 6202 2RS HRB (861721-01) 2347 RON
20 1 1 HANDLE (379019) 190 RON
21 1 1 000000-00 - Indisponibil
22 1 1 CLAMSHELL MOTOR DW634 (326345-01) 7940 RON
23 1 1 CORD PROTECTOR (720703-00) 781 RON
24 1 1 CABLE CLAMP (379684) 558 RON
24 1 1 CABLE CLAMP (379684) 558 RON
24 1 1 CABLE CLAMP (379684) 558 RON
24 1 1 CABLE CLAMP (379684) 558 RON
25 1 5 SCREW (949896-12) 558 RON
26 1 1 CAPACITOR220/240 (320842-09) 1452 RON
26 1 1 KONDENSATOR 115V VS41 (320842-10) 1229 RON
27 1 1 FAN (326347-00) 4472 RON
28 1 1 094120601 - Indisponibil
31 1 1 000000-00 - Indisponibil
33 1 1 WASHER SPACER (326339-00) 2347 RON
36 1 1 COUNTERWEIGHT (326336-00) 32770 RON
37 1 2 CLIP SA (249324-00) 3466 RON
38 1 1 SKIRT (326351-02) 2795 RON
39 1 1 BASEPLATE SA (328656-00) 91714 RON
40 1 8 SCREW (378795-01) 558 RON
42 1 2 SPRING (247504-00) 190 RON
43 1 2 RIVET (326355-00) 1452 RON
44 1 2 000000-00 - Indisponibil
47 1 2 SEAL (030971003) 781 RON
48 1 1 000000-00 - Indisponibil
49 1 1 000000-00 - Indisponibil
56 1 2 LEAD BLACK (917912-11) 190 RON
57 1 2 000000-00 - Indisponibil
58 1 2 CABLE CLAMP (941486-00) 558 RON
59 1 2 GASKET (249531-00) 781 RON
73 1 1 RUBBER PAD (328325-00) 14315 RON
