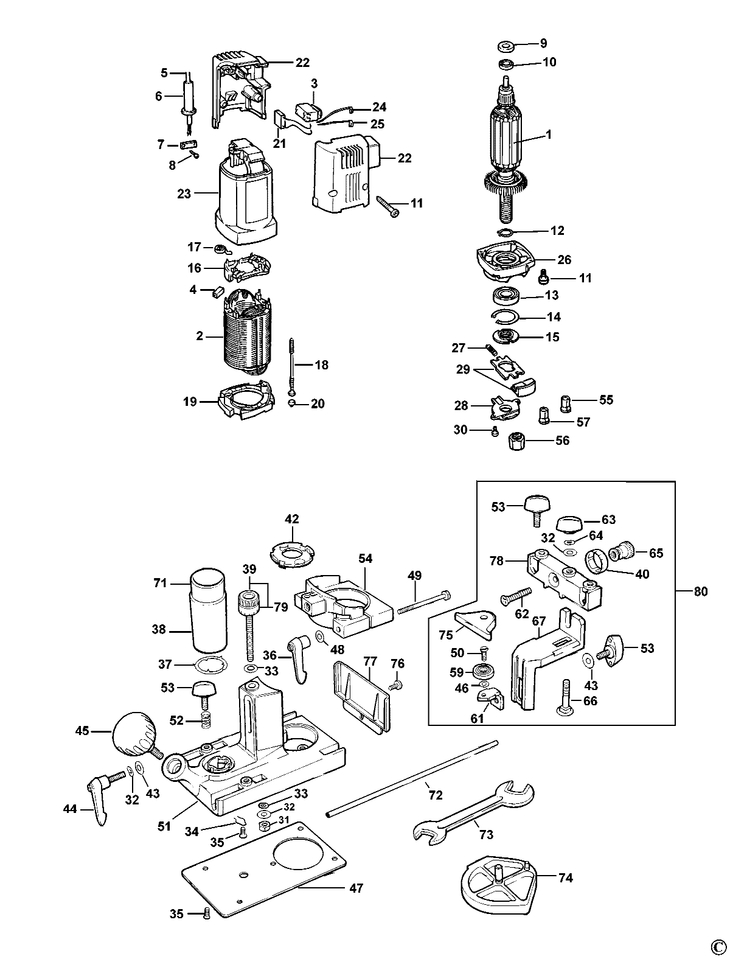

DW631 LAMINATE TRIMMER Type 1
[DW631 Type 1]
DW631 LAMINATE TRIMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE V.230 DW670 (868630-00) 57488 RON
2 1 1 STATOR V.230 DW670 (868629-02) 32770 RON
3 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
4 1 2 BRUSH 230V *BK17* (930760-00) 781 RON
5 1 1 CABLE (949770-06) 15993 RON
6 1 1 "PROTECTOR D.8 2""" (949835-01) 893 RON
7 1 1 CORD CLAMP (930103-00) 190 RON
8 1 2 SCREW PAN.PHAB 4.2X13 UNI6954 (860084-10) 558 RON
9 1 1 CUP (930029-00) 558 RON
10 1 1 BEARING (330003-34) 3466 RON
11 1 6 SCREW (930079-01) 558 RON
12 1 1 RING SPRING SHAFT D15 UNI7435 (930098-00) 558 RON
13 1 1 BEARING (868768-02) 5031 RON
14 1 1 STOP RING (949729-02) 558 RON
15 1 1 LOCK NUT (944484-00) 893 RON
16 1 1 BRUSH HOLDER (930746-00) 11519 RON
17 1 2 BRUSH SPRING (930090-00) 558 RON
18 1 2 SCREW 4X70-TCR (930077-00) 558 RON
19 1 1 BAFFLE DW670 (943173-00) 1117 RON
20 1 2 CAP (933657-00) 558 RON
21 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
22 1 1 "HANDLE DW670""" (943172-02) 3466 RON
23 1 1 DW670 HOUSING (943169-02) 3466 RON
24 1 1 BLACK LEAD M.102 (949801-11) 781 RON
25 1 1 LEAD (949801-10) 781 RON
26 1 1 PLATE (943178-01) 9282 RON
27 1 1 N406641 - Indisponibil
28 1 1 COVER (944386-00) 893 RON
29 1 1 BUTTON SA (947048-00) 190 RON
30 1 2 SCREW (249424-02) 558 RON
31 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
32 1 3 WASHER SPRING D.6 (937545-00) 558 RON
33 1 2 WASHER UNI6593 (930102-00) 558 RON
34 1 1 000000-00 - Indisponibil
35 1 6 SCREW RD.HD M4X10 (860091-04) 558 RON
36 1 1 LEVER (861840-01) 3018 RON
37 1 1 000000-00 - Indisponibil
38 1 1 000000-00 - Indisponibil
39 1 1 000000-00 - Indisponibil
40 1 1 INDEX ADJ (942918-00) 893 RON
42 1 1 000000-00 - Indisponibil
43 1 2 000000-00 - Indisponibil
44 1 1 000000-00 - Indisponibil
45 1 1 000000-00 - Indisponibil
46 1 1 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
47 1 1 BASEPLATE DW631K (946287-00) 5591 RON
48 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
49 1 1 000000-00 - Indisponibil
50 1 1 SCREW M.4X12 (949889-01) 558 RON
51 1 1 000000-00 - Indisponibil
52 1 2 SPRING (868082-00) 558 RON
53 1 5 SCREW WING M6*17 BLACK (326573-01) 781 RON
54 1 1 SUPPORT (946284-01) 15993 RON
55 1 1 COLLET D8 (943269-02) 3018 RON
56 1 1 NUT M.15X1 (943270-00) 3466 RON
57 1 1 "COLLET D.6 35""" (943269-01) 3018 RON
57 1 1 COLLET. D6 (943269-00) 3018 RON
59 1 1 BEARING D7X19X6 607-2Z C3 (330003-02) 4137 RON
61 1 1 000000-00 - Indisponibil
62 1 1 000000-00 - Indisponibil
63 1 1 KNOB (942895-01) 1117 RON
64 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
65 1 1 000000-00 - Indisponibil
66 1 1 000000-00 - Indisponibil
67 1 1 000000-00 - Indisponibil
71 1 1 000000-00 - Indisponibil
72 1 2 000000-00 - Indisponibil
73 1 1 WRENCH 17/19 (945393-00) 2795 RON
74 1 1 000000-00 - Indisponibil
75 1 1 GUIDE FENCE (946292-00) 893 RON
76 1 1 000000-00 - Indisponibil
77 1 1 000000-00 - Indisponibil
78 1 1 000000-00 - Indisponibil
79 1 1 000000-00 - Indisponibil
80 1 1 000000-00 - Indisponibil
