Top » Piese de schimb » PIESE DEWALT » DW629 Type 1

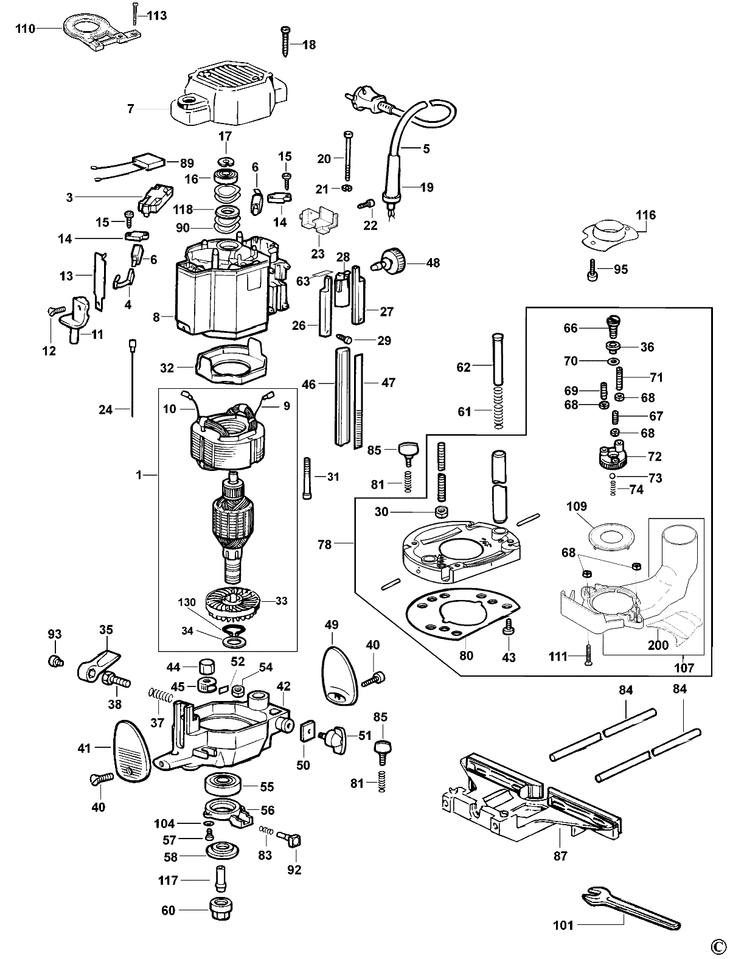

DW629 ROUTER ATTACH Type 1
[DW629 Type 1]
DW629 ROUTER ATTACH Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 S/A ARMATURE +FIELD DW629 240V (869074-01) 112630 RON
1 1 1 S/A ARMATURE+FIELD DW629 115V (869074-07) 91714 RON
3 1 1 SWITCH 1262.0901-00 (868128-00) 20467 RON
4 1 2 BRUSH 230V (940146-00) 3018 RON
4 1 2 BRUSH 120V (940146-01) 5591 RON
5 1 1 CORDSET GB 3600 240V (325612-03) 15993 RON
5 1 1 CORDSET GB 3600 115V (248488-13) 29862 RON
6 1 2 BRUSH HOLDER 220V (761202-00) 3466 RON
7 1 1 COVER SA (249019-01) 7940 RON
8 1 1 CAGE 177 T3 YELLOW (942934-03) 15993 RON
9 1 2 LEAD (868140-00) 781 RON
10 1 1 LEAD RED 175 MM (868129-00) 781 RON
11 1 1 LEVER SWITCH USA (868145-00) 190 RON
12 1 1 SCREW M4X6 F DIN965 (249412-10) 558 RON
13 1 1 SLOT SWITCH (868123-00) 2124 RON
14 1 2 BRUSH HOLDER CLAMP (868133-00) 781 RON
15 1 4 SCREW PAN.PHAB 3.9X13 UNI6954 (860084-11) 558 RON
16 1 1 BEARING 6201-2RSLTN9/C3VT162 (868768-13) 4137 RON
17 1 1 RING SPRING SHAFT D12 UNI7435 (860079-03) 558 RON
18 1 2 SCREW (760978-01) 558 RON
19 1 1 CORD PROTECTOR (720703-00) 781 RON
19 1 1 SLEEVE D.12 (942277-00) 2347 RON
20 1 4 SCREW M5X68 CPH SN21330 (249424-24) 781 RON
21 1 5 WASHER (930248-00) 558 RON
22 1 2 SCREW PAN.PHAB 3.5X13 UNI6954 (860084-04) 558 RON
23 1 1 CLAMP CORD (248180-00) 1117 RON
24 1 1 LEAD RED 80MM (868129-02) 781 RON
26 1 1 HOLDER LENS SXMOF177 (248395-00) 1117 RON
27 1 1 HOLDER LENS DXMOF177 (248394-00) 893 RON
28 1 1 LENS (868124-01) 190 RON
29 1 4 SCREW CTSKPHAB 3.9X13 UNI6956 (860428-04) 558 RON
30 1 1 NUT HEX MEAN M.12 UNI 5588 ZIN (761225-02) 558 RON
31 1 2 SCREW T48X60 (248935-00) 558 RON
32 1 1 DEFLECTOR (942902-01) 1452 RON
33 1 1 VENTILATOR (N041821) 190 RON
34 1 1 SPACER RING D31.6 S 1 3 (868127-02) 781 RON
35 1 1 LOCK LEVER (942906-00) 3466 RON
36 1 1 SLEEVE (329836-00) 781 RON
37 1 1 SPRING CPRSN (942909-00) 558 RON
38 1 1 SCREW (868204-00) 2795 RON
40 1 2 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
40 1 1 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
41 1 1 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
41 1 1 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
42 1 1 LOWER HOUSING (942898-00) 5484 RON
43 1 6 SCREW M4X8 UNI8113 (860205-04) 558 RON
44 1 1 NUT -M 12 HRECES DIN 91 (868150-00) 1452 RON
45 1 1 ADJUSTER (942910-00) 190 RON
46 1 1 ROUGH ADJUSTMENT WHEEL (868139-00) 3466 RON
47 1 1 SCALE GRADED (249281-00) 781 RON
48 1 1 ROLLER REGULATOR 177 (761243-05) 5591 RON
49 1 1 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
49 1 1 KIT HANDLES DW625 SERVICE (869355-00) 6821 RON
50 1 1 PLATE (868119-00) 1229 RON
51 1 1 NUT CLAMP M10 177T4 (939840-05) 2795 RON
52 1 2 SPRING LEAF (942912-00) 781 RON
54 1 1 NUT (942911-00) 190 RON
55 1 1 BEARING 60052RZTN9/C3VT162 (868132-03) 11519 RON
56 1 1 COVER (942900-03) 4137 RON
57 1 3 SCREW (249424-02) 558 RON
58 1 1 RING NUT (942901-00) 4137 RON
60 1 1 NUT (942893-01) 3018 RON
61 1 2 SPRING 290X13 5X1 5 (868115-00) 1117 RON
62 1 2 RIVET (868566-01) 558 RON
63 1 1 LENS (868124-01) 190 RON
66 1 1 SCREW M4X20 (860094-10) 558 RON
67 1 1 SCREW M5X18 UNI-ISO4766 (942931-02) 558 RON
68 1 5 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
69 1 1 SCREW M5X22 UNI-ISO4766 (942931-01) 558 RON
70 1 1 SPRING CONICAL (327012-00) 558 RON
71 1 1 SCREW (942931-00) 558 RON
72 1 1 TURRET (326662-00) 2347 RON
73 1 1 BALL 8 MM (720664-00) 558 RON
74 1 1 SPRING (868082-00) 558 RON
78 1 1 SA BASE ROUTER+EXTR. POL. (329820-49) 57488 RON
80 1 1 PLATE SLIDE (328645-00) 7940 RON
81 1 4 SPRING (868082-00) 558 RON
83 1 1 SPRING (942904-00) 558 RON
84 1 2 ROD GUIDE (326966-00) 3466 RON
85 1 4 SCREW WING M6*17 BLACK (326573-01) 781 RON
87 1 1 FENCE S/A (948581-00) 28296 RON
89 1 1 CAPACITOR 330NF (868120-00) 1788 RON
90 1 4 WASHER (248978-00) 781 RON
92 1 1 SA BUTTON (942930-00) 1452 RON
95 1 2 SCREW M5X10 (249412-20) 558 RON
101 1 1 KEY SE 22 DIN 894 (868111-00) 2795 RON
104 1 3 "WASHER D.4 3""" (932839-00) 558 RON
107 1 1 EXTRACTION MOUTH 625 (329839-00) 9282 RON
109 1 1 DUST CAP LEVER (326599-01) 893 RON
110 1 1 SUCTION TUBE SUPPORT (944817-00) 190 RON
111 1 2 SCREW M5 (869076-00) 558 RON
113 1 1 SCREW (931297-00) 893 RON
116 1 1 SLEEVE GUIDE 30 (249098-00) 6821 RON
117 1 1 COLLET 12 7MM - 1/2 dia (868116-01) 14315 RON
117 1 1 COLLET 12 7MM - 1/2 dia (868116-01) 14315 RON
118 1 1 SPACER RING D31.6 S2.1 (868127-01) 1788 RON
130 1 1 RETAINING RING D.25 (941541-00) 558 RON
200 1 1 CAP DUST EXTRACTION (329538-00) 893 RON
