Top » Piese de schimb » PIESE DEWALT » DW627 Type 1

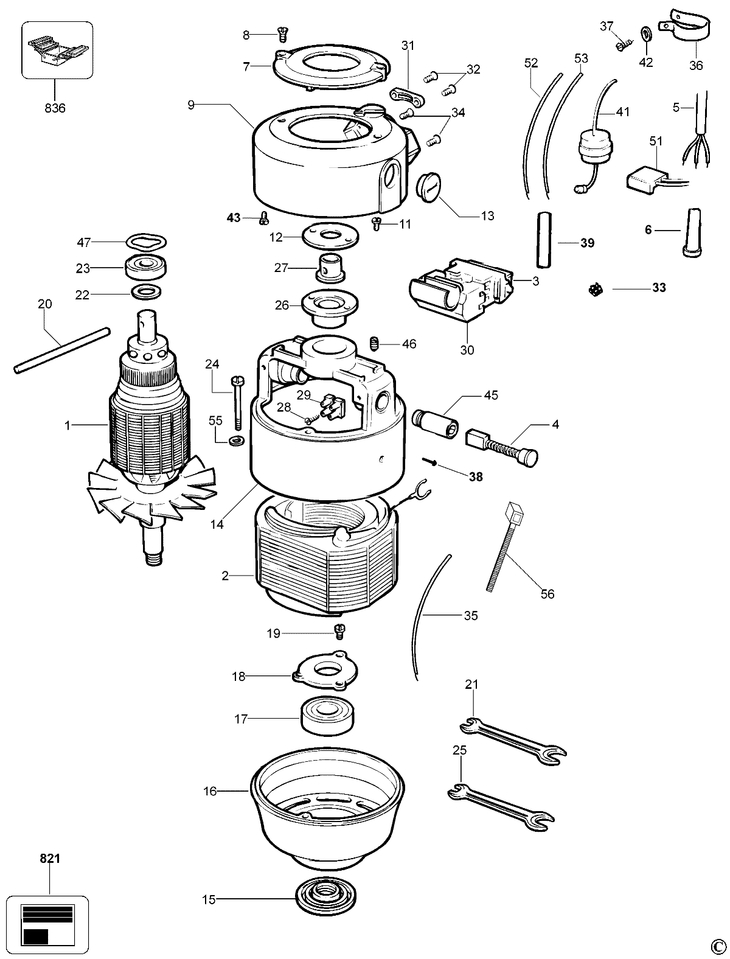

DW627 ROUTER ATTACH Type 1
[DW627 Type 1]
DW627 ROUTER ATTACH Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 S/A ARMATURE V.230 (868626-00) 244723 RON
2 1 1 STATOR MOF 11 220V (868391-00) 202891 RON
3 1 1 SWITCH (868026-00) 3124 RON
4 1 2 BRUSH 220V MOF11 (868012-00) 9282 RON
5 1 1 CORD (325612-09) 15993 RON
6 1 1 SLEEVE D.12 (942277-00) 2347 RON
7 1 1 COVER DW627 (249136-01) 11519 RON
8 1 2 SCREW (249646-02) 190 RON
9 1 1 COVER SWITCH 011 T (868008-00) 39145 RON
11 1 2 SCREW (249413-02) 558 RON
12 1 1 WASHER (249087-00) 5031 RON
13 1 2 BRUSH COVER THREADED (868009-00) 190 RON
14 1 1 HOUSING O11 (248959-00) 49771 RON
15 1 1 RING (868014-00) 10512 RON
16 1 1 COVER (248958-00) 40599 RON
17 1 1 BEARING BALL ISO 6204-2Z (860155-08) 6821 RON
18 1 1 BEARING PLATE (868007-00) 9282 RON
19 1 3 SCREW (249424-21) 558 RON
20 1 1 STOP PIN (868002-00) 6821 RON
21 1 1 KEY (868003-00) 3018 RON
22 1 1 WASHER (868018-00) 558 RON
23 1 1 BEARING (868768-01) 4472 RON
24 1 1 SCREW M5X75 (868005-00) 893 RON
25 1 1 SPANNER 10/13 DW50-55 (949751-07) 190 RON
26 1 1 COVER (248979-00) 12861 RON
27 1 1 PROTECTION (868013-00) 4137 RON
28 1 1 SCREW (249423-00) 558 RON
29 1 1 CONNECTOR BOX 3 POLES 4 SQMM (860468-00) 190 RON
30 1 1 COVER PLASTIC (868010-00) 6821 RON
31 1 1 CABLE CLAMP (941544-00) 558 RON
32 1 2 SCREW (249646-01) 2347 RON
33 1 1 CONNECTION (868029-00) 781 RON
34 1 2 SCREW (249646-00) 558 RON
35 1 1 WIRE (868015-03) 781 RON
36 1 1 CLIP (868028-00) 558 RON
37 1 1 SCREW (249424-02) 558 RON
38 1 2 SPRING PIN D.4X10 (868016-00) 558 RON
39 1 2 COVERING (868020-00) 558 RON
41 1 1 CAPACITOR (868027-00) 20467 RON
42 1 1 WASHER (249233-00) 558 RON
43 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
45 1 2 BRUSH TRY 011T 1 (868011-00) 7940 RON
46 1 2 SCREW (248984-00) 558 RON
47 1 1 WASHER (248978-00) 781 RON
51 1 1 VOLTAGE REGULATOR (329537-00) 3124 RON
52 1 1 STRAND (868015-01) 781 RON
53 1 1 STRAND (868015-02) 781 RON
55 1 2 TOOTHED WASHER D.5 (761035-00) 558 RON
56 1 2 CABLE CLAMP (941486-00) 558 RON
836 1 1 559595-99 - Indisponibil
