Top » Piese de schimb » PIESE DEWALT » DW626 Type 1

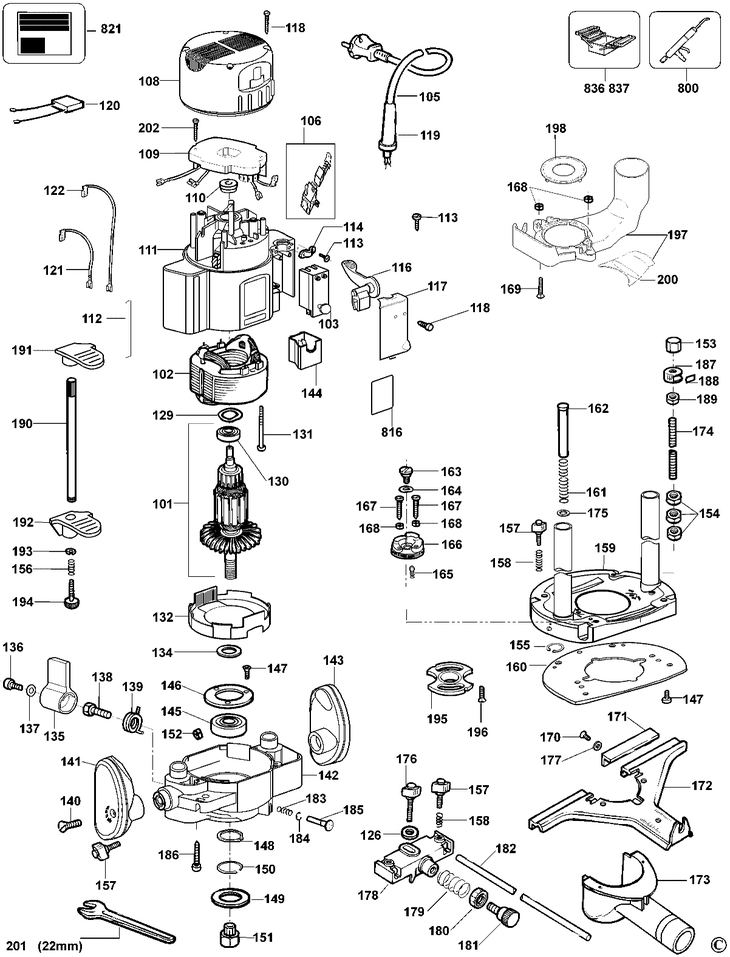

DW626 ROUTER ATTACH Type 1
[DW626 Type 1]
DW626 ROUTER ATTACH Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE & BEARING 230V SERVICE (585646-00) 91714 RON
101 1 1 SA ARMATURE & BEARING 115V SERVICE (585646-01) 129966 RON
102 1 1 FIELD SERVICE (585647-00) 4825 RON
102 1 1 FIELD SERVICE (585647-01) 57488 RON
103 1 1 SWITCH 115V (326087-03) 23598 RON
105 1 1 CORD POWER SUPPLY (330060-75) 1891 RON
105 1 1 CORD POWER SUPPLY 115V (562226-16) 25164 RON
106 1 1 BRUSH PAIR 230V SA (585443-00) 14315 RON
106 1 1 BRUSH PAIR 120V SA (585443-01) 14315 RON
108 1 1 CAP END (326991-01) 5031 RON
109 1 1 SA MODULE DW626 230V PACKED ( SERVICE ) (585654-00) 43731 RON
109 1 1 SA MODULE 115V PACKED ( SERVICE ) (585654-01) 51337 RON
110 1 1 MAGNET RING (326251-00) 3466 RON
111 1 1 SA FIELD CASE/TERMINALS DW626 (395782-00) 20467 RON
112 1 1 LABEL SCALE (327178-00) 893 RON
113 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
114 1 1 CLAMP CORD (821070) 558 RON
116 1 1 TRIGGER SWITCH BLACK (327177-00) 1452 RON
117 1 1 CAP SIDE ASIA (326993-00) 2124 RON
118 1 6 SCREW (330065-08) 558 RON
119 1 1 SLEEVE (320785-00) 105 RON
120 1 1 X - CAPACITOR (320842-17) 1452 RON
121 1 2 LEAD 50 WSH FSH PVC BLACK (328998-00) 105 RON
122 1 2 LEAD 270 WSH FSH PVC BLACK (328998-03) 1117 RON
126 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
129 1 1 WASHER SPRING (326845-01) 105 RON
130 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
131 1 2 SCREW PLASTIC THREAD FORM M5 * 75 T25 (330065-20) 1117 RON
132 1 1 BAFFLE AIR (326978-00) 5591 RON
134 1 1 SPRING CONICAL 20 * 26 * 1 (328956-00) 1452 RON
135 1 1 LEVER LOCK (327184-00) 3466 RON
136 1 1 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
137 1 1 WASHER LOCK (583639-00) 558 RON
138 1 1 SCREW SPECIAL (327183-00) 2347 RON
139 1 1 SPRING LEG (328506-00) 781 RON
140 1 2 SCREW TAPTITE M6 * 45 (330045-29) 2347 RON
141 1 1 SA GRIP LH HANDLE (328709-00) 3018 RON
142 1 1 S.A.CARRIER (328706-00) 49771 RON
143 1 1 SA GRIP RH HANDLE (328710-00) 2795 RON
144 1 1 COVER SWITCH (327225-00) 781 RON
145 1 1 BEARING BALL DIA. 42 (570936-01) 5591 RON
146 1 1 RETAINER BEARING (326285-00) 893 RON
147 1 9 SCREW 4 * 10 (945121-00) 558 RON
148 1 1 RETAINING RING D.20 (949727-06) 558 RON
149 1 1 DUST DISK (584591-00) 4137 RON
150 1 1 SNAP RING (584661-00) 781 RON
151 1 1 SA MANDREL CHUCK 1/4 (PHANT) (326286-04) 22144 RON
151 1 1 SA MANDREL CHUCK 8MM (PHANT) (326286-05) 1891 RON
151 1 1 SA MANDREL CHUCK 12MM (PHANT) (326286-07) 1891 RON
151 1 1 SA MANDREL CHUCK 1/2 (PHANT) (326286-03) 22144 RON
151 1 1 SA MANDREL CHUCK 1/2 (PHANT) (326286-03) 22144 RON
151 1 1 SA MANDREL CHUCK 1/4 (PHANT) (326286-04) 22144 RON
152 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
153 1 1 NUT -M 12 HRECES DIN 91 (868150-00) 1452 RON
154 1 3 NUT HEX M12 DIN 936 (326486-01) 558 RON
155 1 2 RING RETAINING (949729-01) 558 RON
156 1 1 SPRING PRESSURE (323395-25) 558 RON
157 1 6 SCREW WING M6*17 BLACK (326573-01) 781 RON
158 1 5 SPRING (868082-00) 558 RON
159 1 1 S.A.BASE (328517-00) 39145 RON
160 1 1 PLATE SLIDE (326984-00) 5591 RON
161 1 2 SPRING PRESSURE (323395-24) 1452 RON
162 1 2 GUIDE SPRING (326987-00) 1452 RON
163 1 1 SCREW SHOULDER M5 * 4 DIN923 (328505-00) 2124 RON
164 1 1 WASHER SPRING 624 (326845-02) 2124 RON
165 1 1 DETENT (326467-00) 558 RON
166 1 1 SA TURRET (583837-00) 5591 RON
167 1 2 SCREW FIL.HD M.5X20 UNI6107 Z (860089-17) 558 RON
168 1 6 NUT (930244-00) 558 RON
169 1 2 SCREW M5 (869076-00) 558 RON
170 1 4 SCREW (98093-76) 558 RON
171 1 2 SLIDE (328788-00) 2347 RON
172 1 1 GUIDE FENCE (328784-00) 4472 RON
173 1 1 CAP DUST (328786-00) 2795 RON
174 1 1 ROD THREADED (326982-00) 2347 RON
175 1 2 WASHER (607502-00) 105 RON
176 1 1 SCREW WING M6*33 BLACK (326573-02) 781 RON
177 1 4 WASHER PLAIN (330016-01) 558 RON
178 1 1 BRIDGE (328785-00) 10512 RON
179 1 1 SPRING CPRSN 16.5/1 (323395-21) 105 RON
180 1 1 INDEX ADJ (942918-00) 893 RON
181 1 1 SCREW ADJUST W SCALE (326239-00) 3466 RON
182 1 2 ROD GUIDE (326966-00) 3466 RON
183 1 1 SPRING PRESSURE (323395-25) 558 RON
184 1 1 RING RETAINER (329945-00) 558 RON
185 1 1 SPINDLE RETAINER (329944-00) 5591 RON
186 1 4 SCREW PLASTIC 5 * 20 (323924-20) 558 RON
187 1 1 ADJUSTER (942910-00) 190 RON
188 1 2 SPRING LEAF (942912-00) 781 RON
189 1 1 NUT (942911-00) 190 RON
190 1 1 ROD ADJUSTING (326983-01) 3018 RON
191 1 1 ZERO ADJUSTMENT (326995-00) 105 RON
192 1 1 CAP PLASTIC (328396-00) 781 RON
193 1 1 RING SNAP 10*0.8 (323762-05) 558 RON
194 1 1 SCREW ADJUSTMENT 6 * 133 (328493-00) 190 RON
195 1 1 GUIDE BUSH DIA 30 (326276-05) 4472 RON
196 1 2 SCREW TAPTITE M4 * 6 (911141-00) 558 RON
197 1 1 EXTRACTION MOUTH 625 (329839-00) 9282 RON
198 1 1 DUST CAP LEVER (326599-01) 893 RON
200 1 1 CAP DUST EXTRACTION (329538-00) 893 RON
201 1 1 KEY SE 22 DIN 894 (868111-00) 2795 RON
202 1 2 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
800 1 1 GREASE 100 GM TUBE (575762-02) 5031 RON
816 1 1 BRAND LABEL DEWALT (393097-00) 893 RON
821 1 1 NAMEPLATE DW626-GB T.1 (N050143) 1452 RON
821 1 1 NAMEPLATE DW626-LX T.1 (N050149) 2347 RON
836 1 1 559639-99 - Indisponibil
837 1 1 559640-99 - Indisponibil
