Top » Piese de schimb » PIESE DEWALT » DW621 Type 2

DW621 ROUTER ATTACH Type 2
[DW621 Type 2]
DW621 ROUTER ATTACH Type 2
Click pentru a mari

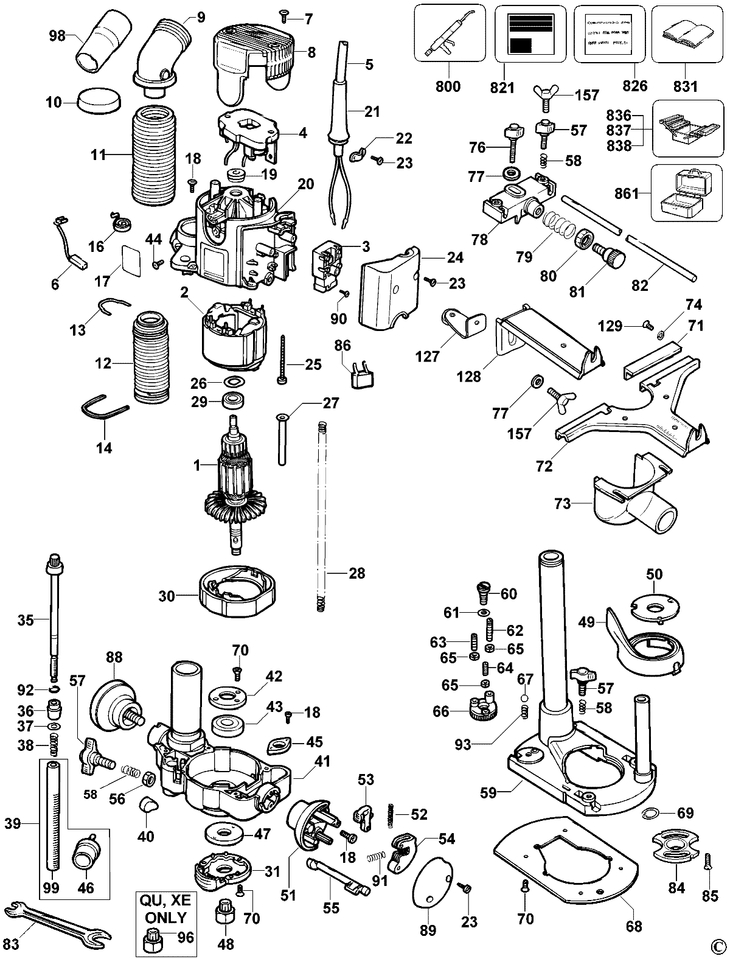

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA G73 MOTOR KIT (SERVICE) (N030339) 80865 RON
1 1 1 SA G73 MOTOR KIT (SERVICE) (N030341) 86681 RON
2 1 1 SA FIELD ( SERVICE ) (327429-10) 20467 RON
2 1 1 SA FIELD 115V ( SERVICE ) (327429-12) 20467 RON
3 1 1 SWITCH (323132-00) 7940 RON
4 1 1 ELECTR. 220 / 240V BLAC (326297-00) 3592 RON
4 1 1 ELECTR. 115/120V BLACK (326297-01) 3592 RON
5 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
5 1 1 CORD POWER SUPPY 115V UK (330061-04) 1891 RON
6 1 2 BRUSH 230V SA (580017-00) 3018 RON
6 1 2 BRUSH 120V SA (580017-01) 3018 RON
7 1 2 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
8 1 1 END CAP ELECTRONIC BLACK (326259-01) 2347 RON
9 1 1 SA ADAPTER DUST EXTRACT (327434-01) 3018 RON
10 1 1 CAP EXTRUCTION (326287-00) 893 RON
11 1 1 EXPA BELLOWS (326268-00) 9282 RON
12 1 1 S.A. SPRING (326283-00) 4137 RON
13 1 1 RING SAFETY (326279-00) 781 RON
14 1 1 RING SAFETY (326607-00) 893 RON
15 1 2 SA CHOKE HOLDER (326933-01) 2124 RON
16 1 2 SPRING SPIRAL (326667-00) 893 RON
16 1 2 SPRING SPIRAL (326667-01) 893 RON
17 1 1 LABEL BRAND 30*30 (578774-00) 781 RON
18 1 9 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
19 1 1 MAGNET RING (326251-00) 3466 RON
20 1 1 SA HOUSING MOTOR (328252-02) 17335 RON
20 1 1 SA HOUSING MOTOR (328252-01) 1891 RON
21 1 1 SLEEVE (320785-00) 105 RON
22 1 1 CLAMP CORD (821070) 558 RON
23 1 6 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
24 1 1 CAP SIDE DEWALT YELLOW (326258-01) 4137 RON
25 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
26 1 1 WASHER SPRING 14MM (326845-00) 105 RON
27 1 1 SLEEVE SPRING (329016-00) 781 RON
28 1 1 SPRING COMPRSN 10 / 1 . 25 . 25 (323395-13) 781 RON
29 1 1 BEARING BALL CW (605040-63) 1788 RON
30 1 1 GUIDE AIR (326604-00) 893 RON
31 1 1 SA SPINDLE LOCK BLACK (326616-04) 7940 RON
31 1 1 SA SPINDLE LOCK BLACK (326616-04) 7940 RON
35 1 1 SA ROD THREADED (326600-00) 4472 RON
36 1 1 WHEEL SCALE (326265-00) 1117 RON
37 1 1 O-RING WASHER 6 .1 STEEL (321118) Indisponibil Indisponibil
38 1 1 SPRING 9-33.49 - 33 . 4 (323395-14) 558 RON
40 1 1 CLAMPING PIECE (326602-00) 2347 RON
41 1 1 SA CARRIER SERVICE (328254-00) 51337 RON
41 1 1 SA CARRIER SERVICE (328254-00) 51337 RON
42 1 1 RETAINER BEARING (326285-00) 893 RON
43 1 1 BEARING BALL DIA. 40 (570936-00) 5591 RON
43 1 1 BEARING BALL DIA. 40 (570936-00) 5591 RON
44 1 2 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
45 1 1 SLEEVE GUIDE (326606-00) 781 RON
46 1 1 SA HEIGHT ADJUSTMENT (326294-02) 4137 RON
46 1 1 SA HEIGHT ADJUSTMENT (326294-02) 4137 RON
47 1 1 NUT. SPECIAL M17*1 (326673-00) 3466 RON
47 1 1 NUT. SPECIAL M17*1 (326673-00) 3466 RON
48 1 1 Collet & Nut SA (326286-01) 15993 RON
48 1 1 Collet & Nut SA (326286-01) 15993 RON
49 1 1 DUST CAP (326273-00) 1788 RON
50 1 1 DUST CAP. LEVER (326599-00) 893 RON
50 1 1 DUST CAP. LEVER (326599-00) 893 RON
51 1 1 HANDLE RIGHT (326598-01) 1117 RON
52 1 1 SPRING COMPRESSION (323395-10) 558 RON
53 1 1 RETAINER KNOB (326601-00) 105 RON
54 1 1 TRIGGER SWITCH BLACK (326252-01) 1117 RON
55 1 1 LEVER (326256-00) 781 RON
56 1 1 HEX NUT M6-UNI5590 (949726-05) 558 RON
57 1 6 SCREW WING M6*17 BLACK (326573-01) 781 RON
57 1 6 SCREW WING M6*17 BLACK (326573-01) 781 RON
58 1 6 SPRING (868082-00) 558 RON
59 1 1 SA BASE SERVICE (328253-00) 39145 RON
60 1 1 SCREW SPECIAL M5 (326610-00) 1229 RON
61 1 1 SPRING CONICAL (327012-00) 558 RON
62 1 1 SCREW M5X40 UNI-ISO4766 (868109-00) 558 RON
63 1 1 SCREW M5X22 UNI-ISO4766 (942931-01) 558 RON
64 1 1 SCREW M5X18 UNI-ISO4766 (942931-02) 558 RON
65 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
66 1 1 TURRET (326662-00) 2347 RON
67 1 1 BALL 8 MM (720664-00) 558 RON
68 1 1 PLATE SLIDE (326270-00) 10512 RON
69 1 1 RING SAFETY (324821-00) 558 RON
70 1 10 SCREW 4 * 10 (945121-00) 558 RON
71 1 1 STOP GUIDE CHEER (249090-00) 1452 RON
71 1 1 SLIDE (328788-00) 2347 RON
71 1 1 SLIDE (328788-00) 2347 RON
71 1 1 STOP GUIDE CHEER (249090-00) 1452 RON
72 1 1 GUIDE FENCE (328784-00) 4472 RON
72 1 1 000000-00 - Indisponibil
72 1 1 000000-00 - Indisponibil
72 1 1 GUIDE FENCE (328784-00) 4472 RON
73 1 1 DUST CAP (326274-00) 2795 RON
73 1 1 CAP DUST (328786-00) 2795 RON
73 1 1 CAP DUST (328786-00) 2795 RON
73 1 1 DUST CAP (326274-00) 2795 RON
74 1 4 WASHER PLAIN (330016-01) 558 RON
74 1 4 WASHER PLAIN (330016-01) 558 RON
75 1 2 SCREW (949886-30) 781 RON
75 1 2 SCREW (949886-30) 781 RON
76 1 1 SCREW WING M6*33 BLACK (326573-02) 781 RON
76 1 1 SCREW WING M6*33 BLACK (326573-02) 781 RON
77 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
77 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
78 1 1 GUIDE BRACKET (326237-00) 6821 RON
78 1 1 BRIDGE (328785-00) 10512 RON
78 1 1 GUIDE BRACKET (326237-00) 6821 RON
79 1 1 SPRING CPRSN 16.5/1 (323395-21) 105 RON
79 1 1 SPRING CPRSN 16.5/1 (323395-21) 105 RON
80 1 1 INDEX ADJ (942918-00) 893 RON
80 1 1 INDEX ADJ (942918-00) 893 RON
81 1 1 SCREW ADJUST W SCALE (326239-00) 3466 RON
81 1 1 SCREW ADJUST W SCALE (326239-00) 3466 RON
82 1 2 GUIDE ROD BLACK (579510-00) 2795 RON
82 1 2 GUIDE ROD BLACK (579510-00) 2795 RON
83 1 1 SPANNER (31351301) 3018 RON
83 1 1 SPANNER (31351301) 3018 RON
84 1 1 GUIDE BUSH DIA 24 (326276-03) 4472 RON
84 1 1 GUIDE BUSH DIA 24 (326276-03) 4472 RON
85 1 2 SCREW TAPTITE M4 * 6 (911141-00) 558 RON
86 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
88 1 1 SA HANDLE LEFT (326300-00) 4472 RON
89 1 1 HANDLE COVER GUM RIG (326313-01) 6821 RON
90 1 4 SCREW (911026) 558 RON
91 1 1 SPRING (323395-22) 558 RON
92 1 1 "O RING 5*1.2""" (323711-26) 558 RON
93 1 1 SPRING (868082-00) 558 RON
98 1 1 ADAPTOR (328592-00) 893 RON
99 1 1 SA TUBE GEAR (326309-01) 14315 RON
99 1 1 SA TUBE GEAR (326309-01) 14315 RON
129 1 4 SCREW 4 * 10 (945121-00) 558 RON
129 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
129 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
129 1 4 SCREW 4 * 10 (945121-00) 558 RON
130 1 2 WASHER (937883) 558 RON
130 1 2 WASHER (937883) 558 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
836 1 1 559582-99 - Indisponibil
837 1 1 559585-98 - Indisponibil
837 1 1 559585-98 - Indisponibil
838 1 1 559585-99 - Indisponibil
838 1 1 559585-99 - Indisponibil
