Top » Piese de schimb » PIESE DEWALT » DW62 Type 3

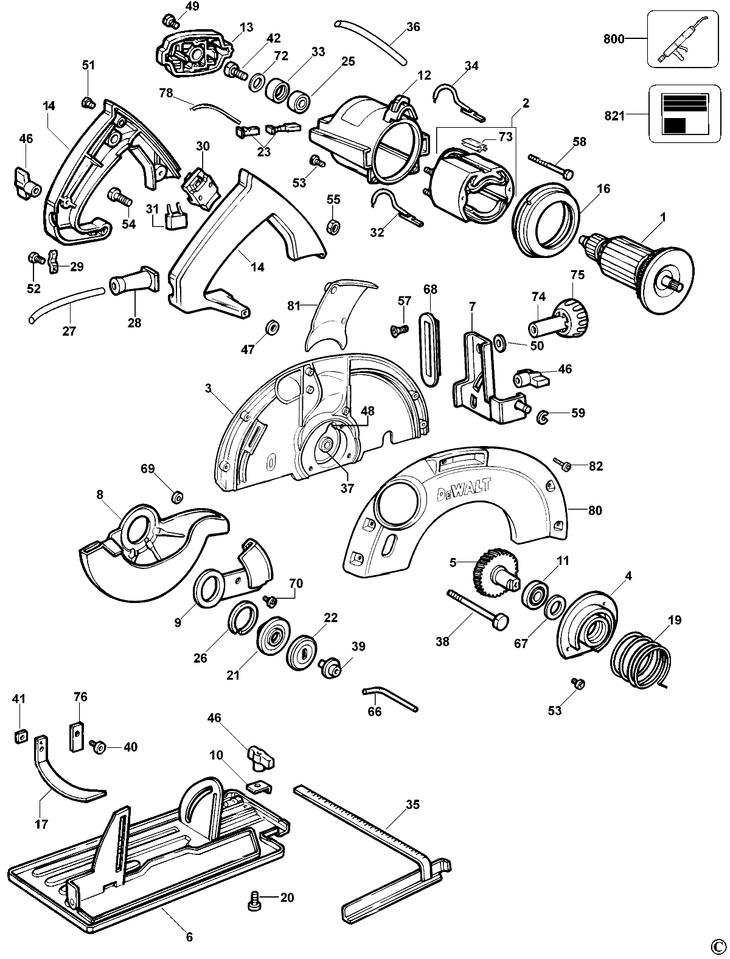

DW62 CIRCULAR SAW Type 3
[DW62 Type 3]
DW62 CIRCULAR SAW Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE ( SERVICE ) (369454-13) 32770 RON
1 1 1 SA ARMATURE ( SERVICE ) (369454-14) 3124 RON
2 1 1 S.A.FIELD M65 ( SERVICE ) (373007-13) 15993 RON
2 1 1 S.A.FIELD M65 ( SERVICE ) (373007-14) 17335 RON
3 1 1 000000-00 - Indisponibil
4 1 1 @ SAFETY PLUNGER (B) SA GEARCASE COVER (876522) Indisponibil Indisponibil
5 1 1 SA GEAR PACKED (SERVICE) (876542-01) 15993 RON
6 1 1 BASE GUIDE (327423-01) 12861 RON
7 1 1 HEIGHT ADJUSTER M5 (327424-02) 2795 RON
8 1 1 LOWER GUARD (327422-01) 5591 RON
9 1 1 BRACKET (324596-02) 3466 RON
10 1 1 CLAMP (328233-01) 781 RON
11 1 1 BEARING BALL 122807 (915358) 4472 RON
12 1 1 HOUSING (327414-00) 3466 RON
13 1 1 END CAP (327407-00) 1117 RON
14 1 1 HANDLE SET (578406-00) 2795 RON
16 1 1 FAN BAFFLE (916128) 781 RON
17 1 1 RIVING KNIFE (324499-00) 190 RON
19 1 1 SPRING TORSION (912748-00) 781 RON
20 1 1 SCREW (328296-00) 558 RON
21 1 1 INNER BLADE WASHER (325174-00) 2347 RON
22 1 1 FLANGE OUTSIDE (911795) 1452 RON
23 1 2 SA BRUSHBOX (324826-00) 3466 RON
23 1 2 SA BRUSH BOX (324826-01) 3466 RON
25 1 1 BEARING BALL (330003-31) 2347 RON
26 1 1 CIRCLIP (913784) 781 RON
27 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
27 1 1 330061-07 - Indisponibil
28 1 1 CORD PROTECTOR (916969) 558 RON
29 1 1 CORD CLAMP (910556) 558 RON
30 1 1 SWITCH (911724-00) 3466 RON
30 1 1 SWITCH (581436-00) 3018 RON
31 1 1 GEAR CASE CAPACITOR X 0 1 F (321384) Indisponibil Indisponibil
32 1 1 LEAD WIRE (580234-00) 781 RON
33 1 1 BEARING COVER (870052) 558 RON
34 1 1 LEADWIRE (580235-00) 781 RON
35 1 1 RIP FENCE GUIDE (321561) 3466 RON
36 1 1 SLEEVE ACRYLIC COATED (589339-00) 558 RON
37 1 1 BEARING NEEDLE 6 * 10 * 9 (910560) 1229 RON
38 1 1 SCREW (911335) 781 RON
39 1 1 SCREW (328295-00) 781 RON
40 1 1 SCREW (911281) 558 RON
41 1 1 NUT (742289) 558 RON
42 1 1 SCREW. AM4 X 12 DIN798 (322491) 558 RON
46 1 3 WING NUT M5 (478905-00) 105 RON
48 1 1 BEARING NEEDLE (330004-31) 2124 RON
49 1 2 SCREW NO.8 X 13 (894748) 558 RON
50 1 2 WASHER (744937-00) 558 RON
51 1 3 SCREW (911060) 558 RON
52 1 2 SCREW 4.2 * 9.5 DIN798 (911059) 558 RON
53 1 5 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
54 1 1 SCREW HANDLE (911233) 558 RON
55 1 1 NUT HEX M5 DIN 934 (322319) 558 RON
57 1 1 SCREW FRONT HEIGHT ADJUSTMENT (911365) 558 RON
58 1 2 SCREW (916231) 558 RON
59 1 1 E CLIP (571181-00) 558 RON
66 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) Indisponibil Indisponibil
67 1 1 WASHER (910623) 558 RON
68 1 1 SLIDER HEIGHT ADJUSTMENT (917101) 558 RON
69 1 1 RUBBER STOP (911644) 781 RON
70 1 1 SCREW TAPTITE M4 * 6 (911141-00) 558 RON
72 1 1 000000-00 - Indisponibil
73 1 1 INSULATION (916193-01) 781 RON
74 1 1 FRONT HANDLE SPACER (328232-15) 3466 RON
75 1 1 HANDLE (379019) 190 RON
76 1 1 PLATE (324483-00) 893 RON
78 1 2 LEAD 70 FSH / FST PVC (323768-09) 781 RON
78 1 2 SA LEAD WIRE 70 FSH / FST PCP (323779-00) 893 RON
80 1 1 COVER CASTING (379588-00) 15993 RON
81 1 1 INSERT (327408-00) 893 RON
82 1 6 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
