Top » Piese de schimb » PIESE DEWALT » DW6141 Type 1

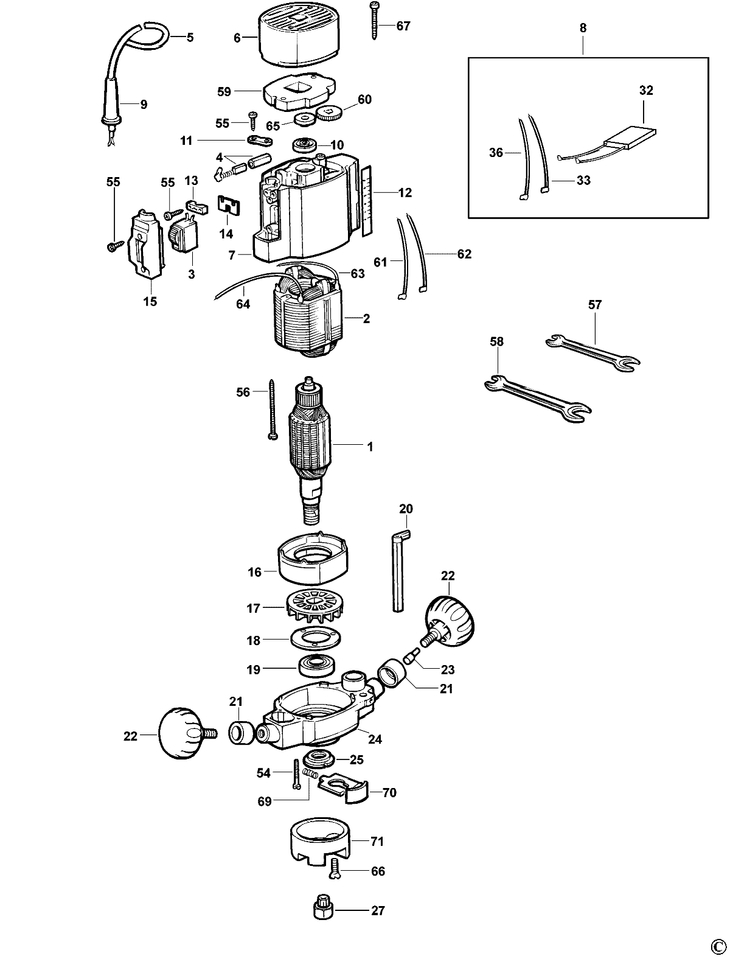

DW6141 ROUTER ATTACH Type 1
[DW6141 Type 1]
DW6141 ROUTER ATTACH Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 1 S/A STATOR 230V DW 615 (868628-01) 28296 RON
3 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
6 1 1 ENDKAPPE (247699-00) 3018 RON
7 1 1 MOTOR HOUSING (943047-01) 1891 RON
8 1 1 SUPPRESSOR (581285-00) 12861 RON
9 1 1 CORD PROTECTOR (868520-00) 781 RON
10 1 1 BEARING (868768-14) 3018 RON
11 1 2 PLATE (868069-00) 558 RON
12 1 1 GRADUATE SCALE (249278-01) 781 RON
13 1 1 CABLE COVER (576118-00) 558 RON
14 1 1 GUIDE (868521-00) 558 RON
15 1 1 COVER (247700-01) 1788 RON
16 1 1 BAFFLE FAN (868522-00) 190 RON
17 1 1 DW615 FAN (943054-00) 2795 RON
18 1 1 PLATE BEARING (868047-00) 2347 RON
19 1 1 BEARING (868768-16) 3466 RON
20 1 1 DEPTH GAUGE DW615 (868523-01) 3466 RON
21 1 1 BUSH (249108-00) 781 RON
22 1 2 S/A HANDLE DW615 (869284-05) 3466 RON
22 1 2 S/A HANDLE DW615 (869284-05) 3466 RON
23 1 1 PIN (868524-00) 781 RON
24 1 1 HOUSING LOWER (248954-00) 43731 RON
25 1 1 RING (868052-00) 2347 RON
27 1 1 Collet & Nut SA (326286-00) 15993 RON
32 1 1 CAPACITOR (949877-02) 1229 RON
33 1 1 YELLOW WIRE (868530-04) 558 RON
36 1 1 YELLOW WIRE (868530-05) 781 RON
54 1 4 SCREW MOF96E/DW615 (249416-10) 558 RON
55 1 8 SCREW (949896-12) 558 RON
56 1 2 SCREW (930752-00) 781 RON
57 1 1 KEY 8MM (868148-00) 2124 RON
58 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
59 1 1 SPEED CONTROL V.230 (868529-02) 42277 RON
60 1 1 ROLLER DW625 (249067-01) 190 RON
61 1 1 LEAD BROWN (868530-00) 781 RON
62 1 1 LEAD RED (868530-01) 781 RON
63 1 1 BROWN WIRE (868530-06) 781 RON
64 1 1 LEAD BLUE (868530-03) 781 RON
65 1 1 POLE PIECE (868141-00) 3466 RON
66 1 4 SCREW (249413-03) 558 RON
67 1 2 SCREW (949896-11) 558 RON
69 1 1 N406641 - Indisponibil
70 1 1 S/A STOP DW615 (943114-00) 4137 RON
71 1 1 COVER (943057-00) 3466 RON
