DW614 ROUTER ATTACH Type 4
[DW614 Type 4]

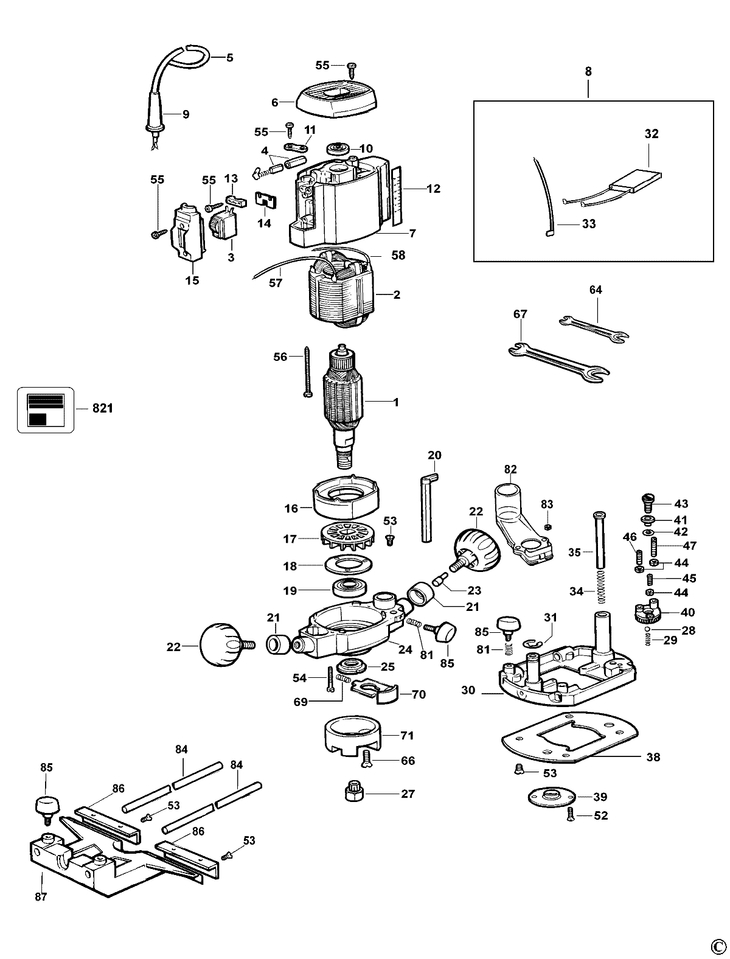

DW614 ROUTER ATTACH Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 S/A ARMATURE V.230 (868627-01) 80865 RON
1 1 1 S/A ARMATURE V.120 (868627-03) 62298 RON
2 1 1 S/A STATOR V.230 (868628-00) 3124 RON
2 1 1 S/A STATOR V.230 (868628-02) 26730 RON
3 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
4 1 2 BRUSH 230V SA (247533-11) 4137 RON
4 1 2 S/A BRUSH + BRUSHHOLDER (248447-11) 4472 RON
5 1 1 CORDSET GB 4200PCP (324438-73) 17335 RON
5 1 1 CORDSET LX (248488-12) 20467 RON
6 1 1 BRUSH COVER (720645-02) 2795 RON
7 1 1 MOTOR HOUSING (943047-01) 1891 RON
8 1 1 SUPPRESSOR (581285-01) 12861 RON
9 1 1 CORD PROTECTOR (868520-00) 781 RON
10 1 1 BEARING (868768-14) 3018 RON
11 1 2 PLATE (868069-00) 558 RON
12 1 1 GRADUATE SCALE (249278-01) 781 RON
13 1 1 CABLE COVER (576118-00) 558 RON
14 1 1 GUIDE (868521-00) 558 RON
15 1 1 COVER (247700-01) 1788 RON
16 1 1 BAFFLE FAN (868522-00) 190 RON
17 1 1 DW615 FAN (943054-00) 2795 RON
18 1 1 PLATE BEARING (868047-00) 2347 RON
19 1 1 BEARING (868768-16) 3466 RON
20 1 1 DEPTH GAUGE DW615 (868523-01) 3466 RON
21 1 2 BUSH (249108-00) 781 RON
22 1 2 S/A HANDLE DW615 (869284-05) 3466 RON
22 1 2 S/A HANDLE DW615 (869284-05) 3466 RON
23 1 1 PIN (868524-00) 781 RON
24 1 1 HOUSING LOWER (248954-00) 43731 RON
25 1 1 RING (868052-00) 2347 RON
27 1 1 Collet & Nut SA (326286-01) 15993 RON
27 1 1 Collet & Nut SA (326286-01) 15993 RON
28 1 1 BALL 8 MM (720664-00) 558 RON
29 1 1 SPRING (868082-00) 558 RON
30 1 1 S/A BASE DW615 (N093909) 39145 RON
31 1 1 RING AND D9 SHAFT (943032-00) 558 RON
32 1 1 CAPACITOR (949877-02) 1229 RON
33 1 1 YELLOW WIRE (868530-04) 558 RON
34 1 1 SPRING (248953-00) 781 RON
35 1 1 RIVET (868566-00) 558 RON
38 1 1 BASE PLATE DW615 (943042-00) 4472 RON
39 1 1 BUSHING GUIDE 17X (249014-01) 5031 RON
40 1 1 REGOLATION TURRET (720674-01) 3466 RON
41 1 1 WASHER (868092-00) 558 RON
42 1 1 WASHER SPRING CURV.A8 UNI8840 (860658-01) 558 RON
43 1 1 SCREW M6X9 (249432-00) 1229 RON
44 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
45 1 1 SCREW M5X18 UNI-ISO4766 (942931-02) 558 RON
46 1 1 SCREW M5X22 UNI-ISO4766 (942931-01) 558 RON
47 1 1 SCREW M5X40 UNI-ISO4766 (868109-00) 558 RON
52 1 2 SCREW (249412-22) 558 RON
53 1 11 SCREW M4X8 UNI8113 (860205-04) 558 RON
54 1 4 SCREW MOF96E/DW615 (249416-10) 558 RON
55 1 10 SCREW (949896-12) 558 RON
56 1 2 SCREW (930752-00) 781 RON
57 1 1 LEAD BLUE (868530-02) 558 RON
58 1 1 BLU WIRE (868530-07) 558 RON
64 1 1 KEY 8MM (868148-00) 2124 RON
66 1 4 SCREW (249413-03) 558 RON
67 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
69 1 1 N406641 - Indisponibil
70 1 1 S/A STOP DW615 (943114-00) 4137 RON
71 1 1 COVER (943057-00) 3466 RON
82 1 1 SUCTION PIPE (945304-01) 5031 RON
83 1 2 NUT M5 UNI5588 (249232-10) 558 RON
84 1 2 GUIDE (868080-00) 190 RON
85 1 5 SCREW WING M6*17 BLACK (326573-01) 781 RON
86 1 2 STOP GUIDE CHEER (249090-00) 1452 RON
87 1 1 GUIDE DW615 (948651-00) 25164 RON
