Top » Piese de schimb » PIESE DEWALT » DW613-----C Type 1

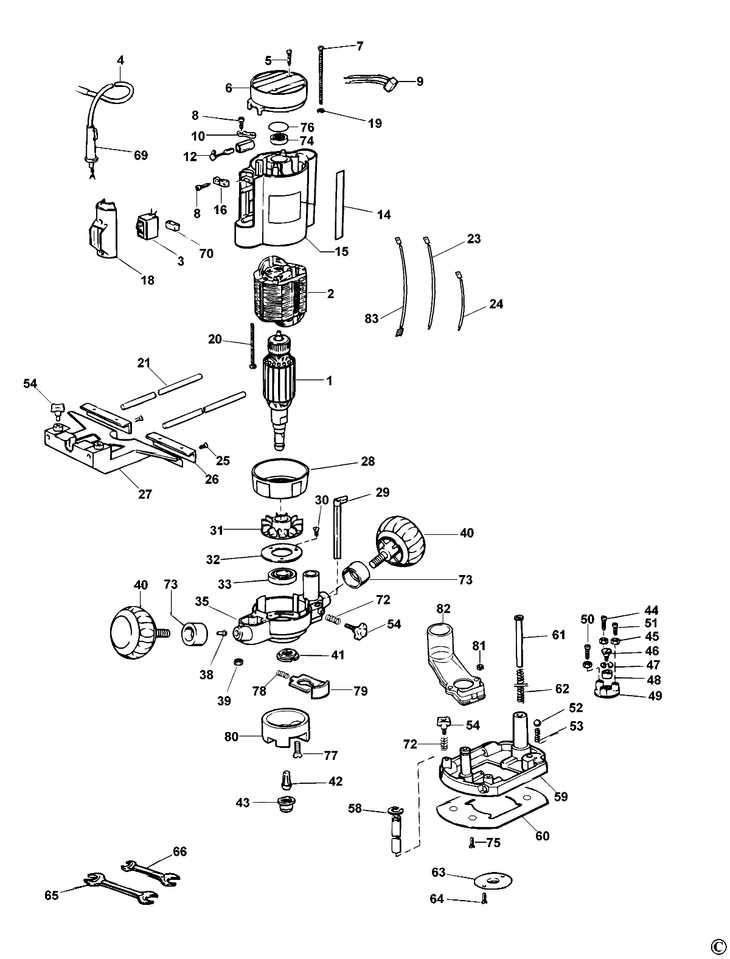

DW613-----C PLUNGE ROUTER Type 1
[DW613-----C Type 1]
DW613-----C PLUNGE ROUTER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 220V DW609 (868389-00) 70239 RON
1 1 1 000000-00 - Indisponibil
2 1 1 S/A STATOR 230V DW 615 (868628-01) 28296 RON
2 1 1 S/A STATOR 115V DW 615 (868628-03) 26730 RON
3 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
4 1 1 000000-00 - Indisponibil
4 1 1 CORDSET GB 4200PCP (324438-73) 17335 RON
4 1 1 CORDSET (378990) 17335 RON
5 1 4 000000-00 - Indisponibil
6 1 1 000000-00 - Indisponibil
7 1 4 000000-00 - Indisponibil
9 1 1 CAPACITOR (320842-03) 1229 RON
10 1 2 PLATE (868069-00) 558 RON
12 1 2 S/A BRUSH + BRUSHHOLDER (248447-11) 4472 RON
12 1 2 BRUSH 230V SA (247533-11) 4137 RON
14 1 1 000000-00 - Indisponibil
15 1 1 HOUSING (248966-03) 20467 RON
16 1 1 CABLE COVER (576118-00) 558 RON
18 1 1 000000-00 - Indisponibil
19 1 6 WASHER DW636 (093820600) 558 RON
20 1 2 000000-00 - Indisponibil
22 1 2 GUIDE (868080-00) 190 RON
23 1 1 BLU WIRE (868530-07) 558 RON
23 1 1 000000-00 - Indisponibil
24 1 1 000000-00 - Indisponibil
24 1 1 000000-00 - Indisponibil
25 1 1 SCREW M4X8 UNI8113 (860205-04) 558 RON
26 1 1 STOP GUIDE CHEER (249090-00) 1452 RON
27 1 1 GUIDE DW615 (948651-00) 25164 RON
28 1 1 000000-00 - Indisponibil
29 1 1 DEPTH GAUGE DW615 (868523-01) 3466 RON
30 1 3 000000-00 - Indisponibil
31 1 1 DW615 FAN (943054-00) 2795 RON
32 1 1 PLATE BEARING (868047-00) 2347 RON
33 1 1 BEARING (868768-16) 3466 RON
35 1 1 000000-00 - Indisponibil
38 1 1 000000-00 - Indisponibil
39 1 4 NUT M4 (249232-00) 558 RON
40 1 2 S/A HANDLE DW615 (869284-05) 3466 RON
41 1 1 RING (868052-00) 2347 RON
43 1 1 Collet & Nut SA (326286-00) 15993 RON
43 1 1 Collet & Nut SA (326286-01) 15993 RON
44 1 1 SCREW M5X22 UNI-ISO4766 (942931-01) 558 RON
45 1 3 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
46 1 1 SCREW M6X9 (249432-00) 1229 RON
47 1 1 WASHER SPRING CURV.A8 UNI8840 (860658-01) 558 RON
48 1 1 WASHER (868092-00) 558 RON
49 1 1 REGOLATION TURRET (720674-01) 3466 RON
50 1 1 SCREW M5X40 UNI-ISO4766 (868109-00) 558 RON
51 1 1 SCREW M5X18 UNI-ISO4766 (942931-02) 558 RON
52 1 1 BALL 8 MM (720664-00) 558 RON
53 1 1 SPRING (868082-00) 558 RON
54 1 5 NUT (025922908) 1229 RON
58 1 1 RING AND D9 SHAFT (943032-00) 558 RON
59 1 1 S/A BASE 096103400 (868613-00) 4825 RON
60 1 1 BASE PLATE DW615 (943042-00) 4472 RON
61 1 1 RIVET (868566-00) 558 RON
62 1 1 SPRING (248953-00) 781 RON
63 1 1 BUSHING GUIDE 17X (249014-01) 5031 RON
64 1 2 SCREW M5X10 (249412-20) 558 RON
65 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
66 1 1 SPANNER (868078-00) 3018 RON
66 1 1 SPANNER (868078-00) 3018 RON
69 1 1 CORD PROTECTOR (868520-00) 781 RON
70 1 2 000000-00 - Indisponibil
72 1 3 SPRING (868082-00) 558 RON
73 1 2 BUSH (249108-00) 781 RON
74 1 1 BEARING (N110358) 2347 RON
75 1 4 SCREW (248084-10) 190 RON
76 1 1 SEAL (030971003) 781 RON
77 1 4 000000-00 - Indisponibil
78 1 1 N406641 - Indisponibil
79 1 1 S/A STOP DW615 (943114-00) 4137 RON
80 1 1 COVER (943057-00) 3466 RON
81 1 2 NUT M5 UNI5588 (249232-10) 558 RON
83 1 1 LEAD YELLOW 65 MM USA (157164507) 781 RON
83 1 1 000000-00 - Indisponibil
83 1 2 000000-00 - Indisponibil
84 1 1 SUCTION PIPE (945304-01) 5031 RON
