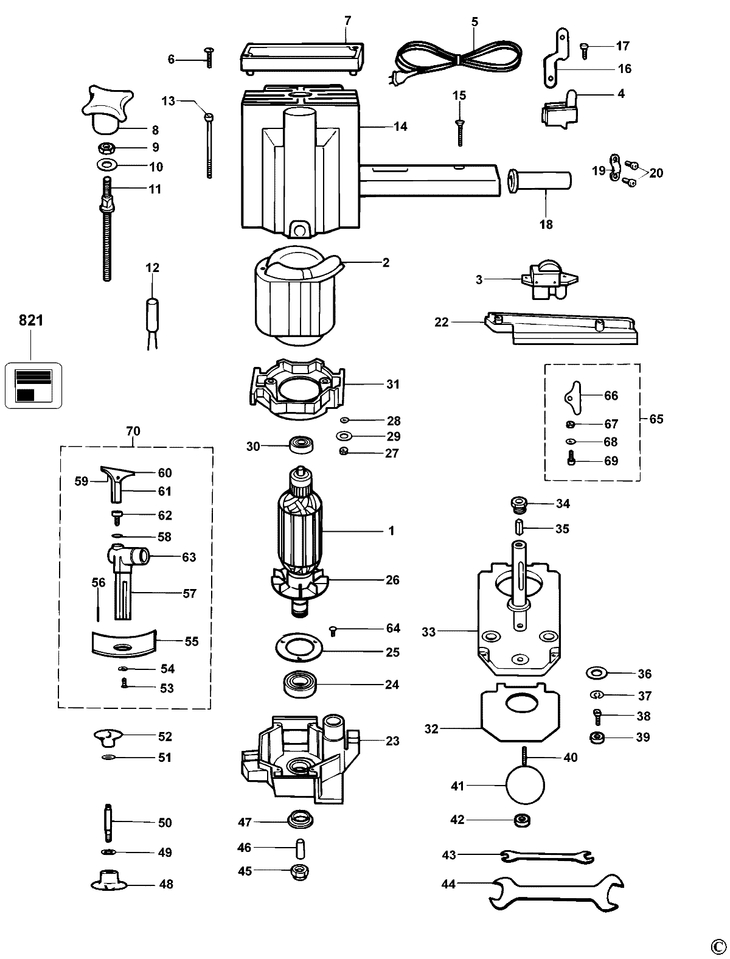

DW609 LAMINATE TRIMMER Type 1
[DW609 Type 1]
DW609 LAMINATE TRIMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 220V DW609 (868389-00) 70239 RON
2 1 1 STATOR V.230 DW609 (868493-00) 5484 RON
3 1 1 SWITCH SK9A62 BLACK (760952-00) 9282 RON
4 1 2 BRUSH TRY (868054-00) 6821 RON
5 1 1 CABLE 240V GB 3 6M (325612-01) 15993 RON
6 1 2 SCREW 3 9X19 (249418-00) 558 RON
7 1 1 BRUSH COVER DW609 (249010-01) 2347 RON
8 1 1 KNOB M8 (868063-01) 2347 RON
9 1 1 NUT M8 (249411-10) 558 RON
10 1 2 WASHER (868065-00) 1788 RON
11 1 1 SHAFT (868055-00) 5591 RON
12 1 1 CAPACITOR (869213-00) 105 RON
13 1 4 SCREW 4X50 (249424-11) 558 RON
14 1 1 MOTOR HOUSING DW609 (249008-01) 26730 RON
15 1 3 SCREW (761304-01) 558 RON
16 1 2 PLATE (868069-00) 558 RON
17 1 2 SCREW (949896-12) 558 RON
18 1 1 CORD PROTECTOR (720703-00) 781 RON
19 1 1 CORD CLAMP (910556) 558 RON
20 1 2 SCREW (931469-02) 558 RON
22 1 1 HANDLE COVER DW609 (249011-01) 2795 RON
23 1 1 HOUSING 067 (868058-00) 43731 RON
24 1 1 BEARING (868768-16) 3466 RON
25 1 1 PLATE BEARING (868047-00) 2347 RON
26 1 1 FAN MOTOR 067T (868060-00) 2795 RON
27 1 2 NUT (868062-00) 781 RON
28 1 2 WASHER (868048-00) 558 RON
29 1 1 WASHER D4 (933652-00) 558 RON
30 1 1 BEARING (N110358) 2347 RON
31 1 1 FAN (868059-00) 2347 RON
32 1 1 PLATE SLIDING 067 T1 (868057-00) 6821 RON
33 1 1 BASE PLATE (868056-00) 74937 RON
34 1 1 BUSHING THREADED M14 (868045-00) 4472 RON
35 1 1 NUT (868046-00) 2795 RON
36 1 1 WASHER (868042-00) 1229 RON
37 1 1 SPRING (868043-00) 190 RON
38 1 2 SCREW 6X16 (249424-31) 558 RON
39 1 2 WASHER (868064-00) 1788 RON
40 1 1 SCREW (760242-00) 781 RON
41 1 1 KNOB D.45 M8 (941609-00) 2347 RON
42 1 1 ROLLER (868031-00) 1229 RON
43 1 1 KEY (868032-00) 2347 RON
44 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
45 1 1 NUT M15 * 1 (326249-00) 2795 RON
46 1 1 COLLET 6.35 (326248-01) 9282 RON
47 1 1 RING (868052-00) 2347 RON
48 1 1 KNOB M6 (868044-01) 190 RON
49 1 1 WASHER (249221-00) 558 RON
50 1 1 STUD (868061-00) 5591 RON
51 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
52 1 1 HANDLE 730-30 M6 (941536-01) 1788 RON
53 1 1 SCREW PAN HD M.4X12 UNI 7687 (860090-02) 558 RON
54 1 1 WASHER (249233-00) 558 RON
55 1 1 PROTECTION PLEXIGLAS (868037-00) 2347 RON
56 1 2 PIN (868038-00) 558 RON
57 1 1 GUIDE SUPPORT (868041-00) 45297 RON
58 1 4 SPRING (868033-00) 558 RON
59 1 1 PIN (868034-00) 1788 RON
60 1 1 SHOE (868036-00) 2124 RON
61 1 1 GUIDE (868035-00) 9282 RON
62 1 1 SCREW M5x12 (868039-00) 4137 RON
63 1 1 SCREW (868040-00) 5031 RON
64 1 3 SCREW M4X8 UNI8113 (860205-04) 558 RON
65 1 1 SA FOOT MKF67 (868030-01) 4137 RON
66 1 1 SHOE (868030-00) 1117 RON
67 1 1 NUT M4 (249232-00) 558 RON
68 1 1 WASHER (249233-00) 558 RON
69 1 1 SCREW 4X20 (249424-06) 558 RON
70 1 1 SA REGULATOR DW609 SERVICE (869394-00) 70239 RON
821 1 1 NAMEPLATE DW609-GB T.1 (N049821) 1452 RON
