Top » Piese de schimb » PIESE DEWALT » DW590EK Type 1

DW590EK DIAMOND DRILL Type 1
[DW590EK Type 1]

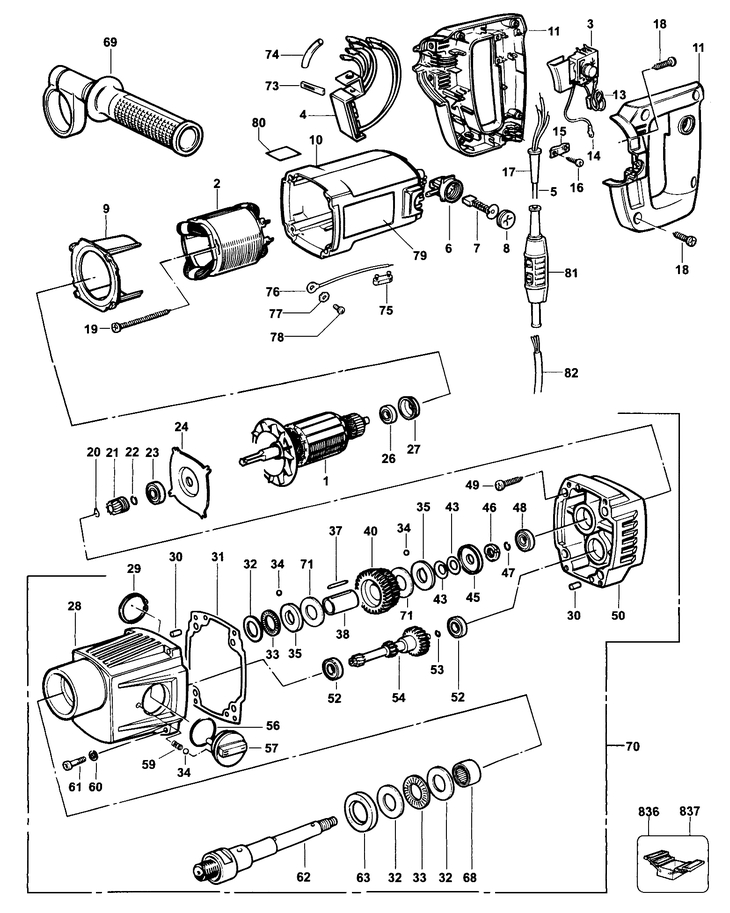

DW590EK DIAMOND DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
1 1 1 SA ARMATURE 115V (SERVICE) (248158-01) 80865 RON
2 1 1 FIELD SERVICE (587020-00) 15993 RON
2 1 1 SA FIELD (SERVICE) LX (587020-01) 28296 RON
3 1 1 SWITCH 2022 1001 (324989-00) 1891 RON
4 1 1 000000-00 - Indisponibil
4 1 1 000000-00 - Indisponibil
5 1 1 CABLE 570 PCP (330085-05) 2795 RON
6 1 2 BRUSH HOLDER (448083-01) 3466 RON
7 1 2 BRUSH (248155-00) 5591 RON
7 1 2 BRUSH (248155-01) 5031 RON
8 1 2 BRUSH CAP (448084-01) 781 RON
9 1 1 BAFFLE FAN (447786-00) 781 RON
10 1 1 FIELDCASE DW580 (447799-19) 10512 RON
11 1 1 SA HANDLE (572000-01) 12861 RON
13 1 1 CAPACITOR (320842-03) 1229 RON
14 1 1 LEAD (248022-01) 781 RON
15 1 1 CORD CLAMP (910556) 558 RON
16 1 2 SCREW (330065-08) 558 RON
17 1 1 CORD PROTECTOR (401088-00) 1117 RON
18 1 8 SCREW (330065-07) 558 RON
19 1 2 SCREW 8-32 X 65 (844217-03) 558 RON
20 1 1 CIRCLIP (248311-00) 558 RON
21 1 1 000000-00 - Indisponibil
22 1 1 O-RING PINION (248036-00) 10512 RON
23 1 1 BEARING BALL (330003-64) 4137 RON
24 1 1 000000-00 - Indisponibil
26 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
27 1 1 SLEEVE (445217-02) 781 RON
28 1 1 000000-00 - Indisponibil
29 1 1 RING (278814-00) 1452 RON
30 1 2 000000-00 - Indisponibil
31 1 1 GASKET (248049-00) 1788 RON
32 1 3 RING (278811-00) 7940 RON
33 1 2 BEARING (278810-00) 6821 RON
34 1 3 BALL (832343) 893 RON
35 1 1 CLUTCH KIT (279196-00) 46863 RON
37 1 1 000000-00 - Indisponibil
38 1 1 CLUTCH KIT (279196-00) 46863 RON
40 1 1 000000-00 - Indisponibil
43 1 4 WASHER (248058-00) 893 RON
45 1 1 CUP (248060-00) 15993 RON
46 1 1 NUT (248061-00) 2795 RON
47 1 1 RING (278699-00) 893 RON
48 1 1 BALL BEARING (050830000) 5591 RON
49 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T15 (330019-42) 558 RON
50 1 1 000000-00 - Indisponibil
52 1 2 BALL BEARING (832337) 11519 RON
53 1 1 RING (278778-00) 893 RON
54 1 1 INTERGEAR (248069-00) 86681 RON
56 1 1 RING (832348) 893 RON
57 1 1 000000-00 - Indisponibil
59 1 1 000000-00 - Indisponibil
60 1 4 WASHER (832364) 893 RON
61 1 4 000000-00 - Indisponibil
62 1 1 SPINDLE (248074-02) 62298 RON
63 1 1 SEAL (278812-00) 9282 RON
68 1 1 BEARING (278809-00) 25164 RON
69 1 1 SA HANDLE SIDE (248190-00) 23598 RON
70 1 1 000000-00 - Indisponibil
71 1 1 CLUTCH KIT (279196-00) 46863 RON
73 1 1 000000-00 - Indisponibil
74 1 1 INSULATING GUARD (249666-00) 781 RON
75 1 1 TERMINAL BLOCK (323534-00) 893 RON
76 1 1 LEAD 220MM (323635-15) 781 RON
77 1 1 WASHER D4 (933652-00) 558 RON
78 1 1 SCREW TAPTITE M4*6 (324006-07) 190 RON
79 1 1 BRAND LABEL (578777-00) 2124 RON
80 1 1 000000-00 - Indisponibil
81 1 1 SWITCH SAFETY 230V (249698-00) 178732 RON
81 1 1 SAFETY SWITCH 115V (249698-01) 178732 RON
82 1 1 330085-03 - Indisponibil
82 1 1 CORDSET GB 115V 4200 PCP (330085-04) 25164 RON
82 1 1 CORDSET GB 115V 4200 PCP (330085-04) 25164 RON
836 1 1 559505-99 - Indisponibil
837 1 1 559569-99 - Indisponibil
