DW570K ROTARY HAMMER Type 1
[DW570K Type 1]
DW570K ROTARY HAMMER Type 1
Click pentru a mari
Imagini suplimentare
DW570K ROTARY HAMMER Type 1
Click pentru a mari

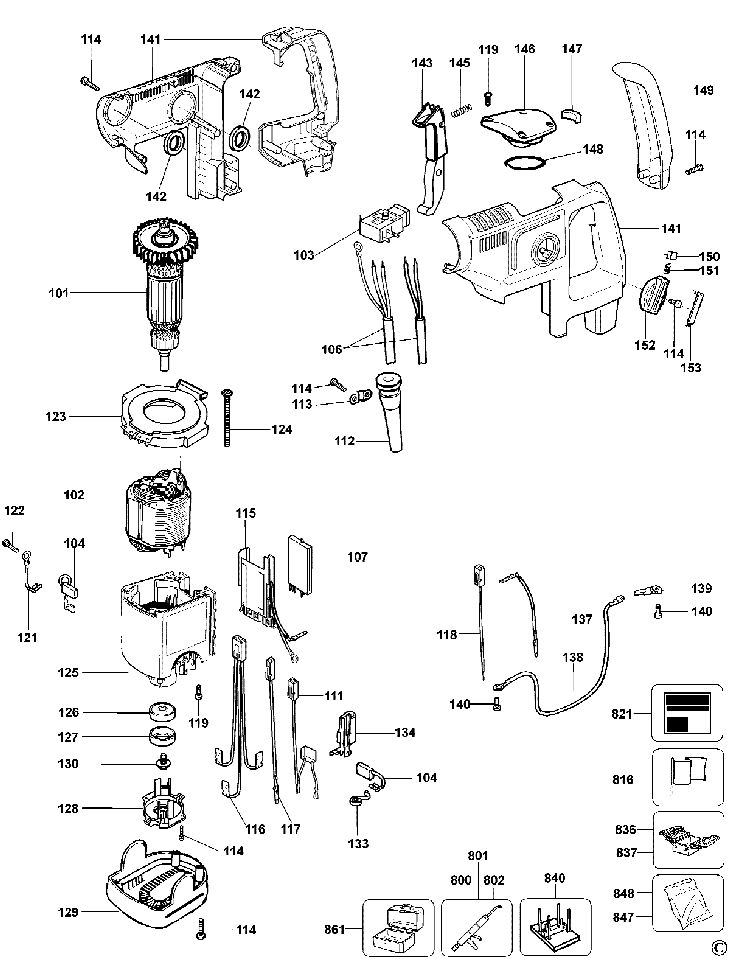

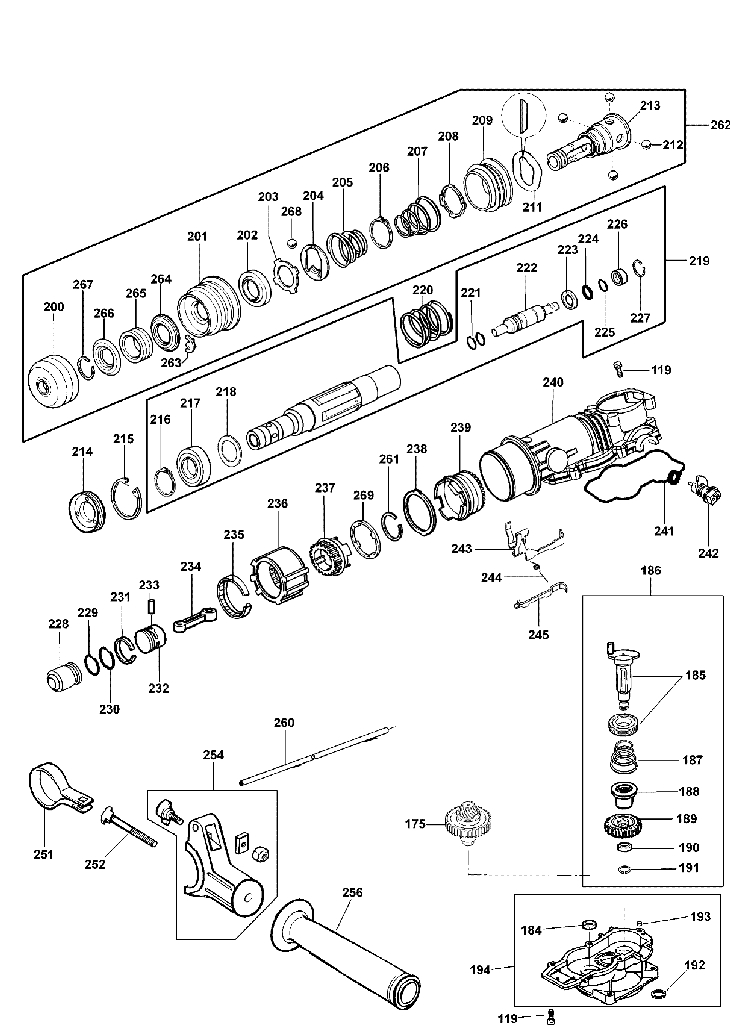

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA G73 MOTOR KIT (SERVICE) (N030349) 86681 RON
101 1 1 SA G73 MOTOR KIT (SERVICE) (N030350) 91714 RON
102 1 1 SA FIELD 240V ( SERVICE ) (377653-08) 1891 RON
102 1 1 FIELD 115V (377653-05) 14315 RON
103 1 1 SA SWITCH ( SERVICE) (487175-49) 11519 RON
104 1 1 BRUSH PAIR 230V *BK32* (487131-00) 11519 RON
104 1 1 BRUSH PAIR 115V SA (487131-02) 14315 RON
106 1 1 CORDSET GB 4200PCP (324438-73) 17335 RON
106 1 1 CORDSET (330061-20) 40599 RON
107 1 1 ELECTRONIC MODULE 230V (328649-20) 15993 RON
107 1 1 ELECTRONIC MODULE 115V (328649-22) 1891 RON
111 1 1 SA CAPACITOR (487087-00) 3018 RON
111 1 1 SA CAPACITOR (487087-00) 3018 RON
112 1 1 CORD PROTECTOR (323091-01) 105 RON
113 1 1 CLAMP CORD (821070) 558 RON
114 1 20 SCREW (330065-08) 558 RON
115 1 1 SA ELECTRONIC DRAWER (329845-00) 7940 RON
115 1 1 SA ELECTRONIC DRAWER (329845-00) 7940 RON
116 1 1 SA LEAD PLUG 3 PRONG (329777-00) 2347 RON
117 1 1 SA LEAD PLUG 1 PRONG (329776-00) 190 RON
119 1 13 SCREW PAN HEAD M5*18 (324007-11) 558 RON
121 1 1 LEAD POTENTIAL (328856-01) 781 RON
122 1 2 SCREW PLASTIC THD FORM M4*8 T20 (330065-24) 781 RON
123 1 1 GUIDE AIR (327486-00) 105 RON
124 1 2 SCREW PLASTIC THREAD FORM M4*50 (330065-21) 558 RON
125 1 1 SA MOTORCASE DEWALT 230V ( SERVICE) (487073-01) 25164 RON
125 1 1 000000-00 - Indisponibil
126 1 1 BEARING BALL 102608 (323872-03) 3466 RON
127 1 1 RING ISOLATION 26MM (325279-00) 781 RON
128 1 1 HOLDER BEARING (327487-00) 1788 RON
129 1 1 CAP END (327489-01) 3466 RON
130 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
133 1 2 SPRING SPIRAL (326667-00) 893 RON
134 1 2 SA CHOKE HOLDER (326933-01) 2124 RON
141 1 1 CLAMSHELL (327589-09) 11519 RON
142 1 4 RING RUBBER 16 * 3.5 (327577-00) 558 RON
143 1 1 SA TRIGGER BLACK ( SERVICE) (487094-01) 2347 RON
145 1 1 SPRING COMPRESSION (326438-00) 781 RON
146 1 1 COVER HOUSING (327499-02) 1788 RON
147 1 1 FILTER FELT (327586-00) 558 RON
148 1 1 "O RING 43 * 2.5""" (323711-15) 781 RON
149 1 1 CAP RUBBER (327500-00) 10512 RON
150 1 1 LOCK BUTTON (327503-02) 558 RON
151 1 1 SPRING PRESSURE (323395-31) 558 RON
152 1 1 LEVER CONTROL (327501-00) 893 RON
153 1 1 CAP LEVER (327509-00) 105 RON
175 1 1 UPGRADE KIT (SERVICE) (492162-00) 80865 RON
184 1 1 BEARING BALL (330003-39) 2347 RON
185 1 1 SA CRANK & BEARING PACKED ( SERVICE ) (487074-49) 37579 RON
186 1 1 SA CRANKSHAFT PACKED ( SERVICE) (575736-00) 74937 RON
187 1 1 "SPRING BEVEL 12""" (328769-00) 558 RON
188 1 1 ACTIV. SLEEVE (327507-00) 5591 RON
189 1 1 GEAR. Z=37 COATED (574741-00) 22144 RON
190 1 1 BEARING BALL 082207 (323872-05) 4472 RON
191 1 1 RING SAFETY 8 DIN471 (324822-05) 558 RON
192 1 1 RING SEALING 24 7 14 (327141-03) 6821 RON
193 1 1 SLEEVE (327575-00) 781 RON
194 1 1 SA INTERHOUSING (327568-00) 29862 RON
200 1 1 SEAL LIP (487147-00) 2795 RON
201 1 1 SLIDING TUBE (487149-00) 2124 RON
202 1 1 WASHER GUIDE (487146-00) 4472 RON
203 1 1 RING GUIDE (487148-00) 781 RON
204 1 1 WASHER SDS (487153-00) 781 RON
205 1 1 SPRING CONICAL (487160-00) 781 RON
206 1 1 "RING SAFETY 30 DIN 471""" (324822-00) 558 RON
207 1 1 SPRING CONICAL (487118-00) 893 RON
208 1 1 RING LOCK (327540-00) 2347 RON
209 1 1 SLEEVE TOOL (327541-00) 190 RON
211 1 1 SPRING CONICAL (327594-00) 2124 RON
212 1 4 BALL D-7.5 DIN 5401 (487033-00) 558 RON
213 1 1 000000-00 - Indisponibil
214 1 1 "RING SEALING 52 * 7 * 23""" (327141-01) 1452 RON
215 1 1 CIRCLIP 47 * 2 HD (575279-00) 2347 RON
216 1 1 000000-00 - Indisponibil
217 1 1 000000-00 - Indisponibil
218 1 1 BUSH IMPACT - TURNED (574840-00) 5031 RON
219 1 1 SA SPINDLE PACKED (SERVICE) (575737-00) 153454 RON
220 1 1 SPRING COMPRESSION (323395-26) 893 RON
221 1 2 323711-39 - Indisponibil
222 1 1 000000-00 - Indisponibil
223 1 1 "WASHER 12.4""" (327533-00) 3018 RON
224 1 1 323711-31 - Indisponibil
225 1 1 323711-32 - Indisponibil
226 1 1 000000-00 - Indisponibil
227 1 1 000000-00 - Indisponibil
228 1 1 000000-00 - Indisponibil
229 1 1 SEAL BEATPIECE (487037-00) 5591 RON
230 1 1 323711-10 - Indisponibil
231 1 1 RING PISTON D=21.6 (325905-01) 893 RON
232 1 1 PISTON (327520-00) 5591 RON
233 1 1 PIN CRANK (329818-00) 2347 RON
234 1 1 CONN. ROD (327519-00) 2124 RON
235 1 1 RING BEARING (327492-00) 781 RON
236 1 1 BUSH TOOTH (327528-00) 1788 RON
237 1 1 ACTIV SLEEVE (327527-00) 5031 RON
238 1 1 "WASHER 37.7""" (327553-00) 2124 RON
239 1 1 UPGRADE KIT (SERVICE) (492162-00) 80865 RON
240 1 1 SA MAIN CASE PACKED (477193-00) 40599 RON
241 1 1 SEAL HOUSING (327518-00) 1229 RON
242 1 1 CAM ROTARY (327502-00) 190 RON
243 1 1 SHIFT FORK (327504-00) 3466 RON
244 1 1 SPRING SWITCH (327574-00) 893 RON
245 1 1 GEAR SHIFT ROD (327505-00) 1788 RON
251 1 1 COLLAR BAND (327493-00) 2795 RON
252 1 1 SCREW M8 * 55 DIN186 (327544-00) 105 RON
254 1 1 SA CLAMP ( SERVICE) (487103-49) 4137 RON
256 1 1 HANDLE SIDE (327545-00) 4137 RON
260 1 1 DEPTH STOP (326205-00) 1229 RON
261 1 1 "RING SNAP 44""" (323763-07) 781 RON
262 1 1 SA CHUCKHOLDER SDS PACKED (SERVICE) (575568-00) 74937 RON
263 1 1 000000-00 - Indisponibil
264 1 1 000000-00 - Indisponibil
265 1 1 DAMPER (487152-00) 5591 RON
266 1 1 WASHER (487151-00) 190 RON
267 1 1 RING SNAP 20 * 2 (323762-09) 781 RON
268 1 1 BALL (487033-01) 2347 RON
269 1 1 WASHER SLEEVE (329590-00) 1788 RON
800 1 1 000000-00 - Indisponibil
801 1 1 GREASE TURMOGEAR NOOY 100G TUBE (586778-04) 22144 RON
802 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
816 1 1 BRAND LABEL (578793-00) 781 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
836 1 1 559613-99 - Indisponibil
837 1 1 559611-99 - Indisponibil
840 1 1 559610-99 - Indisponibil
848 1 1 SA SERVICE KIT 230V (487096-00) 57488 RON
848 1 1 SA SERVICE KIT 115V (487177-00) 49771 RON
861 1 1 KITBOX DEWALT WITH HANDLE. (381297-58) 37579 RON
