DW540 ROTARY HAMMER Type 2
[DW540 Type 2]
DW540 ROTARY HAMMER Type 2
Click pentru a mari
Imagini suplimentare
DW540 ROTARY HAMMER Type 2
Click pentru a mari
DW540 ROTARY HAMMER Type 2
Click pentru a mari

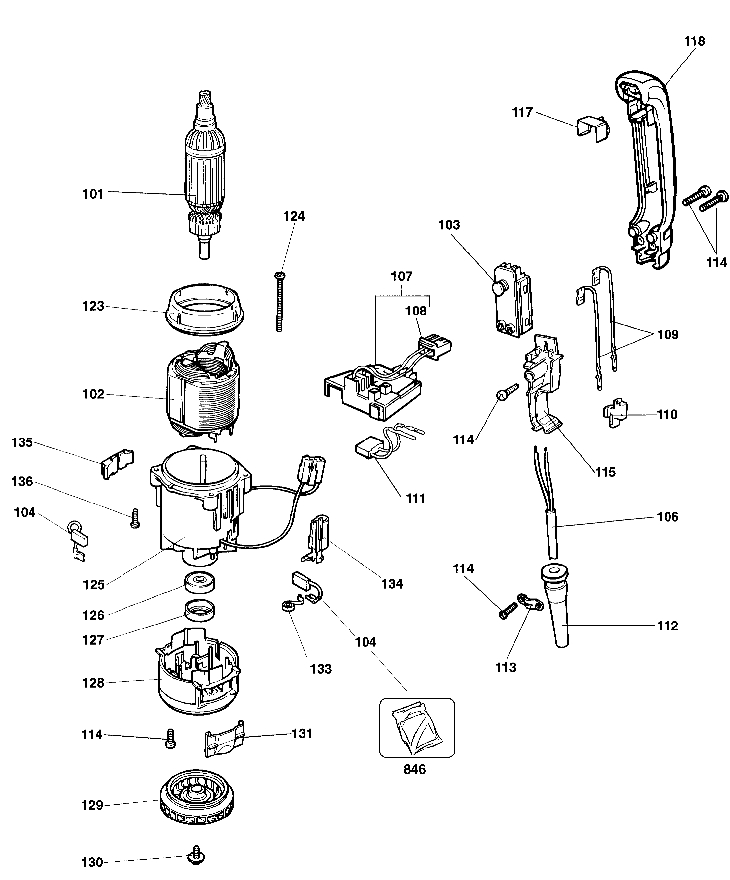

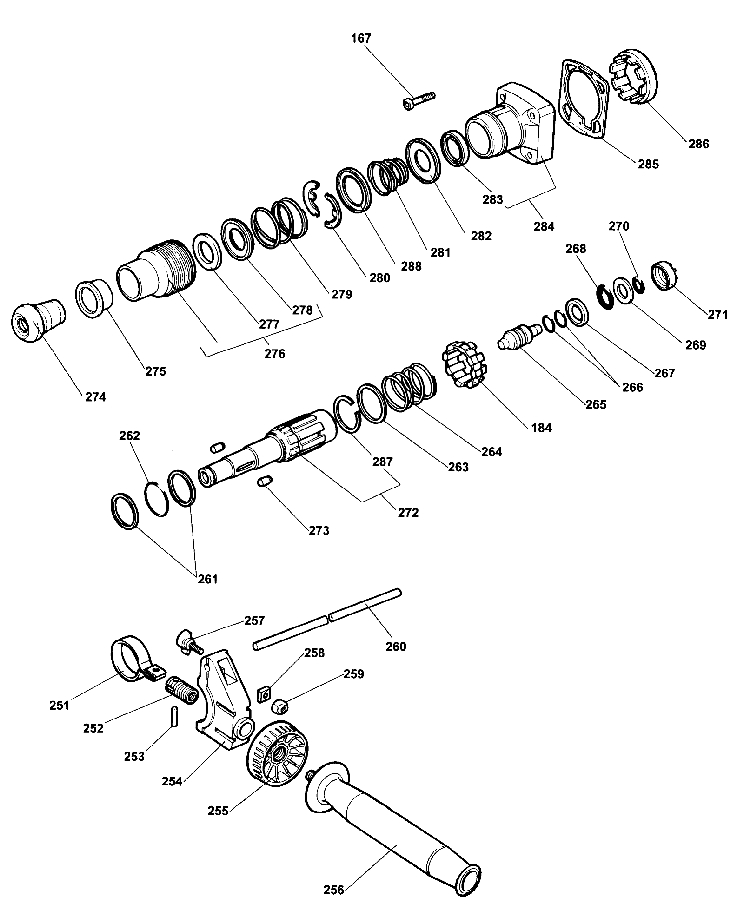

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 000000-00 - Indisponibil
101 1 1 000000-00 - Indisponibil
102 1 1 000000-00 - Indisponibil
102 1 1 SA FIELD ( SERVICE ) (327429-11) 20467 RON
102 1 1 000000-00 - Indisponibil
102 1 1 SA FIELD ( SERVICE ) (327429-11) 20467 RON
103 1 1 SWITCH ON / OFF MARQUART (326087-00) 14315 RON
104 1 2 BRUSH 230V CUT OFF SA (326961-00) 9282 RON
104 1 2 BRUSH 230V CUT OFF SA (326961-00) 9282 RON
104 1 2 000000-00 - Indisponibil
104 1 2 000000-00 - Indisponibil
106 1 1 CORDSET (330061-20) 40599 RON
106 1 1 CORDSET (330061-20) 40599 RON
106 1 1 CORDSET GB 4200PCP (324438-73) 17335 RON
106 1 1 CORDSET 2600 UL/CSA (325090-08) 9282 RON
107 1 1 000000-00 - Indisponibil
108 1 1 000000-00 - Indisponibil
109 1 2 LEAD 110 FST / WSH PVC BLACK (325089-00) 781 RON
110 1 1 PLUG HOLDER (326189-00) 781 RON
111 1 1 000000-00 - Indisponibil
112 1 1 CORD PROTECTOR (323091-01) 105 RON
113 1 1 CLAMP CORD (821070) 558 RON
114 1 17 SCREW (330065-08) 558 RON
115 1 1 SUPPORT BLADE (326190-00) 781 RON
116 1 2 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
117 1 1 INSULATOR HANDLE (326581-00) 781 RON
118 1 1 COVER HANDLE (325382-00) 5031 RON
119 1 1 SPRING COMPRESSION (326438-00) 781 RON
120 1 1 TRIGGER (325919-00) 1117 RON
121 1 1 SCREW PLASTIC 4 * 18 (326519-00) 558 RON
123 1 1 CAP ISO M73 (492073-00) 893 RON
124 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
125 1 1 MOTOR CASE ( SERVICE ) (326411-14) 26730 RON
126 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
127 1 1 RING ISOLATION 26MM (325279-00) 781 RON
128 1 1 "COVER M73""" (325411-02) 2795 RON
129 1 1 SA FAN (577736-00) 7940 RON
130 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
131 1 2 COVER BRUSH (326579-00) 893 RON
133 1 2 SPRING SPIRAL (326667-00) 893 RON
134 1 2 CHOKE (326933-00) 6821 RON
135 1 2 ELEMENT RUBBER (325917-00) 781 RON
136 1 8 SCREW PAN HEAD M5*18 (324007-11) 558 RON
150 1 1 SA HOUSING & COVER SERVICE (329469-49) 91714 RON
151 1 1 BEARING NEEDLE HK1612 (330004-32) 3466 RON
151 1 1 BEARING NEEDLE (918877-05) 10512 RON
151 1 1 SA HOUSING SERVICE (328996-49) 3592 RON
152 1 1 "BEARING NEEDLE 20 * 28 * 13""" (918877-06) 10512 RON
152 1 1 BEARING NEEDLE 20261 (330004-33) 3466 RON
153 1 1 SA HOUSING (329039-01) 20467 RON
154 1 1 SEAL HOUSING (325936-00) 893 RON
163 1 1 SA BEVEL GEAR/CLUTCH UPGRADE (SERVICE) (496440-00) 74937 RON
164 1 1 GEAR Z31 FLEX HONED (SERVICE) (492618-00) 5031 RON
165 1 1 "RING SEALING 24 * 5 * 15.8""" (327141-02) 3018 RON
166 1 1 BEARING SLEEVE 28341 (325616-00) 2795 RON
167 1 6 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
168 1 3 SCREW CYL M6*20 (918825-04) 558 RON
169 1 1 SA CRANKSHAFT 50T SERVICE (581014-01) 53015 RON
170 1 1 "O RING 5*1.2""" (323711-26) 558 RON
171 1 1 CONNECTING ROD (325002-00) 3018 RON
172 1 1 000000-00 - Indisponibil
173 1 1 "NEEDLE PIN 8 * 24""" (330041-22) 1117 RON
174 1 1 "RING PISTON D=25.6""" (325905-00) 105 RON
175 1 2 O RING 22 4 (323711-11) 1452 RON
176 1 1 CYLINDER 40MM (326098-02) 23598 RON
177 1 1 "O RING 26.3 * 2.4""" (323711-21) 1452 RON
180 1 1 000000-00 - Indisponibil
181 1 1 SA BEVEL GEAR/CLUTCH UPGRADE (SERVICE) (496440-00) 74937 RON
182 1 1 WASHER 50.4*56.6 (326085-00) 190 RON
183 1 1 RING SNAP 58 FL (323763-03) 105 RON
184 1 1 SPINDLE LOCK (1005697-00) 3018 RON
185 1 1 PIN CYL 4.75 82.0 (325880-02) 1452 RON
186 1 1 SHIFT FORK 40/45MM (325160-00) 2795 RON
187 1 1 SPRING.CPRSN 1.25/5. (323395-08) 558 RON
188 1 1 SPRING.CPRSN 0.8/5.4 (323395-09) 558 RON
189 1 2 RIVET TUBE (326093-00) 781 RON
190 1 1 "SHIFT BAIL 40/4""" (325212-00) 1788 RON
191 1 1 SA ECCENTRIC (326720-00) 3466 RON
192 1 1 "RING O 11.5*2.4""" (323711-07) 558 RON
193 1 1 000000-00 - Indisponibil
194 1 1 000000-00 - Indisponibil
195 1 1 SCREW SLEEVE M4 (326122-00) 2124 RON
196 1 1 000000-00 - Indisponibil
198 1 4 RING RUBBER 19.8 (325916-01) 558 RON
199 1 1 000000-00 - Indisponibil
201 1 1 CLIP RETAINER (326194-00) 2124 RON
205 1 1 CAP GEAR BLACK (325371-04) 2347 RON
206 1 1 "O RING 56 * 3""" (323711-22) 558 RON
207 1 1 FILTER FILZ (326824-00) 558 RON
208 1 1 "O RING 72 * 3""" (323711-17) 781 RON
210 1 1 000000-00 - Indisponibil
211 1 1 000000-00 - Indisponibil
251 1 1 COLLET BAND SDS (326555-00) 3018 RON
252 1 1 THREAD SLEEVE (326552-00) 3018 RON
253 1 1 PIN SIDEHANDLE (N079374) 558 RON
254 1 1 CLAMPING PIECE MSH WEINMAYER (N021108) 3466 RON
255 1 1 CLAMPING WHEEL (326553-00) 4472 RON
256 1 1 HANDLE WEINMEYER (MOULD) (N021120) 7940 RON
257 1 1 SCREW WING M6*24 BLACK (326573-00) 781 RON
258 1 1 NUT SQUARE (326556-00) 893 RON
259 1 1 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
260 1 1 DEPTH STOP (326205-00) 1229 RON
261 1 2 WASHER.41*48*1.8 STEEL (323753-11) 1229 RON
262 1 1 "O RING 40 * 4""" (323711-14) 781 RON
263 1 1 WASHER.44.4 STEEL (323753-14) 1117 RON
264 1 1 SPRING.CPRSN 2.2/44. (323395-07) 781 RON
265 1 1 SA BEAT PIECE 40MM SERVICE (579581-00) 34336 RON
266 1 2 323711-10 - Indisponibil
267 1 1 WASHER BEATPIECE (582381-00) 3018 RON
268 1 1 O RING 23 * 6 HNBR (577744-02) 1229 RON
269 1 1 WASHER (326688-00) 3466 RON
270 1 1 O-RING 16X6 HNBR 80 (N210233) 893 RON
271 1 1 BUSH 18 5*35*10 5 NATUR (326044-00) 1229 RON
272 1 1 SA SDS SPINDLE (SERVICE) (493133-00) 86681 RON
273 1 2 "ROLLER 8 * 20""" (325878-00) 1229 RON
274 1 1 SEAL LIP (329816-00) 2795 RON
275 1 1 SLEEVE SDS BLACK (326575-02) 1452 RON
276 1 1 SLIDING TUBE INCL. WASHER (479247-00) 3466 RON
277 1 1 000000-03 - Indisponibil
278 1 1 000000-03 - Indisponibil
279 1 1 SPRING.CPRSN 2.2/47. (323395-06) 781 RON
280 1 2 HOLDER PIN (325929-00) 781 RON
281 1 1 SPRING CONICAL (487118-00) 893 RON
282 1 1 GUIDE CONICAL (325930-00) 1452 RON
283 1 1 RING SEALING 42 7 30 (327141-00) 1788 RON
284 1 1 SA HOUSING SDS BLACK (326125-01) 3124 RON
285 1 1 SEAL HOUSING (325935-00) 893 RON
286 1 1 BUSH TOOTH (588560-00) 2347 RON
287 1 1 RING SNAP 43FL (323763-04) 893 RON
288 1 1 WASHER GUIDE (327208-00) 558 RON
290 1 1 SA END CAP SHORT SERVICE (326784-00) 12861 RON
291 1 1 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
800 1 1 GREASE 100 GM TUBE (328771-02) 7940 RON
816 1 1 000000-00 - Indisponibil
816 1 1 BRAND LABEL (578793-00) 781 RON
836 1 1 559508-99 - Indisponibil
836 1 1 559508-98 - Indisponibil
837 1 1 559509-98 - Indisponibil
837 1 1 559603-99 - Indisponibil
838 1 1 559510-99 - Indisponibil
839 1 1 559656-99 - Indisponibil
840 1 1 559597-99 - Indisponibil
841 1 1 559598-99 - Indisponibil
842 1 1 559602-99 - Indisponibil
846 1 1 BRUSH PAIR 230V SA (SUBA) (582621-00) 1891 RON
846 1 1 BRUSH PAIR 230V SA (SUBA) (582621-00) 1891 RON
846 1 1 BRUSH PAIR 120V CUT OFF SA (327148-02) 22144 RON
846 1 1 BRUSH PAIR 120V CUT OFF SA (327148-02) 22144 RON
847 1 1 000000-00 - Indisponibil
847 1 1 000000-00 - Indisponibil
847 1 1 000000-00 - Indisponibil
847 1 1 000000-00 - Indisponibil
