Top » Piese de schimb » PIESE DEWALT » DW516K Type 4

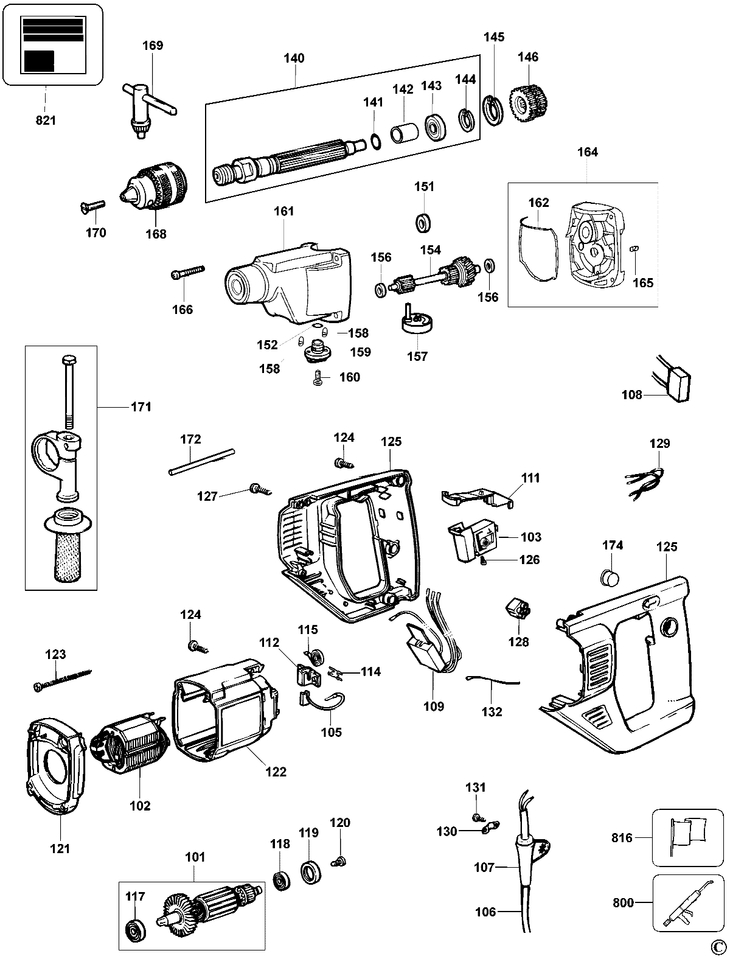

DW516K DRILL Type 4
[DW516K Type 4]
DW516K DRILL Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE & BEARING ( SERVICE ) (328620-13) 34336 RON
101 1 1 SA ARMATURE & BEARING 115V ( SERVICE ) (328620-14) 3592 RON
102 1 1 000000-00 - Indisponibil
102 1 1 SA FIELD SERVICE (373874-13) 17335 RON
103 1 1 SWITCH SA (323126-07) 12861 RON
105 1 2 BRUSH 120V SA (323660-00) 2347 RON
106 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
106 1 1 000000-00 - Indisponibil
107 1 1 CORD PROTECTOR (770236) 558 RON
108 1 1 CAPACITOR (320842-03) 1229 RON
109 1 1 SWITCH ELECTRONIC 230/240V (324552-06) 12861 RON
109 1 1 SWITCH ELECTRONIC 115V (324552-05) 12861 RON
111 1 1 BLIND PLUG RL YELLOW (324734-02) 781 RON
112 1 2 "HOLDER BRUSH 6*8""" (323496-01) 1229 RON
114 1 2 000000-00 - Indisponibil
115 1 2 SPRING SPIRAL (872843) 558 RON
117 1 1 BEARING BALL 608 (330003-03) 1452 RON
118 1 1 BEARING BALL (330003-19) 2124 RON
119 1 1 BEARING COVER (870052) 558 RON
120 1 1 SCREW COLLER 8MM (329794-00) 558 RON
121 1 1 COVER MOTOR DEWALT (326184-08) 2124 RON
122 1 1 HOUSING MOTOR DEWALT (324188-05) 4137 RON
123 1 2 SCREW (916231) 558 RON
124 1 4 SCREW PLASTIC 4*16 (323924-02) 558 RON
125 1 1 CLAMSHELL SET YELLOW (324189-05) 6821 RON
126 1 2 SCREW (911026) 558 RON
127 1 2 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
128 1 1 TERMINAL BLOCK (323534-00) 893 RON
129 1 2 SA CHOKE ASSEMBLY (945402-33) 190 RON
130 1 1 CLAMP CORD (821070) 558 RON
131 1 2 "SCREW PLASTIC 5*12""" (323924-08) 558 RON
132 1 1 SA LEAD WIRE (878846) 558 RON
140 1 1 SA SPINDLE NON PERCUSSION ( SERVICE ) (327313-03) 22144 RON
141 1 1 O-RING (930028-00) 558 RON
142 1 1 SLEEVE (327289-00) 105 RON
143 1 1 BEARING BALL 153209 (330003-12) 2795 RON
144 1 1 RING (944137-00) 781 RON
145 1 1 CIRCLIP (931398) 781 RON
146 1 1 000000-00 - Indisponibil
151 1 1 SEAL GREASE (1006305-00) 781 RON
152 1 1 323711-34 - Indisponibil
154 1 1 SA INTERSPINDLE CLUTCH ( SERVICE ) (577850-01) 51337 RON
156 1 2 WASHER UNI6593 (930102-00) 558 RON
157 1 1 SA SWITCH MECHANISM (327314-00) 4472 RON
158 1 2 DETENT (326467-00) 558 RON
159 1 1 SWITCH 2 SPEED BLACK (327309-01) 893 RON
160 1 1 SCREW PLASTIC 3.5*22 (330065-22) 558 RON
161 1 1 SA GEARCASE (327311-00) 22144 RON
162 1 1 SEAL HOUSING (327291-00) 893 RON
164 1 1 SA GEARCASE COVER ( SERVICE ) (583999-02) 11519 RON
165 1 1 RUBBER ELEMENT (916010) 558 RON
166 1 4 SCREW PLASTIC THREAD FORM 4.0*65 (330065-11) 781 RON
168 1 1 CHUCK KEYED (584925-00) 10512 RON
169 1 1 Drill Chuck Key (330034-07) 893 RON
170 1 1 CHUCK SCREW 40/45 RC (575237-00) 558 RON
171 1 1 HANDLE SIDE (939794-02) 5591 RON
172 1 1 DEPTH STOP (580787-00) 893 RON
174 1 1 BLANKING PLUG. 13*8 DW YELLOW (917650-01) 558 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
816 1 1 LABEL IDENTITY 36*52 (578775-00) 781 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
