Top » Piese de schimb » PIESE DEWALT » DW515L Type 1

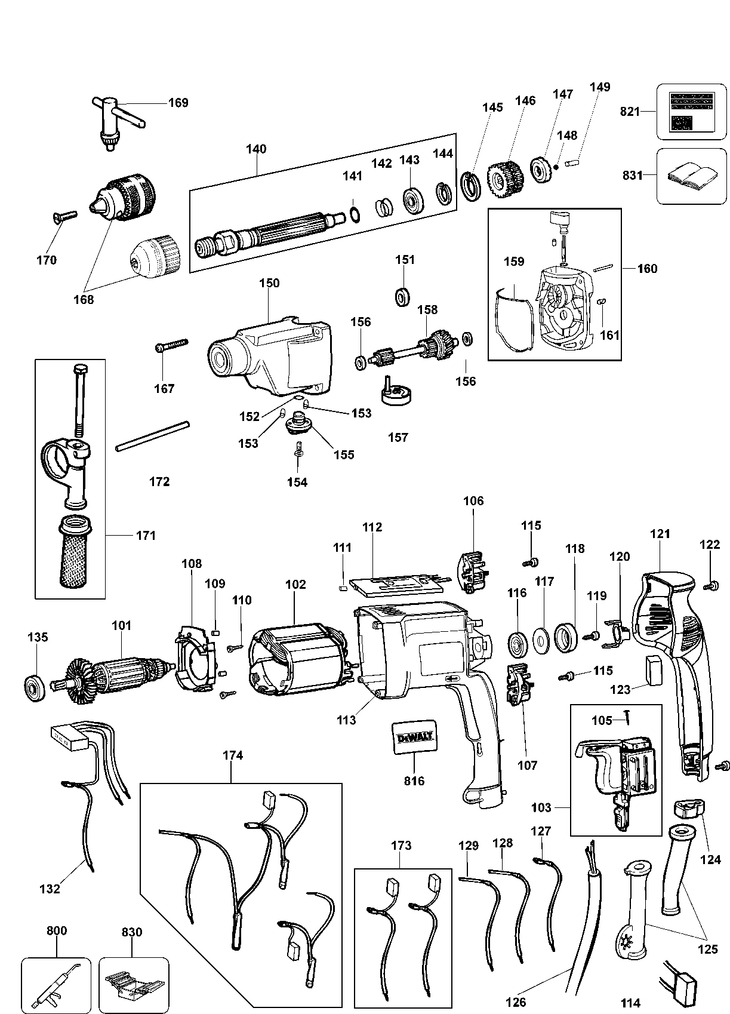

DW515L DRILL Type 1
[DW515L Type 1]
DW515L DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE & BEARING 230V ( SERVICE ) (327471-02) 3592 RON
101 1 1 SA ARMATURE & BEARING 115V ( SERVICE ) (327471-03) 37579 RON
101 1 1 SA ARMATURE & BEARING 115V ( SERVICE ) (327471-03) 37579 RON
102 1 1 SA FIELD ( SERVICE ) (328961-17) 20467 RON
102 1 1 000000-00 - Indisponibil
102 1 1 000000-00 - Indisponibil
103 1 1 SWITCH KIT ( SERVICE ) (329854-49) 20467 RON
103 1 1 SA SWITCH (176830-35) 15993 RON
103 1 1 SA SWITCH (176830-35) 15993 RON
105 1 1 PIN (402760-00) 558 RON
105 1 1 PIN REVERSE LIMIT (402760-01) 558 RON
106 1 1 SA BRUSH HOLDER (401878-00) 2347 RON
107 1 1 SA BRUSH HOLDER (401877-00) 2347 RON
108 1 1 COVER FAN (327293-00) 105 RON
109 1 2 PLUG (949638-01) 558 RON
110 1 4 SCREW (747329) 558 RON
111 1 1 SMALL RUBBER (949638-02) 558 RON
112 1 1 SA SWITCH AND LEAD 120V (SERVICE) (577857-03) 17335 RON
112 1 1 SA SWITCH AND LEAD (SERVICE) (577857-02) 17335 RON
112 1 1 000000-00 - Indisponibil
113 1 1 HOUSING MOTOR (327290-05) 5031 RON
114 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
114 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
114 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
115 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
116 1 1 BEARING BALL (330003-19) 2124 RON
117 1 1 WASHER (949876-25) 558 RON
118 1 1 BEARING COVER (870052) 558 RON
119 1 1 SCREW COLLER 8MM (329794-00) 558 RON
120 1 1 CAP BEARING (327296-00) 558 RON
121 1 1 COVER HANDLE SOFT YELLOW (327298-01) 5591 RON
122 1 3 SCREW (330065-08) 558 RON
123 1 1 BUMPER SPONGE (930026-01) 781 RON
124 1 1 CORD CLAMP (402649-00) 558 RON
124 1 1 CORD CLAMP (402649-00) 558 RON
124 1 1 CORD CLAMP (402649-00) 558 RON
125 1 1 CORD PROTECTOR (401751-01) 1452 RON
125 1 1 CORD PROTECTOR (403395-00) 1788 RON
126 1 1 CORDSET GB 4200PCP (324438-73) 17335 RON
126 1 1 000000-00 - Indisponibil
126 1 1 000000-00 - Indisponibil
127 1 1 SA LEADWIRE BLACK 90MM (949801-86) 893 RON
127 1 1 SA LEADWIRE BLACK 90MM (949801-86) 893 RON
127 1 1 SA LEADWIRE BLACK 90MM (949801-86) 893 RON
128 1 1 LEAD BLACK 90MM (949801-85) 893 RON
128 1 1 LEAD BLACK 90MM (949801-85) 893 RON
128 1 1 LEAD BLACK 90MM (949801-85) 893 RON
132 1 1 LEAD & SOCKET SA (328101-00) 2347 RON
135 1 1 BEARING BALL 608 (330003-03) 1452 RON
140 1 1 SA SPINDLE PERCUSSION ( SERVICE ) (327313-02) 25164 RON
141 1 1 O-RING (930028-00) 558 RON
142 1 1 SPRING (931890) 558 RON
143 1 1 BEARING BALL 153209 (330003-12) 2795 RON
144 1 1 RING (944137-00) 781 RON
145 1 1 CIRCLIP (931398) 781 RON
146 1 1 000000-00 - Indisponibil
147 1 1 MOVING CLUTCH (945706-00) 105 RON
148 1 1 BALL STEEL (917725) 558 RON
149 1 1 PIN NEEDLE 3.5*7.8 (330041-25) 558 RON
150 1 1 SA GEARCASE (327311-00) 22144 RON
151 1 1 SEAL GREASE (1006305-00) 781 RON
152 1 1 323711-34 - Indisponibil
153 1 2 DETENT (326467-00) 558 RON
154 1 1 SCREW PLASTIC 3.5*22 (330065-22) 558 RON
155 1 1 SWITCH 2 SPEED BLACK (327309-01) 893 RON
156 1 2 WASHER UNI6593 (930102-00) 558 RON
157 1 1 SA SWITCH MECHANISM (327314-00) 4472 RON
158 1 1 SA INTERSPINDLE CLUTCH ( SERVICE ) (577850-01) 51337 RON
159 1 1 SEAL HOUSING (327291-00) 893 RON
160 1 1 SA GEARCASE COVER ( SERVICE ) (583999-00) 1891 RON
161 1 1 RUBBER ELEMENT (916010) 558 RON
167 1 4 SCREW TAPPING BT 4*40 (580095-00) 558 RON
168 1 1 CHUCK KEYED (584925-00) 10512 RON
168 1 1 CHUCK KEYLESS (586200-01) 3124 RON
169 1 1 Drill Chuck Key (330034-07) 893 RON
170 1 1 CHUCK SCREW 40/45 RC (575237-00) 558 RON
171 1 1 HANDLE SIDE (939794-02) 5591 RON
172 1 1 DEPTH STOP (580787-00) 893 RON
174 1 1 BRUSH PAIR SA (329604-02) 10512 RON
174 1 1 000000-00 - Indisponibil
174 1 1 000000-00 - Indisponibil
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
830 1 1 559596-99 - Indisponibil
