DW505 HAMMER DRILL Type 2
[DW505 Type 2]

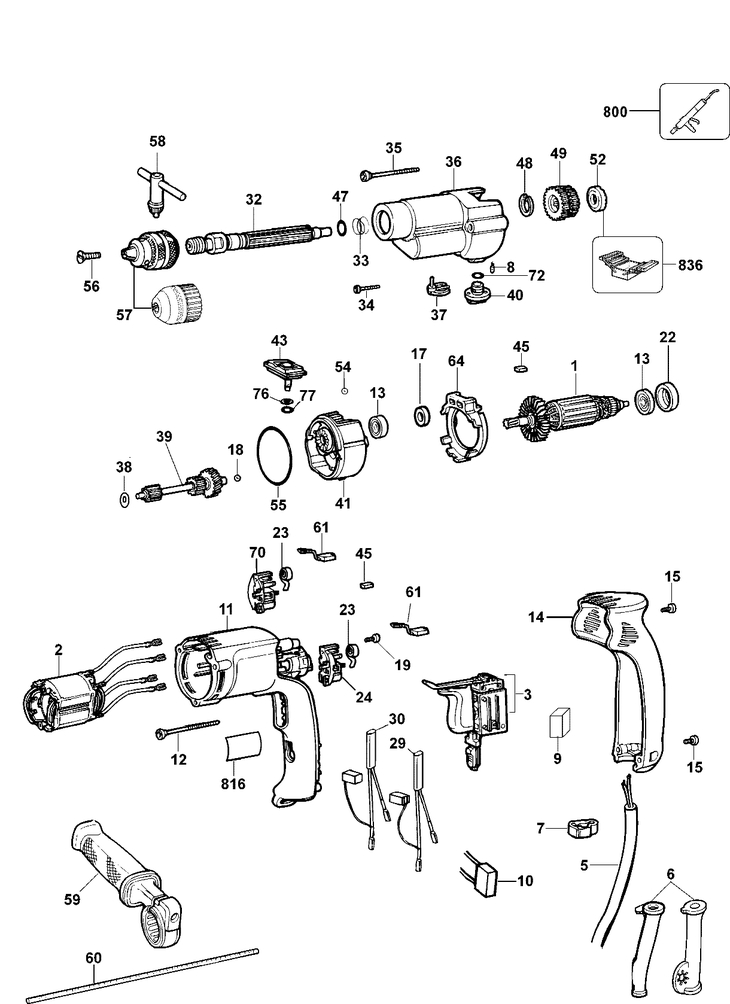

DW505 HAMMER DRILL Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V DW505 (387614-01) 22144 RON
1 1 1 000000-00 - Indisponibil
2 1 1 SA FIELD LEADED DW241/DW505 (387745-00) 20467 RON
2 1 1 000000-00 - Indisponibil
3 1 1 SA SWITCH AND PIN 230V (SERVICE) (494635-00) 1891 RON
3 1 1 SA SWITCH 120V (SERVICE) (494637-01) 15993 RON
5 1 1 CORD PWR SUPPLY (330060-07) 14315 RON
5 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
6 1 1 PROTECTOR CORD (330005-01) 105 RON
6 1 1 CORD PROTECTOR (401751-00) 1788 RON
7 1 1 CORD CLAMP (402647-00) 781 RON
7 1 1 CORD CLAMP (402647-00) 781 RON
8 1 2 DETENT (326467-00) 558 RON
9 1 1 BUMPER SPONGE (930026-01) 781 RON
10 1 1 000000-00 - Indisponibil
11 1 1 CASE FIELD 40MM YEL CAD FREE (mould) (N019317) 5591 RON
12 1 2 SCREW (390198-00) 558 RON
13 1 2 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
14 1 1 COVER HANDLE SLOT 40 (176900-01) 15993 RON
14 1 1 COVER HANDLE SLOT 40 (176900-01) 15993 RON
15 1 3 SCREW (330065-08) 558 RON
17 1 1 000000-00 - Indisponibil
18 1 1 BALL STEEL (936840-00) 558 RON
19 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
22 1 1 000000-00 - Indisponibil
23 1 2 SPRING BRUSH (402759-00) 781 RON
24 1 1 BRUSH HOLDER (390523-00) 3018 RON
29 1 1 000000-00 - Indisponibil
29 1 1 000000-00 - Indisponibil
30 1 1 000000-00 - Indisponibil
30 1 1 000000-00 - Indisponibil
32 1 1 SA PACKAGED SPINDLE (SERVICE) (581235-00) 17335 RON
33 1 1 SPRING (931890) 558 RON
34 1 1 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
35 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
36 1 1 000000-00 - Indisponibil
37 1 1 SA SELECTOR FORK (401735-00) 2347 RON
37 1 1 SA SELECTOR FORK (401735-00) 2347 RON
38 1 1 WASHER (932933-00) 558 RON
39 1 1 SA INTERSHAFT PACKED ( SERVICE ) (581234-00) 22144 RON
40 1 1 SELECTOR FORK (628891-00) 4472 RON
40 1 1 SELECTOR FORK (628891-00) 4472 RON
41 1 1 000000-00 - Indisponibil
43 1 1 SA LEVER (401750-00) 3466 RON
45 1 2 SMALL RUBBER (949638-02) 558 RON
47 1 1 O-RING (930028-00) 558 RON
48 1 1 SEAL RING (144803-00) 781 RON
49 1 1 GEAR DOUBLE (397239-01) 4137 RON
52 1 1 MOVING CLUTCH (945706-00) 105 RON
54 1 1 BALL (903-00) 558 RON
55 1 1 RING OR (401847-00) 558 RON
56 1 1 "SCREW CHUCK (1/4"" - 28 UNF - LH)" (605256-01) 781 RON
57 1 1 CHUCK KEYED (584925-00) 10512 RON
57 1 1 CHUCK KEYLESS (586200-01) 3124 RON
57 1 1 CHUCK KEYLESS (586200-01) 3124 RON
58 1 1 CHUCK KEY (330034-08) 781 RON
58 1 1 CHUCK KEY (330034-08) 781 RON
59 1 1 HANDLE SIDE (939794-02) 5591 RON
60 1 1 DEPTH STOP (940357-00) 893 RON
61 1 2 BRUSH DW505 TYPE 2 (176949-04) 2347 RON
61 1 2 BRUSH (176949-17) 190 RON
61 1 2 BRUSH (176949-17) 190 RON
64 1 1 FAN BAFFLE (176811-00) 781 RON
70 1 1 000000-00 - Indisponibil
72 1 1 O RING DW501 TYPE 2 (930727-00) 1117 RON
76 1 1 WASHER DW505 TYPE 2 (176659-00) 558 RON
77 1 1 050050-00 - Indisponibil
800 1 1 GREASE (761995-01) 23598 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
836 1 1 559596-99 - Indisponibil
