Top » Piese de schimb » PIESE DEWALT » DW491 Type 2

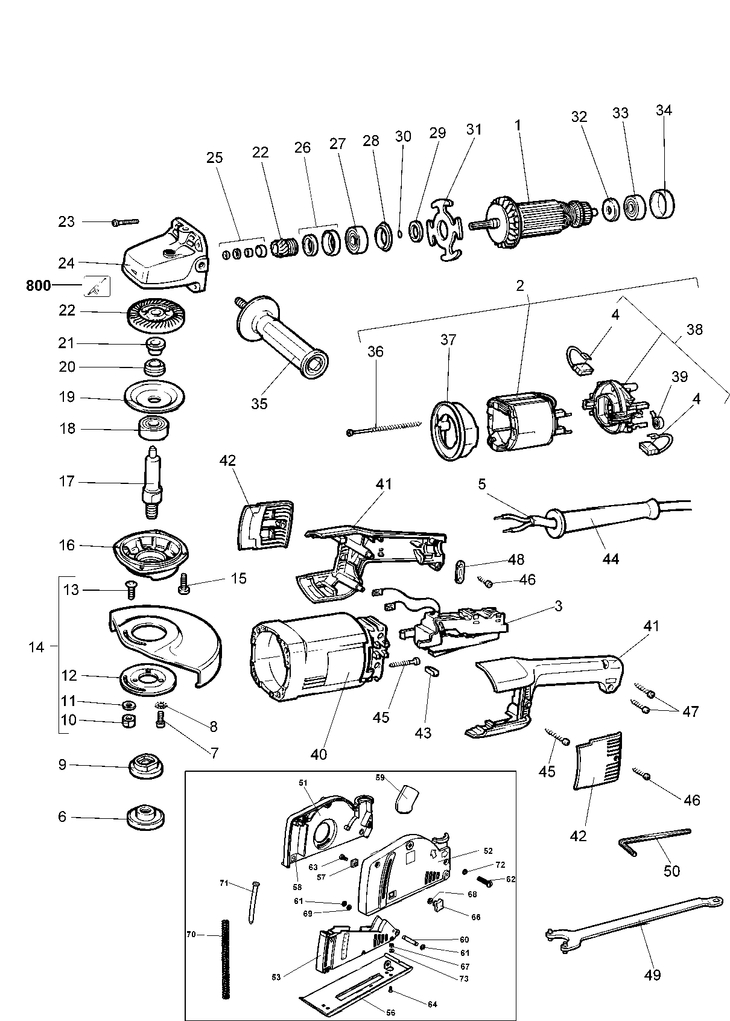

DW491 ANGLE GRINDER Type 2
[DW491 Type 2]
DW491 ANGLE GRINDER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 1 SA FIELD & BRUSHBOX 230V L/S ( SERVICE ) (949406-07) 59725 RON
3 1 1 000000-00 - Indisponibil
4 1 2 BRUSH 230V CUT OFF SA (403485-03) 4137 RON
5 1 1 CORD POWER SUPPLY (330080-53) 10512 RON
6 1 1 COLLAR SA FLANGE (931771) Indisponibil Indisponibil
7 1 3 SCREW (933058-00) 558 RON
8 1 3 WASHER SPRING (932369) 558 RON
9 1 1 FLANGE INNER (930927) 3018 RON
10 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
11 1 1 WASHER (930925) 781 RON
12 1 1 FLANGE (930929) 1452 RON
13 1 1 SCREW (949892-07) 781 RON
14 1 1 "SA WHEEL GUARD 9""" (931942-02) 9282 RON
15 1 4 SCREW M6 (949887-01) 558 RON
16 1 1 COVER GEARCASE M/C (947962-00) 3466 RON
17 1 1 SPINDLE M14 PACKED (578243-00) 10512 RON
18 1 1 BEARING (574853-11) 3466 RON
19 1 1 FLANGE (930924) 1229 RON
20 1 1 RING RETAINING (930923) 893 RON
21 1 1 SPACER (930922) 105 RON
22 1 1 000000-00 - Indisponibil
23 1 4 SCREW SELF DRIVE (930930) 558 RON
24 1 1 000000-00 - Indisponibil
25 1 1 SEAL COVER ASSEMBLY (937668) 1788 RON
26 1 1 SA RETAINER (930909) 3018 RON
27 1 1 BEARING (574853-09) 3018 RON
28 1 1 SEAL SA (931067-00) 190 RON
29 1 1 SPACER (931062-00) 1117 RON
30 1 1 O-RING (930028-00) 558 RON
31 1 1 FLANGE (931066-00) 2795 RON
32 1 1 SPACER (A3EG6) (N174055) 558 RON
33 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
34 1 1 SLEEVE (938332-00) 558 RON
35 1 1 SA SIDE HANDLE (933499) 3018 RON
36 1 2 SCREW SELF DRIVE (931072) 781 RON
37 1 1 FAN BAFFLE (402808-00) 105 RON
38 1 1 SA BRUSHBOX (949405-03) 11519 RON
39 1 2 000000-00 - Indisponibil
40 1 1 000000-00 - Indisponibil
41 1 1 SA HANDLE AND COVER (SERVICE) (N097875) 5591 RON
42 1 2 COVER BRUSH (933364-02) 893 RON
43 1 4 SHOCK ABSORBER (930934-00) 558 RON
44 1 1 "PROTECTOR CORD 11 6""" (947964-01) 190 RON
45 1 4 SCREW (931297-00) 893 RON
46 1 4 SCREW (931469-02) 558 RON
47 1 2 SCREW (930284-01) 558 RON
48 1 1 CORD CLAMP (931477-00) 781 RON
49 1 1 SA LAG WRENCH (938733) 2347 RON
50 1 1 KEY ALLEN 4MM A/F HEX * 70MM LONG (807043) 558 RON
51 1 1 000000-00 - Indisponibil
52 1 1 000000-00 - Indisponibil
53 1 1 GUARD (744114) 3592 RON
56 1 1 BASEPLATE (743765) 11519 RON
57 1 1 STOP (743803) 190 RON
58 1 2 SPACER (743839) 893 RON
59 1 1 NOZZLE (743758) 3018 RON
60 1 1 AXLE (743757) 105 RON
61 1 2 CIRCLIP (743696) 558 RON
62 1 2 SCREW (743953) 558 RON
63 1 1 SCREW (725502) 558 RON
64 1 5 SCREW (743847) 558 RON
66 1 1 KNOB SA (744324) 2124 RON
67 1 5 NUT (725123) 558 RON
68 1 1 WASHER (880391) 558 RON
69 1 1 WASHER (911532) 558 RON
70 1 1 SPRING (743951) 1229 RON
71 1 1 GUIDE (743855) 3018 RON
72 1 2 CIRCLIP (744377) 558 RON
73 1 5 WASHER (725269) 558 RON
800 1 1 GREASE 100 GM TUBE (575762-02) 5031 RON
800 1 1 GREASE (286436-00) 70239 RON
