Top » Piese de schimb » PIESE DEWALT » DW432 Type 1

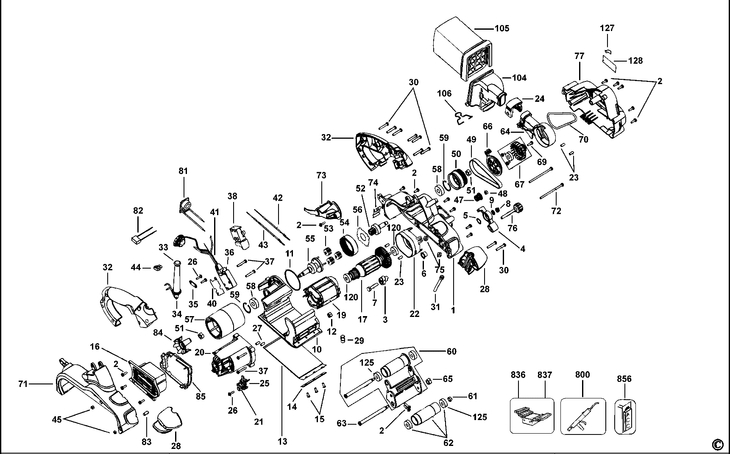

DW432 BELT SANDER Type 1
[DW432 Type 1]
DW432 BELT SANDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE (398028-00) 39145 RON
2 1 17 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
3 1 1 SHAFT SA (398097-00) 4472 RON
4 1 1 LEVER (398050-00) 2347 RON
5 1 1 SPRING (398074-00) 1452 RON
6 1 1 BUSHING (398064-00) 781 RON
7 1 1 SCREW (98023-25) 558 RON
8 1 1 NUT (397893-00) 558 RON
9 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
10 1 1 PLATEN (393745-00) 20467 RON
11 1 1 O RING (393758-00) 558 RON
12 1 1 NUT (398094-00) 781 RON
13 1 1 BASE PLATE (398080-00) 10512 RON
14 1 1 CLAMP (398049-00) 558 RON
15 1 3 SCREW (153637-04) 558 RON
16 1 1 COVER (398065-00) 2795 RON
17 1 1 ARMATURE & FAN (398076-01SV) 28296 RON
17 1 1 ARMATURE & FAN (398076-01SV) 28296 RON
19 1 1 FIELD (402051-04SV) 10512 RON
19 1 1 FIELD (402051-04SV) 10512 RON
20 1 1 FIELDCASE (393742-00) 3018 RON
22 1 1 BAFFLE (393747-00) 2124 RON
23 1 4 SMALL RUBBER (949638-02) 558 RON
24 1 1 COLLAR (398105-00) 105 RON
25 1 2 BRUSH HOLDER (398108-00) 4137 RON
26 1 4 SCREW (176951-00) 558 RON
27 1 2 PLUG (072412-00) 558 RON
28 1 1 HANDLE (398036-00) 5591 RON
29 1 2 ROLLER (615509-00) 558 RON
30 1 9 SCREW (330019-14) 558 RON
31 1 1 LOCKING SCREW (398098-00) 893 RON
32 1 1 HANDLE & COVER (398117-01) 7940 RON
33 1 1 PROTECTOR CORD (330005-01) 105 RON
35 1 1 CORD CLAMP DW309K (380414-00) 558 RON
37 1 6 SCREW (330045-07) 558 RON
38 1 1 SWITCH (619242-00) 5031 RON
40 1 1 PAD MODULE THERMAL (609468-00) 1229 RON
41 1 1 WIRE (612653-01) 3018 RON
42 1 1 LEAD WHITE (398078-00) 1117 RON
43 1 1 LEAD WHITE (398078-01) 1452 RON
44 1 1 TERMINAL BLOCK (398100-00) 893 RON
45 1 2 NUT (330015-01) 558 RON
47 1 1 DRIVE PULLEY (393741-00) 1117 RON
48 1 1 NUT (330015-04) 558 RON
49 1 1 BELT DRIVE (398029-00) 2124 RON
50 1 1 PULLEY (398030-00) 4137 RON
51 1 2 NUT (330015-09) 781 RON
52 1 1 SHAFT SA (398096-00) 12861 RON
53 1 3 GEAR (393753-00) 893 RON
54 1 1 GEAR (393755-00) 1452 RON
55 1 1 REPAIR KIT (N174784) 29862 RON
56 1 1 PLATE (393759-00) 190 RON
58 1 2 BEARING BALL 26 * 10 * 8 C3 (330003-63) 2347 RON
59 1 2 CIRCLIP (385244-00) 781 RON
60 1 1 YOKE SA (640257-00) 26730 RON
61 1 1 SPACER (398068-00) 893 RON
62 1 1 ROLLER (614545-00) 6821 RON
63 1 1 SHAFT (398039-00) 2124 RON
65 1 1 NUT (606899-00) 558 RON
66 1 1 BAFFLE (393746-00) 2124 RON
67 1 1 FAN (393743-00) 9282 RON
69 1 1 SCREW (330045-13) 558 RON
70 1 1 O RING (393749-01) 2795 RON
71 1 1 FRAME (398027-00) 15993 RON
72 1 2 SCREW (613099-00) 558 RON
73 1 1 BAFFLE (398083-00) 1452 RON
74 1 1 CLIP (398079-00) 781 RON
75 1 2 NUT GLC2000 (330015-02) 781 RON
76 1 1 KNOB (398070-00) 1452 RON
77 1 1 BELT COVER (398071-01) 15993 RON
81 1 1 POTENTIOMETER SA (398107-00) 12861 RON
82 1 1 CAPACITOR (398111-00) 3466 RON
83 1 1 PIN (617084-00) 558 RON
84 1 1 CAP (606902-00) 190 RON
85 1 1 BAFFLE (636658-00) 1229 RON
104 1 1 HOLDER (398082-00) 4472 RON
105 1 1 FRAME (398072-00) 5591 RON
106 1 1 CLIP (617085-00) 781 RON
120 1 2 BEARING BALL (330003-60) 190 RON
125 1 4 BEARING BALL (330003-60) 190 RON
127 1 1 LABEL (398115-00) 781 RON
128 1 1 WARNING LABEL (616067-00) 781 RON
800 1 1 GREASE (761995-01) 23598 RON
800 1 1 GREASE (761995-01) 23598 RON
836 1 1 559648-99 - Indisponibil
837 1 1 559649-99 - Indisponibil
856 1 1 BELT 80 GRIT (340608-01) 3018 RON
