Top » Piese de schimb » PIESE DEWALT » DW423 Type 1-2

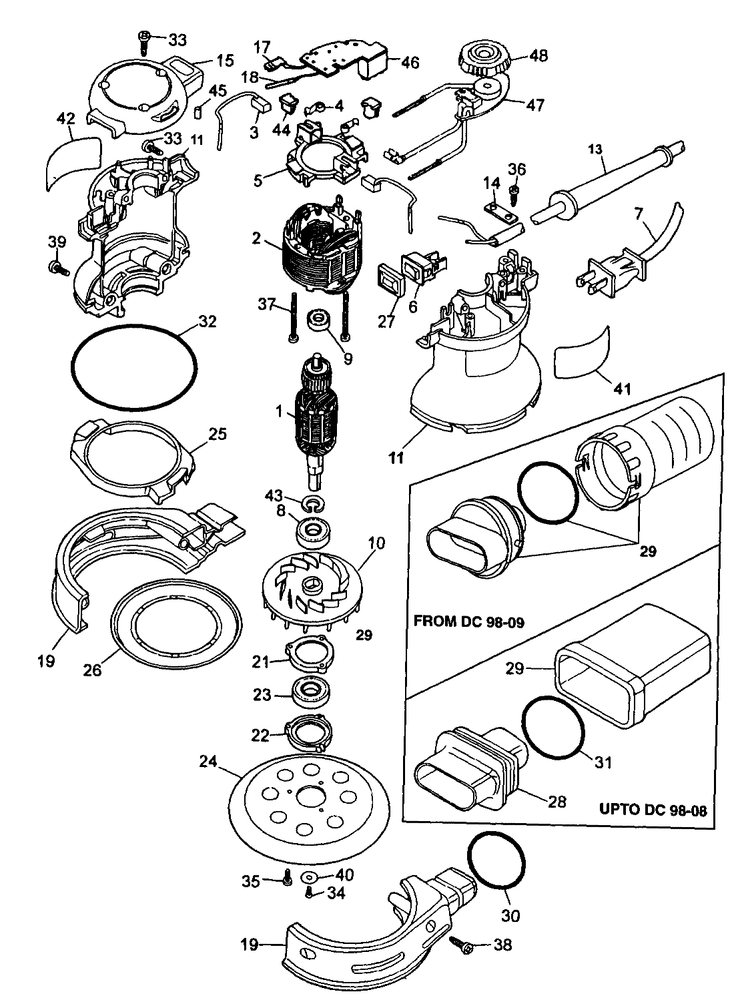

DW423 RANDOM ORBIT SANDER Type 1-2
[DW423 Type 1-2]
DW423 RANDOM ORBIT SANDER Type 1-2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARINGS 230V (SERVICE) (578863-04) 28296 RON
2 1 1 SA FIELD ( SERVICE ) (807254-10) 17335 RON
3 1 2 BRUSH 230V SA (445861-13) 2795 RON
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING (449899-05) 190 RON
6 1 1 656494-00 - Indisponibil
6 1 1 656494-00 - Indisponibil
7 1 1 330060-02 - Indisponibil
8 1 1 BEARING BALL (CE) (330003-17) 2795 RON
9 1 1 BEARING BALL 608 (330003-03) 1452 RON
10 1 1 FAN MACHINED (151548-01) 5031 RON
11 1 1 SA HOUSING (380382-04) 4137 RON
13 1 1 PROTECTOR CORD (330005-01) 105 RON
14 1 1 CORD CLAMP DW309K (380414-00) 558 RON
15 1 1 000000-00 - Indisponibil
17 1 1 TERMINAL (445964-00) 558 RON
18 1 1 CONNECTOR (825209-00) 558 RON
19 1 1 SHROUD SA (610078-00) 3466 RON
21 1 1 REPAIR KIT (286181-00) 2124 RON
22 1 1 RETAINER (603637-00) 190 RON
23 1 1 BEARING 6202 (868768-07) 4137 RON
24 1 1 PLATTEN MED 125MM use DW4388 (151281-08) 6821 RON
25 1 1 BAFFLE SANDER RO (151549-00) 1117 RON
26 1 1 SEAL (151553-01) 1452 RON
27 1 1 COVER SWITCH (144983-07) 558 RON
28 1 1 000000-00 - Indisponibil
29 1 1 SA DUST COLLECTOR (386856-00) 11519 RON
30 1 1 RING O (56194-00) 558 RON
31 1 1 000000-00 - Indisponibil
32 1 1 RING O (700871-00) 781 RON
33 1 4 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
34 1 1 SCREW MACHINE (98012-11) 558 RON
35 1 1 REPAIR KIT (286181-00) 2124 RON
36 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
37 1 2 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
38 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
39 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
40 1 1 WASHER CONE (151652-00) 558 RON
41 1 1 000000-00 - Indisponibil
43 1 1 "RING RET EXT.""" (151669-00) 558 RON
44 1 2 NUT (144956-00) 558 RON
45 1 1 PLUG RUBBER (67356-00) 558 RON
46 1 1 SA PCB BOARD (145283-03) 12861 RON
47 1 1 000000-00 - Indisponibil
48 1 1 KNOB (380027-00) 2795 RON
