DW392 UNIVERSAL SAW Type 1
[DW392 Type 1]
DW392 UNIVERSAL SAW Type 1

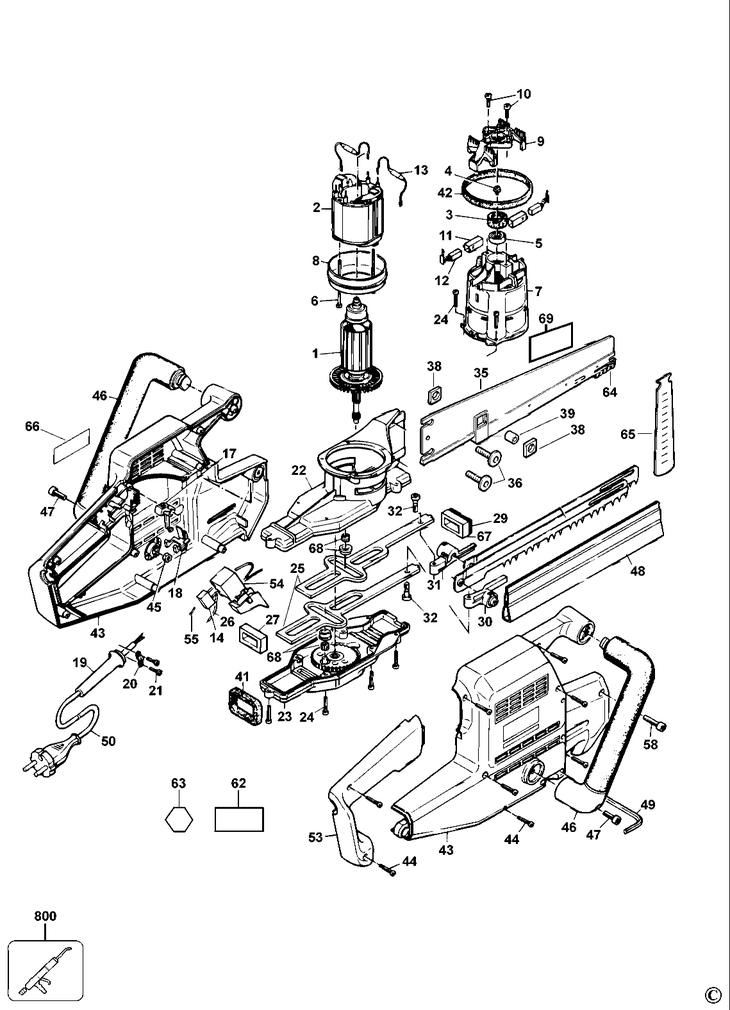

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE ( SERVICE ) (369453-04) 40599 RON
1 1 1 SA ARMATURE ( SERVICE ) (369453-06) 5484 RON
2 1 1 S.A.FIELD M65 ( SERVICE ) (373007-15) 20467 RON
2 1 1 S.A.FIELD M65 ( SERVICE ) (373007-17) 25164 RON
3 1 1 DAMPER. RING (911897) 781 RON
4 1 1 SCREW. AM4 X 12 DIN798 (322491) 558 RON
5 1 1 BEARING BALL (330003-19) 2124 RON
6 1 2 SCREW (916231) 558 RON
7 1 1 MOTOR. CARRIER. (322330) 3018 RON
8 1 1 FAN BAFFLE (916128) 781 RON
9 1 1 CLAMP. BRIDGE (322894) 893 RON
10 1 2 SCREW (911300) 558 RON
11 1 2 HOLDER. BRUSH. KPL. (323861-00) 3018 RON
11 1 2 BRUSH HOLDER (324055-00) 4137 RON
12 1 2 SPECIAL SCREW M6 BRUSH 230V SA (322950) Indisponibil Indisponibil
12 1 2 BRUSH HOLDER (324055-00) 4137 RON
13 1 2 CONTROLLER 100-120 VOLT S. A. LEADWIRE (321354) Indisponibil Indisponibil
14 1 1 GEAR CASE CAPACITOR X 0 1 F (321384) Indisponibil Indisponibil
17 1 1 BUTTON. LOCK- OFF (322369-00) 781 RON
18 1 1 LASER COVER LEVER (323136) Indisponibil Indisponibil
19 1 1 CORD PROTECTOR (770235) 558 RON
20 1 1 CLAMP CORD (821070) 558 RON
21 1 2 SCREW. 3 . 5 X 13 DIN798 (911324) 558 RON
22 1 1 SA GEAR BOX TOP (324817-00) 34336 RON
23 1 1 S. A. GEARBOX. BOTTOM (322667) 25164 RON
24 1 11 SCREW M4 (810091-00) 558 RON
25 1 1 SA REPAIR KIT (SERVICE) (1008559-01) 4825 RON
26 1 2 DAMPER SWITCH LEAD BLACK (878756) Indisponibil Indisponibil
27 1 1 BEARING. BLACK (322377) 2124 RON
29 1 1 SEAL. FELT (325990-00) 105 RON
30 1 1 S. A. BLADE CLAMP R/H (368469-00) 4472 RON
31 1 1 S. A. BLADE CLAMP L/H (368470-00) 4472 RON
32 1 1 BLADE CLAMP FASTENINGS (SERVICE) (495253-00) 5591 RON
35 1 1 BAR 17 INCH (N022429) 49771 RON
36 1 2 SCREW. M6 CSK. CAP (324776-00) 781 RON
38 1 2 DAMPER. BEARING (322661) 105 RON
39 1 1 BRUSHING (322662) 558 RON
41 1 1 DAMPER. BEARING (322659) 1117 RON
42 1 1 DAMPER. MOTOR (322660) 190 RON
43 1 1 CLAMSHELL SET YELLOW (325602-06) 1891 RON
44 1 9 SCREW (911325) 558 RON
45 1 2 NUT (911018) 558 RON
46 1 2 SPRING (C) HANDLE. LOGGER (323142) Indisponibil Indisponibil
47 1 2 SCREW (911281) 558 RON
48 1 1 GUARD. BLADE. MSU430 (322763-02) 3466 RON
49 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) Indisponibil Indisponibil
50 1 1 CORD POWER SUPPLY (330060-45) 22144 RON
50 1 1 000000-00 - Indisponibil
53 1 1 HANDLE COVER YELLOW (322363-06) 2795 RON
54 1 1 SWITCH. BLACK (325328-03) 14315 RON
55 1 4 SCREW (911026) 558 RON
58 1 1 322928 SCREW. HEX SKTM6 X 25 / 8 (322928) Indisponibil Indisponibil
62 1 1 WARNING LABEL (323504-00) 781 RON
63 1 1 LABEL BLADE FIT CLIP (325393-00) 893 RON
64 1 1 REPAIR KIT BLADE HOLDER ( SERVICE) (325824-49) 17335 RON
65 1 1 SLIDER. REINIGUNG (325882-00) 105 RON
66 1 1 LABEL BRAND DEWALT (578742-00) 1229 RON
67 1 1 BEARING SPEC.LUBRICATION SBI220 (325881-01) 3018 RON
68 1 2 SA REPAIR KIT (SERVICE) (1008559-01) 4825 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
