Top » Piese de schimb » PIESE DEWALT » DW383 Type 1

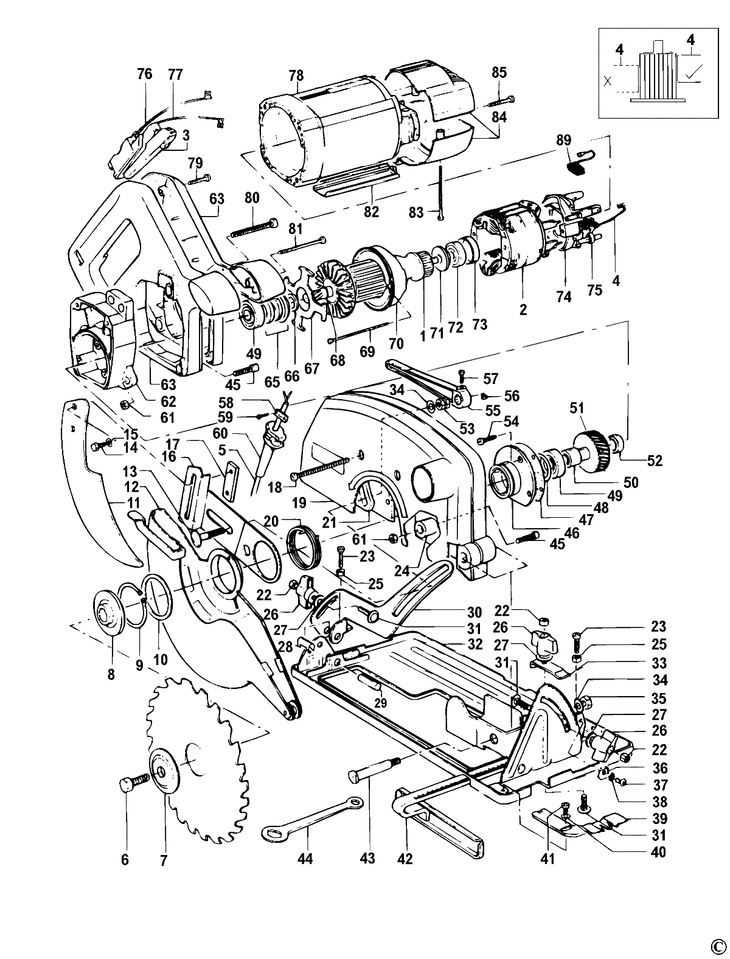

DW383 CIRCULAR SAW Type 1
[DW383 Type 1]
DW383 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 383 230V (868388-02) 117887 RON
1 1 1 ARMATURE 383 115V 931491 (868388-01) 129966 RON
2 1 1 DW882/383 STATOR (868531-02) 57488 RON
2 1 1 STATOR DW882 (868531-00) 129966 RON
3 1 1 SWITCH (949411-00) 25164 RON
3 1 1 SWITCH (949411-01) 15993 RON
4 1 1 BRUSH 230V (933371-00) 4137 RON
4 1 1 BRUSH (933370-00) 2795 RON
5 1 1 CABLE & PLUG (949770-12) 17335 RON
5 1 1 CABLE (949770-32) 22144 RON
6 1 1 BOLT (931022-00) 105 RON
7 1 1 FLANGE (931432-00) 1788 RON
8 1 1 FLANGE (931433-00) 15993 RON
9 1 1 CIRCLIP (931450-00) 893 RON
10 1 1 000000-00 - Indisponibil
11 1 1 KNIFE D23700 (625428-00) 4137 RON
12 1 1 GUARD (933411-00) 28296 RON
13 1 1 SCREW (931462-00) 1229 RON
14 1 2 HEXAGONAL HEAD SCREW (860085-15) 558 RON
15 1 2 TOOTHED WASHER DW320 (933055-00) 558 RON
16 1 1 PLATE (931443-00) 3018 RON
17 1 1 SUPPORT (931445-00) 781 RON
18 1 4 SCREW (931010-00) 893 RON
19 1 1 000000-00 - Indisponibil
20 1 1 SPRING (931430-00) 2795 RON
21 1 1 SUPPORT (931461-00) 105 RON
22 1 3 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
23 1 2 SCREW M5 (869076-00) 558 RON
24 1 1 STOP RUBBER (931451-00) 781 RON
25 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
26 1 3 NUT WING (931406-00) 781 RON
27 1 3 WASHER (931407-00) 558 RON
28 1 1 PIN (931419-00) 558 RON
29 1 1 PIN (931420-00) 781 RON
30 1 1 GUIDE (933415-00) 14315 RON
31 1 3 SCREW (931405-00) 558 RON
32 1 1 SHOE SA (933470-00) 43731 RON
33 1 1 LOCK (931484-00) 2795 RON
34 1 2 WASHER (933168-00) 781 RON
35 1 1 NUT (931449-00) 558 RON
36 1 1 INDICATOR (933410-00) 2347 RON
37 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
38 1 1 WASHER D4 (933652-00) 558 RON
39 1 1 POINTER (931408-00) 4137 RON
40 1 1 WASHER (930248-00) 558 RON
41 1 1 SCREW (931011-00) 558 RON
42 1 1 FENCE (931464-00) 3466 RON
43 1 1 PIN (931447-00) 2124 RON
44 1 1 SPANNER (931467-00) 2124 RON
45 1 2 SCREW SOCKET M.6X20 UNI 5931 (860093-05) 558 RON
46 1 1 COVER (933409-00) 9282 RON
47 1 1 GASKET (931065-00) 1452 RON
48 1 1 WASHER SPECIAL (931057-00) 558 RON
49 1 2 BEARING 6202 (868768-07) 4137 RON
50 1 1 SPACER (931437-00) 3018 RON
51 1 1 SPINDLE & GEAR DW383 (869219-03) 34336 RON
52 1 1 BEARING (N110358) 2347 RON
53 1 1 NUT (931463-00) 190 RON
54 1 1 SCREW (933058-00) 558 RON
55 1 1 LEVER (931460-00) 105 RON
56 1 1 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
57 1 1 SCREW (930224-00) 558 RON
58 1 1 CORD CLAMP (931477-00) 781 RON
59 1 2 SCREW (931469-02) 558 RON
60 1 1 CORD PROTECTOR (930981-00) 893 RON
60 1 1 CORD PROTECTOR (937325-00) 893 RON
61 1 3 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
62 1 1 GEARS HOUSING (931056-00) 1891 RON
63 1 1 HANDLE SA (932710-01) 28296 RON
65 1 1 SEAL SA (931067-00) 190 RON
66 1 1 SPACER (931062-00) 1117 RON
67 1 1 FLANGE (931066-00) 2795 RON
68 1 1 O-RING (930028-00) 558 RON
69 1 2 N412453 - Indisponibil
70 1 1 BAFFLE (931073-00) 1452 RON
71 1 1 SPACER (A3EG6) (N174055) 558 RON
72 1 1 BEARING 6000-2RSLTN9/C3LHT23 (868768-00) 3018 RON
73 1 1 SLEEVE (938332-00) 558 RON
74 1 1 SA BRUSH HOLDER (935745) 11519 RON
74 1 1 SA BRUSH HOLDER (935746) 12861 RON
74 1 1 SA BRUSH HOLDER (935746) 12861 RON
75 1 2 SPRING (931076-00) 558 RON
76 1 1 WIRE (931403-00) 190 RON
77 1 1 LEAD (949801-03) 1452 RON
78 1 1 S A FIELDCASE (DEWALT) (948134-02) 7940 RON
79 1 4 SELF TAPPING SCREW 4 2X22 TCR (933914-01) 558 RON
80 1 2 SCREW (931036-00) 558 RON
81 1 1 SCREW (930082-01) 558 RON
82 1 1 COVER (403207-00) 105 RON
83 1 2 SCREW (930752-00) 781 RON
84 1 1 END CAP SA (932711-01) 4472 RON
85 1 2 SCREW (931297-00) 893 RON
89 1 1 BRUSH 115-230V SA (940160-01) 4472 RON
89 1 1 BRUSH CUT OFF (940160-00) 9282 RON
