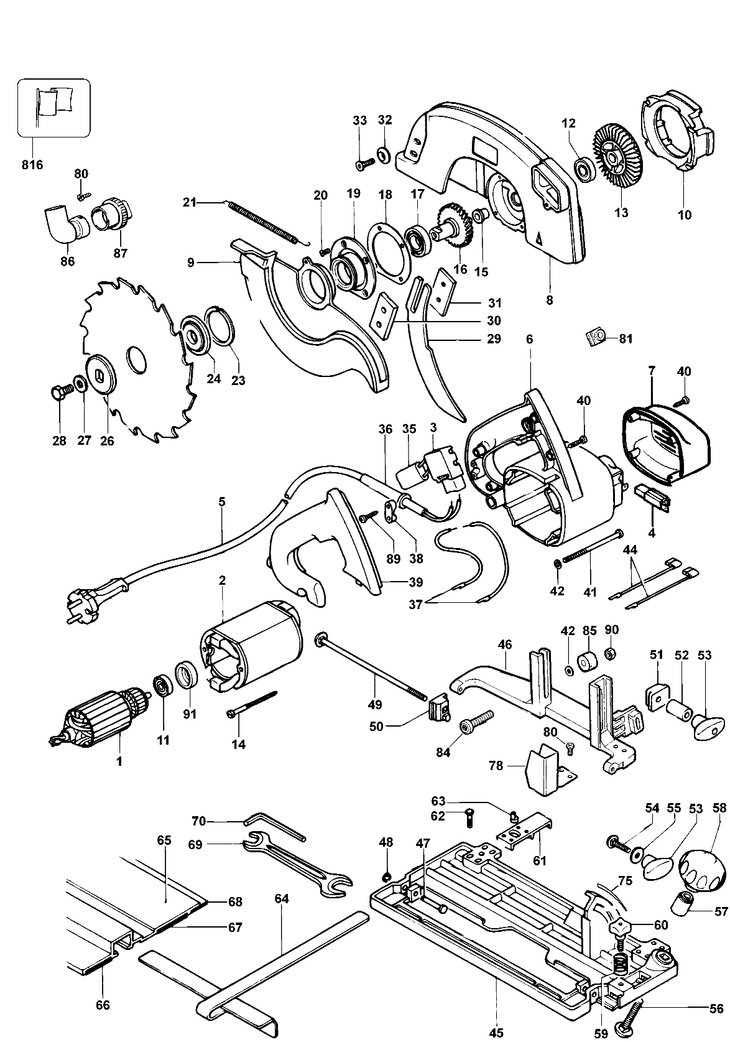

DW365 CIRCULAR SAW Type 5
[DW365 Type 5]
DW365 CIRCULAR SAW Type 5
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 240V (487029-50) 74937 RON
1 1 1 ARMATURE MH165 TYPE 5 (487027-50) 80865 RON
1 1 1 ARMATURE 115V (487028-50) 70239 RON
2 1 1 FIELD 115/120V (165102101) 32770 RON
2 1 1 FIELD (165102100) 34336 RON
2 1 1 FIELD (165102100) 34336 RON
3 1 1 SWITCH (590976-00) 3466 RON
4 1 2 BRUSH HOLDER (247059-00) 6821 RON
4 1 2 BRUSH HOLDER (247059-00) 6821 RON
4 1 2 BRUSH HOLDER 115V MH 151/33 6 4X10 (247405-00) 10512 RON
5 1 1 CORDSET (378990) 17335 RON
5 1 1 CORDSET GB (379092) 17335 RON
6 1 1 MOTOR HOUSING SA DW351 (487015-01) 9282 RON
7 1 1 END CAP MH151 (247054-15) 190 RON
8 1 1 GUARD (379586-00) 37579 RON
9 1 1 LOWER GUARD (247058-00) 1891 RON
10 1 1 FAN BAFFLE (247049-00) 1452 RON
11 1 1 BEARING (N110358) 2347 RON
12 1 1 BEARING BALL (CE) (330003-17) 2795 RON
13 1 1 FAN (247056-00) 190 RON
14 1 2 SCREW (247088-00) 781 RON
15 1 1 HOUSING BEARING (247084-00) 1788 RON
16 1 1 GEAR SA (329566-00) 25164 RON
17 1 1 LAGER 15X32X9 (156830001) 5591 RON
18 1 1 GASKET (247076-00) 781 RON
19 1 1 HOUSING BEARING (247069-01) 15993 RON
20 1 4 SCREW M4X10 (720685-00) 558 RON
21 1 1 SPRING (247087-01) 1117 RON
23 1 1 RING (247092-00) 893 RON
24 1 1 WASHER INNER CLAMP (247075-00) 3018 RON
26 1 1 WASHER OUTER CLAMP (247070-00) 3466 RON
27 1 1 WASHER (249218-00) 558 RON
28 1 1 SCREW (249409-10) 558 RON
29 1 1 RIVING KNIFE (247065-00) 5591 RON
30 1 1 CLAMP LH PLATE (247151-00) 190 RON
31 1 1 CLAMP RH PLATE (247152-00) 2795 RON
32 1 2 WASHER (249129-01) 893 RON
33 1 2 SCREW (249421-01) 781 RON
35 1 1 GEAR CASE CAPACITOR X 0 1 F (321384) Indisponibil Indisponibil
36 1 1 CORD PROTECTOR (916969) 558 RON
37 1 2 LEAD (157164500) 781 RON
38 1 1 CABLE CLAMP MH151 (378975) 558 RON
39 1 1 COVER (324617-11) 3018 RON
40 1 6 SCREW (949896-12) 558 RON
41 1 4 SCREW (101811100) 781 RON
42 1 5 WASHER DW636 (093820600) 558 RON
44 1 2 LEAD 100MM RED (247335-00) 781 RON
45 1 1 SHOE SA (247048-11) 23598 RON
46 1 1 BRACKET (247051-10) 20467 RON
47 1 2 BOLT (055817000) 781 RON
48 1 2 RING RADIAL SPRING D4 UNI7434 (860322-03) 558 RON
49 1 1 SCREW (249407-01) 2124 RON
50 1 1 CLAMP (247072-00) 2124 RON
51 1 1 CLAMP (247074-00) 2347 RON
52 1 1 BUSH (247736-00) 1117 RON
53 1 2 NUT (071921305) 1117 RON
54 1 1 SCREW (249406-02) 558 RON
55 1 1 WASHER (249092-20) 558 RON
56 1 1 BOLT (249406-11) 781 RON
57 1 1 BUSH MH165 TYPE 5 (247090-01) 1229 RON
58 1 1 HANDLE (379019) 190 RON
59 1 1 SPRING (868082-00) 558 RON
60 1 1 SCREW.SPECIAL (744325) 105 RON
61 1 2 LUG (249116-00) 2347 RON
62 1 8 SCREW THREAD CUTTING o3.99.5 PAN HEAD (249416-06) 558 RON
63 1 1 ECCENTRIC (249119-00) 893 RON
64 1 1 FENCE (249226-00) 4137 RON
65 1 1 000000-00 - Indisponibil
66 1 1 RUBBER STRIP (088207058) 5591 RON
67 1 1 RUBBER STRIP (088207058) 5591 RON
68 1 1 RUBBER STRIP (088207057) 4472 RON
69 1 1 FIXED WRENCH 13X17 (941580-00) 3018 RON
70 1 1 ALLEN KEY (247411-00) 781 RON
75 1 1 SCALE (249276-00) 893 RON
78 1 1 GUARD MH165 TYPE 5 (247636-01) 2347 RON
80 1 3 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
81 1 1 000000-00 - Indisponibil
84 1 1 SCREW (249424-03) 781 RON
85 1 1 STOP MH165 TYPE 5 (487032-00) 4472 RON
86 1 1 ADAPTOR (247751-00) 2124 RON
87 1 1 SOCKET (182275701) 5031 RON
89 1 2 SCREW THREAD CUTTING o3.99.5 PAN HEAD (249416-06) 558 RON
90 1 1 NUT (725698) 558 RON
91 1 1 BEARING COVER (935030) 781 RON
816 1 1 BRAND LABEL (329307-00) 190 RON
