Top » Piese de schimb » PIESE DEWALT » DW351 Type 7

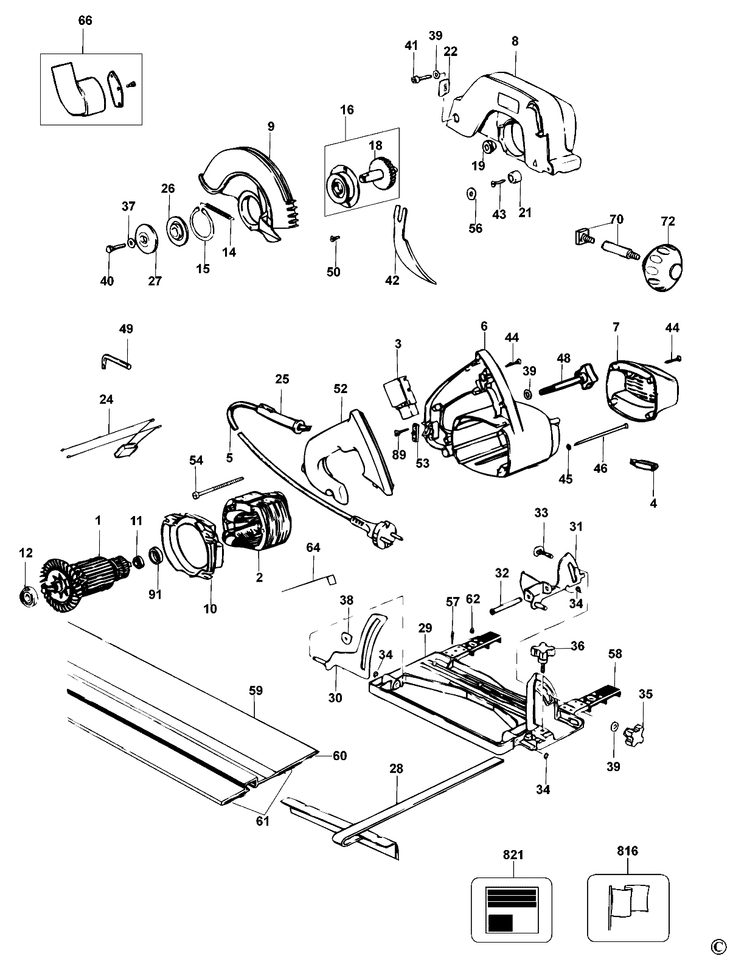

DW351 CIRCULAR SAW Type 7
[DW351 Type 7]
DW351 CIRCULAR SAW Type 7
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (590706-00) 49771 RON
1 1 1 000000-00 - Indisponibil
2 1 1 FIELD 230V (590705-00) 22144 RON
2 1 1 FIELD 115V (590712-00) 22144 RON
3 1 1 SWITCH (590976-00) 3466 RON
4 1 2 BRUSH 230V SA (247533-11) 4137 RON
4 1 2 000000-00 - Indisponibil
5 1 1 CORDSET GB (379092) 17335 RON
5 1 1 CORDSET (378990) 17335 RON
6 1 1 FIELD CASE KIT (591211-21) 12861 RON
7 1 1 COVER REAR (247054-20) 2124 RON
8 1 1 000000-00 - Indisponibil
9 1 1 GUARD (940970-01) 9282 RON
10 1 1 BAFFLE FAN (590700-00) 1229 RON
11 1 1 BEARING (N110358) 2347 RON
12 1 2 000000-00 - Indisponibil
14 1 1 SPRING (248813-00) 893 RON
15 1 1 RING SPRING SHAFT D38 UNI7435 (860079-05) 781 RON
16 1 1 COVER SA (590729-00) 23598 RON
18 1 1 000000-00 - Indisponibil
19 1 1 BEARING (151980150) 2124 RON
21 1 1 BUMPER (761306-00) 781 RON
22 1 1 000000-00 - Indisponibil
24 1 1 CAPACITOR 220/240 (590710-00) 2347 RON
24 1 1 CAPACITOR 115V (590715-00) 3466 RON
25 1 1 CORD PROTECTOR (916969) 558 RON
26 1 1 CLAMP (590697-00) 2795 RON
27 1 1 CLAMP OUTER (590698-00) 105 RON
28 1 1 FENCE (249226-00) 4137 RON
29 1 1 TABLE (151115101) 14315 RON
30 1 1 SWIVEL SUPPORT (248864-00) 4472 RON
31 1 1 BRACKET SA MH151 (378929-00) 5591 RON
32 1 1 SPINDLE (249107-00) 1117 RON
33 1 1 SCREW (249406-00) 558 RON
34 1 3 RING RADIAL SPRING D4 UNI7434 (860322-03) 558 RON
35 1 1 KNOB SA (744324) 2124 RON
36 1 1 SCREW.SPECIAL (744325) 105 RON
37 1 1 WASHER (725342) 558 RON
38 1 1 NUT (151112400) 1452 RON
39 1 3 WASHER (249221-00) 558 RON
40 1 1 SCREW (744323) 558 RON
41 1 1 SCREW (249408-10) 558 RON
42 1 1 RIVING KNIFE (248863-00) 4137 RON
43 1 1 SCREW (249403-00) 781 RON
44 1 6 SCREW (249437-01) 558 RON
45 1 4 WASHER DW636 (093820600) 558 RON
46 1 4 SCREW (101811100) 781 RON
48 1 1 SCREW WING (248866-00) 3018 RON
49 1 1 WRENCH (725927) 781 RON
52 1 1 COVER (324617-11) 3018 RON
53 1 1 CABLE CLAMP MH151 (378975) 558 RON
54 1 2 000000-00 - Indisponibil
56 1 1 WASHER (142930194) 558 RON
57 1 8 SCREW (249437-00) 558 RON
58 1 2 LUG (249116-00) 2347 RON
59 1 1 000000-00 - Indisponibil
60 1 2 RUBBER STRIP (088207058) 5591 RON
61 1 1 RUBBER STRIP (088207057) 4472 RON
62 1 1 ECCENTRIC (249119-00) 893 RON
64 1 2 LEAD 100MM RED (590711-00) 1117 RON
64 1 2 LEAD 100MM RED (590716-00) 1117 RON
66 1 1 EXTRACTOR (248021-00) 9282 RON
70 1 1 SPINDLE SA DW351 (378295) 4137 RON
72 1 1 HANDLE (379019) 190 RON
89 1 2 SCREW THREAD CUTTING o3.99.5 PAN HEAD (249416-06) 558 RON
91 1 1 SLEEVE (590708-00) 893 RON
816 1 1 BRAND LABEL (329307-00) 190 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
