DW3501 BANDSAW Type 1
[DW3501 Type 1]
DW3501 BANDSAW Type 1
Click pentru a mari
Imagini suplimentare
DW3501 BANDSAW Type 1
Click pentru a mari
DW3501 BANDSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 000000-00 - Indisponibil
102 1 2 SCREW PAN.PHAB 2.9X16 UNI6954 (860084-08) 558 RON
103 1 1 EICHOFF 3HP CE (861270-00) 25164 RON
103 1 1 000000-00 - Indisponibil
103 1 1 000000-00 - Indisponibil
103 1 1 000000-00 - Indisponibil
103 1 1 000000-00 - Indisponibil

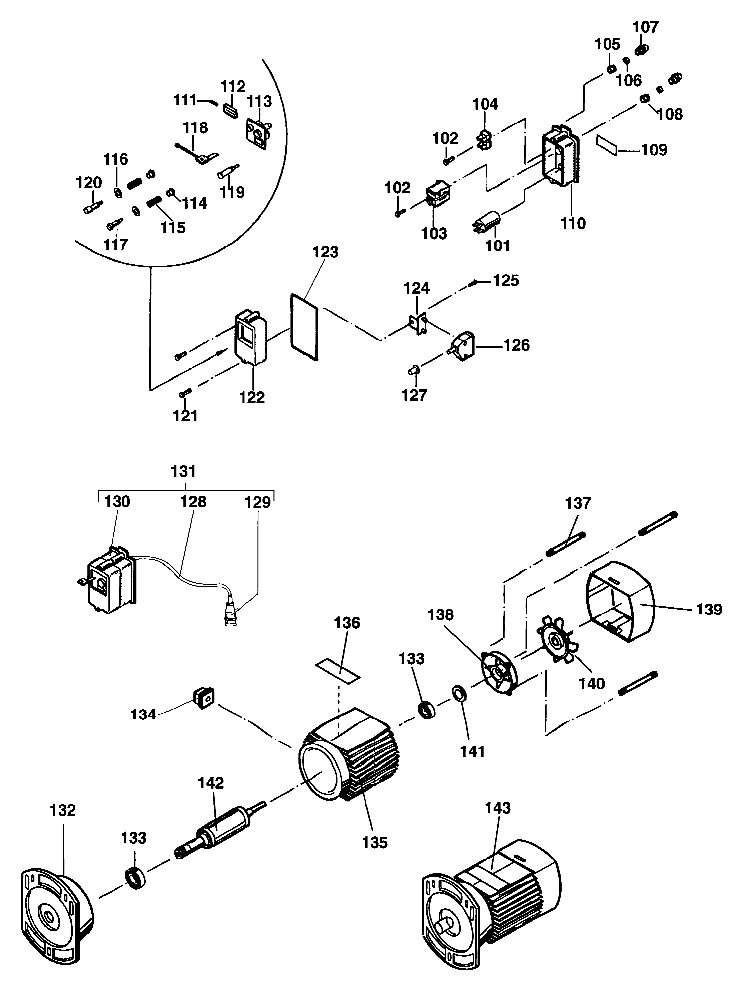

104 1 1 CONNECTOR BOX 4 POLES 4 SQMM (860468-02) 2347 RON
104 1 1 CONNECTOR BOX 3 POLES 4 SQMM (860468-00) 190 RON
105 1 2 BUSHING CABLE D.9.5 (860452-00) 781 RON
106 1 2 CLAMP CABLE(CLAW) PG 13.5 (860463-00) 1788 RON
107 1 2 CLAMP CABLE(NUT) PG 13.5 (860462-00) 1117 RON
108 1 1 BUSHING CABLE D.12.5 (860452-01) 781 RON
109 1 1 000000-00 - Indisponibil
109 1 1 000000-00 - Indisponibil
109 1 1 000000-00 - Indisponibil
109 1 1 000000-00 - Indisponibil
109 1 1 000000-00 - Indisponibil
110 1 1 BOX SWITCH(BOTTOM) 151X85 (860459-00) 7940 RON
111 1 1 SPRING PUSHER D.6XD.0.5X14 (860112-06) 1788 RON
112 1 1 LOCK BUTTON(SLIDE)SWITCH BOX (860469-00) 190 RON
113 1 1 TASSELLO PORTAPULS.IMP.UNIF (860461-01) 4472 RON
114 1 2 GASKET D.5 FOR BUTTON (860466-00) 558 RON
115 1 2 SPRING PUSHER D.11.3XD.0.8X16 (860112-05) 1788 RON
116 1 2 RING SPRING S.LOCK D.4 (860077-01) 558 RON
117 1 1 BUTTON RED D.21 (860464-00) 558 RON
118 1 1 KEY+CHAIN L.60 DW3400 (863301-00) 2795 RON
119 1 1 WARNING LIGHT (949785-03) 15993 RON
119 1 1 WARNING LIGHT................D (949785-02) 2795 RON
120 1 1 BUTTON GREEN D.21 (860465-00) 558 RON
121 1 2 SCREW PAN.PHAB 4.2X32 UNI6954 (860084-07) 558 RON
122 1 1 BOX SWITCH(COVER) 151X85 (860460-00) 5591 RON
123 1 1 BOX GASKET (863122-01) 2347 RON
124 1 1 000000-00 - Indisponibil
125 1 1 SCREW PAN.PHAB 3.5X13 UNI6954 (860084-04) 558 RON
126 1 1 863124-15 - Indisponibil
127 1 1 CAP FOR MICRO SWITCH.........D (863118-00) 893 RON
128 1 1 CABLE LINE MT3 3X1+PLUG CEE 7 (860472-00) 12861 RON
128 1 1 CABLE LINE MT3 3X1+PLUG CEE 7 (860472-00) 12861 RON
128 1 1 000000-00 - Indisponibil
128 1 1 000000-00 - Indisponibil
128 1 1 000000-00 - Indisponibil
128 1 1 000000-00 - Indisponibil
128 1 1 CABLE LINE H07RN-F 4X1 L.3000 (860618-00) 12861 RON
129 1 1 PLUG CEE 17 3P+N+T (860637-00) 7940 RON
130 1 1 000000-00 - Indisponibil
130 1 1 000000-00 - Indisponibil
130 1 1 000000-00 - Indisponibil
130 1 1 000000-00 - Indisponibil
130 1 1 000000-00 - Indisponibil
130 1 1 000000-00 - Indisponibil
130 1 1 000000-00 - Indisponibil
131 1 1 000000-00 - Indisponibil
131 1 1 000000-00 - Indisponibil
131 1 1 000000-00 - Indisponibil
131 1 1 000000-00 - Indisponibil
131 1 1 000000-00 - Indisponibil
132 1 1 BELL FRONT END MTR CAST.3400 (860442-01) 14315 RON
133 1 1 BEARING 6202 (868768-07) 4137 RON
134 1 1 BUSHING CABLE MOTOR DW 320 (860447-00) 4137 RON
135 1 1 STATOR+HOUSING DW3401 86431303 (868412-01) 129966 RON
135 1 1 000000-00 - Indisponibil
136 1 1 000000-00 - Indisponibil
136 1 1 000000-00 - Indisponibil
137 1 4 TIE ROD......................D (863119-00) 893 RON
138 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
139 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
140 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
141 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
142 1 1 ROTOR DW3401 (868532-00) 62298 RON
142 1 1 COMPLETE ROTOR DW3501 (868439-00) 4825 RON
143 1 1 000000-00 - Indisponibil
143 1 1 000000-00 - Indisponibil
144 1 2 SCREW CTSKPHAB 4.2X19UNI 6955 (860428-00) 558 RON

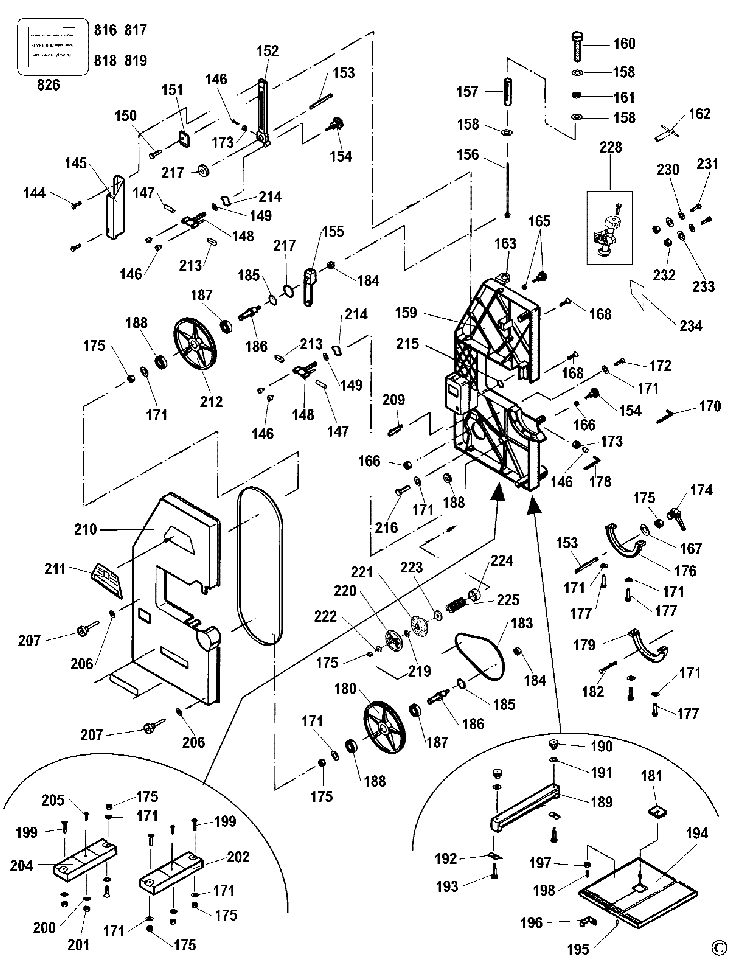

145 1 1 BAND SAW GUARD...............D (863263-01) 3466 RON
146 1 1 SOCKET SCREW TYPE-A (949853-02) 558 RON
147 1 2 GUIDE BLOCK AT 45 BS1310 (863797-00) 781 RON
148 1 2 BAND SAW GUIDE BLOCKS........D (862183-01) 5031 RON
149 1 2 RING SPRING S.LOCK.D.10 (860077-00) 558 RON
150 1 1 SQUARE HEAD BUTTON SCREW (949891-04) 893 RON
151 1 1 PLATE FOR GUIDE ROD..........D (863126-00) 1452 RON
152 1 1 "GUIDEBLADE BAR DW738-9 ""A2""" (862012-01) 5591 RON
153 1 2 BEARING PIN (863795-00) 190 RON
154 1 2 BLADE SETTING RING...........D (863128-00) 2124 RON
155 1 1 UPPER BAND WHEEL BRACKET.....D (862188-00) 2795 RON
156 1 1 SCREW M6X150.................D (949891-02) 3018 RON
157 1 1 SPRING 14X3X105..............D (949722-04) 781 RON
158 1 3 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
159 1 1 000000-00 - Indisponibil
160 1 1 BLACK KNOB D.40X82 DW3501-3 (863471-00) 4137 RON
161 1 1 BEARING REG 6/14/N (949755-02) 2347 RON
162 1 1 WRENCH TUBULAR HEX.13 - 10 (service) (869235-00) 4137 RON
163 1 1 GUIDE BUSHING DW3400 (863287-00) 558 RON
165 1 1 KNOPF (31900) 105 RON
166 1 3 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
167 1 2 WASHER D.8 4X24X2 (941602-00) 558 RON
168 1 2 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
170 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
171 1 17 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
172 1 1 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
173 1 2 NUT HEX THIN M.5 UNI 5589 (860083-18) 558 RON
174 1 1 000000-00 - Indisponibil
175 1 7 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
176 1 1 TILTING CRESCENT.............D (862184-02) 3466 RON
177 1 4 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
178 1 1 HEXAGONAL WRENCH L. MM.110 M (949882-03) 781 RON
179 1 1 PLANE SECTOR DW3400 (862184-01) 3466 RON
180 1 1 DRIVING BAND WHEEL-ALUM. (864550-02) 53015 RON
181 1 1 BLACK TABLE INSERT DW3501-3 (863467-00) 190 RON
182 1 1 CUP HEAD SCREW M8X80 (949891-07) 1452 RON
183 1 1 DRIVING BELT DW739 (949754-03) 11519 RON
184 1 4 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
185 1 2 RING (949745-01) 781 RON
186 1 2 WHEEL AXLE DW3400 (863299-00) 7940 RON
187 1 2 BEARING 6200 (861721-06) 2124 RON
188 1 4 BEARING (N110358) 2347 RON
189 1 1 "S/A TABLE FENCE DW738-9 ""A2""" (869175-00) 14315 RON
190 1 2 KNOB (946469-00) 781 RON
191 1 2 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
192 1 2 RABBET BLOCKING PULLEY DW3400 (862205-90) 1117 RON
193 1 2 SCREW 6X65 (949702-17) 781 RON
194 1 1 "WORKING TABLE DW738-9 ""A2""" (862203-02) 91714 RON
195 1 1 PIN FOR HOLE 5X14 7588 (949734-05) 781 RON
196 1 1 CONNECTION TABLE PLATE DW3400 (863257-00) 1117 RON
197 1 1 GRUB SCREW 5X20 (949853-09) 558 RON
198 1 1 INSERT M5 (949760-02) 1117 RON
199 1 3 SCREW CUP SQUARE M8X60UNI5732 (860301-09) 781 RON
200 1 2 WASHER FLAT 10.5X21 UNI6592 Z (860073-04) 558 RON
201 1 2 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
202 1 1 RIGHT SIDE BASE DW3400 (863150-02) 11519 RON
203 1 1 SCREW (942043-00) 781 RON
204 1 1 LEFT SIDE BASE DW3400 (863149-02) 11519 RON
205 1 2 HEXAGONAL HEAD SCREW (11154) 781 RON
206 1 2 RETAINING RING D.6 (949745-02) 558 RON
207 1 2 BLACK KNOB+SCREW M6X40 (863468-02) 893 RON
209 1 1 BRUSH (863801-00) 2124 RON
210 1 1 000000-00 - Indisponibil
211 1 1 000000-00 - Indisponibil
212 1 1 DRIVEN BAND WHEEL-ALUM. (864550-01) 49771 RON
213 1 2 GUIDE BLOCK AT 90 BS1310 (863796-00) 781 RON
214 1 2 CORRUGATED WASHER EPL4 (949873-01) 558 RON
215 1 1 RETAINING RING D.22 (949727-03) 558 RON
216 1 1 SCREW SOCKET M.8X40 UNI 5931 (860093-04) 781 RON
217 1 1 WASHER FLAT 10 5X18 UNI 6592 (860073-06) 558 RON
219 1 1 WASHER-TRST 10X16X1 2 DIN 988 (860076-03) 558 RON
220 1 1 FIXED PULLEY DW3501 (862186-90) 4472 RON
221 1 1 MOBILE PULLEY+BUSHING- DW739 (867072-00) 12861 RON
222 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
223 1 1 WASHER D.30X24X1 (945633-00) 3466 RON
224 1 1 CAP FOR SPRING (863127-01) 190 RON
225 1 1 SPRING (863274-00) 1452 RON
225 1 1 SPRING 27 X 2 8 X 54 9 LEFT (949722-17) 558 RON
228 1 1 SPIRAL SUPP.+KNOB (862449-00) 32770 RON
230 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
231 1 2 SCREW HEX M.5X20 UNI 5739 (860085-11) 558 RON
232 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
233 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
234 1 1 VARIABLE SPEED LABEL (31484) 190 RON

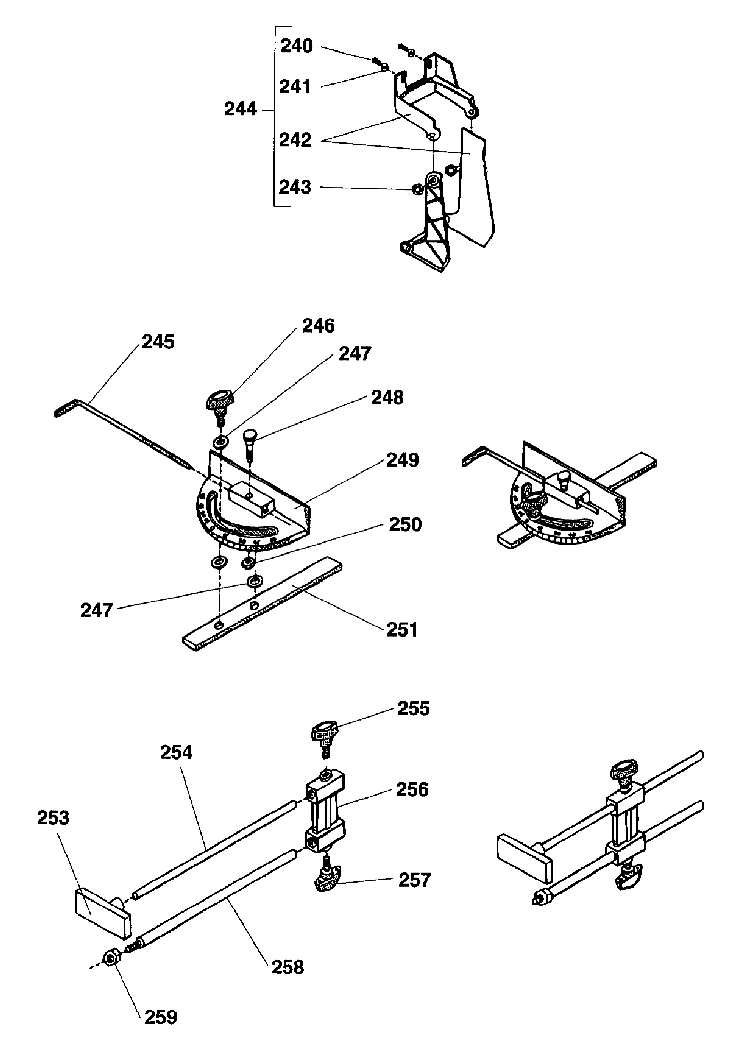

240 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
241 1 1 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
242 1 1 BLACK SWINGING PROTECTION (862446-00) 9282 RON
243 1 1 RING SPRING S.LOCK D.8 (860077-02) 558 RON
244 1 1 BLACK SWINGING PROTECTION (862446-00) 9282 RON
245 1 1 GAUGE (863844-00) 1229 RON
246 1 1 KNOB (861452-01) 781 RON
247 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
248 1 1 000000-00 - Indisponibil
249 1 1 "SCALE DW738-9 ""A2""" (862007-01) 5591 RON
250 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
251 1 1 BAR (863803-00) 6821 RON
253 1 1 GAUGE FOOT DW12-MC20 (863746-00) 9282 RON
254 1 1 FOOT BAR (863811-00) 5591 RON
255 1 1 WING SCREW (864016-00) 105 RON
256 1 1 GAUGE CROSS BAR DW12 (862004-00) 4472 RON
257 1 1 WING SCREW (864016-00) 105 RON
258 1 1 LOCATION BAR DW3400 (863804-00) 5591 RON
259 1 1 NUT MB10 (949726-07) 558 RON
826 1 1 000000-00 - Indisponibil
826 1 1 000000-00 - Indisponibil
