Top » Piese de schimb » PIESE DEWALT » DW341K Type 3

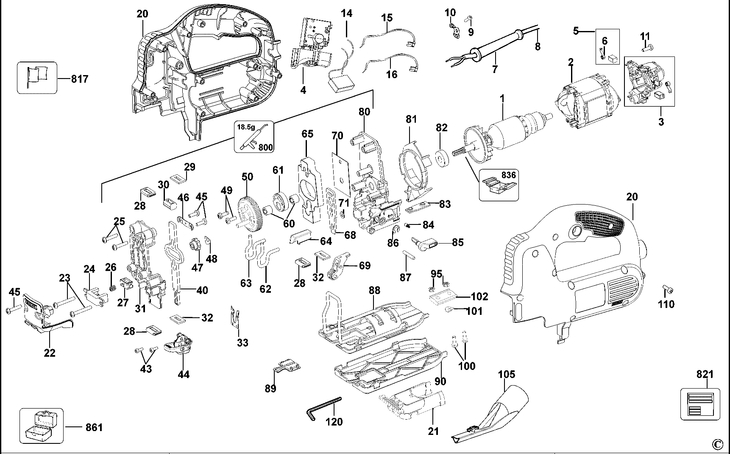

DW341K JIGSAW Type 3
[DW341K Type 3]
DW341K JIGSAW Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE 230V (SERVICE) (494036-00) 22144 RON
1 1 1 SA ARMATURE 115V (SERVICE) (494036-01) 3592 RON
2 1 1 SA FIELD 230V (SERVICE) (494038-00) 1891 RON
2 1 1 SA FIELD 115V (SERVICE) (494038-01) 22144 RON
3 1 1 BRUSH PAIR 230V and BRUSH BOX (494043-00) 9282 RON
3 1 1 BRUSH PAIR 115V and BRUSH BOX (494043-01) 11519 RON
4 1 1 SWITCH DEFOND DGQ 250VAC (N055693) 6821 RON
4 1 1 SWITCH DEFOND DGQ 125VAC (N055694) 7940 RON
5 1 1 BRUSH PAIR 230V SA (SUBA) (494040-00) 3466 RON
5 1 1 BRUSH PAIR 115V SA (494040-01) 3466 RON
6 1 2 SPRING BRUSH (445860-00) 558 RON
7 1 1 "CORD PROTECTOR EPDM 770010""" (584090-00) 1117 RON
8 1 1 CORD PWR SUPPLY (330060-07) 14315 RON
8 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
9 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
10 1 1 CLAMP CORD (821070) 558 RON
11 1 2 SCREW PLSTC THD FORM M3.5 X 30 (330065-27) 558 RON
14 1 1 CAPACITOR X O 33mF (N065873) 190 RON
14 1 1 CAPACITOR X O 33mF (N065873) 190 RON
15 1 1 BLACK CHOKE (N059906) 2347 RON
15 1 1 LEADWIRE (N059304) 781 RON
16 1 1 RED CHOKE (N059905) 2347 RON
16 1 1 LEADWIRE (N059305) 781 RON
20 1 1 SA CLAMSHELL SET TOP HANDLE (SERVICE) (N064927) 12861 RON
21 1 1 SCREEN (1005041-00) 781 RON
22 1 1 SA FACIA CASTING (SERVICE) (494042-00) 5591 RON
23 1 1 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
24 1 1 BEARING CARRIER (490331-00) 1788 RON
25 1 2 SCREW (330045-07) 558 RON
26 1 1 COMPRESSION SPRING (490457-00) 558 RON
27 1 1 BOTTOM BEARING (490330-00) 105 RON
28 1 3 PRESSING SEAL (582262-00) 558 RON
29 1 1 FELT SEAL (487900-00) 558 RON
30 1 1 TOP BEARING (490329-00) 105 RON
31 1 1 SA GEAR CASE FRONT (SERVICE) (494044-00) 5591 RON
32 1 2 SEAL FELT (582263-00) 558 RON
33 1 1 SCUFF PLATE (494271-00) 558 RON
40 1 1 SA RECIP SHAFT (SERVICE) (494045-00) 6821 RON
43 1 2 SCREW (370167) 558 RON
44 1 1 SA BLADE CLAMP (SERVICE) cod vechi 493743-00 (N542463) 9282 RON
45 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
46 1 1 CLAMP BEARING (582261-00) 558 RON
47 1 1 SA DRIVE BEARING (582257-00) 3466 RON
48 1 1 WAVY WASHER (479820-00) 781 RON
49 1 2 SCREW PANHEAD M4x12 (324007-07) 558 RON
50 1 1 SA GEAR AND PIN (SERVICE) (N026207) 15993 RON
60 1 2 BEARING NEEDLE (330004-01) 1452 RON
61 1 1 SA ECCENTRIC (SERVICE) (494053-00) 4137 RON
62 1 1 GUARD L/H (491122-00) 1117 RON
63 1 1 GUARD R/H (491123-00) 105 RON
64 1 1 NOZZLE (479203-00) 558 RON
65 1 1 SA COUNTERBALANCE SINTERED (SERVICE) (494055-00) 9282 RON
68 1 1 SA TIMING FORK (SERVICE) (494056-00) 4137 RON
69 1 1 SA BELL CRANK (SERVICE) (493744-00) 5591 RON
70 1 1 WEAR PLATE (490349-00) 781 RON
71 1 1 WASHER PLAIN (330016-01) 558 RON
80 1 1 SA REAR CASTING (SERVICE) (494057-00) 22144 RON
81 1 1 BAFFLE TOP HANDLE (490627-00) 893 RON
82 1 1 BEARING BALL (330003-60) 190 RON
83 1 1 SA SHOE QUADRANT (SERVICE) (N061104) 781 RON
84 1 1 DETENT (326467-00) 558 RON
85 1 1 LEVER PENDELUM (479901-00) 190 RON
86 1 1 E CLIP (571181-00) 558 RON
87 1 1 ROLLER PIN (330041-55) 558 RON
88 1 1 SA SHOE 2.3MM (496995-00) 7940 RON
89 1 1 ANTI-SPLINTER (479966-00) 781 RON
90 1 1 SHOE COVER (1005085-00) 893 RON
95 1 2 NUT HEX M5 DIN 934 (322319) 558 RON
100 1 1 SCREW M5 X 16.5 TORX/SLOTTED (571056-02) 781 RON
101 1 2 WASHER (098197-06) 558 RON
102 1 1 SHOE CLAMP PIECE (479532-00) 2347 RON
105 1 1 VAC ADAPTER L/H (1006440-00) 190 RON
105 1 1 VAC ADAPTER R/H (1006441-00) 190 RON
110 1 10 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
120 1 1 TORX WRENCH (571057-01) 893 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
817 1 1 DEWALT LABEL (479207-00) 781 RON
821 1 1 LABEL RATING DW341-GB03 (PRINT) (N086001) 558 RON
821 1 1 LABEL RATING DW341-LX03 (PRINT) (N086003) 558 RON
836 1 1 559658-99 - Indisponibil
861 1 1 KITBOX COMPACT JIGSAW (329040-11) 12861 RON
