DW331 JIGSAW Type 1
[DW331 Type 1]
DW331 JIGSAW Type 1
Click pentru a mari

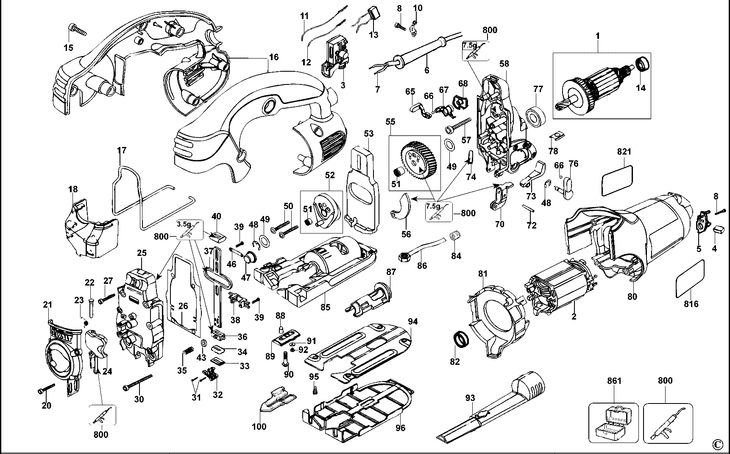

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARM AND BEARING (SERVICE) (589004-00) 28296 RON
1 1 1 SA ARM AND BEARING (SERVICE) (589004-01) 3592 RON
2 1 1 SA FIELD (SERVICE) (589006-00) 12861 RON
2 1 1 SA FIELD (SERVICE) (589006-01) 22144 RON
3 1 1 SWITCH (582822-00) 15993 RON
3 1 1 SWITCH (582822-01) 17335 RON
4 1 1 BRUSH PAIR 230V SA (SUBA) (589016-00) 2124 RON
4 1 1 BRUSH PAIR 115V (SUBA) (589016-01) 190 RON
5 1 2 SA BRUSH BOX & SPRING (583696-01) 893 RON
6 1 1 "CORD PROTECTOR EPDM 770010""" (584090-00) 1117 RON
7 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
7 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
8 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
10 1 1 CLAMP CORD (821070) 558 RON
11 1 1 LEAD WIRE RED (PURCH-UP33) (1009195-00) 781 RON
11 1 1 CHOKE RED (590091-00) 2795 RON
12 1 1 LEADWIRE (572013-03) 781 RON
12 1 1 CHOKE BLACK (590092-00) 2795 RON
13 1 1 SA CAPACITOR (589030-00) 5591 RON
13 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
14 1 1 BEARING BALL (330003-56) 4137 RON
15 1 6 SCREW (330065-07) 558 RON
16 1 1 SA HANDLE SET PACKED (588997-00) 9282 RON
17 1 1 GUARD (581269-00) 4137 RON
18 1 1 SCREEN JIGSAW (581239-01) 1788 RON
20 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
21 1 1 "CASTING FACIA""" (581577-00) 4137 RON
22 1 1 PIN ACTUATOR (584627-00) 558 RON
23 1 1 SPRING ACTUATOR (581418-00) 558 RON
24 1 1 ACTUATOR AND SPRING CLIP PACKED (589055-00) 7940 RON
25 1 1 SA GEARCASE FRONT NO PRINT (SERVICE) (N142823) 14315 RON
26 1 1 GASKET GEARCASE (581244-00) 781 RON
27 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
30 1 2 SCREW PLASTIC THREAD FORM 4.0*65 (330065-11) 781 RON
31 1 2 "BOLT M3 * 18""" (582837-00) 781 RON
32 1 1 BLADE CLAMP HD (SERVICE) (N127658) 17335 RON
33 1 1 PRESSING SEAL (582262-00) 558 RON
34 1 1 SEAL FELT (582263-00) 558 RON
35 1 1 SPRING COMPRESSION (586646-00) 558 RON
36 1 1 BOTTOM BEARING (490330-00) 105 RON
37 1 1 RECIP. SHAFT PACKED (589013-00) 4472 RON
38 1 1 CARRIER BEARING (582260-00) 2124 RON
39 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
40 1 1 TOP BEARING (490329-00) 105 RON
43 1 1 SPACER (590243-00) 1117 RON
46 1 1 CLAMP BEARING (582261-00) 558 RON
47 1 1 SA DRIVE BEARING (582257-00) 3466 RON
48 1 2 E CLIP (571181-00) 558 RON
49 1 2 WASHER M8 * 15.5 * 0.5 (582829-00) 558 RON
50 1 2 SCREW M4 (N032635) 558 RON
50 1 2 SA CRANK AND SCREWS PACKED (SERVICE) (479403-00) 10512 RON
50 1 1 SA CRANK AND SCREWS PACKED (SERVICE) (479403-00) 10512 RON
51 1 2 BEARING NEEDLE (330004-02) 1229 RON
52 1 1 SA CRANK AND SCREWS PACKED (SERVICE) (479403-00) 10512 RON
52 1 1 SA CRANK AND SCREWS PACKED (SERVICE) (479403-00) 10512 RON
53 1 1 COUNTERWEIGHT PACKED (589012-00) 9282 RON
55 1 1 SA GEAR HELICAL PACKED (589014-00) 9282 RON
56 1 1 TIMING ACTUATOR (581247-00) 2124 RON
57 1 2 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
58 1 1 SA GEARCASE AND PINS PACKED (589011-00) 3124 RON
65 1 1 LEVER AIRFLOW (581255-00) 781 RON
66 1 2 DETENT (326467-00) 558 RON
67 1 1 BODY AIRFLOW (582830-00) 781 RON
68 1 1 BAFFLE AIRFLOW (582831-00) 781 RON
70 1 1 SA SUPPORT BRACKET PACKED (589056-00) 6821 RON
72 1 1 PIN ROLLER (330041-29) 558 RON
73 1 1 NOZZLE (584450-00) 893 RON
74 1 1 PIN ROLLER (330041-49) 558 RON
76 1 1 LEVER PENDULUM (581257-00) 3018 RON
77 1 1 BEARING BALL (330003-96) 2795 RON
78 1 1 SPRING CLIP GEARCASE (584639-00) 558 RON
80 1 1 MOTOR HOUSING (581241-00) 5031 RON
81 1 1 BAFFLE CORDED JIGSAW (581240-00) 105 RON
82 1 1 CUP (930029-00) 558 RON
84 1 1 CLAMP LEVER (493248-00) 2795 RON
85 1 1 SHOE (581263-00) 5591 RON
86 1 1 CLAMP LEVER (493248-00) 2795 RON
87 1 1 DUST ADAPTOR (581266-00) 105 RON
88 1 1 BALL PLUNGER (584686-00) 1229 RON
89 1 1 CLAMP PLATE (496996-00) 1229 RON
90 1 1 BOLT M8 * 2 PITCH (582826-00) 893 RON
91 1 1 WASHER M5 * 14.5 * 1.5 (582828-00) 558 RON
92 1 1 BOLT M5 * 6MM (582827-00) 558 RON
93 1 1 VACUUM TUBE (581281-00) 2347 RON
94 1 1 SHOE SOLE PLATE (581264-00) 2795 RON
95 1 4 SCREW M4X10 JIGSAW SOLE PLATE (N056875) 558 RON
96 1 1 SOLE PLASTIC (581268-00) 1452 RON
100 1 1 GUIDE BLADE (402140-00) 893 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
816 1 1 LABEL ID DEWALT (587464-00) 781 RON
821 1 1 LABEL RATING DW331K-GB01 (PRINT) (N044920) 781 RON
821 1 1 RATING PLATE (PRINT) N (N044921) 558 RON
861 1 1 KIT BOX NO. 1 (329040-10) 14315 RON
