DW323 JIGSAW Type 1
[DW323 Type 1]

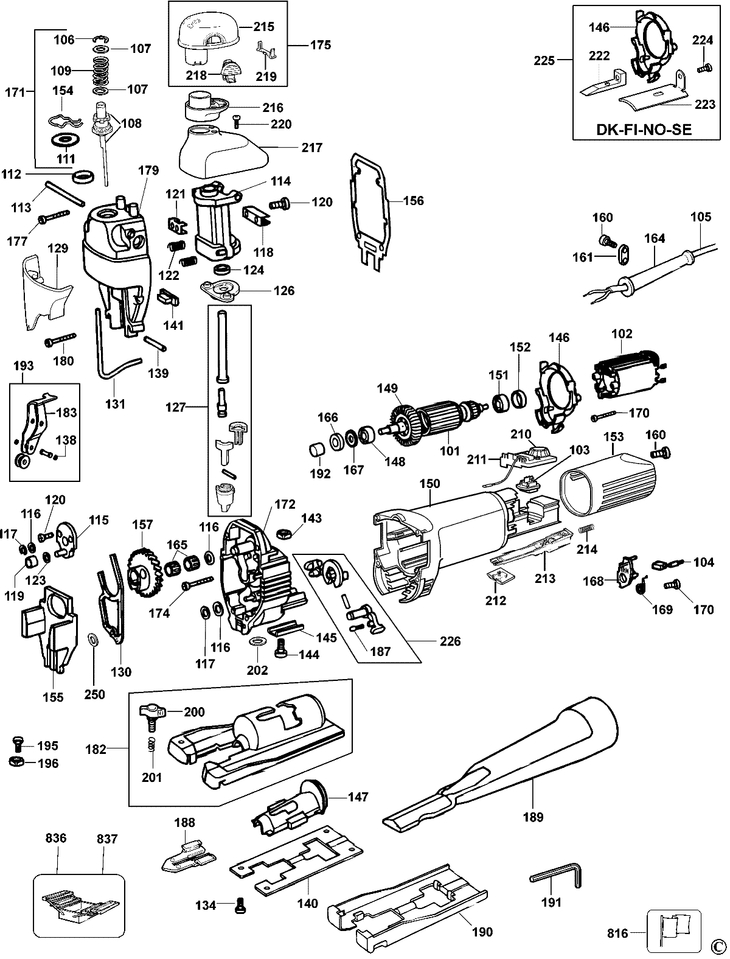

DW323 JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 000000-00 - Indisponibil
101 1 1 000000-00 - Indisponibil
102 1 1 FIELD 115V (402051-01) 10512 RON
102 1 1 000000-00 - Indisponibil
103 1 1 000000-00 - Indisponibil
104 1 2 BRUSH (930897-00) 1117 RON
104 1 2 BRUSH DW321 (930151-01) 1788 RON
105 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
105 1 1 000000-00 - Indisponibil
106 1 1 RING RADIAL SPRING D8 UNI7434 (860322-01) 558 RON
107 1 2 000000-00 - Indisponibil
108 1 1 CLUTCH SA (402960-00) 17335 RON
109 1 1 SPRING (402110-00) 781 RON
111 1 1 WASHER (949876-21) 558 RON
112 1 1 RUBBER (402154-00) 558 RON
113 1 1 PIN (402105-00) 1452 RON
114 1 1 000000-00 - Indisponibil
115 1 1 ECCENTRIC SA (402161-00SV) 4472 RON
116 1 3 WASHER (932302-00) 558 RON
117 1 2 CIRCLIP (949728-04) 558 RON
118 1 1 YOKE (402118-00) 4472 RON
119 1 1 BUSH (402155-00) 3466 RON
120 1 4 SCREW M4X10 JIGSAW SOLE PLATE (N056875) 558 RON
121 1 1 CLAMP (399146-00) 1117 RON
122 1 2 000000-00 - Indisponibil
123 1 1 WASHER (949876-20) 558 RON
124 1 1 FELT (949400-00) 558 RON
126 1 1 SEAL SA (402177-00) 3466 RON
127 1 1 SPINDLE (948603-00SV) 40599 RON
127 1 1 SPINDLE (948603-00SV) 40599 RON
129 1 1 SCREEN (389599-00) 2124 RON
130 1 1 CAM (402097-00) 2347 RON
131 1 2 GUARD (402116-00) 558 RON
134 1 4 SCREW 4 * 10 (945121-00) 558 RON
138 1 2 CIRCLIP (949728-03) 558 RON
139 1 1 PIN ROLLER (330041-29) 558 RON
140 1 1 000000-00 - Indisponibil
141 1 1 RUBBER (402151-00) 558 RON
143 1 1 NUT SQUARE MEAN M.6 UNI 5597 (860310-00) 105 RON
144 1 1 000000-00 - Indisponibil
145 1 1 PLATE (402652-00) 893 RON
146 1 1 000000-00 - Indisponibil
146 1 1 000000-00 - Indisponibil
146 1 1 000000-00 - Indisponibil
147 1 1 ADAPTOR (402176-00) 1788 RON
148 1 1 BEARING BALL 608 (330003-03) 1452 RON
149 1 1 000000-00 - Indisponibil
150 1 1 000000-00 - Indisponibil
151 1 1 BEARING D7X19X6 607-2Z C3 (330003-02) 4137 RON
152 1 1 CUP (930029-00) 558 RON
153 1 1 000000-00 - Indisponibil
154 1 1 SPRING (402111-00) 1117 RON
155 1 1 COUNTERLFLIGHT (402098-00) 5591 RON
156 1 1 000000-00 - Indisponibil
157 1 1 000000-00 - Indisponibil
160 1 3 SCREW (330065-08) 558 RON
161 1 1 CLAMP CORD (935616-00) 558 RON
164 1 1 CORD PROTECTOR (401088-01) 781 RON
165 1 2 BEARING (402091-00) 2795 RON
166 1 1 FELT (949400-03) 558 RON
167 1 1 COVER (402125-00) 558 RON
168 1 2 BRUSH HOLDER SA (949880-05) 1117 RON
169 1 2 BRUSH SPRING (930090-00) 558 RON
170 1 4 SCREW (931469-02) 558 RON
171 1 1 000000-00 - Indisponibil
172 1 1 000000-00 - Indisponibil
174 1 2 SCREW (930079-01) 558 RON
175 1 2 000000-00 - Indisponibil
177 1 2 000000-00 - Indisponibil
179 1 1 000000-00 - Indisponibil
180 1 2 SCREW (930082-01) 558 RON
182 1 1 000000-00 - Indisponibil
183 1 1 000000-00 - Indisponibil
187 1 2 DETENT (326467-00) 558 RON
188 1 1 GUIDE BLADE (402140-00) 893 RON
189 1 1 TUBE (402138-00) 1452 RON
190 1 1 000000-00 - Indisponibil
191 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
192 1 1 BUSH (402191-00) 3018 RON
193 1 1 000000-00 - Indisponibil
195 1 1 SCREW M4X15 UNI7687 (930770-00) 558 RON
196 1 1 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
200 1 1 NUT (025922908) 1229 RON
201 1 1 SPRING (868082-00) 558 RON
202 1 1 SPRING CONICAL (327012-00) 558 RON
210 1 1 000000-00 - Indisponibil
211 1 1 000000-00 - Indisponibil
211 1 1 ELECTRONIC & SWITCH ST74EK TYPE2 (402187-04) 46863 RON
212 1 1 BUTTON (402433-01) 1117 RON
213 1 1 000000-00 - Indisponibil
214 1 1 N406641 - Indisponibil
215 1 1 000000-00 - Indisponibil
216 1 1 000000-00 - Indisponibil
217 1 1 000000-00 - Indisponibil
218 1 2 000000-00 - Indisponibil
219 1 1 000000-00 - Indisponibil
220 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
222 1 1 000000-00 - Indisponibil
223 1 1 000000-00 - Indisponibil
224 1 1 SCREW M4X15 UNI7687 (930770-00) 558 RON
225 1 1 000000-00 - Indisponibil
226 1 1 REPAIR KIT (329923-49) 10512 RON
250 1 1 SPACER (609364-00) 558 RON
816 1 1 Logo Label DW801 (946194-00) 781 RON
836 1 1 559635-99 - Indisponibil
837 1 1 000000-00 - Indisponibil
