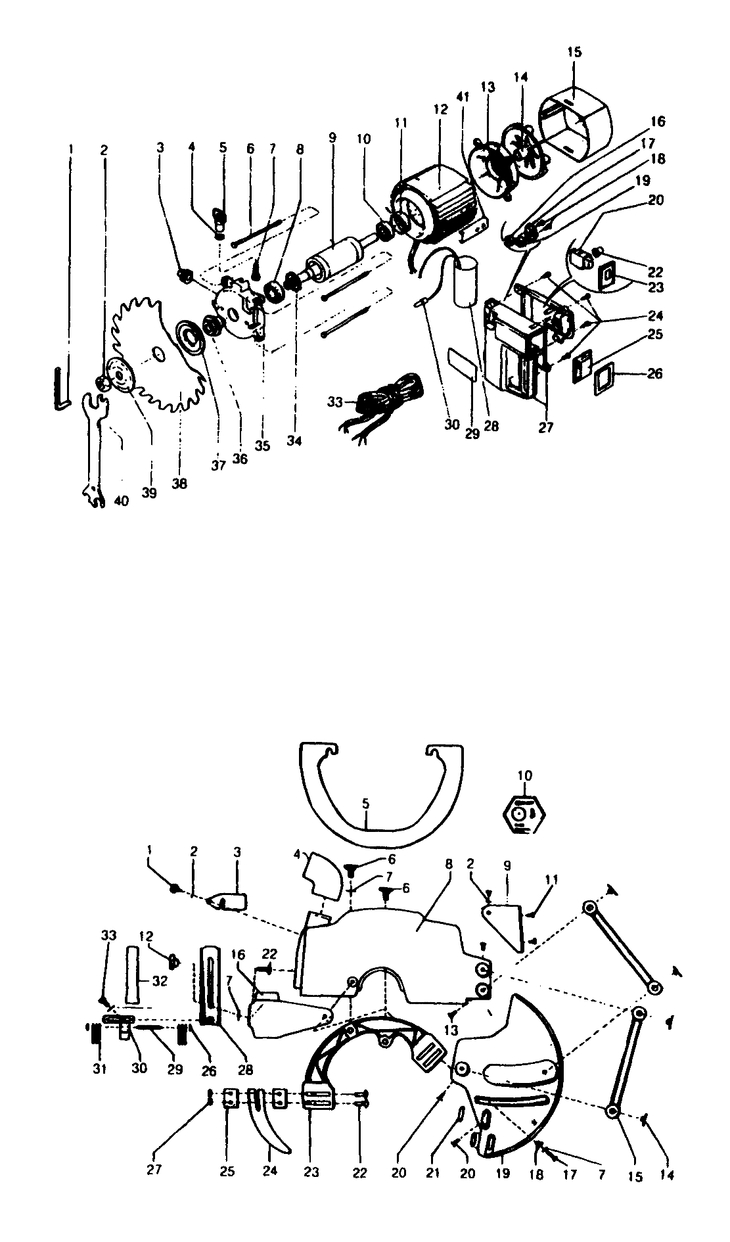

DW320-----B RADIAL ARM SAW Type 1
[DW320-----B Type 1]
DW320-----B RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 KNOB (861842-01) 1229 RON
1 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
2 1 1 NUT ARBOR M.16X1.5 LH (860126-01) 5591 RON
2 1 2 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
3 1 1 ROTATING SQUARE (863708-00) 1788 RON
3 1 1 BUSHING CABLE MOTOR DW 320 (860447-00) 4137 RON
4 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
4 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
5 1 1 REAR PROTECTION (863706-01) 7940 RON
5 1 1 NUT END HANDLE M.8X22 (860143-00) 1788 RON
6 1 3 MOTOR TIE ROD-DW320 (863015-00) 781 RON
7 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
7 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
8 1 1 BEARING (930566) 3466 RON
8 1 1 GUARD (862235-04) 26730 RON
9 1 1 GUIDE SQUARE (863707-01) 3466 RON
9 1 1 000000-00 - Indisponibil
10 1 1 000000-00 - Indisponibil
10 1 1 BEARING 6202 (868768-07) 4137 RON
11 1 2 SCREW FILL.HD M.5X8 UNI6107 (760273-00) 558 RON
12 1 1 000000-00 - Indisponibil
12 1 1 KNOB (946469-00) 781 RON
13 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
13 1 2 SCREW M5X10 (760998-00) 558 RON
14 1 4 WASHER FOR LEVER EUROG.250-300 (864053-00) 2124 RON
14 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
15 1 1 LEVER (862084-01) 3018 RON
15 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
16 1 1 GUIDE SQUARE (863775-01) 3466 RON
16 1 1 RUBBER PIECE FOR SUPPLY LINE C (863877-00) 781 RON
17 1 1 SCREW FIL.HD M.6X16 UNI6107 (860089-23) 558 RON
18 1 2 SCREW PAN.PHAB 4.2X13 UNI6954 (860084-10) 558 RON
18 1 1 FRONT PROTECT.GUIDE BUSHING (863705-00) 1117 RON
19 1 1 OUTER PROTECTION EUROG.DW1250 (862417-00) 4137 RON
19 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
20 1 1 000000-00 - Indisponibil
20 1 2 SCREW M5X10 (249412-20) 558 RON
21 1 2 SLIDING ROLLER EUROG.D.250-300 (864054-00) 1229 RON
22 1 3 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
22 1 1 000000-00 - Indisponibil
23 1 1 KNIFE HOLDER EUR. D.250 (862083-00) 14315 RON
23 1 1 000000-00 - Indisponibil
24 1 1 000000-00 - Indisponibil
24 1 4 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
25 1 1 CAP FOR SWITCH-DW320 (863849-00) 781 RON
25 1 2 30/10 RIVING KNIFE PLATE (864086-00) 105 RON
26 1 1 PLATE FOR SWITCH CAP-DW320 (863198-00) 781 RON
26 1 1 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
27 1 1 000000-00 - Indisponibil
27 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
28 1 1 CAPACITOR DW250-DW252 (949772-23) 9282 RON
28 1 1 KICK-UP SUPPORT FOR EUROGUARD (863709-00) 2795 RON
30 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
30 1 1 KICK BACK SPRING-GUARD D.300 (945632-90) 3466 RON
31 1 8 KICK-UP FINGERS DW125-111-137 (864013-00) 558 RON
32 1 1 SPACER / DUST PROTECTOR EUROGU (863703-00) 1452 RON
33 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
33 1 1 000000-00 - Indisponibil
34 1 1 RING SPRING S.LOCK HOLE ZJ-40 (860806-00) 893 RON
35 1 1 BELL FRONT END MTR DW320 CAST (860808-00) 1891 RON
36 1 1 INNER FLANGE DW320 (863266-00) 9282 RON
39 1 1 FLANGE DW320 (861241-00) 190 RON
40 1 1 000000-00 - Indisponibil
41 1 1 000000-00 - Indisponibil
42 1 1 CONNECTOR MAMMUT -DW320 (949784-06) 558 RON
43 1 1 000000-00 - Indisponibil
44 1 1 KEY WOODRUFF 4X5 UNI 6606 (860318-01) 781 RON
