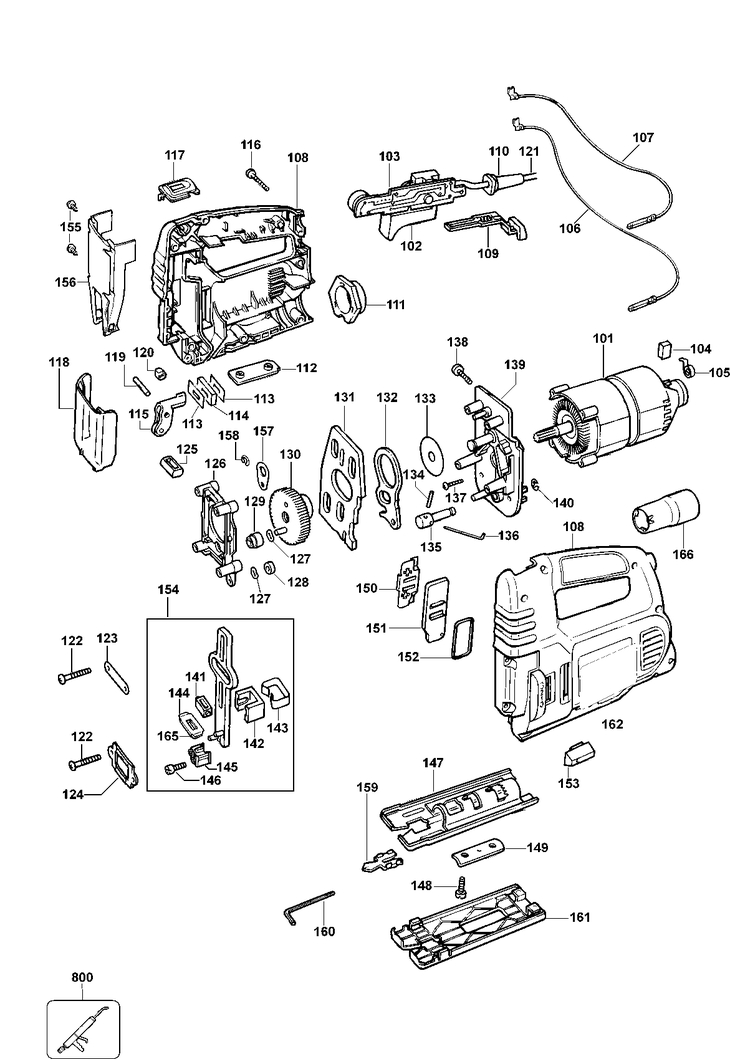

DW320-----D JIGSAW Type 1
[DW320-----D Type 1]
DW320-----D JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA MOTOR+GEARBOX 230V (SERVICE) (478142-00) 86681 RON
101 1 1 000000-00 - Indisponibil
101 1 1 000000-00 - Indisponibil
101 1 1 000000-00 - Indisponibil
102 1 1 SWITCH. BLACK (795668-02) 2795 RON
103 1 1 S.A. P.C.B. (795690-01) 10512 RON
103 1 1 000000-00 - Indisponibil
104 1 2 CARBON BRUSH (832998-07) 558 RON
105 1 2 Spring KR500 (747634) 558 RON
106 1 1 S.A. LEADWIRE (811562) 781 RON
106 1 1 SA LEAD WIRE (811593) 781 RON
107 1 1 S.A. LEADWIRE (811563) 781 RON
107 1 1 SA LEAD WIRE (811592) 781 RON
108 1 1 CLAMSHELL SET (368600-11) 10512 RON
109 1 1 SA BUTTON BLACK (795876-00) 781 RON
110 1 1 CORD PROTECTOR (770235) 558 RON
111 1 1 OUTLET. VACUUM (805156) 558 RON
112 1 1 NUT. SHOE (795666) 781 RON
113 1 2 SEAL PLATE (795656) 558 RON
114 1 1 000000-00 - Indisponibil
115 1 1 SA ACTUATOR (795670) 5591 RON
116 1 7 SCREW NO.8 X 19 POLY (809961) 558 RON
117 1 1 CLAMSHELL INSERT (795877-00) 781 RON
118 1 1 GUARD (795881) 190 RON
119 1 1 NEEDLE ROLLER (795699) 558 RON
120 1 2 AXLE BLOCK (795673) 781 RON
121 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
121 1 1 330061-07 - Indisponibil
122 1 4 SCREW M4*34 PAN HEAD (807025) 781 RON
123 1 1 CLAMP (795647) 558 RON
124 1 1 RETAINER CARRIER (795682) 558 RON
125 1 1 TOP BEARING (795680) 893 RON
126 1 1 CASTING RECIP. SHAFT (795651) 1452 RON
127 1 2 SPRING WASHER (823954) 558 RON
128 1 1 SPACER (795708-01) 558 RON
129 1 1 000000-00 - Indisponibil
129 1 1 000000-00 - Indisponibil
129 1 1 ROLLER DRIVE (795688-00) 1229 RON
130 1 1 SA GEAR (SPUR) (374289) 10512 RON
130 1 1 SA MOTOR+GEARBOX 230V (SERVICE) (478142-00) 86681 RON
130 1 1 000000-00 - Indisponibil
131 1 1 000000-00 - Indisponibil
132 1 1 FORK (795679) 190 RON
133 1 1 000000-00 - Indisponibil
134 1 1 000000-00 - Indisponibil
135 1 1 000000-00 - Indisponibil
135 1 1 SHAFT (375357) 781 RON
136 1 1 SELECTOR ROD (795675) 558 RON
137 1 4 SCREW (747329) 558 RON
138 1 2 SCREW 8-16 X 3/4 (849256) 558 RON
139 1 1 000000-00 - Indisponibil
139 1 1 SA GEARCASE ( SERVICE ) (584392-01) 7940 RON
140 1 1 000000-00 - Indisponibil
141 1 1 000000-00 - Indisponibil
142 1 1 BEARING CARRIER (795645) 2124 RON
143 1 1 000000-00 - Indisponibil
144 1 1 000000-00 - Indisponibil
145 1 1 000000-00 - Indisponibil
145 1 1 BLADE CLAMP BLACK (368382-01) 781 RON
146 1 2 SCREW M4*14 TORX / SLOTTED (571055-00) 558 RON
147 1 1 000000-00 - Indisponibil
148 1 1 SCREW M5 X 14 TORX / SLOTTED (571056-00) 558 RON
148 1 1 SCREW M5 X 14 TORX / SLOTTED (571056-00) 558 RON
149 1 1 000000-00 - Indisponibil
150 1 1 SPRING (795687) 558 RON
151 1 1 CARRIER. BLACK (795685-00) 893 RON
152 1 1 SEAL. CARRIER (795684) 781 RON
153 1 1 KNOB. BLACK (795686-00) 558 RON
154 1 1 SA RECIP. SHAFT (376752-01) 15993 RON
155 1 4 SCREW NO.6 X 12.7 (821057) 558 RON
156 1 1 CASTING. FRONT (795880-01) 7940 RON
157 1 1 SPACER (795708-01) 558 RON
157 1 1 000000-00 - Indisponibil
157 1 1 000000-00 - Indisponibil
158 1 1 000000-00 - Indisponibil
159 1 3 000000-00 - Indisponibil
160 1 1 TORX WRENCH (571057-01) 893 RON
160 1 1 TORX WRENCH (571057-01) 893 RON
161 1 1 COVER. SHOE (806485) 2795 RON
162 1 1 BRAND LABEL (578744-00) 893 RON
165 1 1 SEAL (795694) 558 RON
166 1 1 ADAPTOR VACUUM (798010) 1229 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
