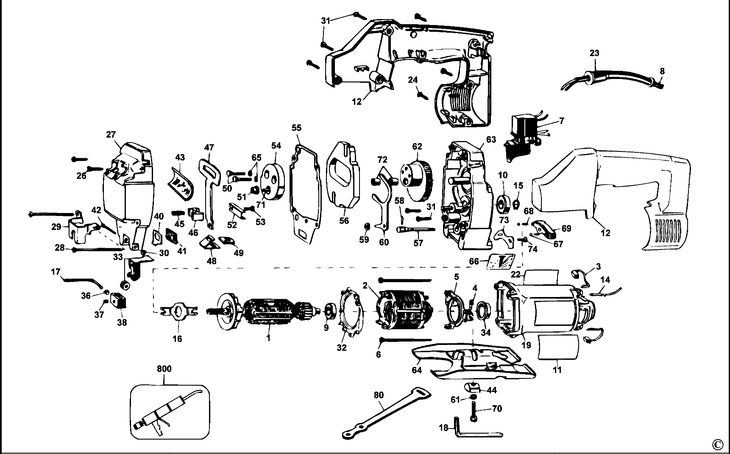

DW318 JIGSAW Type 1
[DW318 Type 1]
DW318 JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 5140006-40 - Indisponibil
1 1 1 MOTOR SA 230V (5140006-41) 3592 RON
1 1 1 MOTOR SA 230V (5140006-41) 3592 RON
2 1 1 MOTOR SA 230V (5140006-41) 3592 RON
3 1 2 BRUSH 115V (445861-25) 190 RON
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING (449899-05) 190 RON
6 1 2 SCREW (445880-00) 558 RON
7 1 1 000000-00 - Indisponibil
7 1 1 000000-00 - Indisponibil
8 1 1 000000-00 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BALL BEARING (330003-08) 3018 RON
11 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
12 1 1 603209-00 - Indisponibil
14 1 2 TERMINAL (449192-00) 558 RON
15 1 1 RETAINING RING (444793-00) 558 RON
16 1 1 445874-00 - Indisponibil
17 1 1 000000-00 - Indisponibil
18 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
19 1 1 FIELDCASE (445857-03) 3018 RON
22 1 1 000000-00 - Indisponibil
23 1 1 PROTECTOR CORD (330005-01) 105 RON
24 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
26 1 2 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
27 1 1 000000-00 - Indisponibil
28 1 2 330019-27 - Indisponibil
29 1 1 400765-00 - Indisponibil
30 1 1 CIRCLIPS (133825-00) 558 RON
31 1 7 SCREW (330019-14) 558 RON
32 1 1 BAFFLE (445876-00) 781 RON
33 1 1 000000-00 - Indisponibil
34 1 1 SLEEVE (445217-02) 781 RON
36 1 1 SCREW (445405-00) 558 RON
37 1 1 SCREW (330022-16) 558 RON
38 1 1 000000-00 - Indisponibil
40 1 1 SHIELD (133751-00) 558 RON
41 1 1 GASKET (133755-00) 781 RON
42 1 1 PIN (133820-00) 558 RON
43 1 1 000000-00 - Indisponibil
44 1 1 COLLAR (133750-00) 781 RON
45 1 1 SPRING (49161-00) 558 RON
46 1 1 BEARING (133756-00) 781 RON
47 1 1 YOKE BAR (445387-00) 3466 RON
48 1 1 PLATE (450285-00) 781 RON
49 1 1 GASKET (133807-00) 558 RON
50 1 2 000000-00 - Indisponibil
51 1 1 ROLLER (620203-00) 105 RON
52 1 1 PLATE (133844-00) 558 RON
53 1 1 SCREW.TEMP (330045-05) 558 RON
54 1 1 PLATE (133828-01SV) 4472 RON
55 1 1 GASKET (133765-00) 558 RON
56 1 1 COUNTERWEIGHT (133761-00) 3466 RON
57 1 1 POD (429882-64) 5031 RON
58 1 1 PIN (98185-20) 558 RON
59 1 1 WASHER (330015-07) 558 RON
60 1 1 FORK (133799-00) 4137 RON
61 1 1 WASHER (98198-05) 558 RON
62 1 1 GEAR SA (133827-02SV) 17335 RON
63 1 1 000000-00 - Indisponibil
64 1 1 SHOE (133770-00) 2795 RON
65 1 2 WASHER (445687-00) 558 RON
66 1 1 000000-00 - Indisponibil
67 1 2 BALL STEEL (475-00) 558 RON
68 1 2 604892-00 - Indisponibil
69 1 1 KNOB (448809-00) 893 RON
70 1 1 98121-31 - Indisponibil
70 1 1 98121-31 - Indisponibil
71 1 1 PIN (386700-00) 558 RON
72 1 2 BEARING NEEDLE (330004-06) 1452 RON
73 1 1 QUADRANT (449977-00) 558 RON
74 1 1 SCREW (80164-00) 558 RON
80 1 1 HOLDER (65288-02) 558 RON
800 1 1 GREASE (761995-01) 23598 RON
