DW302 RECIPROCATING SAW Type 1
[DW302 Type 1]

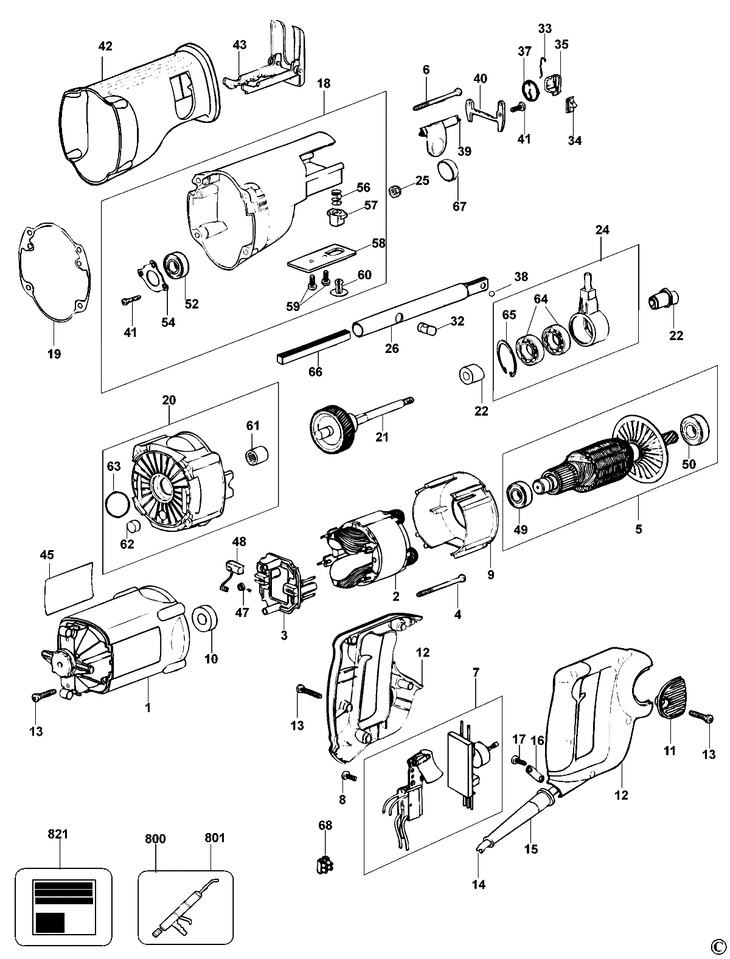

DW302 RECIPROCATING SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIELDCASE dw309k (382748-02) 15993 RON
2 1 1 FIELD DW309K (381711-01) 11519 RON
3 1 1 BRUSHPLATE DW309K (383597-03) 7940 RON
4 1 2 SCREW PLASTITE (330019-19) 781 RON
5 1 1 ARMATURE DW309K (383392-01) 39145 RON
6 1 4 SCREW PLSTC THD FRM M4.55X78 T20 (330019-34) 558 RON
8 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
9 1 1 BAFFLE FAN DW309K (382750-01) 1788 RON
10 1 1 SLEEVE (137382-02) 558 RON
11 1 2 COVER BRUSH DW309K (382751-00) 781 RON
12 1 1 CLAMSHELL DW309K (384177-00) 15993 RON
13 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
15 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD CLAMP DW309K (380414-00) 558 RON
17 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
18 1 1 GEARCASE DW309K (385721-00) 34336 RON
19 1 1 GASKET DW309K (383752-00) 1788 RON
20 1 1 GEARCASE COVER DW309K (385720-00) 3592 RON
21 1 1 000000-00 - Indisponibil
22 1 1 DRIVER SA (397097-00) 15993 RON
24 1 1 000000-00 - Indisponibil
25 1 1 NUT (395918-00) 558 RON
26 1 1 SHAFT (623504-00) 23598 RON
32 1 1 AXLE (382187-00) 3466 RON
33 1 1 LOCK PIN (620663-00) 781 RON
34 1 1 SLIDE (383749-01) 190 RON
35 1 1 BLADE CLAMP (604731-00) 5031 RON
37 1 1 SPRING BLADE CLAMP (623343-00) 781 RON
38 1 1 BALL (903-00) 558 RON
39 1 1 LEVER DW008K (391452-00) 3018 RON
40 1 1 RETAINING PLATE DW309K (383745-00) 893 RON
41 1 3 SCREW.TEMP (330045-05) 558 RON
42 1 1 BOOT DW309K (384023-00) 5031 RON
43 1 1 SHOE DW309K (383435-00) 7940 RON
45 1 1 BRAND LABEL (627212-00) 781 RON
47 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
49 1 2 BEARING BALL (330003-09) 2795 RON
50 1 1 BEARING BALL (330003-09) 2795 RON
52 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
54 1 1 RETAINING PLATE DW309K (384466-00) 781 RON
56 1 1 SPRING dw309k (45550-00) 558 RON
57 1 1 PIN (613056-00) 781 RON
58 1 1 SPACER DW008K (389999-00) 105 RON
59 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
60 1 1 BUTTON DW309K (384405-00) 781 RON
61 1 1 BEARING NEEDLE (330004-02) 1229 RON
62 1 1 PLUG DW309K (384401-00) 558 RON
63 1 1 SEAL DW290 (99180-24) 558 RON
64 1 2 BEARING BALL 153209 (330003-12) 2795 RON
65 1 1 CIRCLIP (99022-02) 781 RON
66 1 1 OILER DW309K (387262-00) 105 RON
67 1 1 CAP (383227-00) 781 RON
68 1 1 BLOCK TERMINAL (320078-00) 1452 RON
800 1 1 GREASE (286436-00) 70239 RON
801 1 1 GREASE (429698-00) 62298 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
