Top » Piese de schimb » PIESE DEWALT » DW294 Type 1

DW294 IMPACT WRENCH Type 1
[DW294 Type 1]

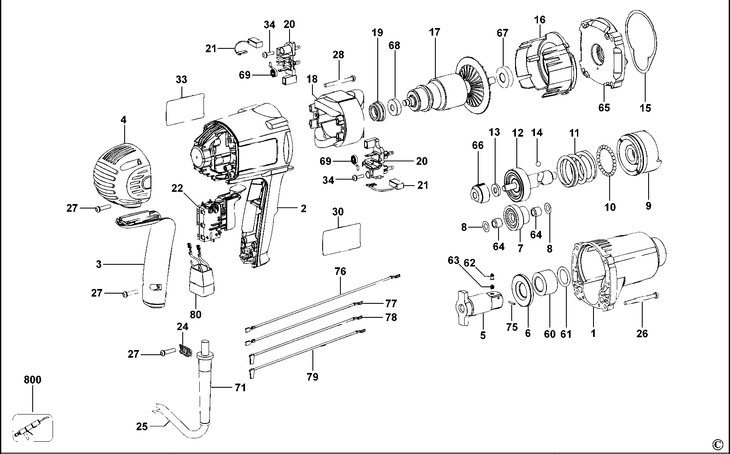

DW294 IMPACT WRENCH Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (621136-00) 14315 RON
2 1 1 FIELDCASE (616828-05) 6821 RON
3 1 1 HANDLE COVER (616829-01) 3466 RON
4 1 1 END CAP (616830-00) 2124 RON
5 1 1 ANVIL ASSEMBLY (621005-00SV) 65989 RON
6 1 1 WASHER THRUST (621046-00) 1452 RON
7 1 1 GEAR PINION (135093-01SV) 9282 RON
8 1 2 WASHER DW290 (135089-00) 558 RON
9 1 1 IMPACTOR (628129-00) 22144 RON
10 1 25 BALL STEEL (475-00) 558 RON
11 1 1 SPRING (618843-00) 2347 RON
12 1 1 GEAR & CAM SA (659923-00) 15993 RON
13 1 1 WASHER DW290 (450667-00) 2347 RON
14 1 2 BALL STEEL (618844-00) 558 RON
15 1 1 GASKET (616847-00) 558 RON
16 1 1 BAFFLE FAN (655537-00) 1452 RON
17 1 1 ARMATURE KIT 220 (5140071-79) 26730 RON
17 1 1 ARMATURE 115V (658751-00SV) 25164 RON
18 1 1 FIELD (617862-01SV) 12861 RON
18 1 1 FIELD 115V (617862-00) 10512 RON
19 1 1 SLEEVE (445217-02) 781 RON
20 1 2 BRUSH HOLDER (616857-00) 3018 RON
21 1 2 BRUSH 230V SA (617848-03) 2347 RON
21 1 2 BRUSH 115V (655213-02) 190 RON
22 1 1 SWITCH (616849-00) 12861 RON
24 1 1 CORD CLAMP (450877-00) 558 RON
25 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
25 1 1 CORDSET (M/PLUG) (330061-10) 12861 RON
26 1 4 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
27 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
28 1 2 SCREW (330019-17) 558 RON
30 1 1 RATING PLATE (N031301) 781 RON
30 1 1 RATING PLATE (N031302) 1229 RON
33 1 1 IDENTITY LABEL (605523-00) 781 RON
34 1 2 SCREW (176951-00) 558 RON
60 1 1 SLEEVE (619367-00) 2347 RON
61 1 1 O RING (621128-00) 558 RON
62 1 1 PIN DETENT cod vechi 143891-00 (N020802) 1452 RON
63 1 1 SPRING CPRSN (038769-00) 781 RON
64 1 2 BEARING NEEDLE (330004-02) 1229 RON
65 1 1 616823-00SV - Indisponibil
66 1 1 BEARING BLOCK (616841-00) 1788 RON
67 1 1 616823-00SV - Indisponibil
68 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
69 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
71 1 1 PROTECTOR CORD (330005-01) 105 RON
71 1 1 PROTECTOR (148809-00) 781 RON
75 1 1 PIN (46376-00) 558 RON
76 1 1 LEAD BLUE (616852-00) 105 RON
77 1 1 LEAD WHITE (616852-01) 105 RON
78 1 1 LEAD BLACK (616852-02) 1117 RON
79 1 1 LEAD RED (616852-03) 1117 RON
80 1 1 FILTER (623976-00) 12861 RON
800 1 1 GREASE (429698-00) 62298 RON
